Side 1/3

quickstart guide

CBLR Series

www.crestron.com

888.273.7876 201.767.3400

Specifications subject to

change without notice.

CBLR Series

QUICKSTART DOC. 7245C (2032356, Sheet 1 of 2) 02.14

Cable Retractors for FlipTops™

For regulatory compliance information, refer to Doc. 7475.

NOTE: For preparation of FlipTop 600 Series models, refer to “Modify the FlipTop

(FlipTop 600 Series)” in the third column on this page.

Crestron

cable retractors provide a

convenient cable management solution

for use with most Crestron FlipTops™.

This solution allows a user to simply

reach into the FlipTop™ compartment

and pull out any cable to the desired

length. Each cable can be pulled out up

to 3 feet (0.9 meter). A simple press of

the easy-access lever retracts the cable

back into the compartment.

Each Crestron cable retractor features a patent-pending mechanism that dampens the rate of retrac-

tion to prevent the cable from whipping as it is pulled back into the FlipTop storage compartment. The

retraction speed is installer adjustable to ensure full and effortless retraction without excessive force.

Up to three or four cable retractors can be installed depending on the FlipTop model. Blank inserts

(CBLRA-INSERT-BLANK*) are required to fill any unused positions. As an alternative to a blank insert,

a 2-wire insert (CBLRA-INSERT-2WIRE* or FTA-CBLRA-INSERT-2WIRE-102*) is also offered to

accommodate additional non-retracting cables if needed.

Preparation

Preparation consists of:

• Modifying the FlipTop assembly to accommodate the cable retractors.

• Determining the desired mounting orientation. (Retractors are shipped configured for

horizontal orientation, but are easily reconfigured for vertical orientation.)

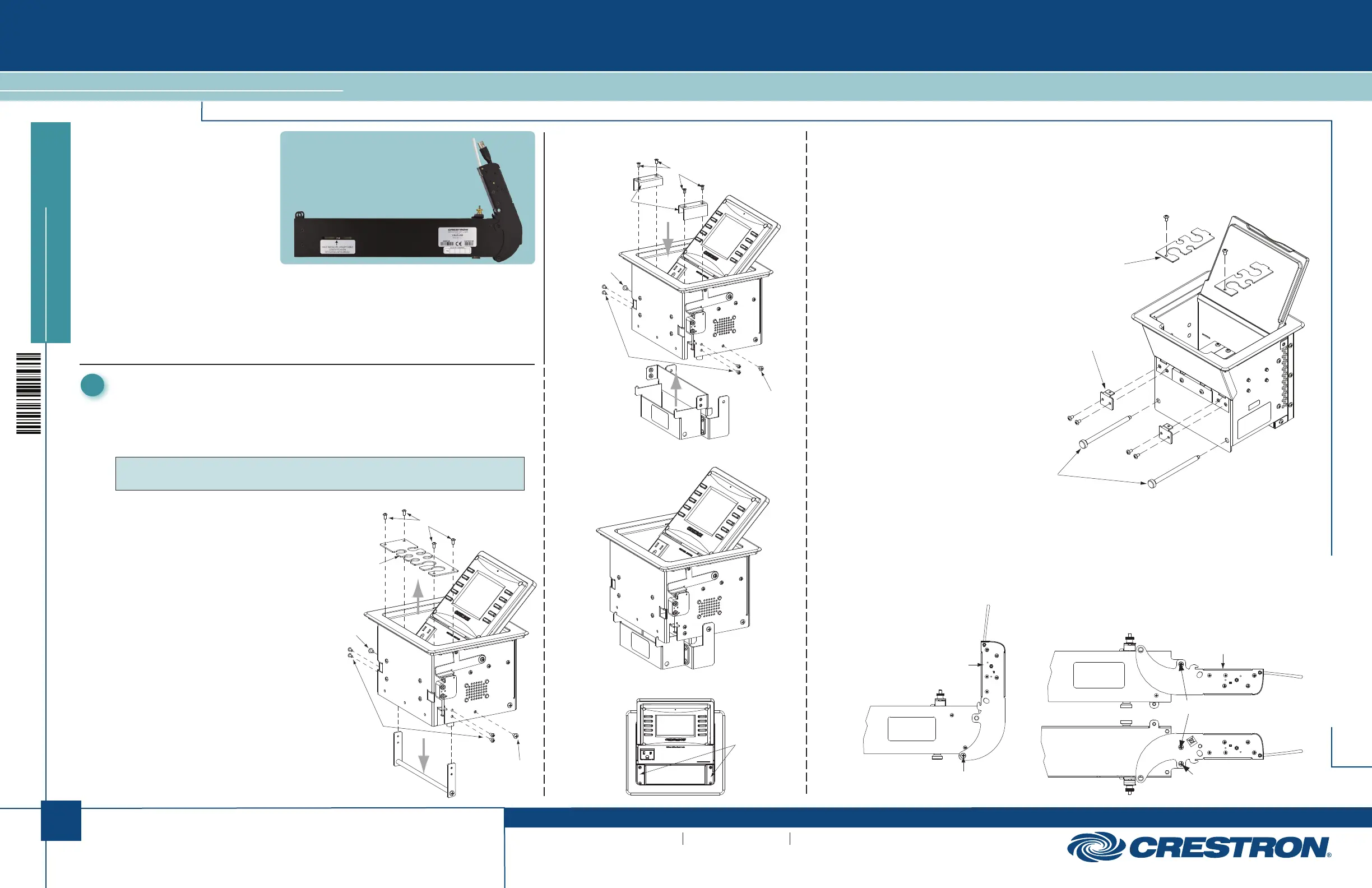

Modify the FlipTop (Non-FlipTop 600 Series)

1. Remove four screws A to detach

the lower bar assembly. Also remove

two screws B. Retain screws A and B

to attach the FlipTop mounting bracket

assembly. Refer to the FlipTop mounting

brackets table provided in section

➍ to

ensure that the mounting bracket received is

appropriate for the FlipTop being modified.

2. Remove four screws C to remove the

cable guide. Retain the screws to

attach the two side filler plates*.

3. Move the mounting bracket assembly

up into position and secure using four

screws A and two screws B.

4. Place the side filler plates in position

and secure using four screws C.

Mounting

Bracket

Assembly

Screws A

Screw B

Screws C

Attachment of Mounting Bracket

Assembly and Side Filler Plates

Side Filler

Plates

Removing Cable Guide and Lower Bar Assembly

Lower Bar

Assembly

Cable

Guide

Screws A

Screw B

Screws C

Mounting Bracket Assembly Installed

Mounting

Bracket

Assembly

Side Filler Plates Installed

Side Filler

Plates

Modify the FlipTop (FlipTop 600 Series)

Retractors can be installed in both the left and right sides of the FlipTop 600 Series models.

1. Remove the screw holding the cable guide in place, then remove the cable guide.

2. Remove the screws holding the cable pass-through bracket in place, then remove the cable

pass-through bracket.

3. Remove the shoulder screws from the front of the unit.

Save these as they are used in retractor installation.

* Item(s) sold separately.

Reconfigure Retractors for Vertical Operation

To reconfigure the retractors for vertical orientation, refer to the illustration below and do the following:

1. Remove the two screws D, one from each side of the retractor, attaching the neck in the horizontal

orientation.

2. Reposition the neck as shown in the vertical orientation view and attach using the two screws D

plus a third screw E (1/4 in, 6-32, flathead, supplied) to secure the neck in that position.

(2) Screws D

(One on Each Side)

Horizontal Orientation

Vertical Orientation

(2) Screws D

(1) Supplied Screw

Side View

Reverse Side

Retractor

Neck

Retractor

Neck

Cable Guide

Cable Pass-Through Bracket

Shoulder Screws

quickstart guide

CBLR Series

www.crestron.com

888.273.7876 201.767.3400

Specifications subject to

change without notice.

CBLR Series

QUICKSTART DOC. 7245C (2032356, Sheet 1 of 2) 02.14

Cable Retractors for FlipTops™

For regulatory compliance information, refer to Doc. 7475.

NOTE: For assembly of FlipTop 600 Series models, refer to “Attach Cable Retractors to

the FlipTop (FlipTop 600 Series)” in the third column on this page.

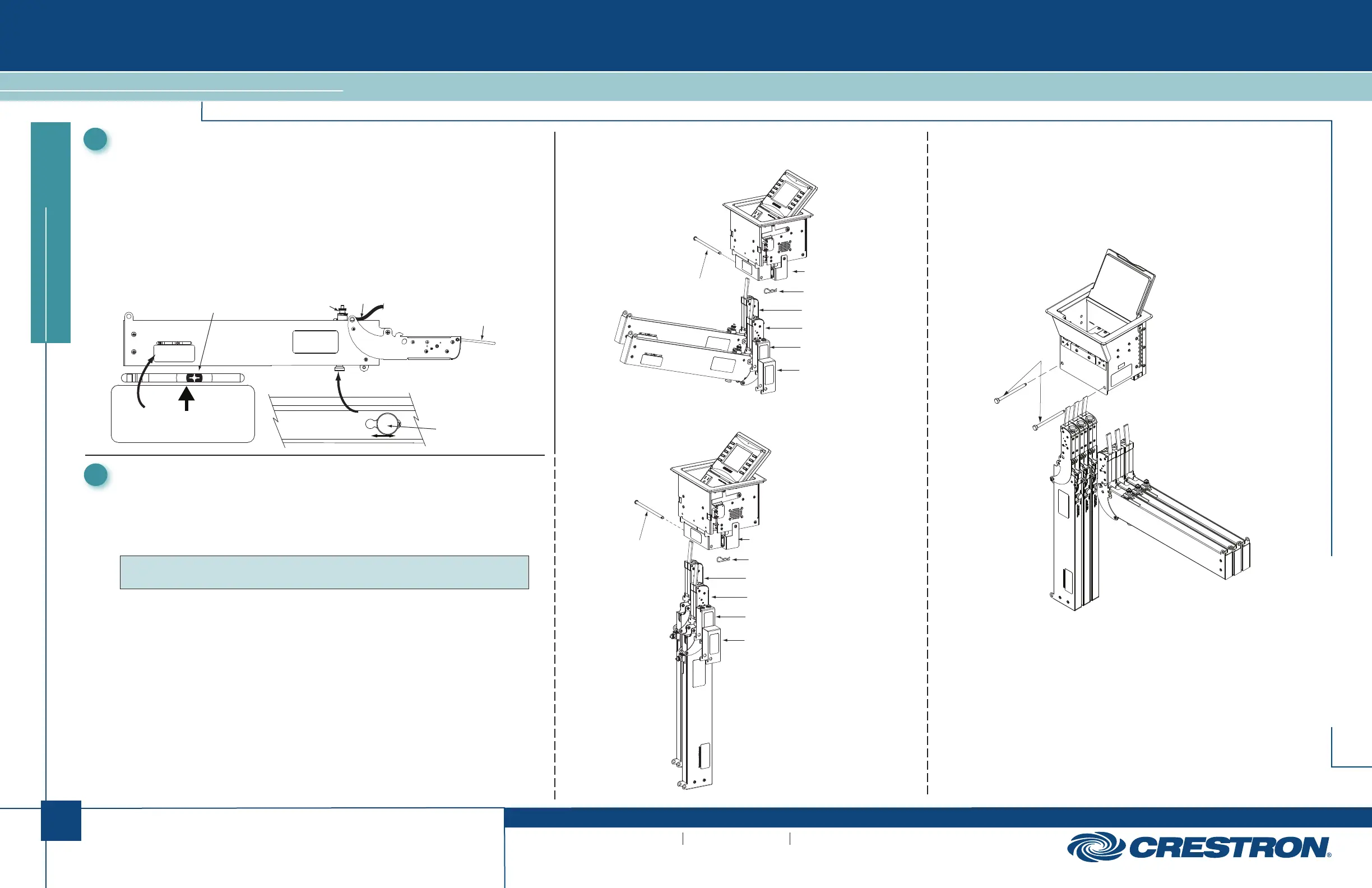

Typical Assembly (Horizontal Orientation)

Retractor ‘A’

Retractor ‘B’

2-Wire Spacer

Blank Spacer

Clevis Pin

Hairpin

Cotter Pin

Mounting

Bracket

Assembly

Retractor ‘A’

Retractor ‘B’

2-Wire Spacer

Blank Spacer

Clevis Pin

Hairpin

Cotter Pin

Mounting Bracket

Assembly

Typical Assembly (Vertical Orientation)

Adjustments

Once the retractor arm configuration is set, refer to the following illustration and adjust

retractor arm tension and cable retraction speed as follows:

1. Adjust retractor tension by loosening the top thumb screw enough to enable pulling or

pushing the adjacent cable end to align the red screw with the label arrow.

2. Adjust cable retraction speed by first pulling the knob outward and moving it to the VERT

or HORZ position to match the configuration of the retractor arms.

a. Pull the cable (plug end) out so it is fully extended.

b. Press the retraction lever and observe the speed of the cable retraction. If

it is too slow or too fast, reposition the knob to an intermediate position and recheck.

ONCE INSTALLED, USE TOP THUMB

SCREW TO ADJUST CABLE LENGTH UNTIL

RED SCREW IS ALLIGNED WITH ARROW

Thumb Screw

Cable End

SLOW

HORZ

CABLE RETRACTION

SPEED ADJUST

VERT

FAST

Knob

Red Screw

Retraction

Lever

Adjusting Retractor Tension and Retraction Speed

Assembly

Assembly consists of:

• Attaching the cable retractors to the FlipTop box

• Attaching the horizontal mounting bracket and

connecting the retractor arms for horizontal orientation

During the following procedures, refer to the accompanying illustrations.

Attach Cable Retractors to the FlipTop (Non-FlipTop 600 Series)

1. Insert the necks of the retractors and any included spacers up and into the mounting

bracket assembly until they engage the frame of the assembly.

2. Carefully slide the clevis pin through the hole in the side of the mounting bracket

assembly and through each item being mounted until it protrudes through the opposite

side of the assembly.

3. Insert the supplied hairpin cotter pin into the hole in the clevis pin to secure it.

4. Tighten the screws in the neck assemblies so they are just snug against the clevis pin.

(Shown in “Attach the Horizontal Mounting Bracket” on page 3.)

Attach Cable Retractors to the FlipTop (FlipTop 600 Series)

1. Insert the necks of the retractors into the FlipTop until they engage

the frame of the assembly.

2. Insert the shoulder screws in the front of the FlipTop.

3. Tighten each individual set screw on the retractors.

Shoulder Screws

Attach the Cable Retractors (FlipTop 600 Series)
