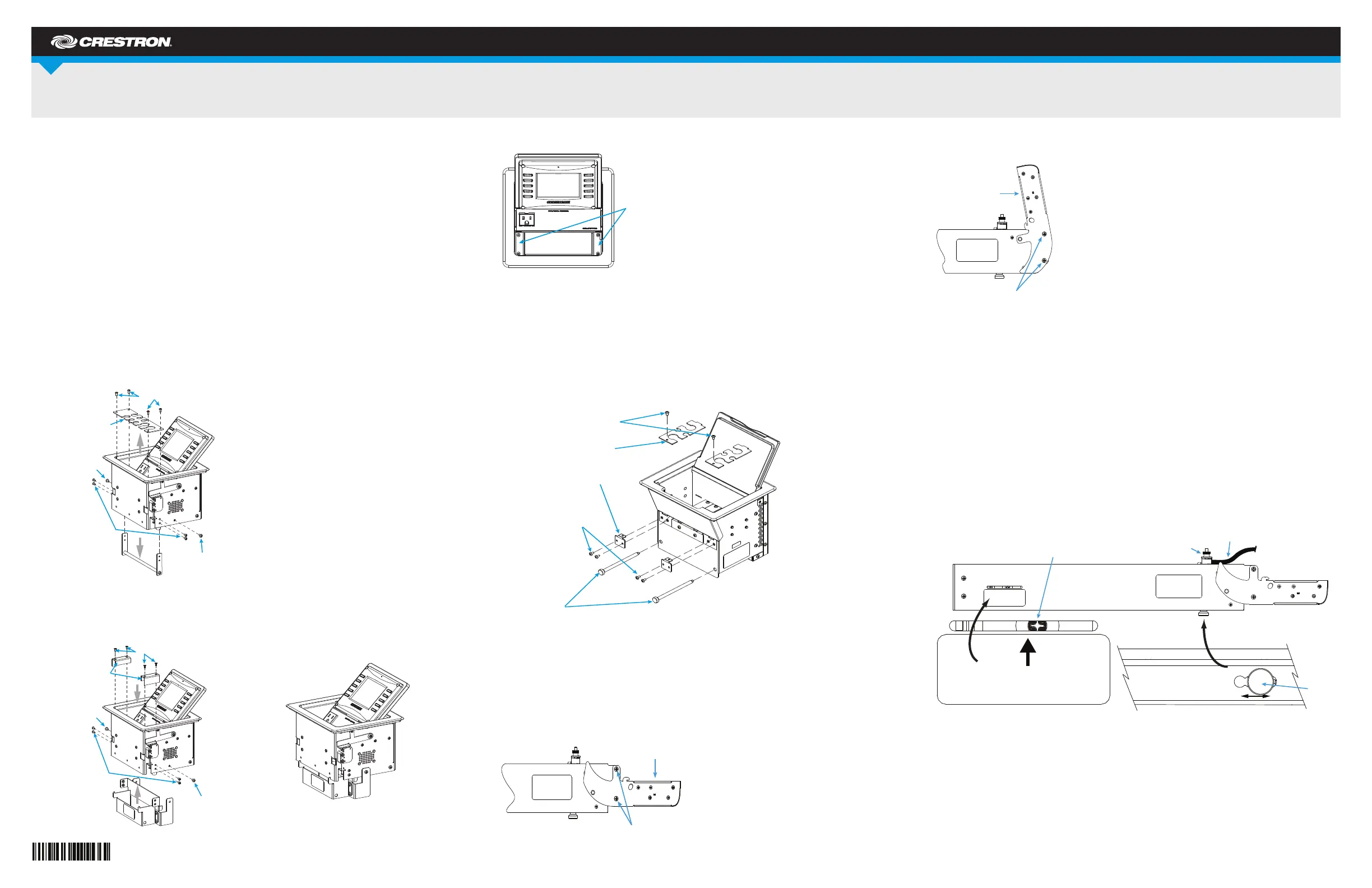

DO GUIDE

CBLR2 Series

Cable Retractors for FlipTopsTM

DO Prepare the FlipTop

Preparation of the Crestron® FlipTop™ consists of the following:

• Modifying the FlipTop assembly to accommodate the cable retractors

• Determining the desired mounting orientation (Retractors are shipped congured for vertical

orientation, but are easily recongured for horizontal orientation.)

NOTE: The CBLR2-DP-V and CBLR2-DP-H models are dedicated to vertical and horizontal

orientation, respectively.

NOTE: For preparation of the FlipTop 600 Series models, refer to “Modify the FlipTop (FlipTop 600

Series Models).”

Modify the FlipTop (Excludes FlipTop 600 Series Models)

1. Remove four screws (A) to detach the lower bar assembly. Also remove two screws (B). Retain

screws A and B to attach the FlipTop mounting bracket assembly. Refer to the FlipTop mounting

brackets table provided in the “DO Check the Accessories” section on the next page to ensure

that the mounting bracket received is appropriate for the FlipTop being modied.

2. Remove four screws (C) to detach the cable guide. Retain the screws to attach the two side ller

plates (sold separately).

3. Move the mounting bracket assembly up into position and secure it using four screws (A) and two

screws (B) removed in step 1.

4. Position the side ller plates and secure them using four screws (C).

Modify the FlipTop (FlipTop 600 Series Models)

Retractors can be installed in both the left and right sides of the FlipTop 600 Series models.

1. Remove the screw (C) holding the cable guide in place, and then remove the cable guide.

2. Remove the screws (D) holding the cable pass-through bracket in place, and then remove the

cable pass-through bracket.

3. Remove the shoulder screws from the front of the unit. Save these as they are used in retractor

installation.

Recongure the Retractors for Horizontal Operation

NOTE: The CBLR2-DP-V and CBLR2-DP-H models are dedicated to vertical and horizontal

orientation, respectively.

To recongure the retractors for horizontal orientation, refer to the following illustrations and perform

these steps:

1. Remove the four screws (E), two from each side of the retractor, that attach the neck in the vertical

orientation.

2. Reposition the neck as shown in the horizontal orientation view and attach it using the four screws

(E) to secure the neck in that position.

DO Adjust the Retractor

Once the retractor arm conguration is set, refer to the following illustration and adjust the retractor

arm tension and cable retraction speed as follows:

1. Adjust the retractor tension by loosening the top thumb screw enough to enable pulling or pushing

of the adjacent cable end. Align the red screw with the label arrow.

2. Adjust the cable retraction speed.

a. Pull the knob outward and move it to the VERT or HORZ position to match the conguration

of the retractor arms.

b. Pull the cable (plug end) out so it is fully extended.

c. Pull the cable a second time to cause it to retract, and observe the speed of the cable

retraction. If it is too slow or too fast, reposition the knob to an intermediate position and

recheck.

Mounting

Bracket

Assembly

Side Filler Plates

(4) Screws (E)

(Two on Each Side)

Side View

Retractor Neck

(4) Screws (E)

(Two on Each Side)

Side View

Retractor Neck

Thumb Screw

Cable End

HORZ

VERT

Knob

Red Screw

Once installed, use the top thumb screw

to adjust the cable length until the red

screw is aligned with the arrow.

Cable Retraction

Speed Adjustment Slow Fast

Mounting

Bracket

Assembly

Screws (A)

Screw (B)

Screws (C)

Side Filler

Plates

Cable Guide

Cable Pass-Through Bracket

Shoulder Screws

Screws (C)

Screws (D)

Lower Bar

Assembly

Cable

Guide

Screws (A)

Screw (B)

Screws (C)

DO GUIDE DOC. 7711A (2042317) 10.14

Specications subject t o change without notice.

DO Attach the Retractors

The nal assembly consists of attaching the cable retractors to the FlipTop box.

During the following procedures, refer to the accompanying illustrations.

Attach the Cable Retractors to the FlipTop (Excludes FlipTop 600 Series Models)

1. Insert the necks of the retractors and any included spacers up and into the mounting bracket

assembly until they engage the frame of the assembly.

2. Carefully slide the clevis pin through the hole in the side of the mounting bracket assembly

and then through each item being mounted until it protrudes through the opposite side of the

assembly.

3. Insert the supplied hairpin cotter pin into the hole in the clevis pin.

4. Tighten the screws in the neck assemblies so they are just snug against the clevis pin.

Attach the Cable Retractors to the FlipTop (FlipTop 600 Series Models)

1. Insert the necks of the retractors into the FlipTop until they engage the frame of the assembly.

2. Insert the shoulder screws into the front of the FlipTop.

3. Tighten each individual set screw on the retractors.

DO Check the Accessories

NOTE: The following excludes FlipTop 600 Series models.

There are two spacer insert models, which can be used to ll unpopulated retractor slots:

• CBLRA-INSERT-BLANK, Part No. 6506163

• CBLRA-INSERT-2WIRE, Part No. 6506164

As of the date of manufacture, the CBLR2 Series has been tested and found to comply with specications for CE marking.

The specic patents that cover Crestron products are listed at patents.crestron.com. Product warranty can be found at www.crestron.com/warranty.

Crest ron, the Crestron logo, FlipTop, and FlipTops are either trademarks or regist ered trademarks of Crest ron Electronics, Inc. in t he United St ates and/or ot her countries. Other trademarks, regist ered trademarks, and trade names may be used in this document t o ref er to either the entities claiming the

marks and names or their products. Crest ron disclaims any propriet ary interest in the marks and names of ot hers. Crestron is not responsible for errors in t ypography or photography.
