CLT-2DIM8/CLX-2DIM8
Terminal Block and Module
Installation Guide
Description
The Crestron
®
2-feed, 8-dimmer terminal block and module (CLT-2DIM8 and CLX-2DIM8)
are a single entity and must be used together. They ship separately so that the terminal
block (CLT-2DIM8) wiring can be accomplished before module (CLX-2DIM8) installation.
the controlled circuit (load) to the fixtures. The module connects to the terminal block and
or dimmable 2-wire fluorescent lighting loads.
The maximum load for the CLX-2DIM8 is 16 A per channel, 32 A total. The CLX-2DIM8
accepts two 16 A feeds that must be the same phase or split phase. The unit requires
120 Vac 50/60 Hz, 1 phase input voltage.
An oversized heat sink dissipates heat efficiently. There are LEDs on the module to
indicate communication with a Cresnet
®
network, input power to the module, and output
power to the load.
The CLT-2DIM8 terminal and CLX-2DIM8 module are shown in the following illustrations.
CLT-2DIM8 Terminal Block with Left- and Right-Side CLX-2DIM8 Wiring Labels
Additional Resources
Visit the product page on the Crestron website (www.crestron.com) or
scan the QR code to the right for additional information and the latest
rmware updates.
Ground Bus
CLT-2DIM8 Terminal
Block
CLT-2DIM8 Terminal
Block
CLX-2DIM8 Module
CLX-2DIM8
DIM 1
DIM 2
DIM 3
DIM 4
DIM 5
DIM 6
DIM 7
DIM 8
N IN 1
N OUT 1
N OUT 2
N OUT 3
N OUT 4
N IN 2
N OUT 5
N OUT 6
N OUT 7
N OUT 8
LINE 1
LINE 2
2 FE ED
8 DI M
120VAC 60 Hz
SINGLE PHASE
16A MAX/FEED
CLX-2DIM8
DIM 8
DI 7
DI
2 FE ED
8 DI M
120VAC 60 Hz
SINGLE PHASE
16A MAX/FEED
N OUT 8
N OUT 7
N OUT 6
N OUT 5
N IN 2
DIM 5
LINE 2
DIM 4
DIM 3
DIM 2
DIM 1
LINE 1
N OUT 4
N OUT 3
N OUT 2
N OUT 1
N IN 1
Installation
NOTE: Before using the CLX-2DIM8, ensure the device is using the latest rmware.
Check for the latest rmware for the CLX-2DIM8 at www.crestron.com/rmware.
Firmware is loaded onto the device using Crestron Toolbox™.
The terminal block and module must be mounted into a Crestron Automation Enclosure by
a licensed electrician and in accordance with all national and local codes.
CAUTION: This equipment is for indoor use only and needs to be air-cooled. Mount it in
a well-ventilated area. The ambient temperature must be 32° to 104° F (0° to 40° C). The
relative humidity must be 0% to 90% (non-condensing).
NOTE: The two input lines must be the same phase or split phase.
NOTE: When connecting to an arc fault breaker, the load should not exceed 1,000 watts
total. Crestron certied breakers have a 2,000 watt limit.
Terminal blocks are installed along the left side of single-wide enclosures and along the
outside edges (left and right sides) of double-wide enclosures. Modules are installed along
the right side of single-wide enclosures and side-by-side in the center of double-wide
enclosures. When installing modules and terminal blocks in a double-wide enclosure, be
sure to invert the units on the right side so that they can be properly wired. Refer to the
illustrations that follow when considering the location of terminal blocks and modules within
an enclosure.
NOTE: Modules and terminal blocks must be installed into the lowest available spaces
and continue toward the top of the enclosure.
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
● Do not use outdoors.
● Do not mount near gas or electric heaters.
● Equipment should be mounted in locations and at heights where it will not be subjected
to tampering by unauthorized personnel.
● The use of accessory equipment not recommended by the manufacturer may cause an
unsafe condition.
● Do not use this equipment for other than its intended use.
● All servicing should be performed by qualified service personnel.
● If any Emergency Circuits are fed or controlled from this panel, it must be located
electrically where fed from a UPS, generator, or other guaranteed source of power
during emergency and power outage situations.
SAVE THESE INSTRUCTIONS.
Terminal Block and Module Layout for a Double-Wide Enclosure
LINE 1:
Connection from a 15
or 20 Amp Circuit
Breaker
Bypass
Jumpers
Terminal
Block
To
Loads(s)
Right-Side
Wiring Label
LINE 2:
Connection from a 15
or 20 Amp Circuit
Breaker
Ground
Bus
Module
Location
Label
Neutral
Neutral
Ground
CLX-2DIM8
DIM 8
DIM 7
DIM 6
2 FEE D
8 DIM
120VAC 60 Hz
SINGLE PHASE
16A MAX/FEED
N OUT 8
N OUT 7
N OUT 6
N OUT 5
N IN 2
DIM 5
LINE 2
DIM 4
DIM 3
DIM 2
DIM 1
LINE 1
N OUT 4
N OUT 3
N OUT 2
N OUT 1
N IN 1
Module Interconnect
Cable Attached
Connection Not
Made
LINE 1:
Connection from a 15
or 20 Amp Circuit
Breaker
Bypass
Jumpers
Terminal
Block
To
Loads(s)
Left-Side
Wiring Label
LINE 2:
Connection from a 15
or 20 Amp Circuit
Breaker
Ground
Bus
Module
Location
Label
Neutral
Neutral
Ground
CLX-2DIM8
DIM 1
DIM 2
DIM 3
DIM 4
DIM 5
DIM 6
DIM 7
DIM 8
N IN 1
N OUT 1
N OUT 2
N OUT 3
N OUT 4
N IN 2
N OUT 5
N OUT 6
N OUT 7
N OUT 8
LINE 1
LINE 2
2 FEED
8 DIM
120VAC 60 Hz
SINGLE PHASE
16A MAX/FEED
CLX-2DIM8
DIM 1
DIM 2
DIM 3
DIM 4
DIM 5
DIM 6
DIM 7
DIM 8
N IN 1
N OUT 1
N OUT 2
N OUT 3
N OUT 4
N IN 2
N OUT 5
N OUT 6
N OUT 7
N OUT 8
LINE 1
LINE 2
2 FEED
8 DI M
120VAC 60 Hz
SINGLE PHASE
16A MAX/FEED
CLX-2DIM8
DIM 8
DIM 7
DIM 6
2 FEED
8 DI M
120VAC 60 Hz
SINGLE PHASE
16A MAX/FEED
N OUT 8
N OUT 7
N OUT 6
N OUT 5
N IN 2
DIM 5
LINE 2
DIM 4
DIM 3
DIM 2
DIM 1
LINE 1
N OUT 4
N OUT 3
N OUT 2
N OUT 1
N IN 1
CLX-2DIM8 Module (Connects to a CLT-2DIM8)
requiring assembly in the eld by a licensed electrician in accordance with all national and
local codes.
If an assembled UL Listed panel is required, it can be obtained through Crestron’s UL
Listed panel shop. This includes complete in-factory system conguration and assembly
by Crestron for an additional fee.
Terminal Block Installation and Field Wiring
Apply the supplied adhesive label before installing the terminal block. The adhesive label
provides the labeling for each terminal in the terminal block and is designed to accomodate
installation into the left or right side of a cabinet.
WARNING: The CLX-2DIM8 may be powered from multiple circuit breakers.
NOTE: Both left-side and right-side adhesive wiring labels are provided. The left-side
labels are used in both single- and double-wide enclosures. The right-side labels are only
used in double-wide enclosures.
1. Remove the backing from the left- or right-side adhesive wiring label.
2. Apply the adhesive label by aligning the holes in the label with the holes on the
Crestron Automation Enclosure where the terminal block is to be mounted. The wiring
label lies beneath the terminal block as shown in the following diagrams.
3. Use the two supplied self-tapping Phillips pan head screws (8B x 1/4 inch length) to
secure the terminal block to the Crestron Automation Enclosure.
CAUTION: Bypass jumpers are provided to test circuits and to protect the module
during installation. When properly secured by five screws, each of the two jumpers
on the black and red sections of the terminal block shorts the line in to dim out so
that the circuit is energized. Do not remove any bypass jumpers until all feed and
load wiring has been completed, the circuit has been tested for electrical faults, and
the module has been installed. Refer to “Module Installation.”
Furthermore, the two jumpers on the white sections of the terminal block tie the
neutral ins to the neutral outs. These jumpers should never be removed.
NOTE: Use copper conductors only—rated 75° C or greater.
4. Turn off the circuit breakers.
5. Connect the circuit feed (line and neutral) and controlled circuit (load) wires to the
terminal block per the markings provided on the wiring label (as shown in the following
diagrams). Terminal blocks accept one 14–10 AWG wire. Strip the wires to 1/2 inch
(13 millimeters). Tighten terminal blocks to 9 in-lbs.
6. Terminate the ground wires at the grounding terminal blocks that are available in the
cabinet. Tighten the grounding terminal blocks to 35 in-lbs (14–10 AWG), 40 in-lbs
(8 AWG), or 45 in-lbs (6–4 AWG).
7. Test each circuit for electrical faults by turning on each of the circuit breakers and
checking that the breakers do not trip and that power is delivered to the proper loads.

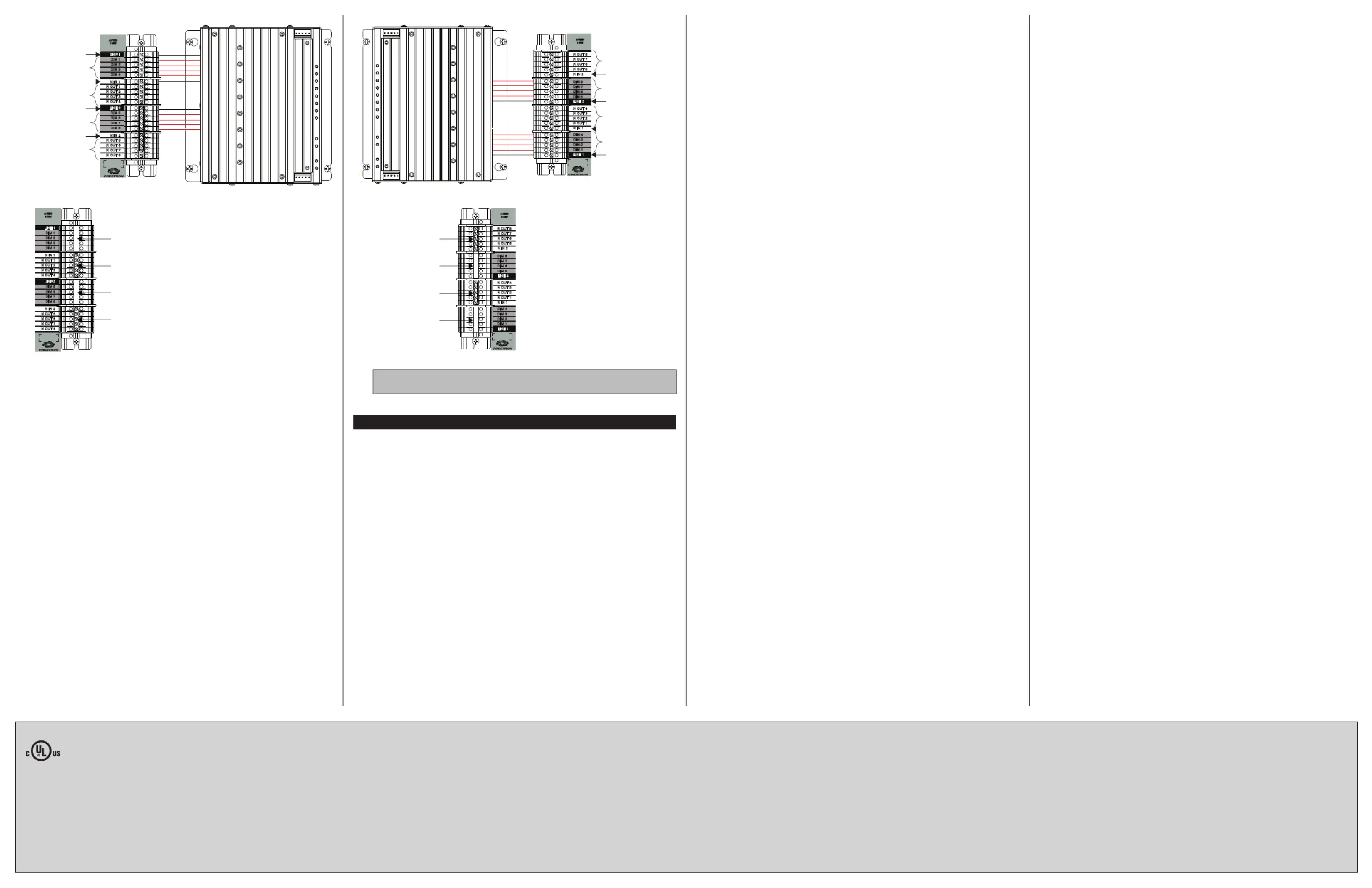

Wiring the Terminal Block to the Feed and Load(s)
(Single-Wide and Left-Side Double-Wide Enclosures)
Wiring the Terminal Block to the Feed and Load(s) (Right-Side Double-Wide Enclosures)
Module Installation
CAUTION: The module contains electrostatic sensitive devices (ESDs). The unit must
be handled from the metal chassis. Do not touch the PC board or components.
Install the modules after the terminal blocks are installed and the enclosure has been
completely wired.
1. Use the four supplied self-tapping Phillips pan head screws (8B x 1/4 inch length) to
secure the module to the enclosure.
2. As shown in the wiring diagrams on the next page, connect the wires from the
module to the terminal block. Each wire exits the module directly in line with, and is
the same color as, the terminal to which it should be connected. Wires are
pre-stripped to 1/2 inch (13 millimeters). Tighten to 9 in-lbs.
3. If the module is being installed above another module within the enclosure, attach
the supplied module interconnect cable to the two modules. The illustration that
follows shows the area within a double-wide enclosure where the corners of four
modules meet.
NOTE: One wire on the module interconnect cable may be a different color from
the rest. The color has no bearing on its orientation during installation.
Use Module Interconnect Cable to Wire One Module to Another
4. Turn on the circuit breakers and verify that the green PWR LED on the module lights,
the breakers do not trip, and power is delivered to the loads.
5. Turn off the circuit breakers.
NOTE: Before the bypass jumpers are removed, the control system that provides
functionality to the system should be properly connected and programmed.
6. Remove the bypass jumpers on the black and red sections of the terminal block. The
jumpers on the white sections of the terminal block must remain installed. Refer to
the gures that follow for reference.
Black from Breaker
Black from Breaker
White from Panel
White from Panel
Red to Loads
Red to Loads
White to Loads
White to Loads
CLX-2DIM8
DIM 1
DIM 2
DIM 3
DIM 4
DIM 5
DIM 6
DIM 7
DIM 8
N IN 1
N OUT 1
N OUT 2
N OUT 3
N OUT 4
N IN 2
N OUT 5
N OUT 6
N OUT 7
N OUT 8
LINE 1
LINE 2
2 F EE D
8 D IM
120VAC 60 Hz
SINGLE PHASE
16A MAX/FEED
Black from Breaker
Black from Breaker
White from Panel
White from Panel
Red to Loads
Red to Loads
White to Loads
White to Loads
CLX-2DIM8
DIM 8
DIM 7
DIM 6
2 FEED
8 DIM
120VAC 60 Hz
SINGLE PHASE
16A MAX/FEED
N OUT 8
N OUT 7
N OUT 6
N OUT 5
N IN 2
DIM 5
LINE 2
DIM 4
DIM 3
DIM 2
DIM 1
LINE 1
N OUT 4
N OUT 3
N OUT 2
N OUT 1
N IN 1
Jumper Removed
Jumper Installed
Jumper Removed
Jumper Installed
CLX-2DIM8
DIM 8
DIM 7
DIM 6
2 F EE D
8 D IM
120VAC 60 Hz
SINGLE PHASE
16A MAX/FEED
N OUT 8
N OUT 7
N OUT 6
N OUT 5
N IN 2
DIM 5
LINE 2
DIM 4
DIM 3
DIM 2
DIM 1
LINE 1
N OUT 4
N OUT 3
N OUT 2
N OUT 1
N IN 1
Jumper Removed
Jumper Installed
Jumper Removed
Jumper Installed
CLX-2DIM8
DIM 1
DIM 2
DIM 3
DIM 4
DIM 5
DIM 6
DIM 7
DIM 8
N IN 1
N OUT 1
N OUT 2
N OUT 3
N OUT 4
N IN 2
N OUT 5
N OUT 6
N OUT 7
N OUT 8
LINE 1
LINE 2
2 F EE D
8 D IM
120VAC 60 Hz
SINGLE PHASE
16A MAX/FEED
Test the Loads
If the control system program is not running yet, use Local mode to test that each load is
operating and connected to the proper output on the module.
1. Press the button momentarily (less than three seconds) to enter Local mode. SETUP
The SETUP LED and output LED 1 illuminate. Power is applied to the devices
connected to output 1.
2. Press the button again to turn off output 1 and turn on output 2. SETUP
3. Press the button again to test each of the remaining outputs. SETUP
4. After testing the last output, press the button again to turn on all outputs.SETUP
5. Press the button once more to turn off all outputs and LEDs and exit Local SETUP
mode.
Wiring the Terminal Block to the Module (Single-Wide and Left-Side Double-Wide Enclosures)
Remove the Line Jumpers after Testing (Left-Side Mounted CLT-2DIM8 Shown)
Wiring the Terminal Block to the Module (Right-Side Double-Wide Enclosures)
Remove the Line Jumpers after Testing (Right-Side Mounted CLT-2DIM8 Shown)
7. Turn on the circuit breakers.
NOTE: Power must be supplied to LINE 1 for the module to communicate with the
control system or for any of the circuits to operate.
8. If the program is not running yet, loads can be tested by using Local mode.
This product is Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
CAUTION: Changes or modications not expressly approved by the manufacturer responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Crestron Electronics, Inc. Installation Guide - DOC. 6280D
15 Volvo Drive Rockleigh, NJ 07647 (2010978)
Tel: 888.CRESTRON 04.15
Fax: 201.767.7576 Specications subject to
www.crestron.com change without notice.
Operation of this equipment in a residential area is likely to cause interference in which case the harmful
user will be required to correct the interference at his own expense.
Industry Canada (IC) Compliance Statement
CAN ICES-3(A)/NMB-3(A)
The product warranty can be found at www.crestron.com/warranty.
The specic patents that cover Crestron products are listed at patents.crestron.com.
Crestron, the Crestron logo, Cresnet, and Crestron Toolbox are either trademarks or registered
trademarks of Crestron Electronics, Inc. in the United States and/or other countries. UL and the UL
logo are either trademarks or registered trademarks of Underwriters Laboratories, Inc. in the United
States and/or other countries. Other trademarks, registered trademarks, and trade names may be
used in this document to refer to either the entities claiming the marks and names or their products.
Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not
responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2015 Crestron Electronics, Inc.

Produkt Specifikationer

Mærke: Crestron
Kategori: Ikke kategoriseret
Model: CLT-2DIM8

Har du brug for hjælp?

Hvis du har brug for hjælp til Crestron CLT-2DIM8 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret Crestron Manualer

Crestron

Crestron CLTI-2DIMU8 Manual

13 August 2025
Crestron

Crestron FT2A-CBLR-1T-CAT6 Manual

13 August 2025
Crestron

Crestron FT2A-CBLR-GR-4K-HD Manual

13 August 2025
Crestron

Crestron CLT-4HSW4 Manual

13 August 2025
Crestron

Crestron FT2-500-MECH-PTL-B Manual

13 August 2025
Crestron

Crestron FT2-700-MECH-PTL-B Manual

13 August 2025
Crestron

Crestron CLC-1LEDPWM-RGBW-EX Manual

13 August 2025
Crestron

Crestron CLTI-2DIM8 Manual

13 August 2025
Crestron

Crestron FT2-1200-MECH-PTL-B Manual

13 August 2025
Crestron

Crestron FT2-1200-ELEC-PTL-B Manual

13 August 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Bauknecht

Bauknecht BCT7A9PHTSK Manual

13 August 2025
Asus

Asus XG Station Pro Manual

13 August 2025
Adj

Adj Starship Manual

13 August 2025
Rowenta

Rowenta Fresh Extreme EP7240 Manual

13 August 2025
Advantech

Advantech RSB-4680CQ-XNA1E Manual

13 August 2025
Adj

Adj UVLED BAR16 Manual

13 August 2025
American Audio

American Audio SDJ2 Manual

13 August 2025
Sauermann

Sauermann ATE 310 Manual

13 August 2025
Adj

Adj X-MOVE LED 25R Manual

13 August 2025
Adj

Adj Rotobeam 4 Manual

13 August 2025
