CLT- & CLX-4HSW4

Functional Summary

NOTE: Modules and terminal blocks must be installed

into the lowest available spaces and continue toward the

top of the enclosure.

The Crestron



4-Feed, 4-High Switch Terminal Block and

Module (CLT-4HSW4 and CLX-4HSW4, respectively),

are considered a single entity and must be used together.

They ship separately to permit termination of the field

wiring to the CLT-4HSW4 prior to installation of the

CLX-4HSW4, as described in this guide. They can be

mounted in any Crestron Automation Enclosure (CAEN-

Series Enclosures). The terminal block is designed to

terminate four circuit feeds (LINE and NEUTRAL) and

distribute the controlled circuits (LOAD) to the fixtures.

The module connects to the terminal block and performs

switching (non-dim) control of four incandescent, low

voltage, neon, cold cathode, fluorescent, or HID lighting

loads, or motor loads. The maximum load is 16 amps (1/2

HP) for each controlled circuit (64 amps total per

module). The unit requires 120VAC 60 Hz input voltage.

An oversize heat sink dissipates heat efficiently. There are

LEDs on the module to indicate communication to a

Cresnet



network, input power to the module, and output

power to the load.

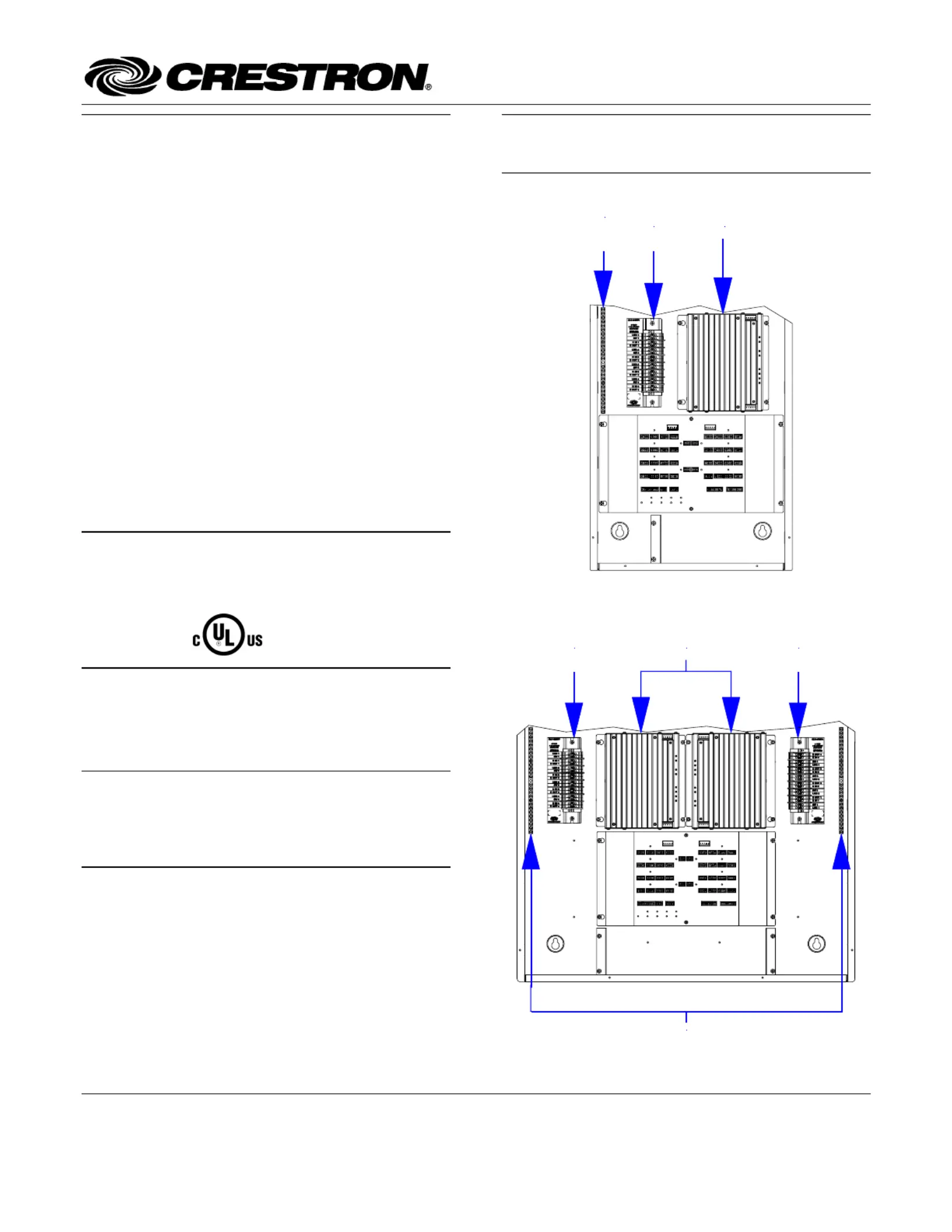

Terminal Block & Module Locations (Single-wide Enclosure)

MODULETERMINAL

BLOCK

GROUNDING

TERMINAL

BLOCK

Industry Compliance

This product is Listed to applicable UL Standards and

requirements by Underwriters Laboratories Inc.

Terminal Block & Module Locations (Double-wide Enclosure)

(E103692)

GROUNDING TERMINAL BLOCKS

MODULETERMINAL BLOCK

(LEFT)

TERMINAL BLOCK

(RIGHT)

Installation

Terminal block and module must be mounted into a

Crestron Automation Enclosure by a licensed electrician,

in accordance with all national and local codes.

CAUTION: This equipment is for indoor use only and

needs to be air-cooled. Mount in a well-ventilated area.

The ambient temperature must be 32°F to 104°F (0°C to

40°C). The relative humidity must be 0% to 90% (non-

condensing).

Terminal blocks are installed along the left side of single-

wide enclosures and along the outside edges (left and

right sides) of double-wide enclosures. Modules are

installed along the right side of single-wide enclosures

and side-by-side in the center of double-wide enclosures.

When installing modules and terminal blocks in a double-

wide enclosure, be sure to invert units on the right side so

that they can be properly wired. Refer to the illustrations

shown in the next column when considering the location

of terminal blocks and modules within an enclosure.

Crestron Electronics, Inc. Installation Guide – DOC. 5986C

15 Volvo Drive Rockleigh, NJ 07647 (2002068)

Tel: 888.CRESTRON 11.06

Fax: 201.767.7576 Specifications subject to

www.crestron.com change without notice.

Terminal Block & Module Crestron CLT- & CLX-4HSW4

5. Grounding terminal blocks are available in the

cabinet for termination of ground wires. Tighten

to 35 in-lbs. (14 – 10 AWG), 40 in-lbs.

(8 AWG), or 45 in-lbs. (6 – 4 AWG).

NOTE: Unless otherwise indicated, the lighting system

specified in this guide is modular, requiring assembly in

the field by a licensed electrician, in accordance with all

national and local codes.

6. Test each circuit for electrical faults by turning

on each of the circuit breakers, checking that the

breakers do not trip, and that power is delivered

to the proper loads.

If you require an assembled UL Listed panel, Crestron

offers this service through its UL Listed panel shop. This

includes complete in factory system configuration and

assembly by Crestron for an additional fee.

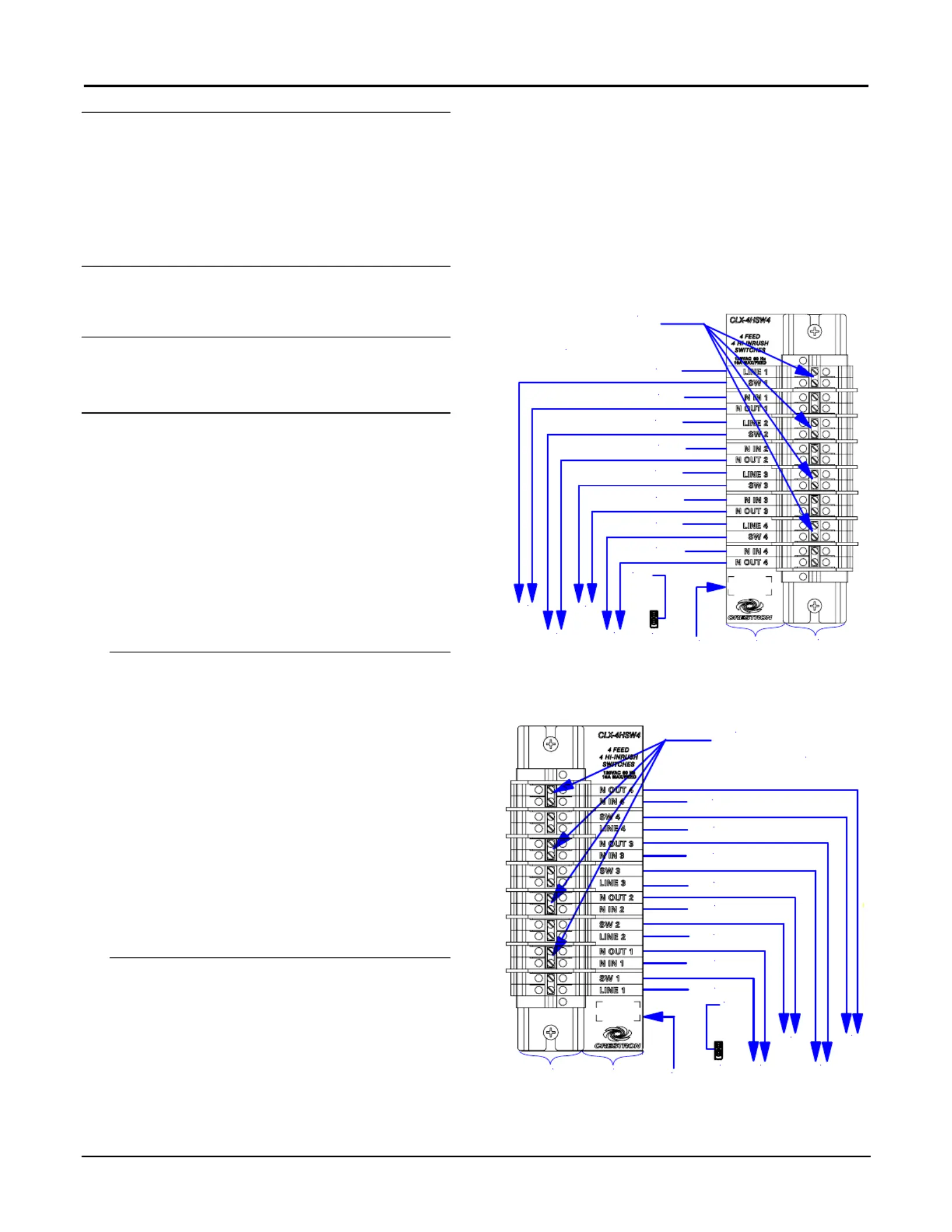

Wiring Diagram of the Terminal Block to the Feed and

Load(s)(Single-wide and Left Side Double-wide Enclosures)

Terminal Block Installation and Field

Wiring

LOAD

LINE 1 (*)

LINE 2 (*)

LINE 3 (*)

LINE 4 (*)

NEUTRAL

GROUN DING

TERMINAL

BLOCK

GND

TERMINAL

BLOCK

LEFT

SIDE

WIRING

LABEL

AREA FOR

MODULE

LOCATION

LABEL

BYPASS

JUMPERS

(*) FROM 15 OR 20 AMP

CIRCUIT BREAKER

NOTE: Both left-side and right-side adhesive wiring

labels are provided. The left-side labels are used in both

single and double-wide enclosures. The right-side labels

are only used in double-wide enclosures.

1. Remove the backing from the left or right

adhesive wiring label.

2. Apply the adhesive label by aligning the holes in

the label with the holes on the Crestron

Automation Enclosure where the terminal block

is to be mounted. The wiring label lies beneath

the terminal block as shown in the two wiring

diagrams on this page.

3. Use the two supplied self-tapping pan Phillips

screws (8B x ¼ length) to secure the terminal

block to the Crestron Automation Enclosure.

CAUTION: Bypass jumpers are provided to allow

testing of circuits and to protect the module during

installation. When properly secured by two screws,

each of the four jumpers on the black and red

sections of the terminal block shorts the LINE in to

SWITCH out so that the circuit is energized. Do not

remove any bypass jumpers until all feed and load

wiring has been completed, the circuit has been tested

for electrical faults, and the module has been

installed. Refer to “Module Installation” on next

page.

Furthermore, the four jumpers on the white sections

of the terminal block tie the neutral ins to the neutral

outs. These jumpers should never be removed.

Wiring Diagram of the Terminal Block to the Feed and

Load(s) (Right Side Double-wide Enclosures)

LOAD

LINE 1 (*)

LINE 2 (*)

LINE 3 (*)

LINE 4 (*)

NEUTRAL

GRO UND ING

TERMINAL

BLOCK

GND

TERMINAL

BLOCK

RIGHT

SIDE

WIRING

LABEL

AREA FOR

MODULE

LOCATION

LABEL

BYPASS

JUMPERS

(*) FROM 15 OR 20 AMP

CIRCUIT BREAKER

NOTE: Use copper conductors only – rated 75°C

4. With the circuit breaker turned off, connect the

circuit feed (LINE and NEUTRAL) and

controlled circuit (LOAD) wires to the terminal

block per the markings provided on the wiring

label (as shown in the diagrams on this page).

Terminal blocks accept one 14 - 10 AWG wire.

Wires should be stripped to ½ inch. Tighten

terminal blocks to 9 in-lbs.

2 •

•

•• Terminal Block & Module: CLT- & CLX-4HSW4 Installation Guide – DOC. 5986C
