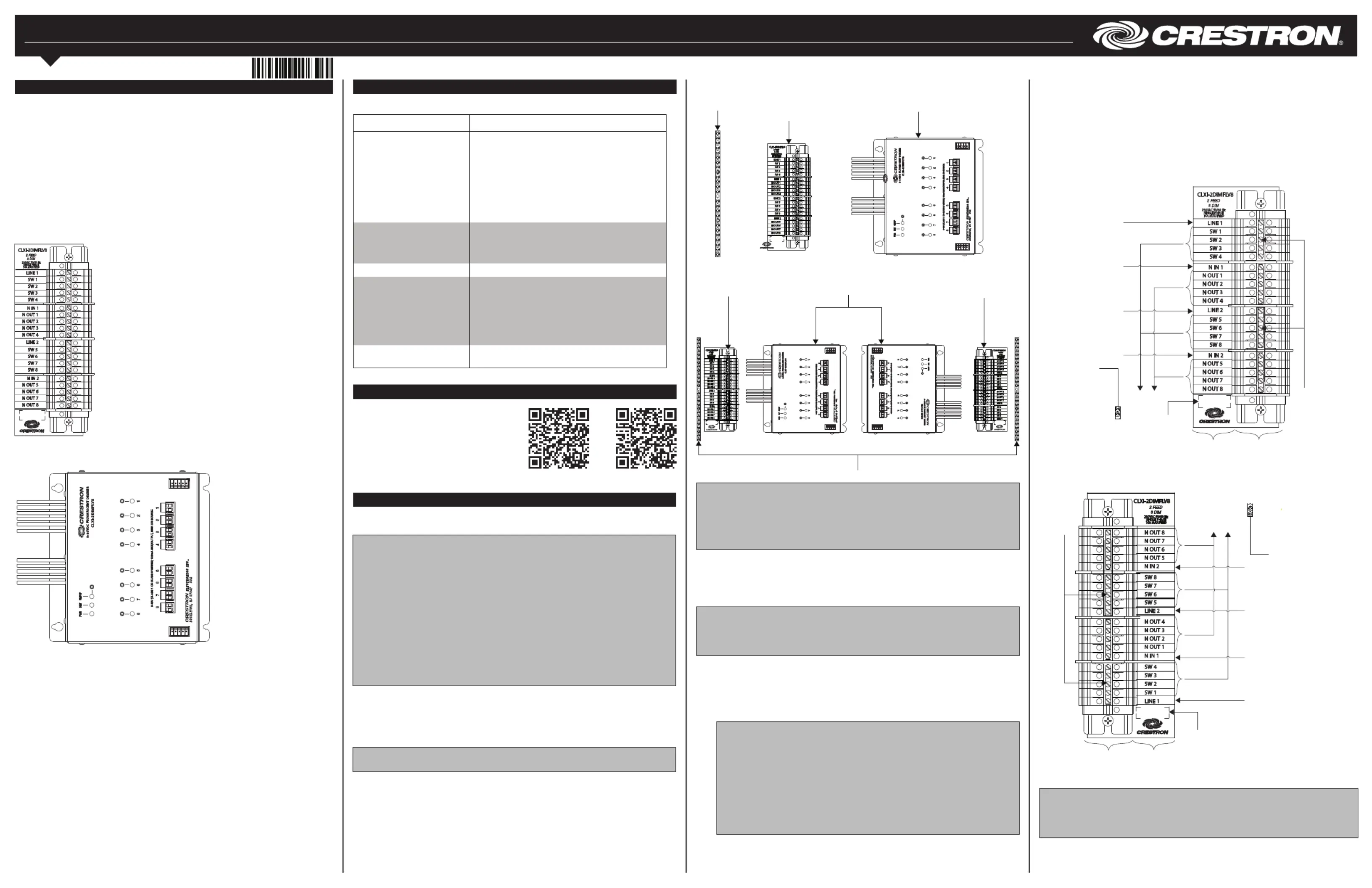

CLTI-2DIMFLV8/CLXI-2DIMFLV8

Terminal Block and Module

Installation Guide

Description

The Crestron

2-Feed, 8-Dimmer Terminal Block and Module (CLTI-2DIMFLV8 and

CLXI-2DIMFLV8) are considered single entities and must be used together. They ship

separately to permit termination of the eld wiring to the terminal block (CLTI) prior to

installation of the module (CLXI). The terminal block is designed to terminate the circuit

feed (LINE and NEUTRAL) and distribute the controlled circuit (LOAD) to the xtures. The

module connects to the terminal block and performs dimming control of uorescent

ballasts or LED drivers.

The maximum load is 16 A per channel; the maximum load is 32 A total for the

CLXI-2DIMFLV8. The CLXI-2DIMFLV8 accepts two 16 A feeds that can be different

phases.

There are LEDs on the module to indicate communication to a Cresnet

network, input

power to the module, and output power to the load.

The CLTI terminals and CLXI modules are shown in the following illustrations.

CLTI-2DIMFLV8 Terminal Block with Left-Side CLXI-2DIMFLV8 Label

Additional Resources

Visit the product page on the Crestron website

(www.crestron.com) or scan the QR code to the

right for additional information and the latest

rmware updates.

Specications

Specications are listed in the table below.

CLXI-2DIMFLV8 Module (Connects to a CLTI-2DIMFLV8)

Installation

A licensed electrician must mount the terminal block and module into a Crestron

Automation Enclosure in accordance with all national and local codes.

CAUTION: This equipment is for indoor use only and needs to be air cooled. Mount in a

well-ventilated area. The ambient temperature must be 0° to 40 °C (32° to 104 °F). The

relative humidity must be 10% to 90% (noncondensing).

NOTE: The 0–10 V control wires to driver attach directly to the module using 2-pin

pluggable connectors. The 0–10 V should be kept clear of the ac wiring.

NOTE: The 0–10 V wiring can be run as Class 1 or Class 2.

NOTE: For 2-feed systems, the two input lines can be different phases.

NOTE: When connecting to an arc fault breaker, ensure the load does not exceed 1,000

watts total. Crestron certied breakers have a 2,000-watt limit.

NOTE: Before using the CLXI-2DIMFLV8, ensure the device is using the latest rmware.

Check for the latest rmware for the CLXI-2DIMFLV8 at www.crestron.com/rmware.

Load the rmware onto the device using Crestron Toolbox™ software.

Install terminal blocks along the left side of single-wide enclosures and along the outside

edges (left and right sides) of double-wide enclosures. Install modules along the right side

of single-wide enclosures and side-by-side in the center of double-wide enclosures. When

installing modules and terminal blocks in a double-wide enclosure, be sure to invert the

units on the right side so that they can be properly wired. Refer to the illustrations that

follow when considering the location of terminal blocks and modules within an enclosure.

NOTE: Modules and terminal blocks must be installed into the lowest available spaces

and continue toward the top of the enclosure.

Terminal Block and Module Layout for a Double-Wide Enclosure (CLTI-2DIMFLV8 and

CLXI-2DIMFLV8 Shown)

Ground bus

CLTI- terminal

block

CLXI- module

Ground bus

CLTI- terminal block CLTI- terminal blockCLXI- module

NOTE: Unless otherwise indicated, the lighting system specied in this guide is modular,

requiring assembly in the eld by a licensed electrician in accordance with all national and

local codes.

If an assembled UL Listed panel is required, Crestron offers this service through its UL

Listed panel shop. This includes complete in-factory system conguration and assembly

by Crestron for an additional fee.

Terminal Block Installation and Field Wiring

Terminal block installation requires installation of the supplied adhesive label and the

terminal block. The adhesive label provides the labeling for each terminal in the terminal

block and is designed to accommodate installation into the left or right side of a cabinet.

Refer to the illustrations that follow for details.

WARNING: The CLXI-2DIMFLV8 may be powered from multiple circuit breakers.

NOTE: Both left-side and right-side adhesive wiring labels are provided. The left-side

labels are used in both single- and double-wide enclosures. The right-side labels are used

only in double-wide enclosures.

1. Remove the backing from the left- or right-side adhesive wiring label.

2. Apply the adhesive label by aligning the holes in the label with the holes on the

Crestron Automation Enclosure where the terminal block is to be mounted. The wiring

label lies beneath the terminal block.

3. Use the two supplied self-tapping Phillips pan head screws (8B x 1/4-inch length) to

secure the terminal block to the Crestron Automation Enclosure.

CAUTION: Bypass jumpers are provided to allow testing of circuits and to protect

the module during installation. When properly secured by ve screws, each of the

two jumpers on the black and red sections of the terminal block shorts the line in to

dim out so that the circuit is energized. Do not remove any bypass jumpers until all

feed and load wiring has been completed, the circuit has been tested for electrical

faults, and the module has been installed. Refer to “Module Installation and Wiring”

for details.

Furthermore, the two jumpers on the white sections of the terminal block tie the

neutral ins to the neutral outs. Never remove these jumpers.

NOTE: Use copper conductors only, rated 75 °C or greater.

4. Turn off the circuit breakers.

LINE 1

Connection from a

15 or 20 A circuit

breaker

Bypass

jumpers

Terminal

block

To loads

Left-side

wiring label

LINE 2

Connection from a

15 or 20 A circuit

breaker

Ground

bus

Module

location

label

NEUTRAL

GND

CLTI-2DIMFLV8 CLXI-2DIMFLV8

Terminal Block and Module Layout for a Single-Wide Enclosure (CLTI-2DIMFLV8 and

CLXI-2DIMFLV8 Shown)

Wiring the Terminal Block to the Feed and Load(s) (Right-Side Double-Wide Enclosures)

LINE 1

Connection from a

15 or 20 A circuit

breaker

Bypass

jumpers

Terminal

block

To loads

Right-side

wiring label

LINE 2

Connection from a

15 or 20 A circuit

breaker

Ground

bus

Module

location

label

NEUTRAL

GND

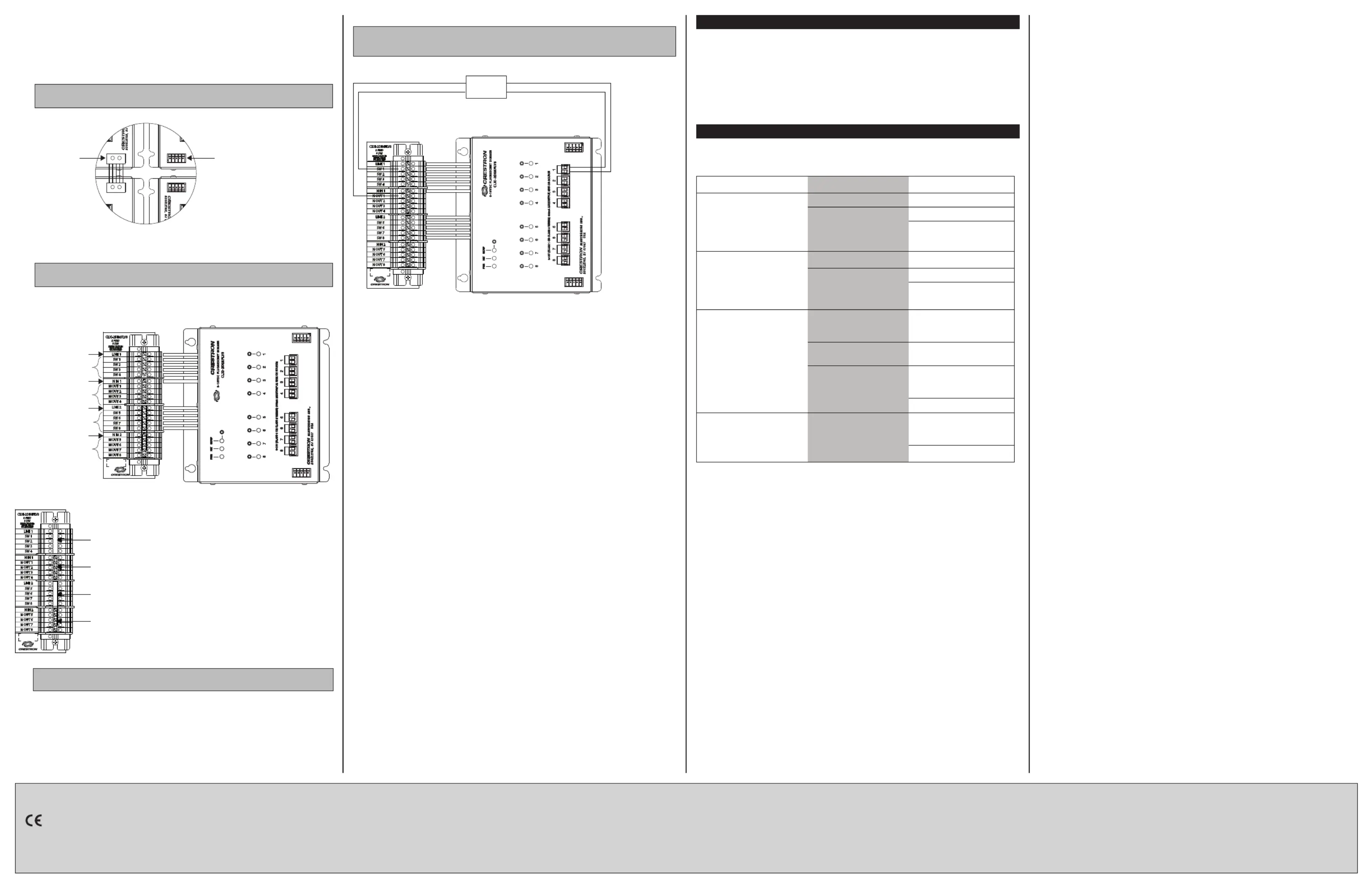

Module Installation and Wiring

CAUTION: The module contains electrostatic sensitive devices (ESDs); the unit must be

handled from the metal chassis. Do not touch the PC board or components.

NOTE: Install the modules after the enclosure has been completely wired. Refer to

“Terminal Block Installation and Field Wiring” for details.

Install and wire the module.

1. Use the four supplied self-tapping Phillips pan head screws (8B x 1/4-inch length) to

secure the module to the enclosure.

5. Connect the circuit feed (line and neutral) and controlled circuit (load) wires to the

terminal block per the markings provided on the wiring label. Terminal blocks accept

one 14–10 AWG wire. Strip the wires to 1/2 inch (13 millimeters). Tighten the terminal

blocks to 9 in-lb.

6. Grounding terminal blocks are available in the cabinet for termination of ground

wires. Tighten to 35 in-lb (14–10 AWG), 40 in-lb (8 AWG), or 45 in-lb (6–4 AWG).

7. Test each circuit for electrical faults by turning on each of the circuit breakers and

checking that the breakers do not trip and that power is delivered to the proper

loads.

Wiring the Terminal Block to the Feed and Load(s) (Single-Wide and Left-Side Double-Wide

Enclosures)

SPECIFICATION DETAILS

Load Ratings

Dimmer Channels 8

Per Channel 4 A

Per Group Channels 1–4: 16 A

Channels 5–8 16 A

Module Total 32 A

0-10 Vdc Output 60 mA Max per output, sink or source

Load Types

Dimmed Load Types 0-10 V uorescent ballast or LED driver (4-wire)

Switched Load Types Incandescent, MLV, ELF, fluorescent ballast, HID

Power Requirements 230 Vac, 50/60 Hz

Environmental

Temperature 0° to 40 °C (32° to 104 °F)

Humidity 10% to 90% RH (noncondensing)

Heat Dissipation 45 Btu/h

Pollution Degree 2

Voltage Limit for SELV/PELV

Circuits

24 V
