DM-XIO-DIR-160
DigitalMedia
™
XiO Director – Virtual Switching Appliance for 160 Endpoints
crestron.com
|
800.237.2041
> Comprehensive network AV system configuration,
management, and signal routing
> Emulates a traditional hardware-based matrix switcher
> Works with Crestron® DM
®
NVX encoders
and decoders
> Supports 160 endpoints and
20 domains
> Enables grouping of endpoints in
up to 20 independent subsystems
> Fully scalable for any sized network
> Intuitive web-based graphical user interface
> Ethernet control system interface
> Fully-programmable control of virtual matrices and
physical endpoints
> Automatic endpoint device discovery
> Custom naming and search tools
> Easy diagnostics and signal status display
> XML device map file import/export
> Built-in logging
> Four Gigabit Ethernet LAN ports
> Single-space 19” rack-mountable
> Universal 100-240V internal power supply

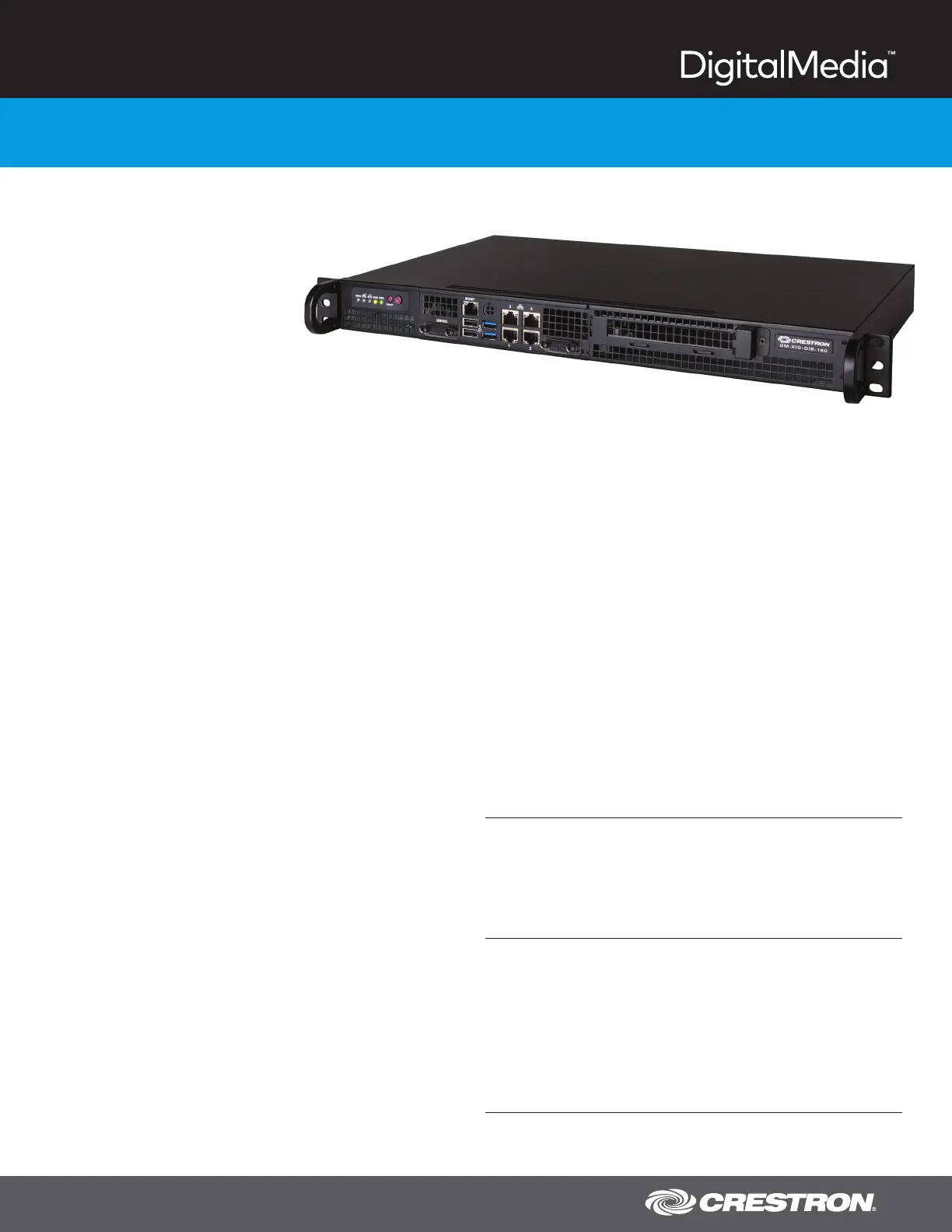

The DM
®
XiO Director, model DM-XIO-DIR-160, is an enterprise-grade
network appliance that facilitates configuration, control, and management
of a large-scale AV network. Using DM NVX encoder/decoders, Crestron
®
offers the industry’s most versatile and scalable solution for distributing
4K60 4:4:4 HDR video over an IP network. The XiO Director provides a
means for managing large networks of DM NVX devices, routing AV signals,
and simplifying integration with one or more Crestron control systems.
Virtual DM
®
Switcher
The XiO Director virtually emulates the functionality of a traditional
hardware-based DigitalMedia
™
matrix switcher, routing high-quality
4K streaming AV signals throughout a room, building, or campus. The
DM-XIO-DIR-160 model supports a total of 160 endpoint devices consisting
of DM NVX encoders and decoders. Multiple XiO Director units can be
deployed, with the ability to route signals between units just like hardware
switchers
[1]
, easily handling even the largest corporate enterprise,
university, governmental, military, medical, transportation, sports,
entertainment, hospitality, gaming, or retail application.
Simple, Flexible Configuration
System configuration could not be simpler. The XiO Director automatically
discovers each DM NVX endpoint on the network, and allows each endpoint
to be assigned as a logical input or output within a “domain.” A domain is
a logical grouping of endpoints that operate together as a single switching
entity, allowing individual rooms and other subsystems to be arranged
and controlled independently. It’s like having multiple independent matrix
switchers in a single rack space. The XiO Director effectively eliminates the
need for physical switchers in every room, replacing them with the virtual
equivalent running on the AV network.
Note: The DM-XIO-DIR-160 supports a maximum of 20 domains. For larger
systems, use multiple units or use model DM-XIO-DIR-ENT, which supports
240 domains and includes additional “enterprise” features. Refer to the
DM-XIO-DIR-ENT spec sheet for more information.
Easy Web-based Setup and Control
The XiO Director provides an intuitive web-based user interface to facilitate
system configuration, signal routing, and comprehensive diagnostics of the
complete AV network. Each domain and endpoint, as well as the inputs and
outputs on each endpoint, can be designated with a user-friendly name.
Navigating the entire system is easy using the search box
[1]
to quickly find
domains, endpoints, inputs, and outputs by name or address. A system
overview screen is also provided, showing the video and audio signal
status for every input and output in a graphical layout that’s easy to view
and navigate.
SPECIFICATIONS
Device Support
Endpoints: Supports 160 DM NVX devices, each configured as an encoder
or decoder
Domains: Supports 20 domains (allows grouping of endpoints in up to 20
individual subsystems)
Communications
Ethernet: 10/100/1000 Mbps, auto-switching, auto-negotiating, auto-
discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, IPv4
or IPv6, HTTPS web browser setup and control, Crestron control system
integration
DM NVX (via Ethernet): HDCP 2.2, AES audio/video content encryption,
RTP, RTSP, SDP, ONVIF, IGMPv2, IGMPv3, SMPTE 2022, FEC (Forward
Error Correction)

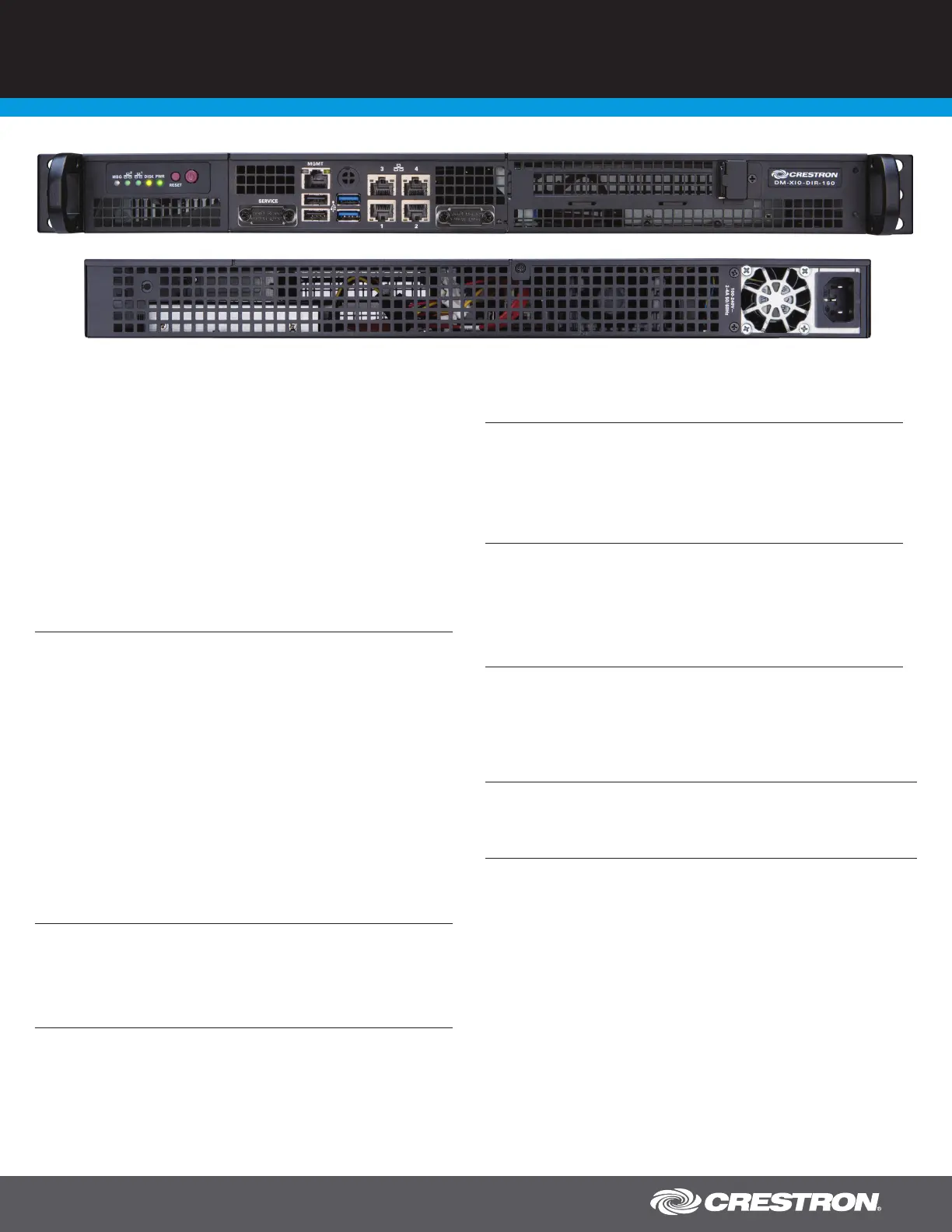

Connectors
MGMT (front): (1) 8-pin RJ45 connector, shielded, female;
10Base-T/100Base-TX/1000Base-T Ethernet port for hardware management
