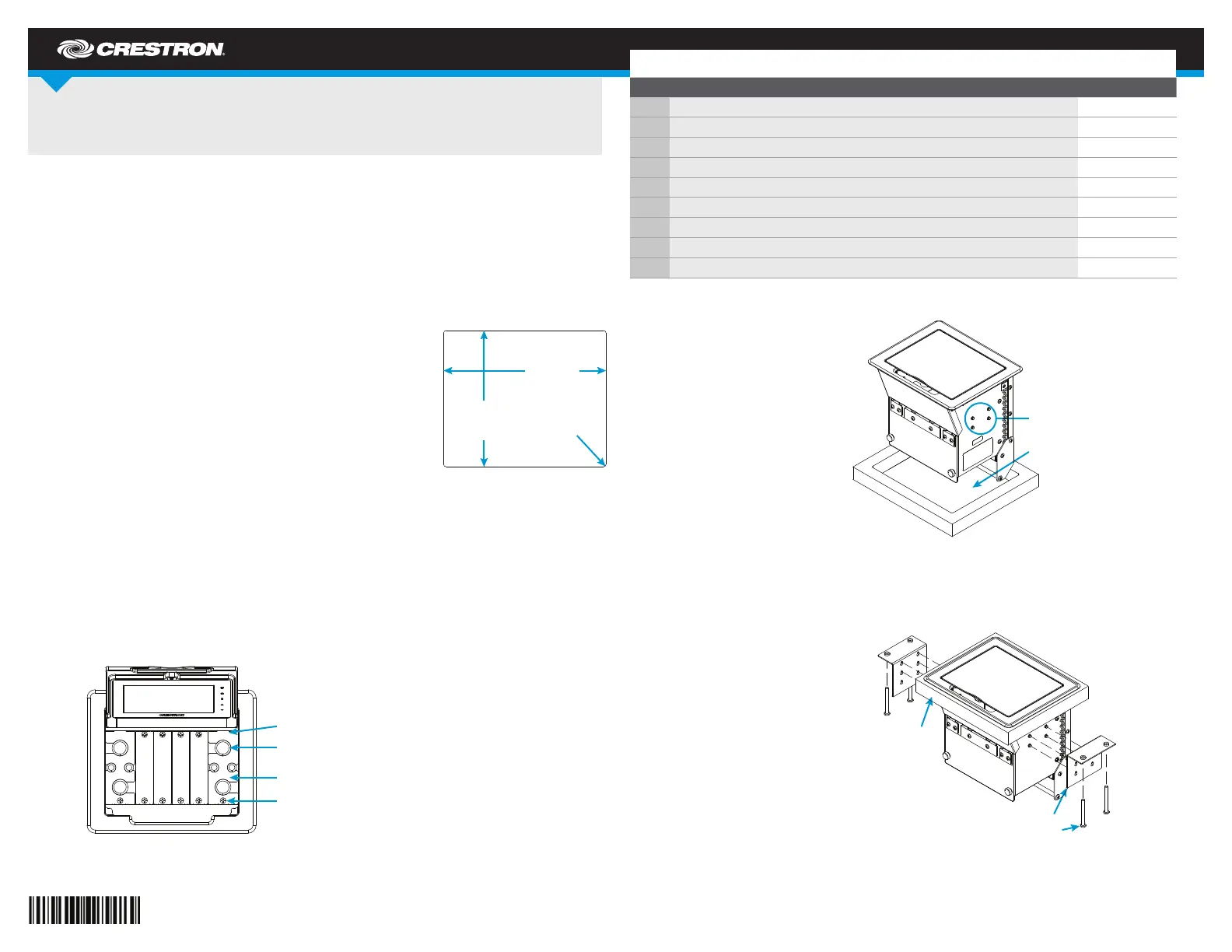

DO GUIDE

FT-TS600

FlipTop™ Touch Screen

DO Install the Device

Installing the Bushings

The Crestron® FT-TS600 ships with two cable management

plates preinstalled. These provide a pullout cable solution for

the AUD OUT (audio output), COMPUTER, and LAN cables. A

6 foot (1.8 meter) USB type A to type B cable is included for

the COMPUTER connection. Cables are looped through the

cable management plates.

The included bushings must be installed before mounting the

FT-TS600 into a surface. For a neat appearance, any unused

openings can be lled using the included hole plugs. The only

tool required to install the bushings is a Phillips screwdriver.

1. Remove the two cable management plates and retain the

two 06-32 x 1/4” screws.

2. Place the bushings on the cables (eight bushings

supplied).

3. Thread the cables through the appropriate slots in each

cable management plate.

4. Snap the bushings into the cable management plate

slots.

5. Feed all excess cable through the bushings.

6. Attach each cable management plate by sliding the

dovetail into the slot shown below, dropping the front

of the cable management plate into place, and then

securing the cable management plate with the

06-32 x 1/4” screw from step 1.

Mounting into a Surface

The FT-TS600 is designed

to mount into a horizontal

sur face, such as a desktop,

lectern, or podium. The

following diagram illustrates

the required cutout dimensions

to accommodate the

FT-TS600.

NOTE: Before inserting the FT-TS600 into the mounting hole,

ensure that all require cables have been installed.

The only tools required are a Phillips screwdriver and a #10

Allen wrench. To mount the FT-TS600, use the following

procedure:

1. Position the FT-TS600 in the mounting hole.

2. Install the four included 10-32 x 2” socket screws in the

metal mounting plates (two screws per plate).

3. Slide the moutning plates over the studs on each side of

the FT-TS600.

4. Turn the four 10-32 x 2” socket screws equally until they

contact the underside of the mounting surface.

NOTE: Do not overtighten the screws because this may

damage the surface or the unit.

DO Check the Box

QTY PRODUCT PART NUM.

2 Mounting Plates 2036985

4 Screws, 10-32 x 2", Socket 2037109

4 Small Hole Plugs 2036647

4 Large Hole Plugs 2036649

4 Small Bushings 2009522

4 Large Bushings 2010496

1 Connector, 3-Pin 2003575

1 Cable, USB 2.0, A-B, 6' (1.8 m) 2014966

1 Cutout Template 4519221

Cable Management Plates (2)

Bushing

Screws (2) 06-32 x 1/4”

The cable management

plate dovetail inserts here.

Maximum

Radius

1/8”

(4 mm)

6 1/4”

(159 mm)

7 1/2”

(190 mm)

Screws (4) #10-32 x 2”

Mounting Surface

Mounting Plates

Surface Cutout

Studs for the

Mounting Plate

DO GUIDE DOC. 7784A (2043774) 04.15

Specications subject t o change without notice.

DO Connect the Device

Make the necessary connections as called out in the illstration

that follows.

When making connections to the FT-TS600, note the

following:

• Use Crestron power supplies for Crestron equipment.

• The included cable cannot be extended.

CAUTION: Do not apply excessive pressure to the touch

screen display during handling. Doing so can crack the screen

and damage the device.

NOTE: Ensure the unit is properly grounded by connecting

the chassis ground lug to an eargh ground (building steel).

DO Access the Setup Screens

NOTE: The FT-TS600 can take up to 45 seconds to boot.

NOTE: If no project has been loaded or if an invalid project

has been loaded, the screen displays the following message:

“There is no display project to start. [Touch Screen to Enter

Setup...].”

The setup screens enable basic conguration prior to regular

operation of the FT-TS600.

During regular operation of the touch screen, there are two

ways to access the setup screens:

1. Place a button on the project main page and assign the

reserved join number (17242) that accesses the setup

screens.

2. Press hard keys 1, 2, 3, and 4 on the right side of the

touch screen display in sequence twice (press 1, 2, 3, 4,

1, 2, 3, 4) within a 5 second period.

DO Learn More

Visit the website for additional information

and the latest rmware updates.
