The Crestron® FT2A-PWR-US-1, FT2A-PWR-US-2, FT2A-PWR-US-3, and

FT2A-PWR-US-1-BASIC are modules designed for installation in Crestron FT2 FlipTop™

assemblies.

The outlet modules provide up to 3 NEMA AC power outlets on top of the table. An 8 ft

(2.44 m) three-prong power cord is fixed to the bottom of the module. The premium US power

modules (FT2A-PWR-US-1, FT2A-PWR-US-2, and FT2A-PWR-US-3) provide two under-the-

table receptacles for power switchers, HDBaseT transmitters, chargers, and other devices. Each

module is UL® Standards listed and is rated for 10 amps (total) at 125 V, 50/60 Hz. The following

table provides a size and feature comparison among models.

Module Model Module Slots Required Outlets on Top of the

Table

Outlets Beneath the

Table

FT2A-PWR-US-1 2 1 2

FT2A-PWR-US-2 3 2 2

FT2A-PWR-US-3 4 3 2

FT2A-PWR-US-1-BASIC 2 1 None

Below are illustrations of the FT2A-PWR-US-1-BASIC and an example of premium US power

modules. The premium US power modules (FT2A-PWR-US-1, FT2A-PWR-US-2, and

FT2A-PWR-US-3) are structurally similar.

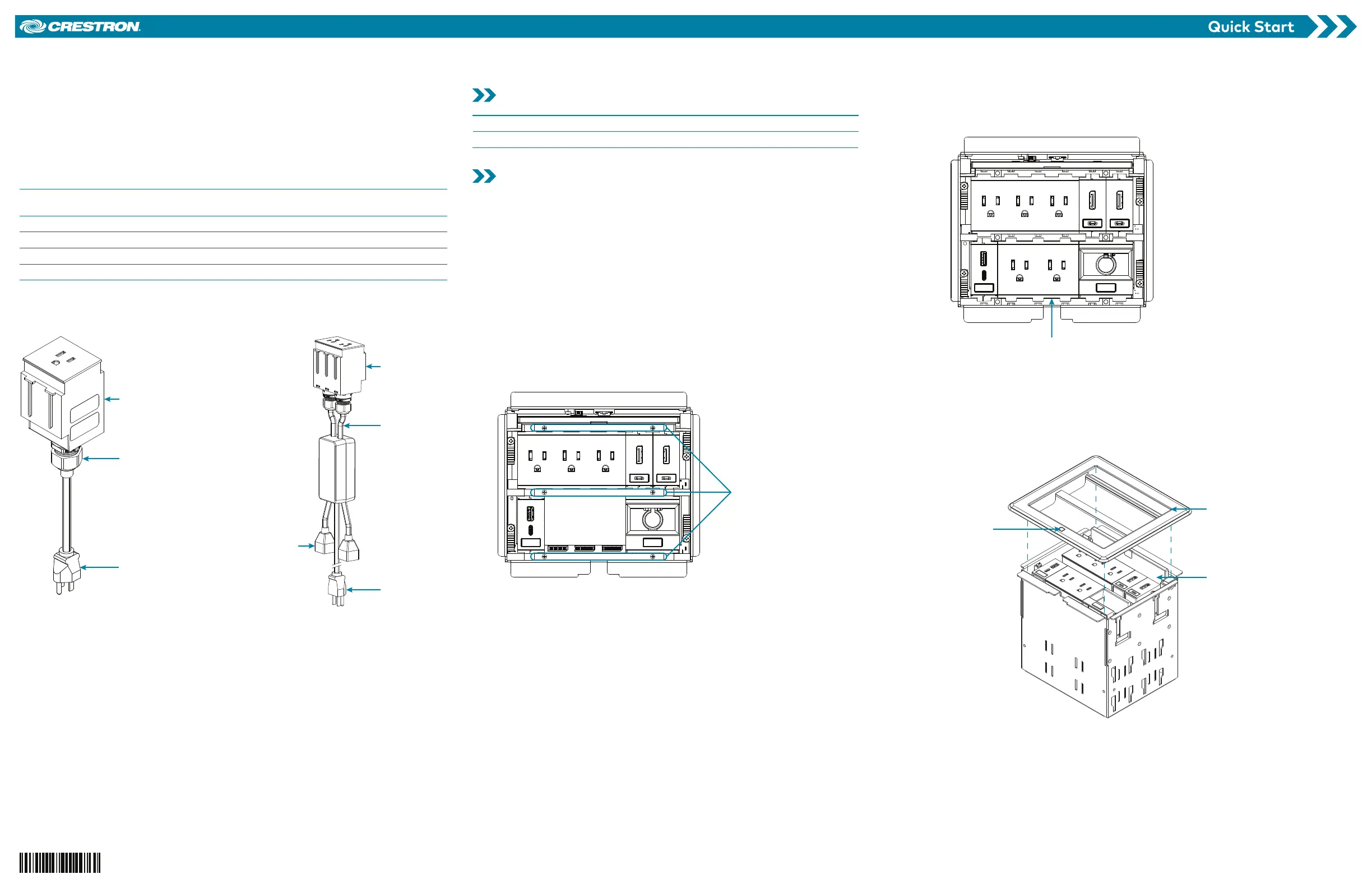

FT2A-PWR-US-1-BASIC Module Premium US Power Module (FT2A-PWR-US-2 shown)

Check the Box

Item Qty

FT2A-PWR-US-1, FT2A-PWR-US-2, FT2A-PWR-US-3, or FT2A-PWR-US-1-BASIC 1

Install the Module

Install the power outlet module into the FT2 FlipTop assembly. If the bezel and locking bars have

not been installed on the FT2 FlipTop assembly, skip to step 6.

To install the power outlet module:

NOTE: For ease of installation, install power outlet modules before installing any other module.

1. Tap the lid retraction button to retract the one-touch lid, which disappears into the FT2

FlipTop assembly. If the assembly has two lids, open both.

2. Remove and retain the magnetic bezel from the FT2 FlipTop assembly by grasping the

inside of the bezel and firmly pulling it up and away from the assembly until the magnetic

hold is broken.

3. Using a manual torque screwdriver, unscrew and remove and retain the two locking bars on

either side of the module row where the module is to be installed.

NOTE: In this example, an FT2A-PWR-US-2 power outlet module replaces three

preinstalled blank plate modules inside the FT2-700-ELEC (front row). The installation

process is identical for other power outlet modules, except for the number of module slots

required.

Remove Two Locking Bars

Locking

bars (3)

4. Lift and remove the modules you wish to replace.

5. Insert the power cables through the empty module slots.

6. Orient the module as shown in the following illustration and slide it down into the

appropriate module slots. Use the guide ribs on the front and rear of the module to help

position it in the assembly.

Position the Module (FT2A-PWR-US-2 shown)

FT2A-PWR-US

7. Confirm that all modules are level with their surroundings and place the locking bars

(removed in step 3) into position so that the screws on either side engage the screw holes

in the assembly.

8. Using a manual torque screwdriver set to its lowest possible setting, hand tighten the

locking bar screws until the locking bars are secured to the FT2 FlipTop assembly.

9. Place the bezel (removed in step 2) onto the FT2 FlipTop assembly so that the retractable

lid fits inside the bezel opening. The bezel is held in place using magnets.

Attach the Bezel to the Assembly

Retractable lid

fits inside this

opening in bezel

Retractable lid

Lid

retraction

button

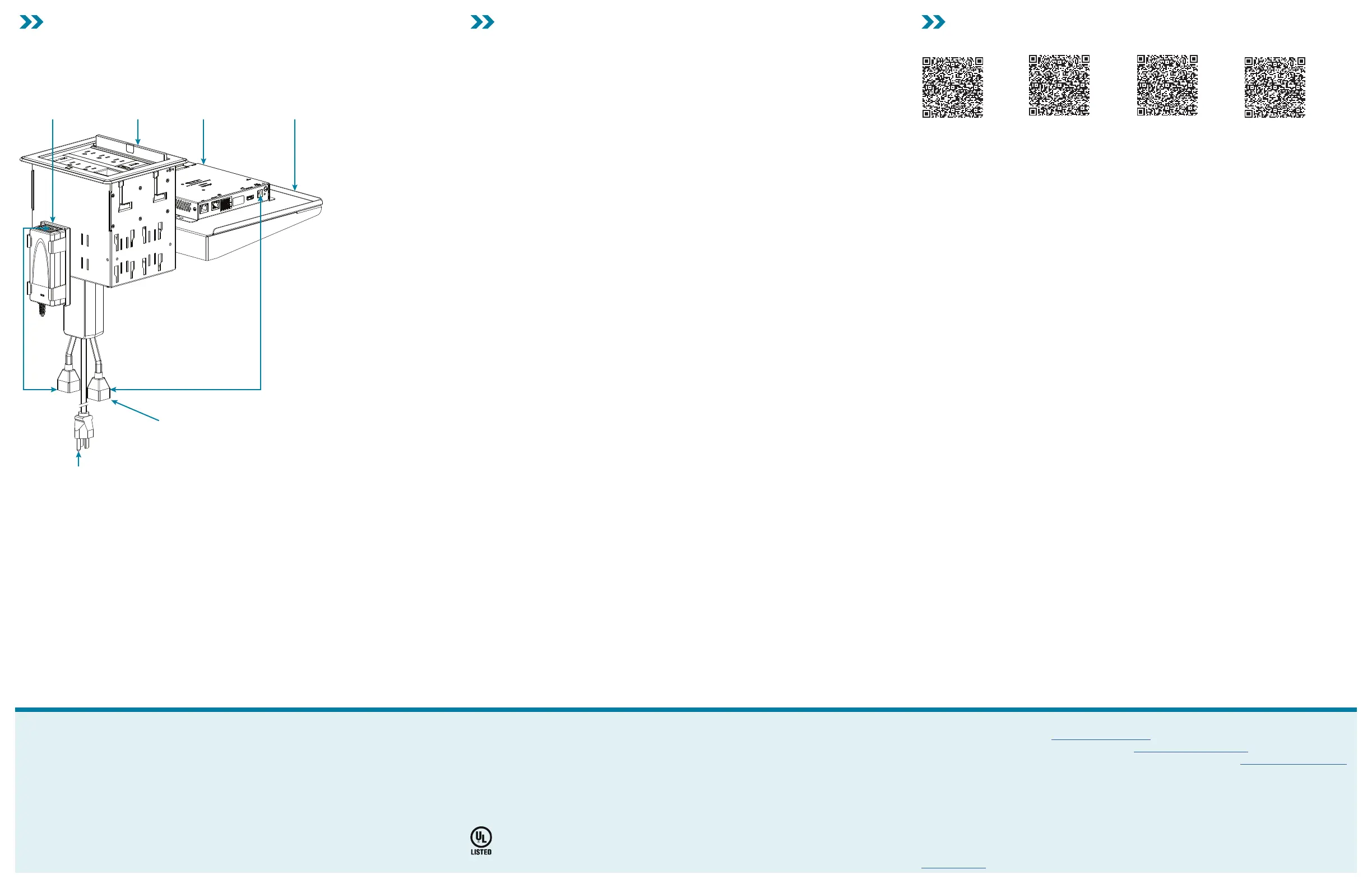

FT2A-PWR US Series

AC Power Outlet Modules for FT2 Series

Power outlet

module

Cord strain

relief

Power cord

(8 ft, 2.44 m)

Power outlet

module

Power receptacle (2)

(18 in., 457 mm)

Power cord

(8 ft, 2.44 m)

Power cable (2)

(10 in., 254 mm)
