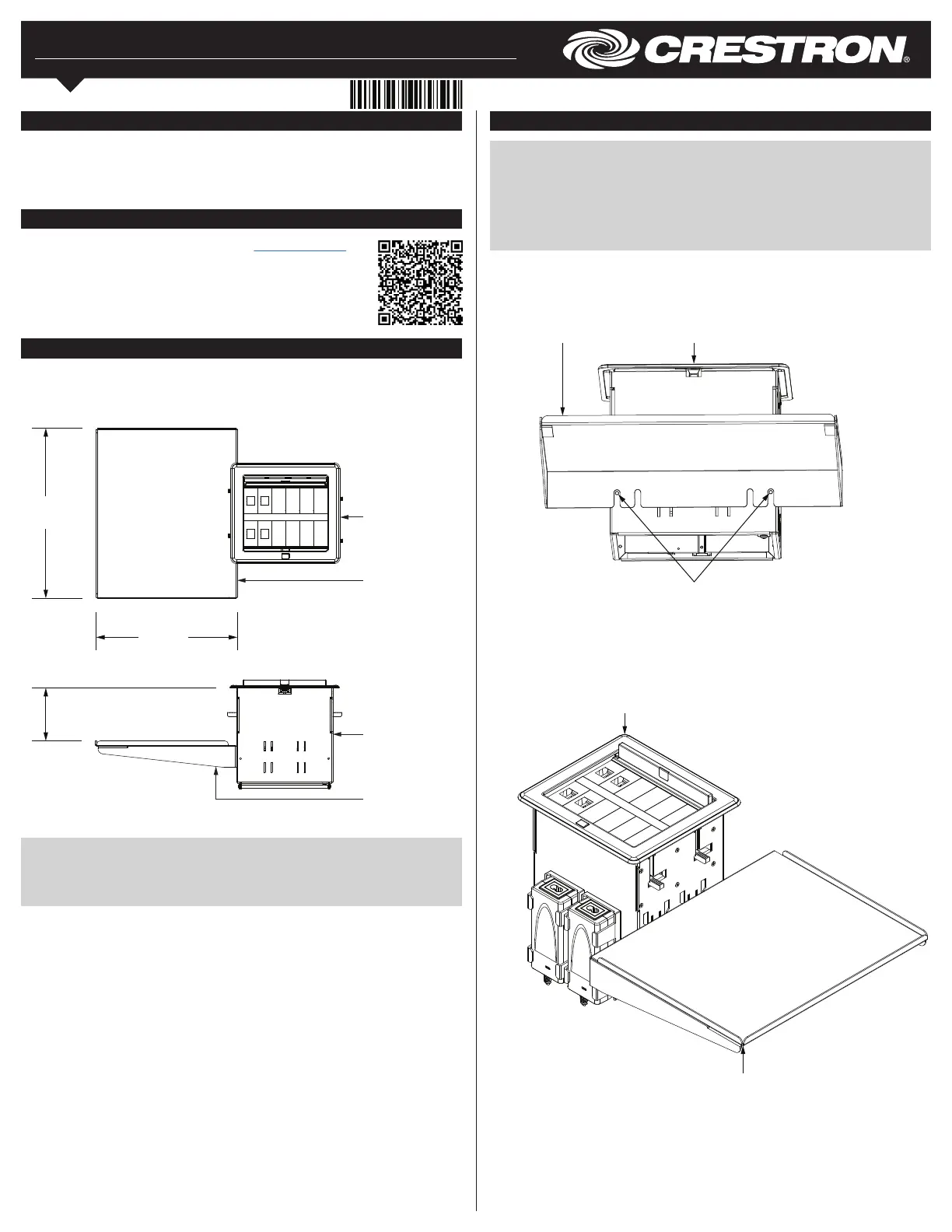

FT2A-UTK-SHELF

Under-Table Utility Shelf for FT2 Series

Installation Guide

Description

The Crestron

FT2A-UTK-SHELF is a utility shelf that mounts to an FT2 assembly

underneath the table, allowing for DigitalMedia™ transmitters, HBaseT

transmitters,

HDMI

switchers, and other applicable devices to be installed and integrated within an

FT2 FlipTop™ system.

Additional Resources

Visit the product page on the Crestron website (www.crestron.com)

for additional information and the latest rmware updates. Use a QR

reader application on your mobile device to scan the QR image.

inNET EX logo only needed for inNET

EX products. The mere mention of

inNET EX in a document is not cause to

use the logo.

Overview

The FT2A-UTK-SHELF mounts to the sides of an FT2 assembly underneath the table. The

following illustrations show the dimensions for an FT2A-UTK-SHELF mounted to the side

of an FT2-700 assembly.

FT2-700 with FT2A-UTK-SHELF Installed

10.08 in

(256 mm)

12.16 in

(309 mm)

3.80 in

(97 mm)

Installation

NOTE: Observe the following points before installing the FT2A-UTK-SHELF:

• A maximum of two FT2-UTK-SHELF shelves can be mounted to one FT2 assembly.

• If two shelves are installed, each FT2A-UTK-SHELF must be mounted on opposite

sides of the FT2 assembly. (Shelves cannot be mounted perpendicular to one

another.)

• FT2A retractors and power supplies cannot be installed on the same side of the FT2

assembly as an FT2A-UTK-SHELF.

Use the following procedure to install the FT2A-UTK-SHELF.

1. Underneath the table, align the two outer slots in the bottom front of the

FT2A-UTK-SHELF with the two threaded screw holes on the appropriate side of the

FT2 assembly. Refer to the following image for slot and screw hole locations.

Aligning the FT2A-UTK-SHELF with Screw Holes in FT2 Assembly

2. Insert the two included 10-32 x 3/8" thumb screws into the two screw holes so that

the thumb screws engage the top of the outer slots in the FT2A-UTK-SHELF.

3. Hand tighten the thumb screws until the FT2A-UTK-SHELF is secured to the

assembly. Do not overtighten the screws.

Completing the Installation

Screw holes

in FT2 assembly (2)

FT2 assemblyFT2A-UTK-SHELF

FT2 assembly

FT2-UTK-SHELF

CAUTION: The combined weight of devices placed on the FT2A-UTK-SHELF must not

exceed 5.0 lbs (2.3 kg).

NOTE: Any devices placed on the FT2A-UTK-SHELF should not exceed the dimensions

shown in the illustrations above.

FT2-700

assembly

(top view)

FT2-UTK-SHELF

(top view)

FT2-700

assembly

(side view)

FT2-UTK-SHELF

(side view)

The product warranty can be found at www.crestron.com/warranty.

The specic patents that cover Crestron products are listed at www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specic information, please visit

www.crestron.com/opensource.

Crestron, the Crestron logo, DigitalMedia and FlipTop are either trademarks or registered trademarks

of Crestron Electronics, Inc. in the United States and/or other countries. HDBaseT is either a

trademark or a registered trademark of the HDBaseT Alliance in the United States and/or other

countries. HDMI is either a trademark or a registered trademark of HDMI Licensing, LLC in the United

States and/or other countries.Other trademarks, registered trademarks, and trade names may be used

in this document to refer to either the entities claiming the marks and names or their products.

Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not

responsible for errors in typography or photography.

This document was written by the Technical Publications department at Crestron.

Crestron Electronics, Inc. Installation Guide - DOC. 8252A

15 Volvo Drive, Rockleigh, NJ 07647 (2050264)

Tel: 888.CRESTRON 01.18

Fax: 201.767.7576 Specications subject to

www.crestron.com change without notice.
