DO GUIDE

The brightness of the SSW may be custom programmed as follows:

• If the SSW is connected to a touch screen, brightness is controlled by sending a custom

property to the touch screen in Crestron Fusion

software. For more information, refer to

the embedded Crestron Fusion help le.

• If the SSW is connected to a control system, brightness is controlled via custom

programming in SIMPL Windows or Crestron Studio. For more information, refer to the

embedded SIMPL Windows or Crestron Studio help les.

DO Install the Device

The SSW installs over a standard 1-gang U.S. electrical box. Once installed, the touch screen

protrudes 8.43 in (214 mm) from the mounting surface.

To install the SSW:

1. Once all cable connections have been made, attach the device assembly to the electrical

box using the two included 6-32 x 5/16 in screws and a Phillips screwdriver.

NOTE: For retrot installations, the SSW may be installed over a 1-gang plaster ring using

the same installation method described above.

SSW Series

Room Availability Hallway Sign, Wall Mount

DO Connect the Device

The Crestron

SSW room availability hallway sign may be powered and controlled by a Crestron

TSS-7, TSS-10, TSW-760 or TSW-1060 touch screen via USB, or by a Crestron control system or

DMPS3 device via a Cresnet

network connection. Both connection methods are described below.

NOTE: All cable connections must be made prior to installing the SSW.

• Use the included USB cable to connect the SSW to the touch screen. Connect USB:

the cable’s USB A connector to the touch screen and the micro USB connector to the

SSW assembly. Out-of-the-box functionality is established via the touch screen room

scheduling application, with no programming required.

NOTE: The TSS-7 and TSW-760 may use either PoE (Power over Ethernet) or PoE+ to

supply power to the SSW over USB , but the TSS-10 and TSW-1060 must use only PoE+ to

supply power to the SSW.

• Use any standard Cresnet cable and the included 4-pin terminal block to Cresnet:

connect the SSW to a Crestron control system or DMPS3 device. The SSW is powered and

controlled over Cresnet via programming in SIMPL Windows or Crestron Studio

software.

NOTE: The button on the front of the assembly is used to identify the device on the CNET ID

network using the Network Device Tree View in Crestron Toolbox™ software. For more information,

refer to the embedded Crestron Toolbox help le.

DO Check the Box

QTY ITEM PART NUM.

1 Bezel, Wall Sign 4525866

1 Cable, USB 2.0, A - micro B, 6 ft (1.83 m) 2038114

1 Connector, 4-Pin 2003576

2 Screw, 4-40 x 1/2 in, SEMS, Pan Head, Phillips 2011592

2 Screw, 6-32 x 5/16 in, Pan Head, Phillips 2007221

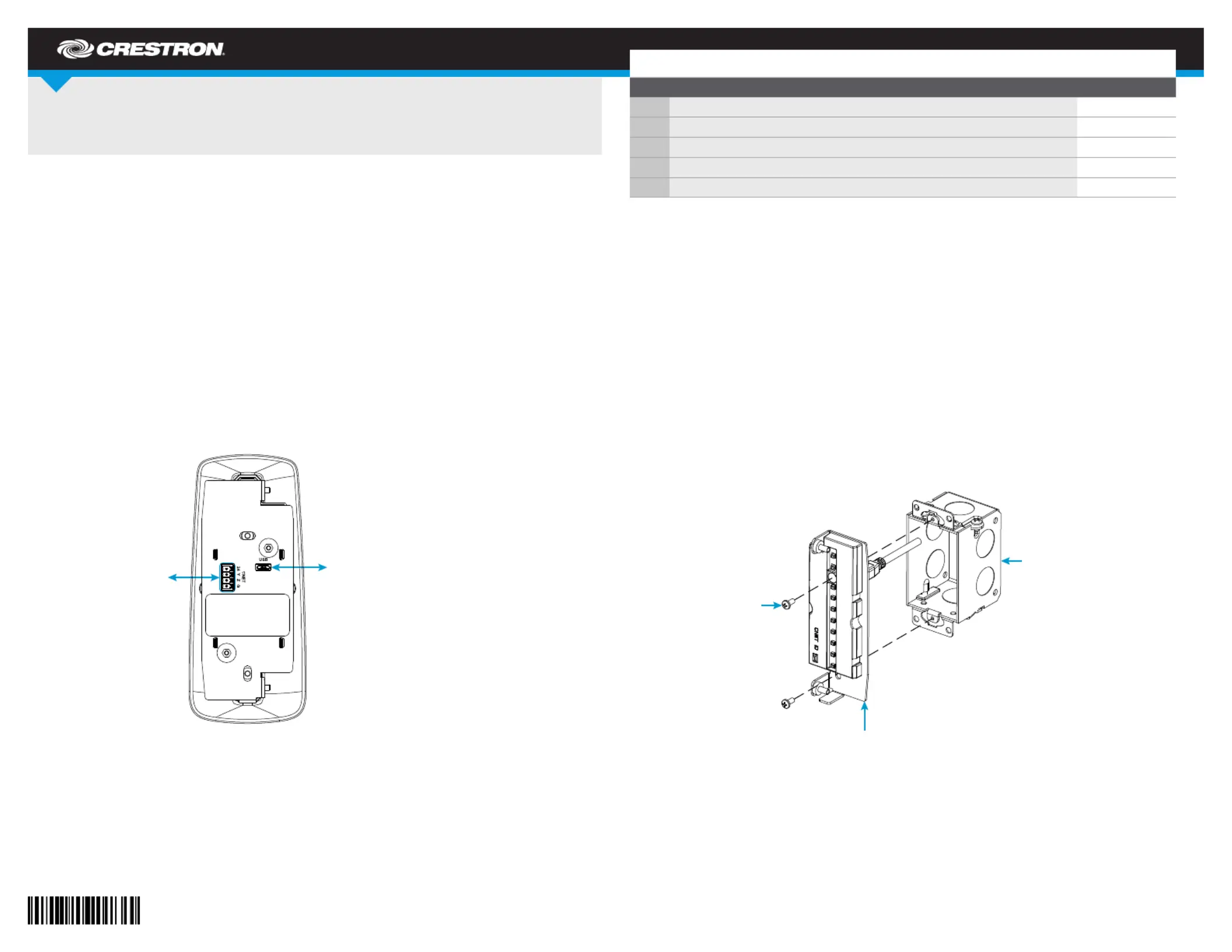

CNET (24 Y Z G):

To Cresnet

network device

USB (Micro):

To touch screen

Assembly

1-gang U.S.

electrical

box

Screws (2):

6-32 x 5/16 in

DO GUIDE

5. Remove the plastic lm from the acrylic face once it is secured.

6. Slide the included bezel carefully over the acrylic face until the magnets on the bezel snap

into place against the assembly.

DOC. 7969G (2048129) 07.18

Specications subject to change without notice.

2. Align the two mounting holes on the acrylic face (included with the SSW kit or purchased

separately) with the mounting posts on the assembly.

3. Attach the acrylic face to the assembly so that the posts on the assembly engage the holes

on the acrylic face. The acrylic face stays in place after it is attached to the assembly.

4. Using a Phillips screwdriver, secure the acrylic face to the assembly with the two included

4-40 x 1/2 in screws.

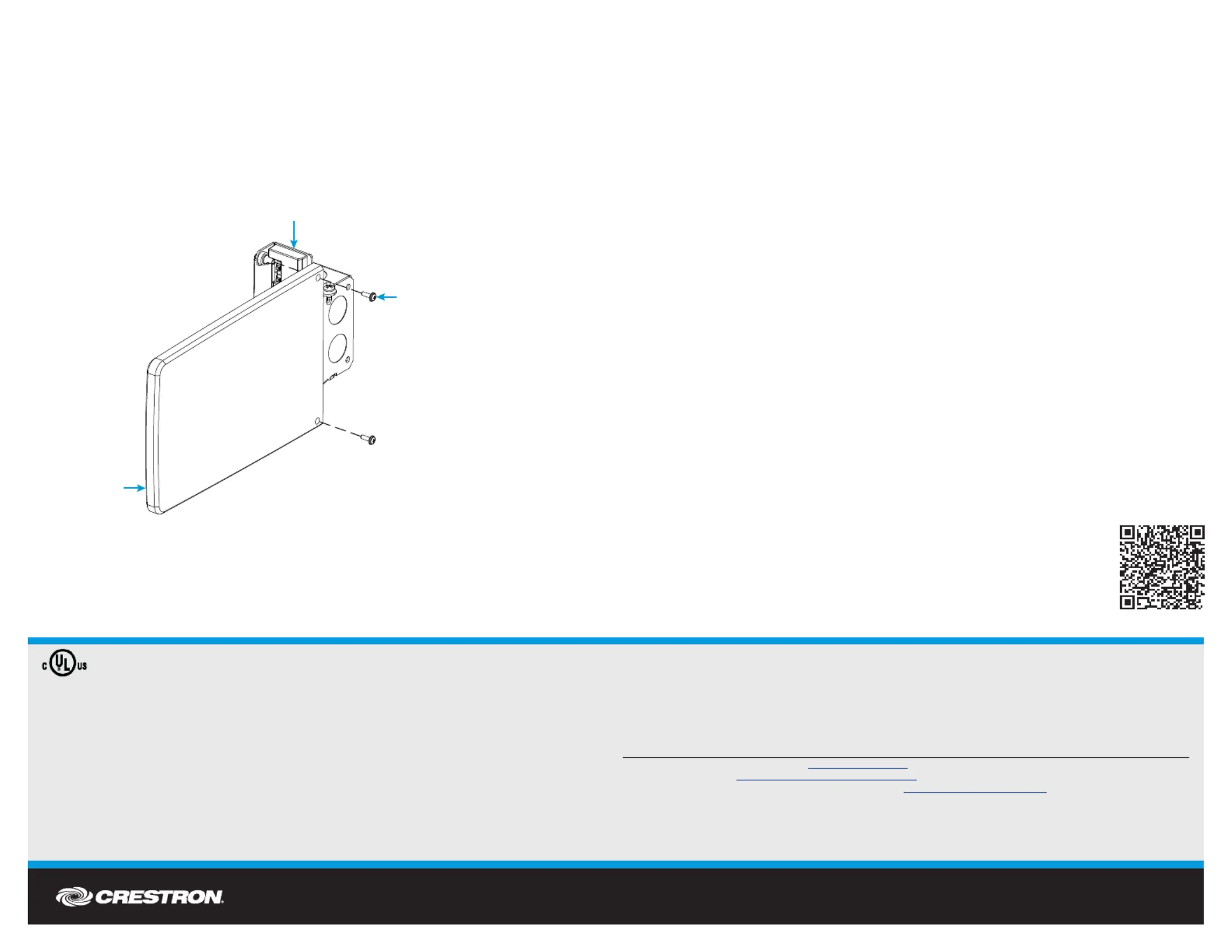

The illustration below depicts the procedure for attaching an SSW-ACR series acrylic face

face to the assembly. The same attachment procedure applies to other acrylic faces that

are compatible with the SSW.

This product is Listed to applicable UL

Standards and requirements tested by Underwriters Laboratories Inc.

Ce produit est homologué selon les normes et les exigences UL applicables par Underwriters Laboratories Inc.

Federal Communications Commission (FCC) Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference

that may cause undesired operation.

CAUTION: Changes or modications not expressly approved by the manufacturer responsible for compliance could void the user’s

authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Industry Canada (IC) Compliance Statement

CAN ICES-3(B)/NMB-3(B)

The specic patents that cover Crestron products are listed at .www.crestron.com/legal /patents

The product warranty can be found at .www.crestron.com/legal/sales-terms-conditions-warranties

Certain Crestron products contain open source software. For specic information, please visit www.crestron.com/legal/open-source-soft ware.

Crestron, the Crestron logo, Cresnet, Crestron Fusion, Crestron Studio, and Crestron Toolbox are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States

and/or other countries. UL and the UL logo are either trademarks or registered trademarks of Underwriters Laboratories, Inc., in the United States and/or other countries. Other trademarks,

registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest

in the marks and names of others. Crestron is not responsible for errors in typography or photography.

This document was written by the Technical Publications department at Crestron.

DO Learn More

Visit the website for additional information and the latest rmware updates. To learn

more about this product, use a QR reader application on your mobile device to scan

the QR image.

Crestron Electronics

15 Volvo Drive, Rockleigh, NJ 07647

888.CRESTRON | www.crestron.com

Screws (2):

4-40 x 1/2 in

SEMS

Acrylic

face

Assembly
