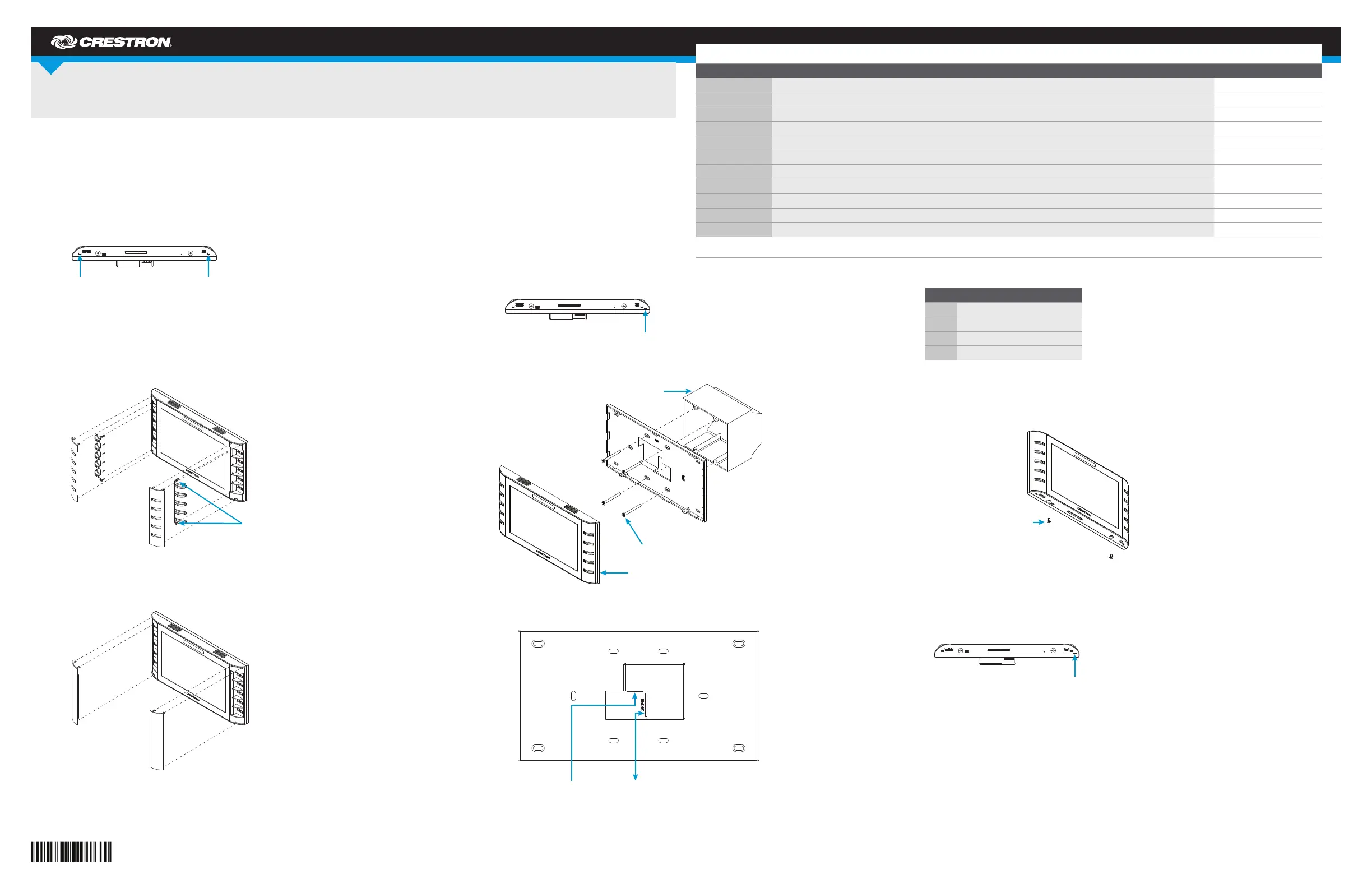

DO GUIDE

DO Check the Box

QUANTITY PRODUCT COLOR PART NUMBER

1 Bit, Torx, T8 2025915

1 Cover, Plastic, No Buttons, Left Side, 4.5"x 1" x 0.625"

1Black 2033452

1 Cover, Plastic, No Buttons, Left Side, 4.5" x 1" x 0.625"

2White 2033451

1 Cover, Plastic, No Buttons, Right Side, 4.5" x 1" x 0.625"

1Black 2033450

1 Cover, Plastic, No Buttons, Right Side, 4.5" x 1" x 0.625"

2White 2033449

2 Screw, 4B x 3/4", Flat Head, Phillips 2019088

2 Screw, 4-40 x 1/4", Undercut Head, Phillips1Black 2007152

2 Screw, 4-40 x 1/4", Undercut Head, Phillips22007160

2 Screw, 4-40 x 1/4", Flat Head, Torx1Black 2025311

2 Screw, 4-40 x 1/4", Flat Head, Torx22025312

4 Screw, 6-32 x 1-1/2", Flat Head, Phillips 2031703

1. This part ships with the TSW-732-B-S.

2. This part ships with the TSW-732-W-S.

TSW-732

7” Room Scheduling Touch Screen

DO Change the Button Inserts or Button Covers

The Crestron® TSW-732 Touch Screen ships with 10 “hard key” push buttons for quick access to

commonly used functions. Optional, custom engravable button covers are available (TSW-730-BTNO

and custom engraving sold separately). For a clean appearance, either column of buttons may be

removed and covered using the included no-button covers.

To change the inserts or covers, use the following procedure:

1. Insert a small at head screwdriver into the appropriate hole on the bottom of the TSW-732 to

release its cover.

2. Gently remove the cover from the TSW-732.

3. If removing the button insert after removing the button cover, use a small at head screwdriver

to press the tabs, and then gently lift the button insert from the TSW-732. Refer to the following

illustration for the tab locations on the button insert.

Touch Screen with Button Inserts

4. Carefully position the new cover over the front of the touch screen and press it into place.

Touch Screen with No-Button Covers

DO Install the Touch Screen

The TSW-732 can be mounted into a standard

electrical box or onto a at surface. A tabletop

enclosure and swivel mount (TSW-730-TTK and

SMK-4SM/730, both sold separately) are also

available.

Mounting into a U.S. Electrical Box

To mount the TSW-732 into a U.S. electrical box,

use the following procedure:

1. Insert a small at head screwdriver into the

hole shown in the following illustration, and

gently separate the back panel from the touch screen.

2. Use the four included 6-32 x 1-1/2" screws to attach the back panel to the electrical box.

3. Make connections to the TSW-732 using Crestron power supplies for Crestron equipment.

4. Carefully position the front of the touch screen over the back panel and gently snap it into place.

5. Use two of the included 4-40 x 1/4" screws to secure the TSW-732. For standard applications,

use the Phillips screws. For secure applications, use the security type Torx screws along with

the included Torx screwdriver bit.

Mounting into a U.K. Electrical Box

To mount the TSW-732 into a U.K. electrical box, use the following procedure:

1. Insert a small at head screwdriver into the hole shown in the following illustration, and gently

separate the back panel from the touch screen.

Insert a screwdriver to release the covers.

Use a screwdriver

to release

the button insert.

Insert a screwdriver to separate the back panel.

U.S. Electrical Box

TSW-732

Screws (4) 6-32 x 1-1/2"

Occupancy Sensor Input:

From Room Occupancy Sensor

LAN PoE:

10BASE-T / 100BASE-TX

Ethernet to LAN

Screws (2) 4-40 x 1/4" Phillips

Screws (2) 4-40 x 1/4" Torx

Insert a screwdriver to separate the back panel.

PIN DESCRIPTION

G Ground

2 Occupancy sensor #2 status

1 Occupancy sensor #1 status

24 24 Vdc power

DO GUIDE DOC. 7668B (2040919) 09.15

Specications subject to change without not ice.

2. Use the two included 4B x 3/4" screws to attach the back panel to the electrical box.

3. Make connections to the TSW-732 using Crestron power supplies for Crestron equipment.

4. Carefully position the front of the touch screen over the back panel and gently snap it into place.

5. Use two of the included 4-40 x 1/4" screws to secure the TSW-732. For standard applications,

use the Phillips screws. For secure applications, use the security type Torx screws along with the

included Torx screwdriver bit.

DO Access the Setup Screens

NOTE: The TSW-732 can take up to 120 seconds to boot.

The setup screens enable basic conguration prior to regular operation of the TSW-732. To display

the main setup screen, touch the screen while applying power to the unit.

NOTE: If no project has been loaded or if an invalid project has been loaded, the touch screen

defaults to the main setup screen.

During regular operation of the touch screen, there are two ways to activate the setup functions:

1. Place a button on the project main page, and assign the reserved join number (17242) that

activates setup.

2. Press hard keys 1, 2, 3, and 4 on the left side of the touch screen display in sequence, twice

(press 1, 2, 3, 4, 1, 2, 3, 4) within a 5-second period.

The main setup screen is displayed.
