Quick Start

The Crestron® UC-M130-T Tabletop UC Video Conference System for Microsoft Teams® delivers

a powerful, professional solution for knowledge workers who want the Microsoft Teams

software experience in small to midsize meeting and conference rooms.

To use the UC-M130-T system you must have the following:

• A Microsoft Teams or Skype® for Business software account

• An environment running Microsoft Exchange Server® software (2013 SP1 or later for on-

premises installation or Microsoft 365™ software for cloud) for scheduling and/or Skype

for Business 2015 (on-premises installation or Microsoft 365 software for cloud)

Display

UC-BRKT-100-SD

CAT5e

UCENGINESD HDMI

USB 2.0

CCSCAMUSBF100

Check the Box

Item Qty

UC-M130-T 1

CBL-CAT5E-7, 7 ft (2.1 m) CAT5e Cable (P/N 6509924) 1

CBL-USB-A-EXT-15, 15 ft (4.57 m) USB Extension Cable, Type A Male-to-Female,

(P/N 6508260)

CCS-CAM-USB-F-100 Logitech® Webcam C930e (P/N 6506442) 1

CCS-UC-1-T-V, Crestron Mercury® Tabletop UC Conference Console for Microsoft

Teams (P/N 6510716)

PW-2420RU, Desktop Power Pack, 24VDC, 2.5A (P/N 6500187) 1

UC-BRKT-100-SD ASSY Wall Bracket Assembly (includes HD-CONV-USB-200,

UC-CONN-HD, and UC-ENGINE-SD, Power Cord, Connector Cover Screws with Tools,

and Mounting Hardware) (P/N 6511033)

Additional Requirements

The following items (not included) are required to build the system.

• A video display device, connected to the UC-ENGINE-SD

• USB keyboard and mouse to configure the system

• HDMI® cable to connect a display device

• USB to HDMI adapter to connect the UC-ENGINE-SD USB port to the display device via

HDMI

• HDMI cable to connect an HDMI source

• #1 Phillips screwdriver

• Drill with a 5/16 in. bit (required for use with mounting anchors)

NOTE: Crestron recommends using Crestron cables only. For optimum performance, Crestron

offers the UC-M-ACCY KIT which includes all of the required hookup cables and a wireless

keyboard with integrated touchpad.

Optional Items

The following can be added to a Flex system.

• CCS-UCA-SMK Swivel Mount Kit

• CCS-UCA-MIC Microphone Pods

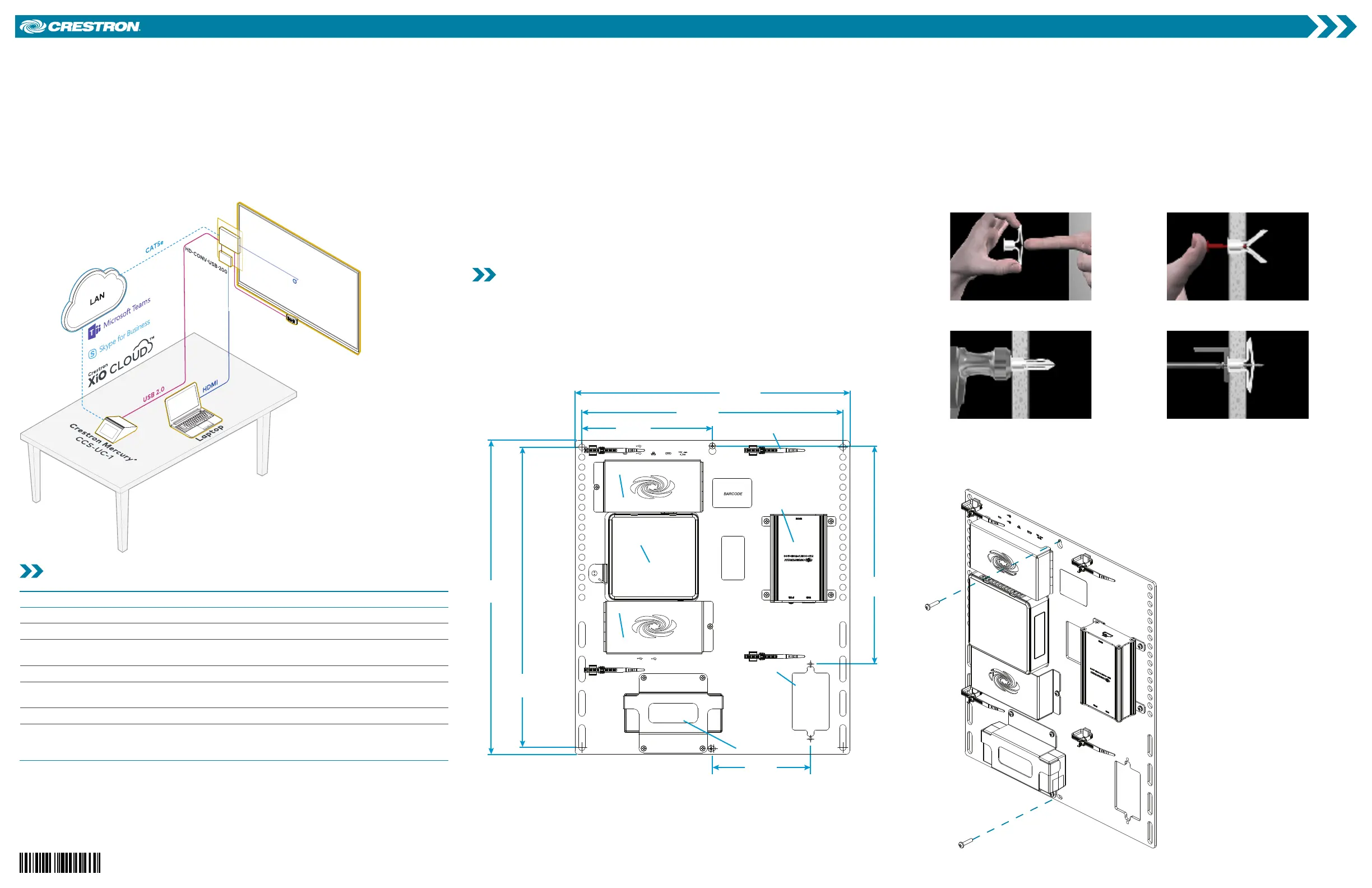

Install the Wall Bracket Assembly

The wall bracket assembly can be installed on a wall behind a display device, or attached to

the rear of the display device. The wall bracket assembly includes mounting slots on both side

edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the

display mounting plate. Additional mounting holes are provided on each side for other mounting

locations. Centerline mounting holes are also provided for attachment to the building structure.

Integrated, reusable cable tie wraps manage cable runs between the wall bracket and peripheral

devices.

Dimensions and Callouts

14.00 in.

(356 mm)

7.00 in.

(178 mm)

16.00 in.

(406 mm)

15.30 in.

(389 mm)

5.00 in.

(127 mm)

11.11 in.

(282 mm)

13.30 in.

(338 mm)

Connector Cover

Wall Plate Opening

Power Pack

Reusable Cable Tie Wrap (x4)

UC-ENGINE-SD

HD-CONV-USB-200

NOTES:

• The integrated cable tie wraps are reusable. Take care to avoid damage to the cable tie

wraps.

• The wall bracket assembly has an opening and pass through screw holes for placement

over a US electrical wall box that can be covered by a decorative wall plate. If the wall

plate opening will be positioned over an electrical wall box, longer screws will be needed

to secure the decorative wall plate to the electrical box. Do not secure the wall bracket

assembly with the wall plate opening screws.

When mounting on a wall, the wall bracket assembly should be anchored to the wall. The screws

and anchors included with the assembly are best suited for surfaces with 3/8 in. to 3/4 in.

thickness. To use the included anchors, perform the following procedure.

1. Drill a 5/16 in. pilot hole.

2. Fold the anchor in the middle and pinch

the ends together.

3. Insert the anchor in the hole and tap flush

with the wall.

4. Insert the included anchor key to pop the

anchor open and lock it.

WARNING: Do not force or hammer key.

5. Drive the screw partially into the anchor,

leaving 1/4 in. of the screw exposed.

6. Repeat steps 1 - 5 for the other anchor.

7. Place the wall bracket assembly on the

screws and hand tighten the screws until

the wall bracket is secured to the wall.

Install the Wall Bracket Assembly On a Wall

UC-M130-T

Crestron Flex M130 Tabletop UC Video Conference System for Microsoft Teams® Rooms

Prepare for Hardware Hookup

On the wall bracket assembly, open the connector covers located above and below the

UC-ENGINE-SD to reveal the UC-ENGINE-SD’s connectors.

NOTE: Each connector cover is secured to the wall bracket with a 6-32 Phillips screw. Use a #1

Phillips screwdriver to remove or install the screws. For additional security, replace the screws

with the spanner screws included with the UC-BRKT-100-SD-ASSY. A 1/4 in. driver bit is supplied

to install the spanner screws.

Connect the System

UC-ENGINE-SD

Connect the CCS-UCA-KB-USB (sold separately), CCS-UC-1-T-V, display, camera, and LAN to the

UC-ENGINE-SD. Connections are made to the top and bottom of the UC-ENGINE-SD.

UC-ENGINE-SD, Bottom (as mounted)

UC-ENGINE-SD

CCS-UCA-KB-USB

(sold separately) HD-CONV-USB-200

• Keyboard: Connect the USB dongle (supplied with CCS-UCA-KB-USB) to a port on the

UC-ENGINE-SD for local keyboard and mouse control.

• HD-CONV-USB-200: The HD-CONV-USB-200 is already installed on the wall bracket

assembly and connected to the UC-ENGINE-SD.

UC-ENGINE-SD, Top (as mounted)

Display

UC-ENGINE-SD

LAN

CCS-CAM-USB-F-100

UC-CONN-HD

(Do not remove)

• LAN: Connect the CBL-CAT5E-7 cable to the port on the UC-ENGINE-SD and to the

corporate LAN.

NOTE: The UC-ENGINE-SD and CCS-UC-1-T-V must be on the same network switch.

• CCS-UC-1-T-V: For connection details, refer to “CCS-UC-1-T-V.”

• CCS-CAM-USB-F-100: Connect the CCS-CAM-USB-F-100 camera to the port on the

UC-ENGINE-SD with the cable that is attached to the camera.

• Display: Connect a USBC to HDMI cable (CBL-USBC-HD-9 sold as part of UC-M-ACCY

KIT) to the USB-C port on the UC-ENGINE-SD and to the display.

• UC-CONN-HD: The UC-CONN-HD is already connected to the HDMI port on the

UC-ENGINE-SD. Do not remove the UC-CONN-HD.

CCS-UC-1-T-V

LANLAN

Ground

UC-ENGINE-SD

PW-2420-RU

CCS-UC-1-T-V Rear Panel

• USB B: Connect the CBL-USB-A-BMICRO-6 cable (supplied with CCS-UC-1-T-V) to the USB

B port on the CCS-UC-1-T-V and a USB port on the UC-ENGINE-SD. If additional cable is

required, use the CBL-USB-A-EXT-15 to extend the length of the CBL-USB-A-BMICRO-6.

NOTE: Make this connection only when the CCS-UC-1-T-V is to be used as an audio device.

• LAN: Connect a 12 ft (3.6 m) CAT5e cable (included with the CCS-UC-1-T-V) to the LAN

port on the CCS-UC-1-T-V and to the corporate LAN.

NOTE: The CCS-UC-1-T-V and UC-ENGINE-SD must be on the same network switch.

• Ground: Connect the CCS-UC-1-T-V to earth ground.

• Power: Connect the PW-2420RU power pack to an AC receptacle and to the 24V 2.5A port

on the CCS-UC-1-T-V.

NOTE: The CCS-UC-1-T-V can also be powered by PoE+. However, if the CCS-UCA-MIC is to be

used, the CCS-UC-1-T-V must be powered by the PW-2420-RU.

HD-CONV-USB-200

HDMI Source

HD-CONV-USB-200

The HD-CONV-USB-200 is already installed on the wall bracket assembly and connected to the

UC-ENGINE-SD. Connect an HDMI source to the HDMI port on the HD-CONV-USB-200 with an

HDMI cable (sold separately).

Complete the Installation

1. Bundle the cables with the integrated cable tie wraps. The cable tie wraps are reusable.

2. Secure the connector covers with the spanner screws or the Phillips screws removed earlier

from the wall bracket assembly.

3. Connect the wall bracket assembly’s power pack cord to a wall outlet.

Apply Power

When all connections are made, press the power button on the bottom of the UC-ENGINE-SD

and apply power to all of the other devices in the system. The CCS-UC-1-T-V will start and the

display will show its IP address.

Configure the System

Configure the CCS-UC-1-T-V

1. On a computer, open a web browser to the IP address of the CCS-UC-1-T-V (displayed when

power was applied) to configure the device to operate in Teams Video mode.

NOTES:

• The CCS-UC-1-T-V and computer must be on the same network switch.

• A login with administrative rights for the CCS-UC-1-TV is required.

2. Log in to the CCS-UC-1-T-V and navigate to DEVICE > .Applications

3. Select Teams Video from the Application Mode drop-down menu.

4. Reboot the device. The Microsoft Teams user interface is displayed on the device following

the reboot.

5. On a computer, open a web browser to the IP address of the CCS-UC-1-T-V. Log in and

navigate to > .DEVICE Applications

6. Enter the following information in the appropriate fields:

• Teams Video PC Address: Enter the IP address or hostname of the UC-ENGINE-SD.

NOTE: The hostname is printed on a label affixed to the UC-ENGINE-SD (mounted on

the UC-BRKT-100-SD-ASSY).

• Teams Video PC Port: By default, port number 49500 is used. If a different port number

has been configured on the UC-ENGINE-SD, enter that port number instead.

• Teams Video Username: Enter the login username for the UC-ENGINE-SD. (The default

username is “admin”.)

• Teams Video Password: Enter the login password for the UC-ENGINE-SD. (The default

password is “sfb”.)

7. Click Save Changes.

Refer to the CCS-UC-1 Supplemental Guide (Doc. 7844) at for www.crestron.com/manuals

details.

Configure the UC-ENGINE-SD

Use the CCS-UCA-KB-USB keyboard (sold separately) and your Microsoft Teams or Skype

account credentials to configure the UC-ENGINE-SD. Refer to the UC Video Conference Systems

for Microsoft Teams Supplemental Guide (Doc. 8360) at www.crestron.com/manuals.

For Additional Information

Scan or click the QR code for detailed product information.

UC-M130-T

Compliance and Legal

Original Instructions: The U.S. English version of this document is the original instructions. All other languages are a translation

of the original instructions.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, please visit www.crestron.com/opensource.

Crestron, the Crestron logo, Crestron Mercury, and Crestron XiO Cloud are either trademarks or registered trademarks of

Crestron Electronics, Inc. in the United States and/or other countries. HDMI and the HDMI logo are either trademarks or

registered trademarks of HDMI Licensing LLC in the United States and/or other countries. Logitech is either a trademark or

registered trademark of Logitech, Inc. in the United States and/or other countries. Microsoft 365, Microsoft Exchange Server,

Microsoft Teams, and Skype are either trademarks or registered trademarks of Microsoft Corporation in the United States

and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to

either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and

names of others. Crestron is not responsible for errors in typography or photography.

Crestron Electronics, Inc.

15 Volvo Drive, Rockleigh, NJ 07647

Tel: 888.CRESTRON

Fax: 201.767.7576

www.crestron.com

Quick Start - Doc. 8464C

(2053759)

06/17/19

Specifications subject to

change without notice.

Produkt Specifikationer

Mærke:	Crestron
Kategori:	Videokonferencesystem
Model:	UC-M130-T

Har du brug for hjælp?

Hvis du har brug for hjælp til Crestron UC-M130-T stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Videokonferencesystem Crestron Manualer

Crestron IVA-CMT-BRKTJ-1B-B Manual

27 August 2025

Crestron IV-CAMA-UMB-W Manual

27 August 2025

Crestron UC-MM30-Z Manual

27 August 2025

Crestron IV-CAMA-UMB-B Manual

27 August 2025

Crestron UC-BX31-T-WM Manual

27 August 2025

Crestron IVA-WMT-BRKT-1B-B Manual

27 August 2025

Crestron IV-CAMPTZ-12-SLVR-1B Manual

26 August 2025

Crestron UC-B30-T-WM Manual

7 Juli 2025

Crestron UC-B31-Z Manual

1 April 2025

Crestron TSW-770-MSMK Manual

23 December 2024

Videokonferencesystem Manualer

Nyeste Videokonferencesystem Manualer

WyreStorm HALO VX10 v2 Manual

13 September 2025

Kramer KAC-BAR-81 Manual

6 September 2025

Cisco TelePresence Precision 60 Manual

5 September 2025

PTZ Optics NDI ZCam-VL Manual

4 September 2025

PTZ Optics PTVL-ZCam Manual

4 September 2025

PTZ Optics NDI ZCam 20X Manual

4 September 2025

4 September 2025

3 September 2025

3 September 2025

3 September 2025
