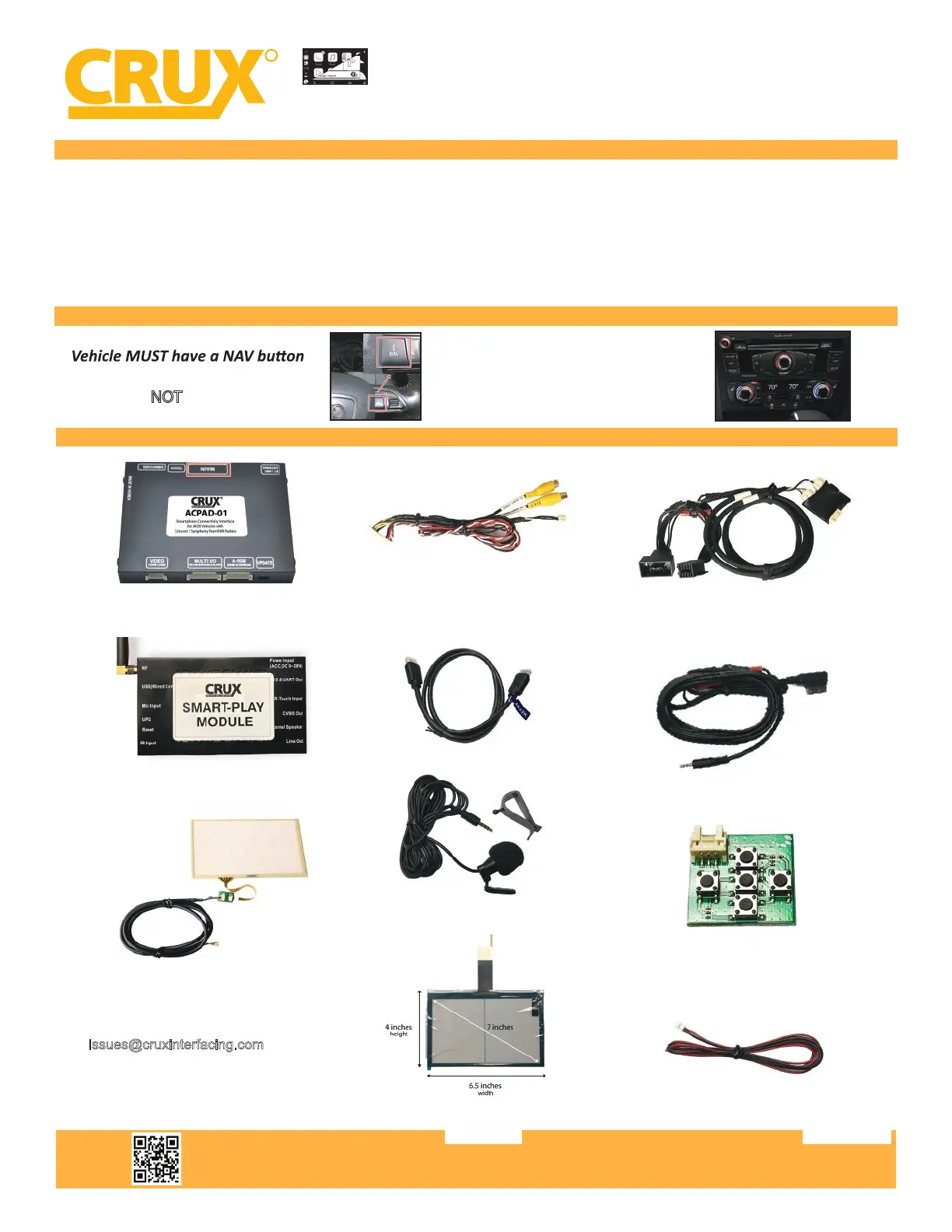

Side 1/12
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
- Integrates wired/wireless Android Auto & CarPlay, smartphone mirroring.
- Smart-Play integration system allows connection of Android and other smartphones to the Audi non-MMI system
- Control Apps using the smartphone’s voice control feature or touch panel provided.
- Retains functionality of the OEM back-up camera, if present.
- Includes AMI to RCA auxiliary adapter cable.
PRODUCT FEATURES:
ACPAD-01W
Smart-Play Smartphone Connectivity Interface for
Audi Vehicles with Concert / Symphony Non MMI Radios
R
INTERFACING SOLUTIONS
NOTES:
on the steering wheel controls
or part will NOT function.
ACPAD-01W Module Power/Video Harness LVDS In/Out Cable
Touch Panel 6.5 inches included
Smart-Play Interface Module
* = Please measure your infotainment display
to match CRUX touch panel.
Email issues@cruxinterfacing.com with issues.
**= Please make sure AMI port or 3.5 mm AUX port is
present in vehicle
Microphone
OSD Controller
4K HDMI Cable
Smart-Play Module Power Harness
PARTS INCLUDED:
Vehicle MUST have the MMI
controls on the radio.
rev.0908211 of 12
AMI to 3.5mm Aux Adapter Cable**
(Optional, sold seperately)*
NOTE: Vehicle must have AUX Input port or AMI port
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0721212 of 12
DIP SWITCH SETTINGS:
ACPAD-01W
Smart-Play Smartphone Connectivity Interface for
Audi Vehicles with Concert / Symphony Non MMI Radios
R
INTERFACING SOLUTIONS
INSTALLATION DIAGRAM:
MAIN
ACPAD-01W
Smart-Play / Android Auto Inte ationgr
for Audi with Concert/Symphony Radios
INTERFACING SOLUTIONS
V IDEO
REAR CAMERA
FRONT CAMERA
Front Camera Manual Trigger
Front Camera 12V Power
Camera Ground
Rear Camera 12V Power
Rear Ground
Rear Camera Manual Trigger
OSD
CONTROL
PAD
OSD Control Pad is used to
adjust the settings. Must be
unplugged and stored after use.
LVDS
Adapter
Cable
Red
Red
Black
Black
Multi/IO
HDMI
Smart-Play Module
INTERFACING SOLUTIONS
HDMI
Power Port
+12V ACC (Red)
GND (Black)
Aux Cable
To factory
Aux Input
Microphone
OEM Smartphone
Cable
To Smartphone
USB Extension
Cable
(Optional, sold seperatly)
To Cigarette
Lighter Wires
Blue
Green
LVDS
Video Board
To factory screen
From factory screen
12V ACC
Ground
CAN +
CAN -
Red
Black
White
Brown
Touch
Screen
Aux Out
Touch Panel
IN
OUT
Note: ON is down and OFF is up
DIP SETTING SCREEN SIZE VEHICLE
1 to 8 ALL OFF 7” A4, S4, A5, S5, Q5
