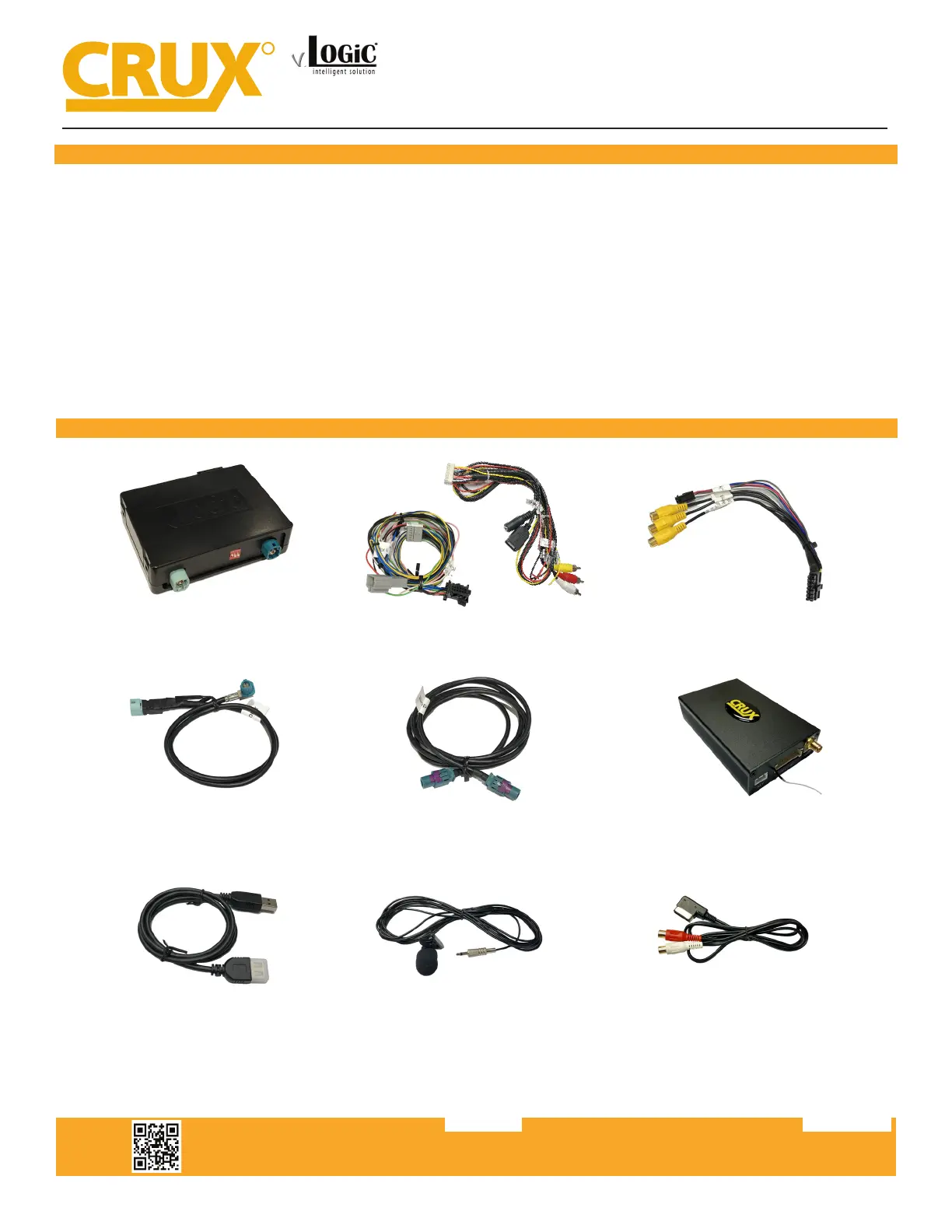

ACPAD-81Y Module Power Harnesses Video Harness

LVDS1 Cable (to Vehicle) LVDS2 Cable (to Headunit) Smartphone Interface Module

USB Extension Cable

Mic

AMI Audio Adapter Cable

ACPAD-81Y

Smart-Play Integration with Multi Camera Inputs & USB Player

for AUDI Vehicles with MMI MIB/MIB2 Systems

INTERFACING SOLUTIONS

Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.0819191 of 12

- Smart-Play Integraon system allows connecon of Android and other devices to the Audi infotainment system.

- Control Apps using smartphone’s voice control feature or the factory MMI knob.

- Adds a USB port to play music and videos. USB port can also charge the smartphone.

- Adds front and rear-view camera inputs.

- Picture-in-picture mode combining aer-market rear-view and front camera picture(s) with factory parking sensor

graphics.

- Interacve parking guide lines with calibraon funcon.

- Simultaneous use of picture-in-picture factory parking sensor graphics and interacve parking guide lines.

- Built-in on-screen display and setup.

- Includes a AMI to RCA adapter cable to input audio into the factory Audi audio system.

- Provides a trigger output (+12V max. 1A) for the camera power.

PRODUCT FEATURES:

PARTS INCLUDED:

Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.0819192 of 12

INSTALLATION DIAGRAM:

INTERFACING SOLUTIONS

ACPAD-81Y

Smart-Play Integration with Multi Camera Inputs & USB Player

for AUDI Vehicles with MMI MIB/MIB2 Systems

DIP SWITCH SETTINGS:

Rear Camera

(not included)

Front Camera

(not included)

LVDS 1 Cable

LVDS 2 Cable

4-pin HSD

Female LVDS Vehicle Harness

+12V Power Output (Pink)

Connect to front and rear camera power +12V

Female Quadlock

Vehicle Harness

Headunit

To Smart-Play

Interface Module

(see next page)

Rear

Camera

Front

Camera

Video

Input

+12V Constant (Red)

Ground

See step 12 on

page 5 for power

and ground connections

VEHICLE MONITOR SIZE DIP 1 DIP 2 DIP 3

Audi A3 (8V)

7” ON OFF OFF

Audi A4 (8W)

8.3” ON ON ON

Audi Q7 (4M)

8.3” ON OFF ON

Audi Q7 (4M)

7” ON OFF OFF
