CRUX ACPBM-77Z Manual

CRUX Ikke kategoriseret ACPBM-77Z

Læs gratis den danske manual til CRUX ACPBM-77Z (15 sider) i kategorien Ikke kategoriseret. Denne vejledning er vurderet som hjælpsom af 23 personer og har en gennemsnitlig bedømmelse på 4.8 stjerner ud af 12 anmeldelser. Har du et spørgsmål om CRUX ACPBM-77Z, eller vil du spørge andre brugere om produktet?

Download PDF
Side 1/15
Microphone
ACPBM-77Z
Smart-Play Integration with Rear-View Camera Input
for F Series BMW with 6.5”, 7”, 8.8”, & 10.25” Monitor and 4+2 LVDS Connector
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.051820221 of 15
- Control Apps using smartphone’s voice control feature or the factory iDrive (High/Low) Knob
- Built-in on-screen display and setup.
- 1 trigger output (+12V max. 1A) for the camera power.
The vehicle needs to have a factory AUX input.*

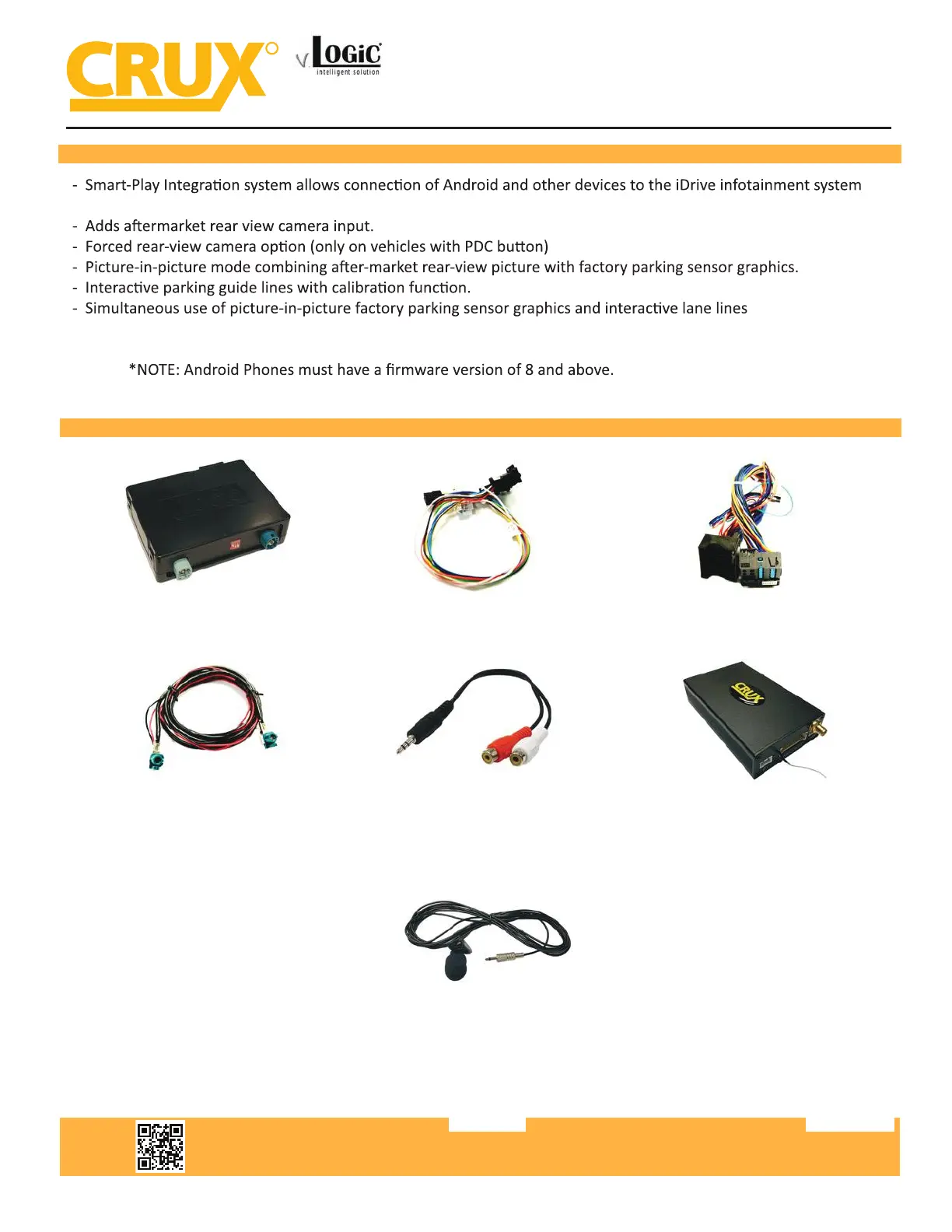

PRODUCT FEATURES:
PARTS INCLUDED:
ACPBM-77Z Module Power/CAN Harness ACPBM-77Z Vehicle Harness
CRUX LVDS Cable 3.5mm to RCA Adapter Smart-Play Interface Module
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.05182022
2 of 15

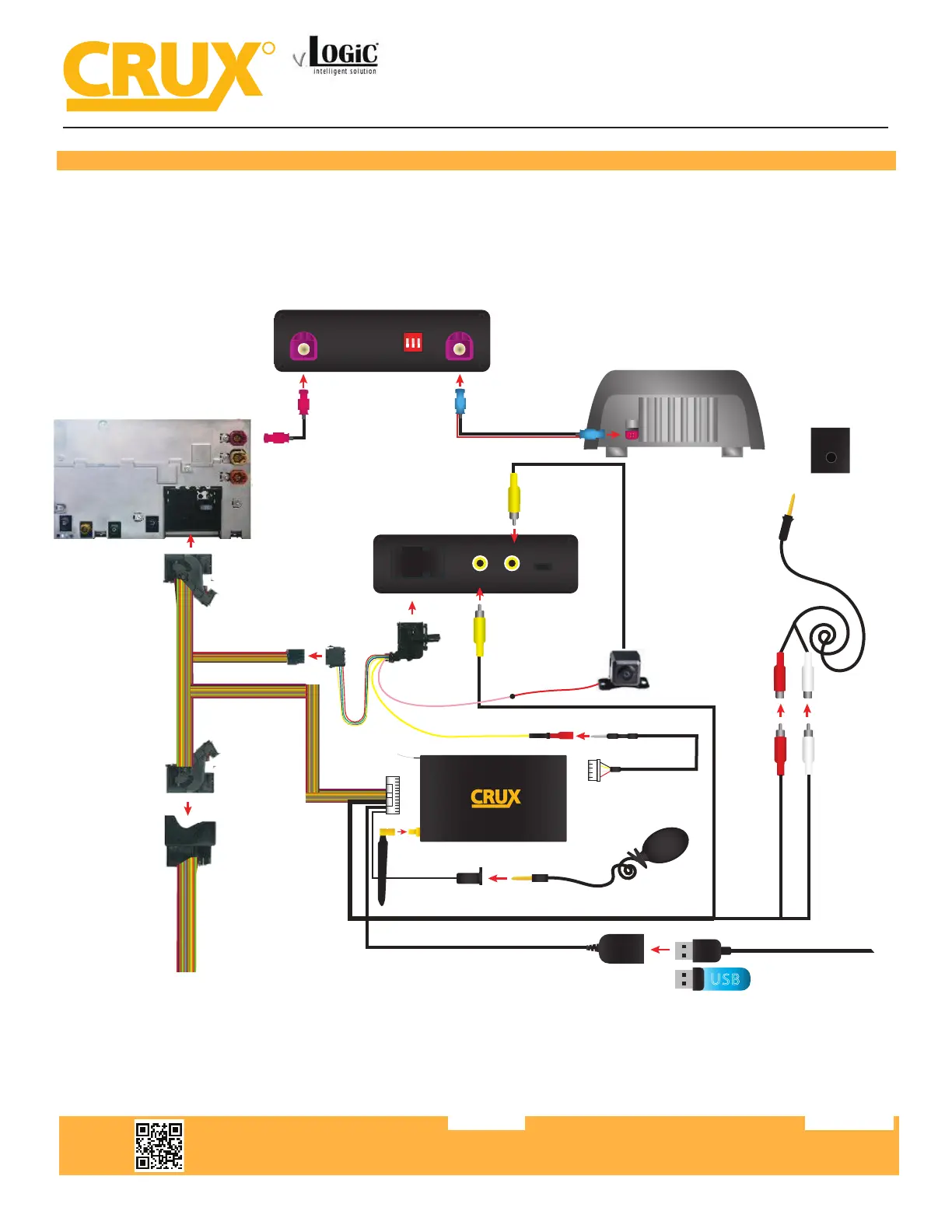

INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
ACPBM-77Z
Smart-Play Integration with Rear-View Camera Input
for F Series BMW with 6.5”, 7”, 8.8”, & 10.25” Monitor and 4+2 LVDS Connector
Pink factory
LVDS Cable
Aftermarket Crux
LVDS Cable
Back-Side of Factory
LCD Screen
LVDS
IN
LVDS
OUT
123
O N
ACPBM-77Z Module
PO WER / C A N
FR ONT
CAM
RE A R
CAM
FW
UPDAT E
UART
POWER/VIDEO
Back of Headunit
ACPBM-77Z
Vehicle Harness
Factory Harness
Power/CAN
Harness
Vehicle Auxiliary
Input (AUX input)
Female RCA to
3.5mm jack
Male L & R RCA
Outputs (Audio)
AUX
iDrive Knob
Retention Cable
Smartphone Cable
Wireless Adapter
Smartlink Cable
OR
USB Input
Microphone
Smart-Play Module
Camera
(RED)
+12V Switching
Output 1 (Pink Wire)
