ACPLR-01

Smart-Play Integration with for Select 2012-2016

Jaguar and Land Rover Vehicles with 8” Screen

INTERFACING SOLUTIONS

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.070621

1 of 6

- Smart-Play Integraon system allows connecon of Android and other phones to the Jaguar and Land Rover

infotainment system.

- Made for Android Auto and CarPlay.

- Uses the factory touch screen for Smart-Play controls.

- Uses the factory Aux Input for audio.

PRODUCT FEATURES:

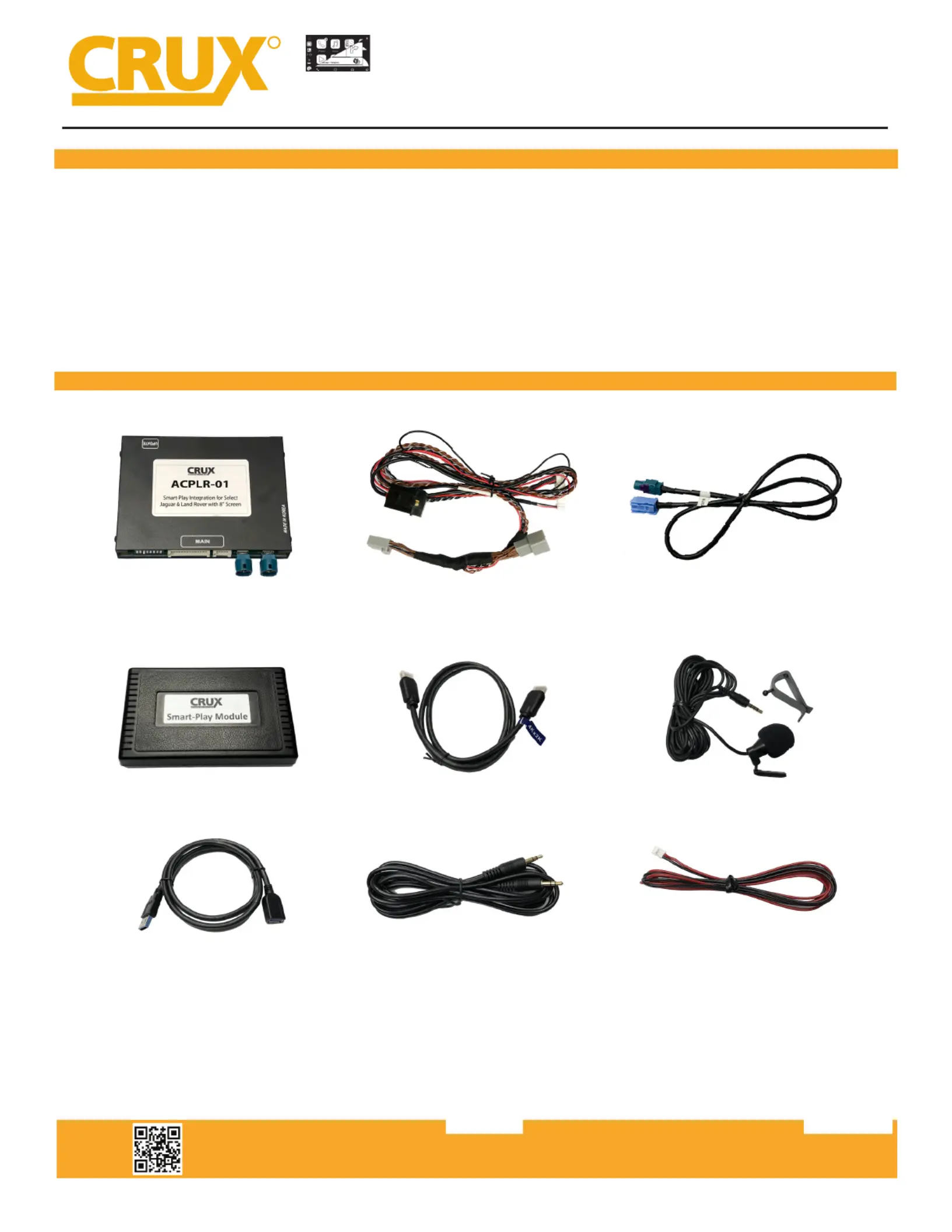

ACPLR-01 Module Vehicle Harnesses GVIF Video Cable

Smart-Play Interface Module 4K HDMI Cable Microphone

USB Extension Cable 3.5mm Aux Cable Power Harness

PARTS INCLUDED:

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.0706212 of 6

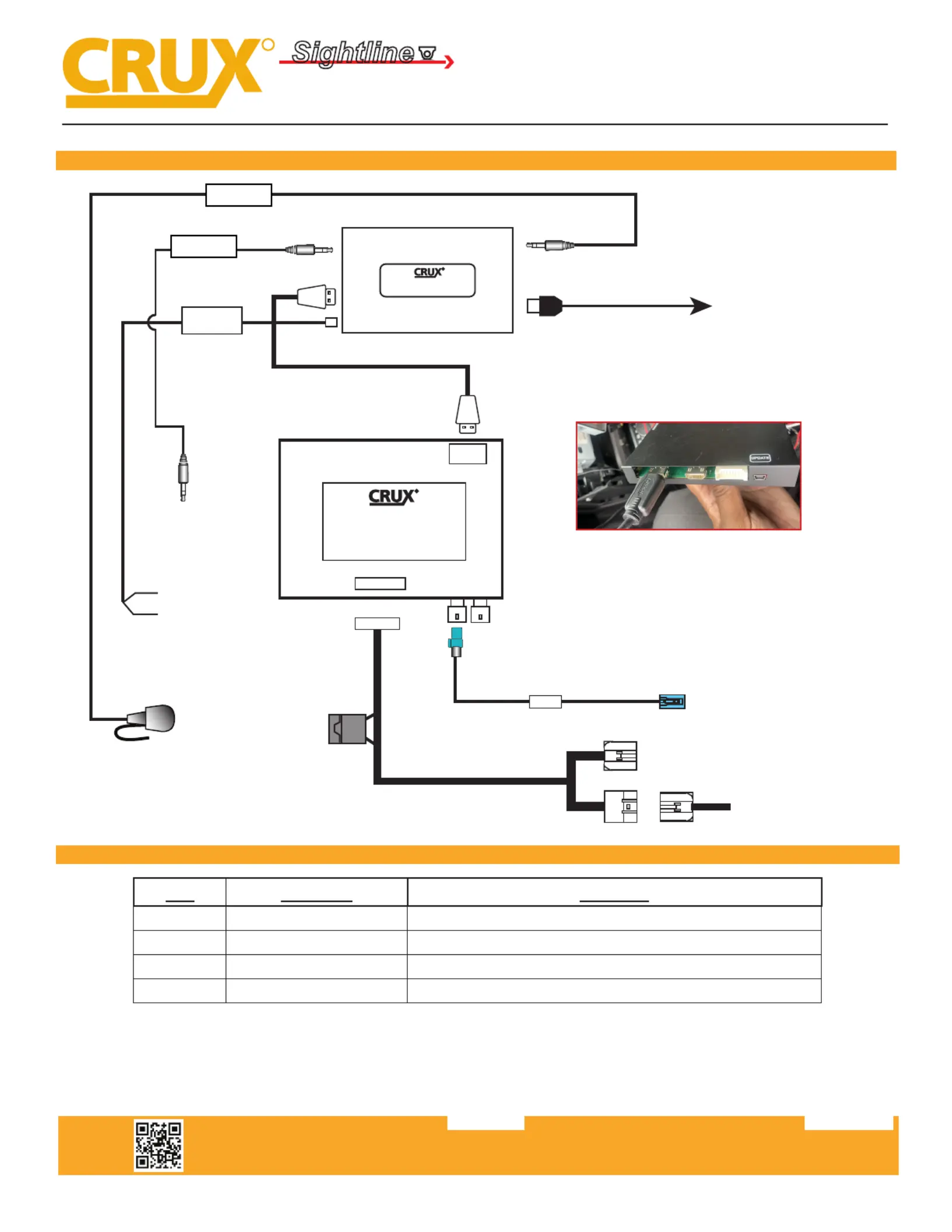

WIRING DIAGRAM:

INTERFACING SOLUTIONS

Sightline

Multi View Integration

MAIN

ACPLX-71Z

Smart-Play / Android Auto Integration

for Lexus Vehicles with Jog Mouse

INT ERF ACING SO LUT ION S

Multi/IO

HDMI

Smart-Play Module

IN TERFAC IN G SO LU TI O NS

HDMI

Power Port

Original Smartphone

Cable To Smartphone

GVIF

OUT

To the 16-pin connector

behind factory touch screen

From the 16-pin connector

behind factory touch screen

To factory touch screen

OUT

Smart-Play

Power

MIC

USB

Line Out

NOT

USED

To Vehicle

Aux Input

12V ACC

Ground

Microphone

ACPLR-01

Smart-Play Integration with for Select 2012-2016

Jaguar and Land Rover Vehicles with 8” Screen

DIP SWITCH SETTINGS:

DIP SETTING VEHICLE

1 to 8 ALL UP Range Rover Evoque, Range Rover Sport

1 DOWN (rest UP) Discovery 4

3DOWN (rest UP) Jaguar XF, XJ

4DOWN (rest UP) Range Rover

Plug the HDMI cable to the le side

HDMI port of the ACPLR-01 module.

For vehicles without factory navigaon, set DIP# 5 to ON (down) before powering the ACPLR-01 module.

This creates a NAV icon on the screen which is used to select Smart-Play mode. See DIP SWITCH SETTING

FOR NAVIGATION on page 6 for details.

Aux Input

Microphone

For vehicles with factory navigaon, set DIP#5 to OFF (up). See page 6 for more details.
