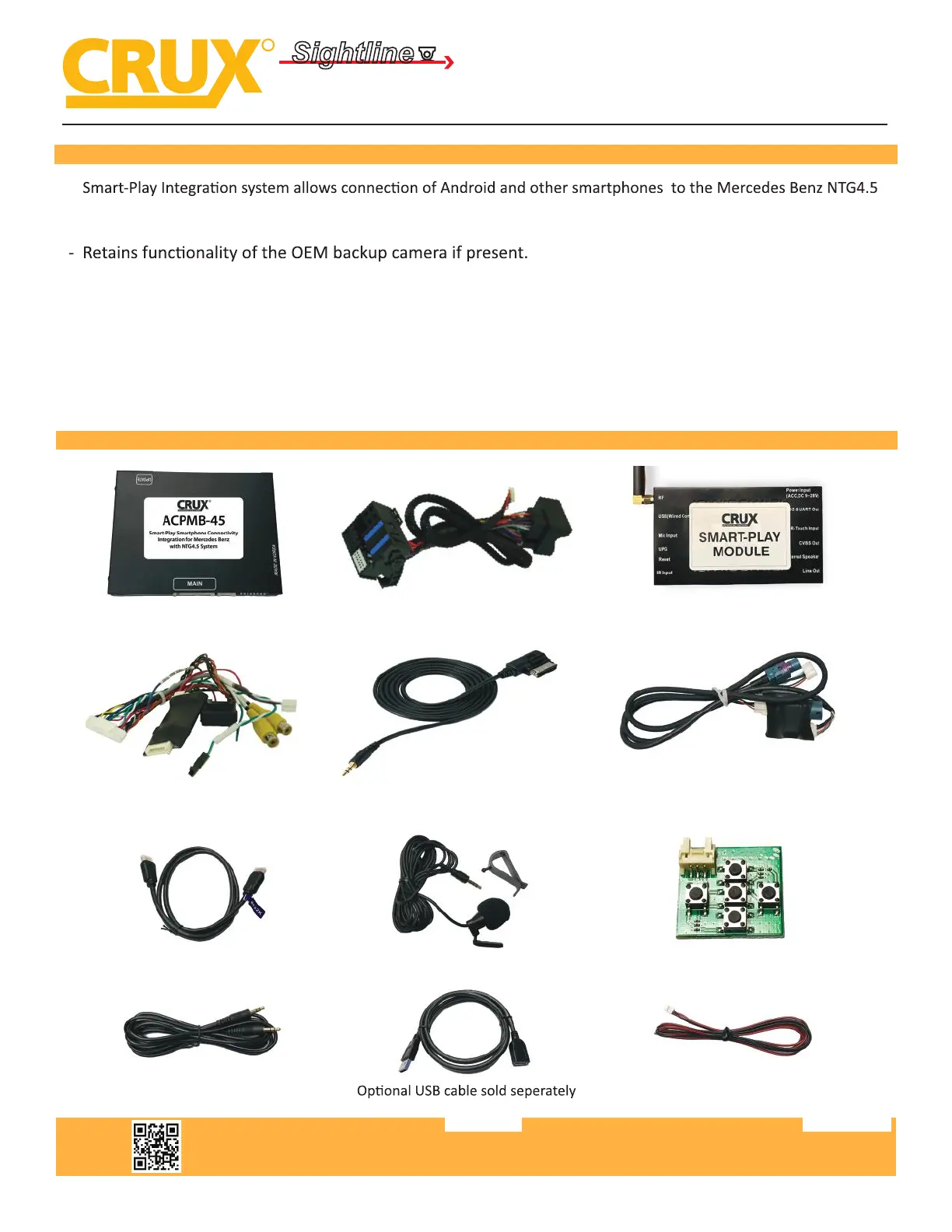

Side 1/11

ACPMB-45W

Wireless Smart-Play Inte ation with Multi Camera Inputsgr

for Select Mercedes Benz Vehicles with NTG4.5 / NTG4.7 System

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.051222

1 of 11

and NTG4.7 infotainment systems.

- Integrates wireless/ wired Android Auto and CarPlay.

- Includes an AMI to 3.5MM auxiliary adapter cable.

NOTE: Some Mercedes Benz models do not have a 3.5mm Aux port but instead might have a AMI port, if

this is the case, a AMI to RCA adapter is required.

PRODUCT FEATURES:

ACPMB-45W Module Vehicle Harnesses Smart-Play Interface Module

Video Harness AMI-3.5MM Adapter Cable LVDS In/Out Cable

4K HDMI Cable Microphone OSD Controller

3.5mm Aux Cable Smart-Play Module Power Harness

PARTS INCLUDED:

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.0512222 of 11

WIRING DIAGRAM:

INTERFACING SOLUTIONS

Sightline

Multi View Integration

MAIN

ACPMB-45

Smart-Play / Android Auto Inte ationgr

for Mercedes Benz with NTG4.5 System

INTERFACING SOLUTIONS

V IDEO

REAR CAMERA

FRONT CAMERA

Front Camera Manual Trigger

Front Camera

12V Power & Ground

Rear Camera

12V Power & Ground

Rear Camera Manual Trigger

OSD

CONTROL

PAD

OSD Control Pad is used to

adjust the settings. Must be

unplugged and stored after use.

LVDS

Adapter

Cable

Red

Black

Multi/IO

HDMI

Smart-Play Module

INTERFACING SOLUTIONS

HDMI

Power Port

+12V ACC (Red)

GND (Black)

Aux Cable

To factory

Aux Input

Microphone

OEM Smartphone

Cable

To Smartphone

USB Extension

Cable

To Cigarette

Lighter Wires

Blue

Green

LVDS Video

Extension Board

To Radio

From Radio

LVDS Cable

TO FACTORY

RADIO

FROM FACTORY

RADIO

FIBER OPTIC

CABLE

ACPMB-45W

Wireless Smart-Play Inte ation with Multi Camera Inputsgr

for Select Mercedes Benz Vehicles with NTG4.5 / NTG4.7 System

DIP SWITCH SETTINGS:

Note: ON is down and OFF is up

DIP SETTING SCREEN SIZE VEHICLE

1 to 8 ALL OFF 7” All Classes

1 ON 5.8” C, CLS, E, GL, GLK, ML, SLK

2 ON 5.8” A, B, CLA, GLA, G

NOTE:

Optional sold seperately
