Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
ACPMB-50W
Smart-Play Integration with Multi Camera Inputs
for Select Mercedes Benz Vehicles with NTG5 System
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
rev.051222
1 of 11
-

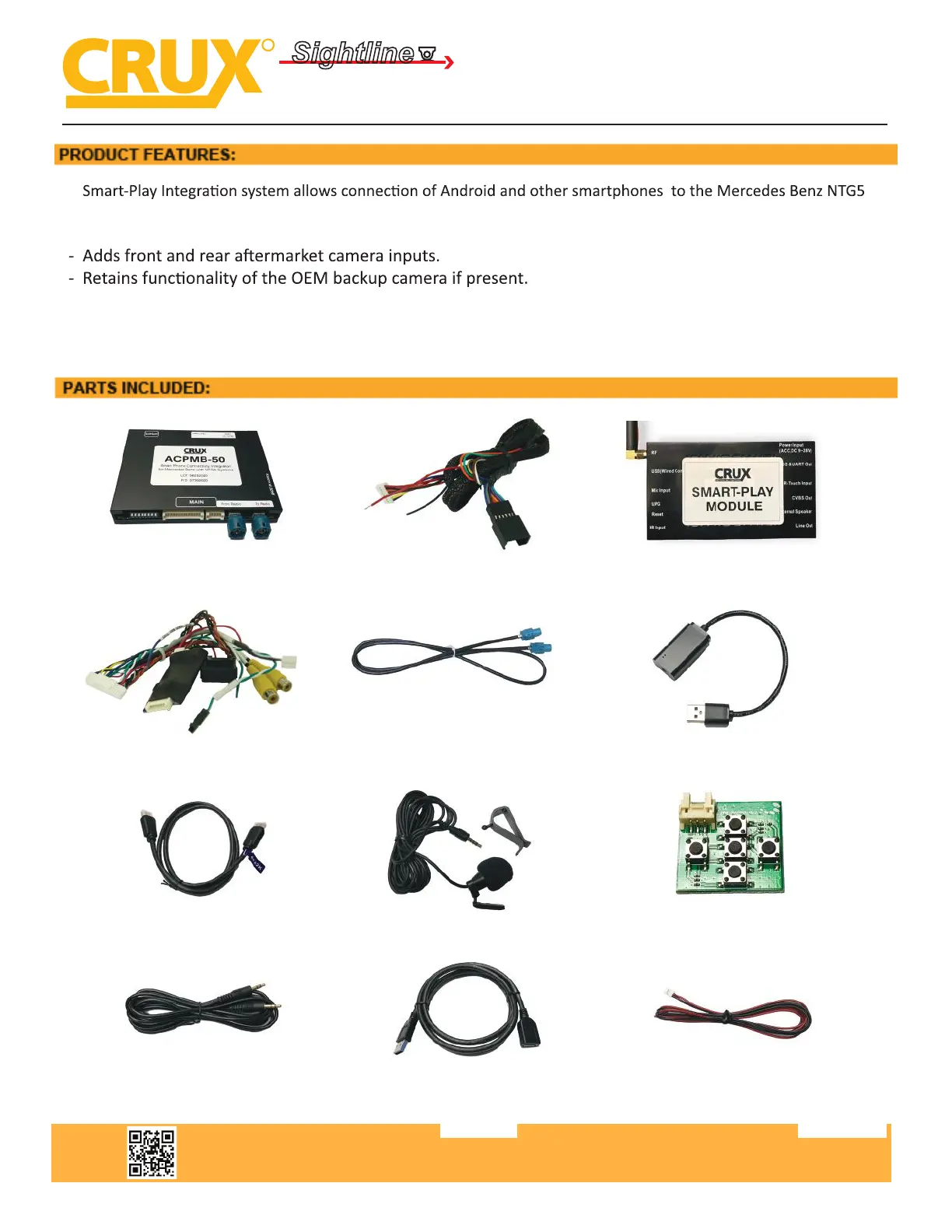

infotainment system.
- Integrates wired/ wireless Android Auto and carplay
- Includes a USB-3.5MM auxiliary audio adapter.
ACPMB-50W Module Vehicle Harnesses Smart-Play Interface Module
Video Harness LVDS Cable USB to Aux Adapter
4K HDMI Cable Microphone
Optional USB Cable
(Sold Seperately)
OSD Controller
3.5mm Aux Cable
Smart-Play Module Power Harness

Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.051222
2 of 11

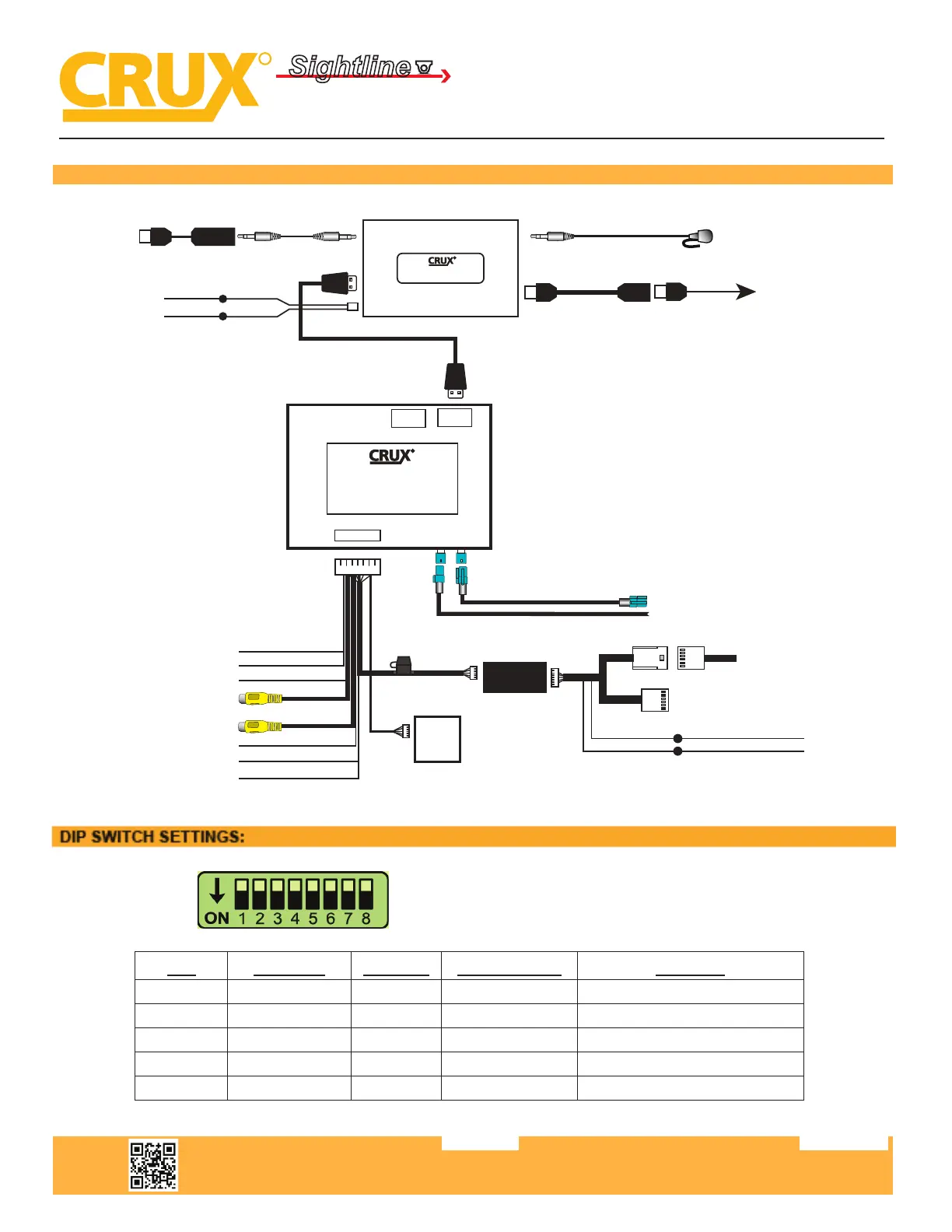

WIRING DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
MAIN
ACPMB-50
Smart-Play / Android Auto Integration
for Mercedes Benz with NTG5 System
R
INTERFACING SOLUTIONS
REAR CAMERA
FRONT CAMERA
Front Camera Manual Trigger
Front Camera
12V Power & Ground
Rear Camera
12V Power & Ground
Rear Camera Manual Trigger
OSD
CONTROL
PAD
OSD Control Pad is used to
adjust the settings. Must be
unplugged and stored after use.
5A Fuse
Red
Red
Black
Black
Multi/IO
HDMI
Smart-Play Module
R
INTERFACING SOLUTIONS
HDMI
Power Port
+12V ACC (Red)
GND (Black)
Aux Cable
To factory
USB port
Microphone
OEM Smartphone
Cable
To Smartphone
USB Extension
Cable
To Cigarette
Lighter Wires
Blue
Green
To Radio
From Radio
CAN Extension
Board
LVDS Cable
To the 12 pin insert on
Quadlock connector
From the 12 pin insert on
Quadlock connector
HDMI
Not Used
Red Wire (+12V)
Black Wire (ground)
Red Wire (+12V Battery)
Brown Wire (ground)
From factory
Quadlock
Connector
Red (ACC)
Brown (Ground)
USB-3.5MM
Audio Adapter
ACPMB-50W
Smart-Play Integration with Multi Camera Inputs
for Select Mercedes Benz Vehicles with NTG5 System
Note: ON is down and OFF is up
DIP SETTING SYSTEM SCREEN SIZE VEHICLE
1 to 8 ALL OFF NTG5.1 8” A, B, CLA, CLS, GLA, GLE, GLS
1 to 8 ALL OFF NTG5.1 7” A, B, CLA, CLS, GLA, GLE, GLS
4 ON NTG5.2 8.4” C, GLC
4 & 7 ON NTG5.2 7” C, V, GLC
3 ON NTG5.5 12.3” S Class

Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.051222
3 of 11
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPMB-50W
Smart-Play Integration with Multi Camera Inputs
for Select Mercedes Benz Vehicles with NTG5 System

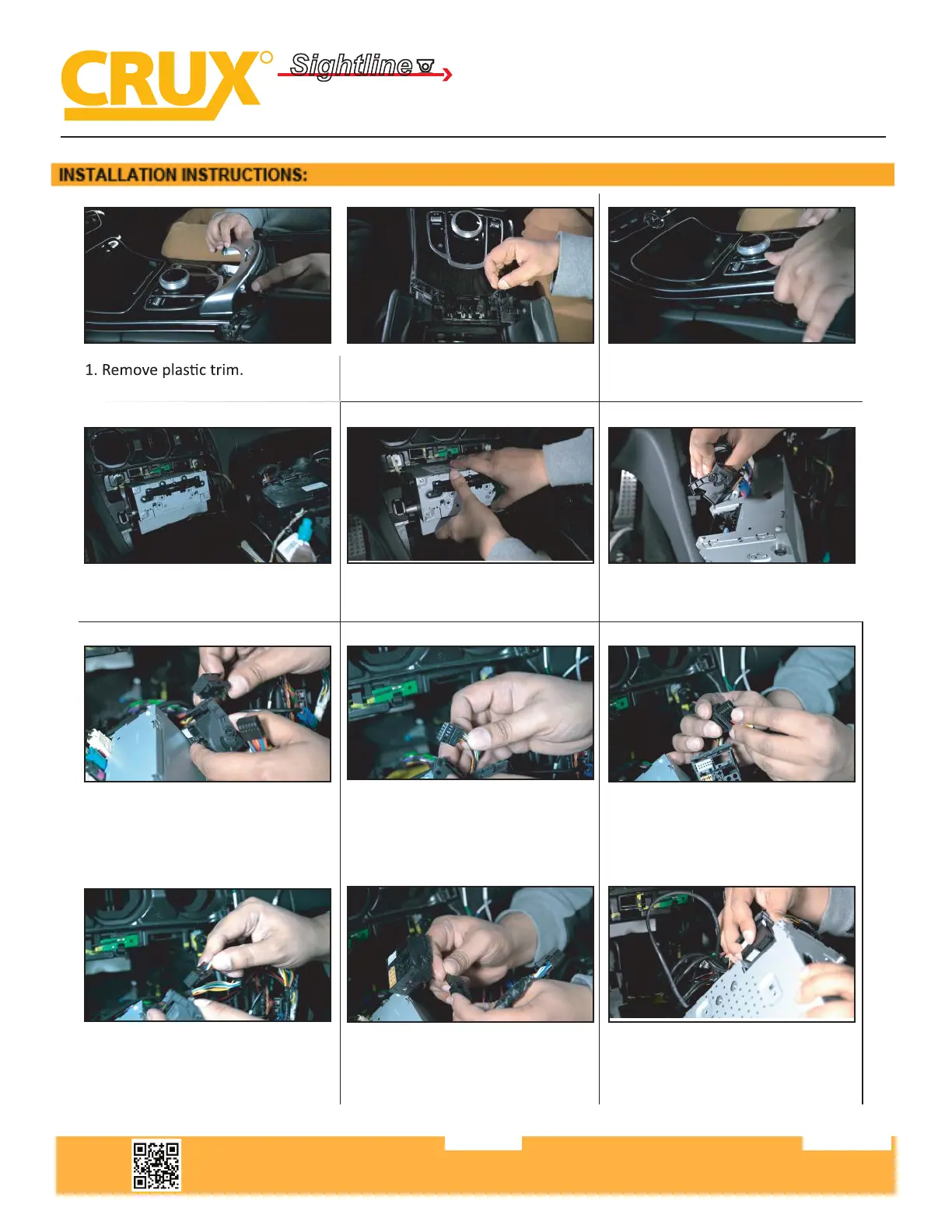

2. Remove the 2 T20 torx screws. 3. Carefully pull out up the whole
center panel.
4. Remove the 2 screws holding the
radio.
5. Pull out the radio. 6. Unplug the Quadlock connector.
7.Remove the 12-pin connector
(black) from the Quadlock
connector.
8. Remove the insert from the 12-
pin connector.
9. Install the 12-pin insert from the
ACPMB-50W harness to the 12-pin
connector.
10. Plug the 12-pin connector back
to the Quadlock connector.
11. Plug in the factory 12-pin insert
to the ACPMB-50W harness mate.
12. Plug the Quadlock connector
back to the radio.

Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.051222
4 of 11
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPMB-50W
Smart-Play Integration with Multi Camera Inputs
for Select Mercedes Benz Vehicles with NTG5 System

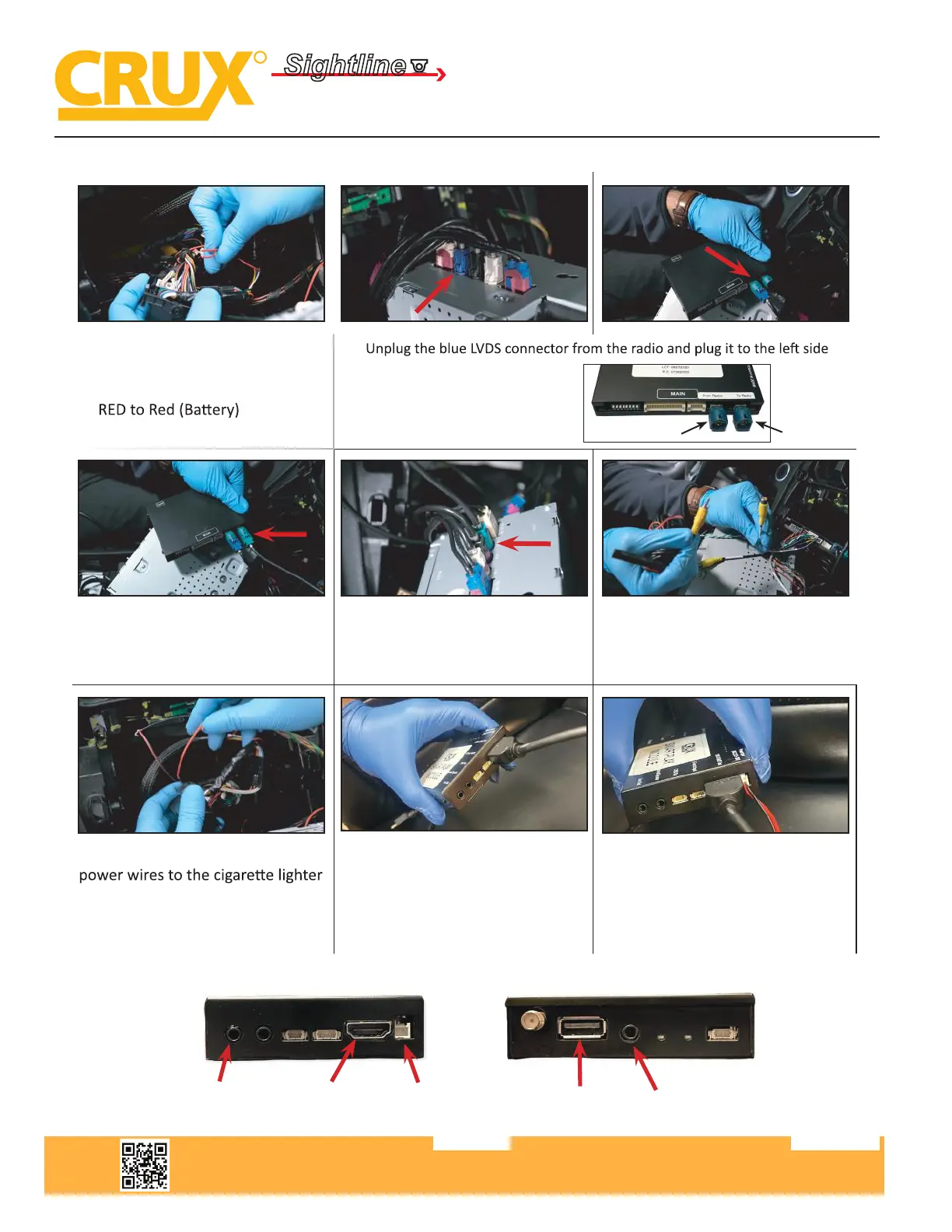

13. Tap the power wires on the
ACPMB-50W harness to the Quad-
lock connector wires as follows:
Black to Brown (Ground)
14.
LVDS port on the module.
Note every vehicle might not have the
same color LVDS connector.
15. Plug one end of the LVDS cable
provided in the kit to the right side
LVDS port on the module.
16. Plug the other end of the LVDS
cable to the radio.
17. Install the front and rear
cameras (if applicable) and power
using the power wires provided.
18. Tap the Smart-Play module
wires as follows:
RED to Red (ACC)
Black to Brown (Ground)
19. Plug in the 4K HDMI cable
provided with the kit to the
Smart-Play module.
20. Plug the 2 pin power wire
connector to the Smart-Play
module.
Line Out (Aux) HDMI Power Port
USB Mic In
From Radio
To Radio

Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
1 = Short press for Voice Command
2 = Short press for Return
rev.051222
5 of 11
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPMB-50W
Smart-Play Integration with Multi Camera Inputs
for Select Mercedes Benz Vehicles with NTG5 System

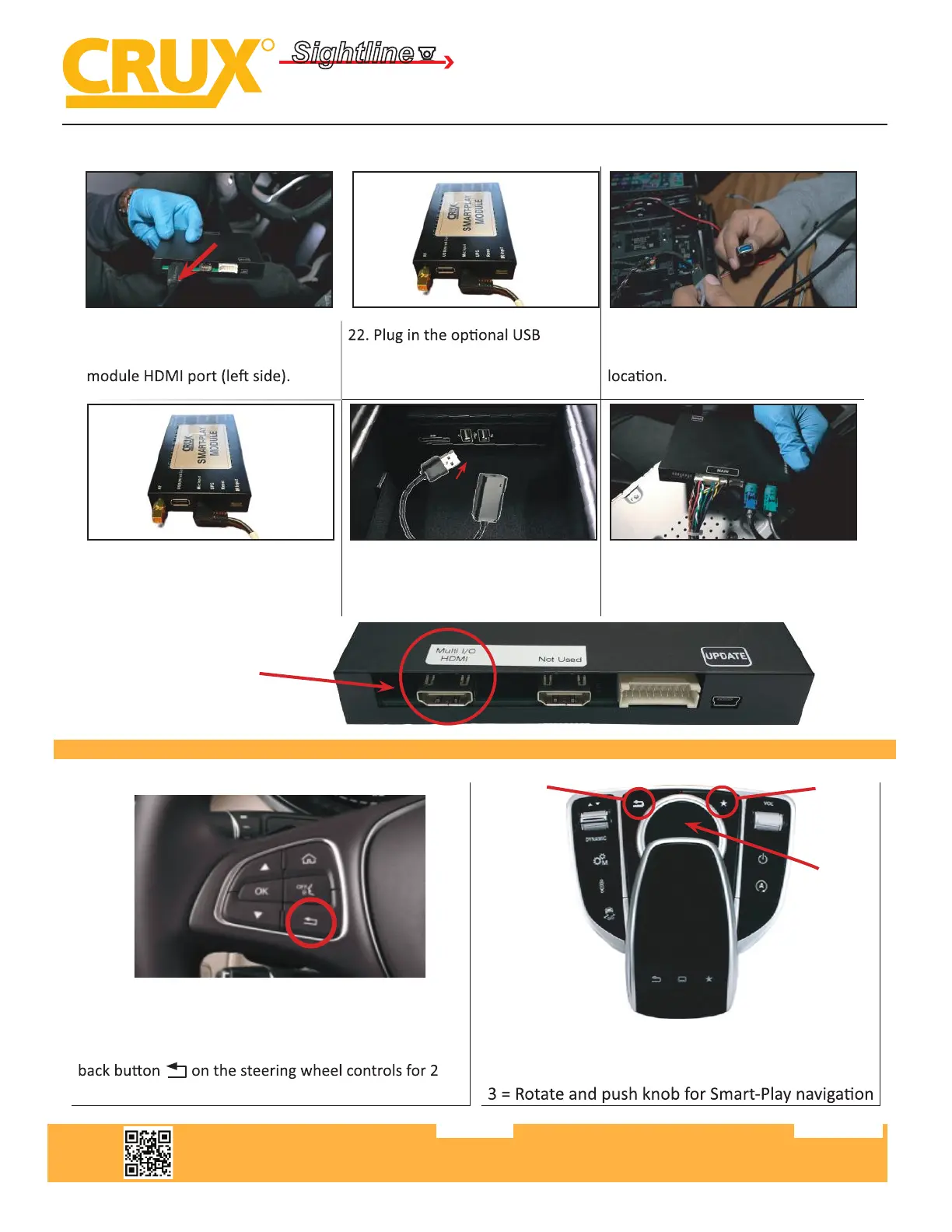

21. Plug the other end of the 4K
HDMI cable to the ACPMB-50W
extension cable to the Smart-Play
module for wired AA/ Carplay
23. Run the other end of the USB
extension cable to an accessible
24. Plug one end of the Aux cable
to the Smart-Play module and other
end to the USB to Aux adapter.
25. Plug the USB to Aux adapter to
the factory USB port.
26. Plug in the main power harness
to the ACPMB-50W module.
To enter and exit the Smart-Play mode, press the
seconds.
OPERATION:
1
2
3
Plug HDMI here

Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.051222
6 of 11
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPMB-50W
Smart-Play Integration with Multi Camera Inputs
for Select Mercedes Benz Vehicles with NTG5 System

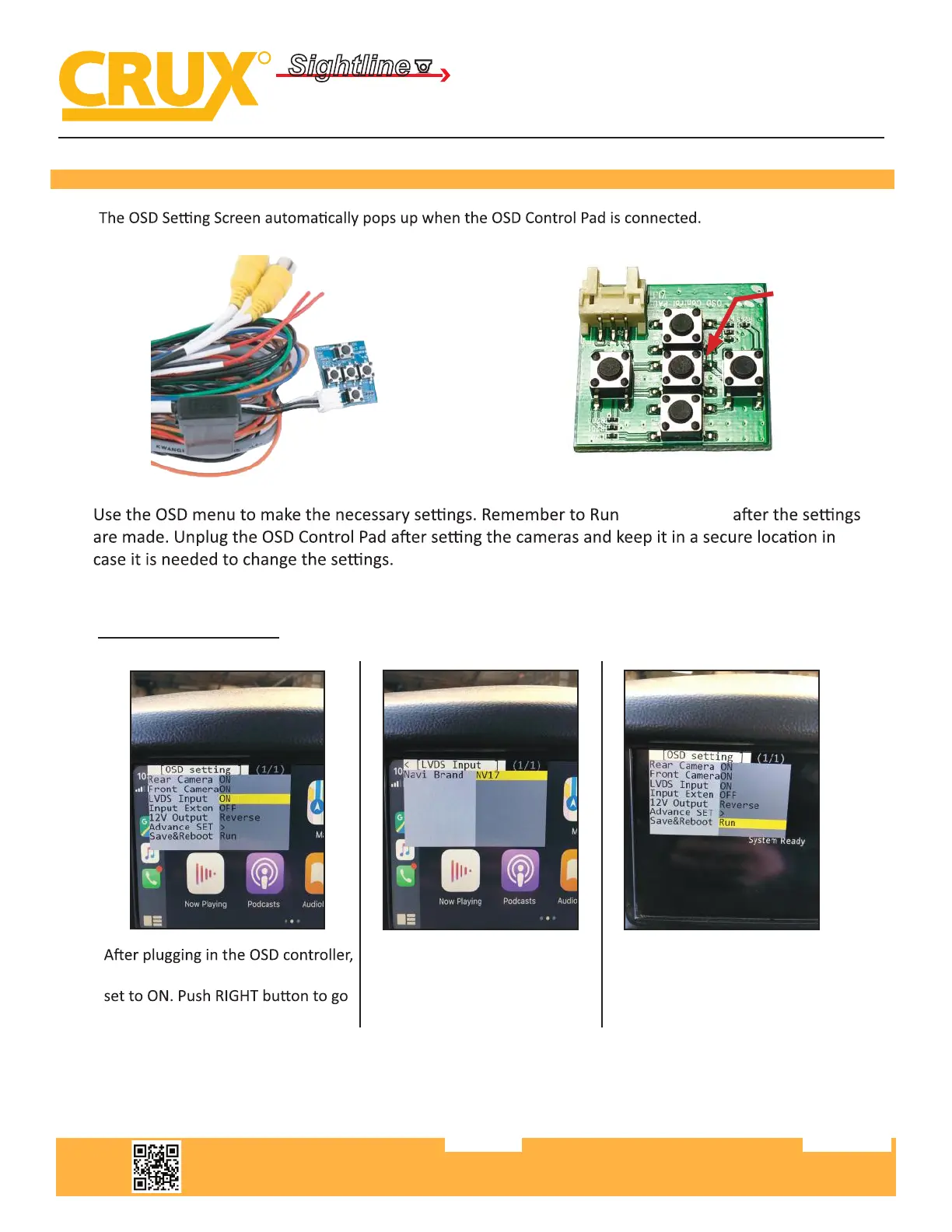

OSD Control Pad
ON SCREEN DISPLAY (OSD) SETTINGS:
Save&Reboot
UP
DOWN
LEFT RIGHT
ENTER
SMART-PLAY SETTING
navigate down to LVDS Input and
to the next menu.
Set Navi Brand to NV17 Navigate the OSD back
the main menu and go to
Save&Reboot then Run.

Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.051222
7 of 11
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPMB-50W
Smart-Play Integration with Multi Camera Inputs
for Select Mercedes Benz Vehicles with NTG5 System
Have Android AutoLink OFF
.
Wait for screen that will state
Use Carplay with “NV17W-WIFI ”
WIRELESS CARPLAY/WIRELESS ANDROID AUTO CONNECTION SETTINGS

On AutoLink Pro APP nd the Device
and Tap to Connect
Select “Start Now”
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.051222
8 of 11
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPMB-50W
Smart-Play Integration with Multi Camera Inputs
Mercedes Benz Vehicles with NTG5 System

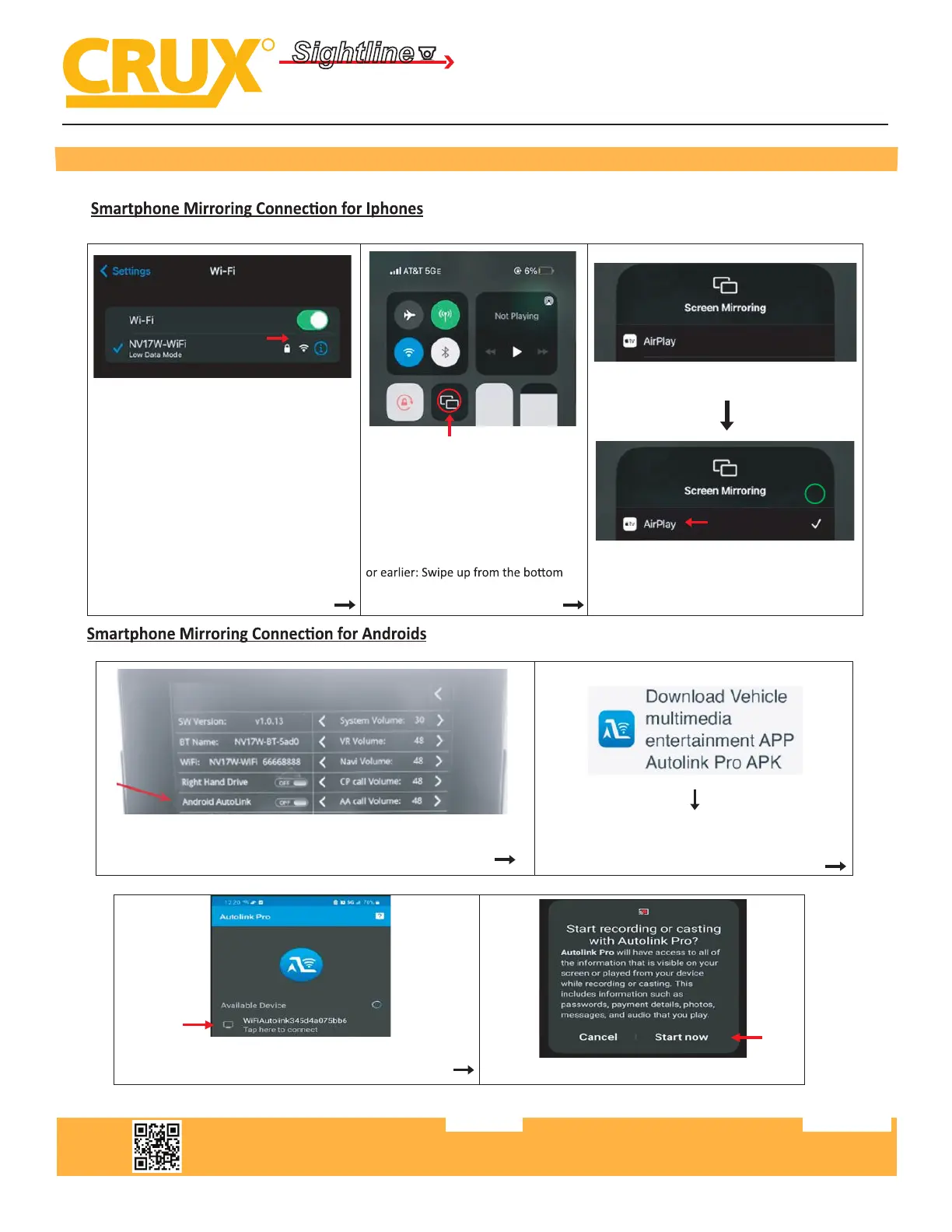

Enable Wi-Fi and connect
to “ NV17W “ module
Open Control Center and Tap
Screen Mirroring
a. On iPhone X or later; iPad with
iPadOS 13 or later: Swipe down from the
upper-right corner of the screen.
b. On iPhone 8 or earlier or IOS 11
edge of screen
Airplay will pull up on sreen mirroring app
Select “ Airplay ”
Enable Android AutoLink
Download AutoLink Pro APP
Available in the “Play Store”
SMARTPHONE MIRRORING CONNECTION

Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.051222
9 of 11
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPMB-50W
Smart-Play Integration with Multi Camera Inputs
for Select Mercedes Benz Vehicles with NTG5 System
To turn ON the Dynamic Parking Guide Lines, go the
Rear Input > Rear Set and turn ON Warning LANG. Go
back to the root menu and Run Save&Reboot. Re-
member to unplug the OSD Control Pad otherwise the
on, start the car, put the gear in reverse, turn the
to right then put it in the center. The ACPMB-50W will

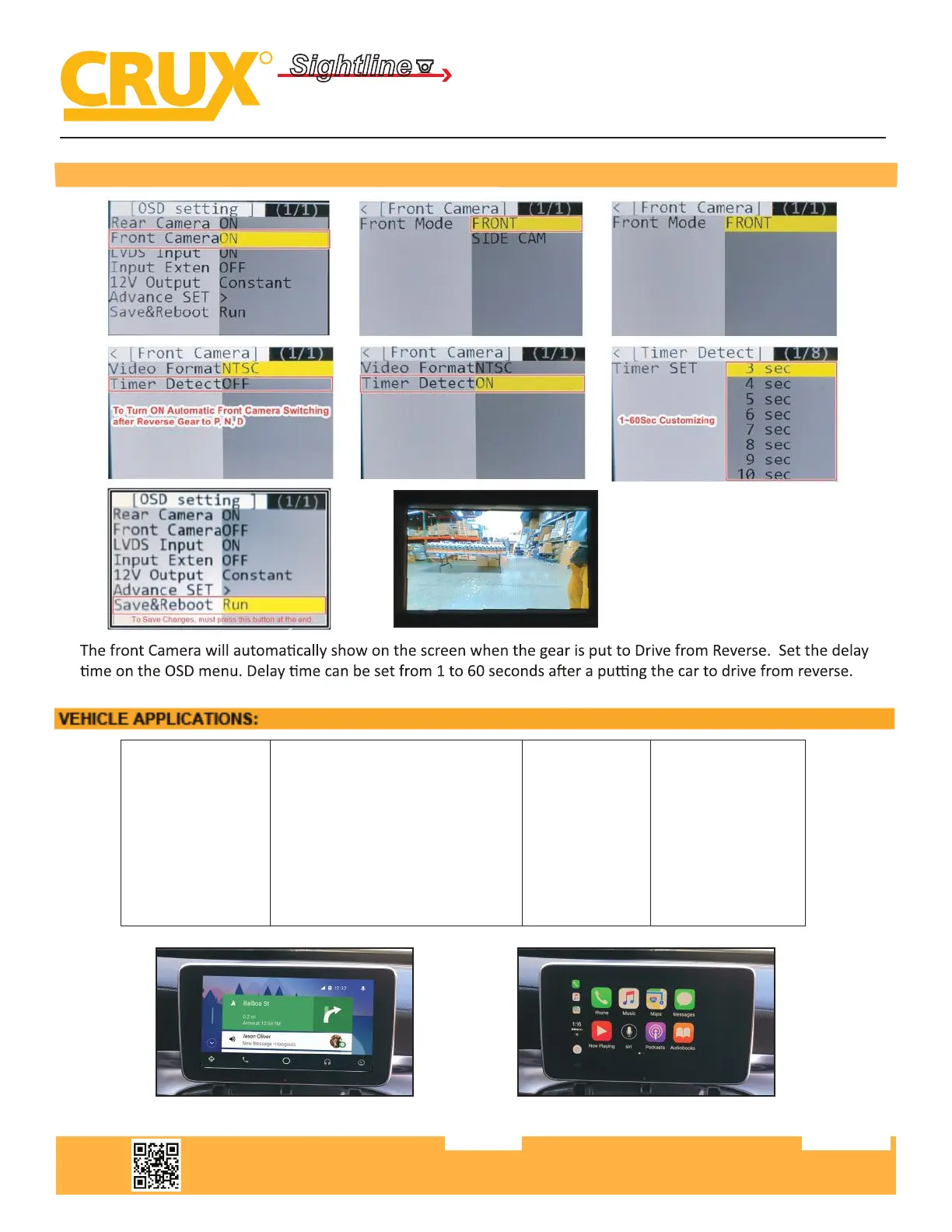

REAR AND FRONT CAMERA SETTING
DYNAMIC PARKING GUIDE LINES

Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.05122210 of 11
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPMB-50W
Smart-Play Integration with Multi Camera Inputs
for Select Mercedes Benz Vehicles with NTG5 System
Android Auto Screen
CarPlay Screen
Mercedes Benz
2015 - 2017
2015 - 2018
2015 - Up
2015 - 2018
2015 - 2017
2015 - 2016
2017 - Up
A-class (W176)
B-class (W24)
C-class (W205)
CLA (C117)
CLS (W218)
E-class (W212)
G (W463)
2017 - Up
2015 - Up
2015 - Up
2015 - Up
2015 - 2018
2016 - 2018
2016 - 2018
GL (X166)
GLA (X156)
GLC (X253)
GLE (C292)
ML (W166)
SL (R231)
SLC (R172)
FRONT CAMERA SETTINGS

TROUBLESHOOTING
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.051222
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
ACPMB-50W
11 of 11
*If your call audio does not use car’s bluetooth, manually change it on the phone to select the vehicle during the call, then the
phone should remember the last used setting
Changing the call audio routing setting to “BLUETOOTH HEADSET”
Go to Settings - Accessibility - Touch - Call Audio Routing. Keep it at “Automatic”
1. IF the screen is black & not showing factory infotainment screen or the CarPlay/Android Auto Screen
- Conrm secure connection of LVDS cables to the top monitor.
- Conrm LVDS cables are not damaged, pinched, kinked or bent.
2. No trigger issue /No click heard when long hold applied on BACK button on steering wheel
- Check and conrm proper connection of the Main Car Interface Harness,
CAN bus board, and 30-pin Car Interface Harness.
- Check and conrm no loose pins or damage to the harness. Green/RED LED Light should be
visible from the Metal Box
3. When long hold is applied on BACK button on steering wheel, black screen appears
- Conrm proper secure connection of the HDMI Cable.
- Conrm power wire is connected on the CarPlay Box. Red LED light should be visible from
the CarPlay Box.
4. Screen image glitching or distorted
- Conrm correct dip switch setting.
7. Siri does not recognize my voice
- Conrm Microphone jack connection (3.5mm), which is on the USB side of the CarPlay Box.
- Conrm that there are no wire damage.
5. Hands free call quality noise and echo
- For iPhone, conrm the phone is connected to your vehicle via Bluetooth and
“Call Audio Routing setting” Keep it at “Automatic”
- For Android, conrm Bluetooth is being used for calls by observing phone’s call audio output.
6. No sound
- Conrm AUX cable connection, which is on the HDMI side of the CarPlay Box.
- Conrm Car Media Source is in AUX mode. Conrm sound output from the phone to CarPlay module.
Smart-Play Integration with Multi Camera Inputs
for Select Mercedes Benz Vehicles with NTG5 System
Produkt Specifikationer
Mærke: | CRUX |
Kategori: | Ikke kategoriseret |
Model: | ACPMB-50W |
Har du brug for hjælp?
Hvis du har brug for hjælp til CRUX ACPMB-50W stil et spørgsmål nedenfor, og andre brugere vil svare dig
Ikke kategoriseret CRUX Manualer
23 August 2025
23 August 2025
23 August 2025
22 August 2025
10 Juli 2025
10 Juli 2025
10 Marts 2025
10 Marts 2025
10 Marts 2025
10 Marts 2025
Ikke kategoriseret Manualer
- Gladiator
- Fiamma
- CLIMAQUA
- Mondial
- Lecork
- TranzX
- EPH Elektronik
- Greenlee
- Seymour Duncan
- Netter Vibration
- Oppo
- Hamilton Buhl
- Geovision
- Seal Shield
- Winia
Nyeste Ikke kategoriseret Manualer
8 September 2025
8 September 2025
8 September 2025
8 September 2025
8 September 2025
8 September 2025
7 September 2025
7 September 2025
7 September 2025
7 September 2025
