TO FACTORY
HARNESS
8-PIN
(male plug)
4 5 6
ON
1 2 3
40-PIN
(male plug)
40-PIN
(female plug)
TO FACTORY
RADIO
THIS INTERFACE IS DESIGNED TO ACTIVATE
VIDEO IN-MOTION TO ALLOW THE PASSENGER
ACCESS TO THE ADDRESS INPUT WHILE THE
VEHICLE IS IN-MOTION. THIS INTERFACE MAY
CAUSE AN ERROR WHEN SERVICED AT THE OEM
DEALER. BE AWARE THAT MOST DEALERS
WILL ATTEMPT TO VOID THE MANUFACTURERS
WARRANTY WHEN INSTALLING ANY AFTERMAR-
KET EQUIPMENT. IMPROPER USE OF THIS INTER-
FACE BY THE DRIVER MAY RESULT IN CITATION.
DRIVER MUST KEEP FULL ATTENTION ON THE
ROAD AND RESPONSIBILITY ON THE SAFETY OF
THEIR PASSENGERS.
INTERFACING SOLUTIONS
A/V INPUT INTEGRATION FOR SELECT CHEVROLET VEHICLES 2012-2014
CHEVROLET:
2012 - 2014 Sonic
2012 - 2014 Spark
AVIGM-04S
+ VCIP5
We recommend reading this installation guide rst before starting any
work. Following these instructions from “Start” to” Finish” will ensure
a smooth and hassle free installation. We oer telephone support M-F
9:00 AM – 5:00PM PDT at 1 (855) 822-1348. We are here to help.
PARTS INCLUDED:
(1) GM-04S Interface
(1) GM-04S Harness
(1) GM-04S A/V Adaptor
(1) VCIP5 (HDMI to Composite Cable)
(1) Instruction
PRECAUTIONS:
- Remove the negative side of the battery to avoid any short circuits
during the installation.
- Do not install the interface near any major components or near the
HVAC system. This may cause damage or overheating to the vehicle.
- Do not disconnect the airbag connection behind the radio panel.
PRELIMINARY:
Please read the entire manual before installing this interface.
Vehicle must be equipped with factory DVD changer.
This interface does not activate DVD reader.
INSTALLATION OVERVIEW
TROUBLE SHOOTING
1. No video display while driving.
- Make sure the dip switches are in the proper location.
Rev. 030614
INSTALLING THE INTERFACE:
1. Remove the factory radio to gain access to the factory connectors.
2. Remove the 40-Pin connector from behind the radio.
2. Make the T-Harness connections behind the factory radio.
(if the connectors do not match please contact tech support)
4. Set the dip switch to permanently activate the VIM feature.
5. Test the display while the car is in-motion to verify the VIM is active.
Dip 1: This dip switch is the permanent solution for keeping the VIM
unlocked.
ALL OTHER DIP SWITCHES
MUST BE SET TO OFF!
SETTING THE DIP SWITCHES
4 5 6
ON
1 2 3
From the factory radio, once you plug in the A/V Input Adaptor,
You will notice the radio activate the AUX (Movie) source.
With your composite device connected, begin watching your
media to the factory display. The included VCIP5 allows you to
mirror your image form your iPhone 5 to your factory screen.

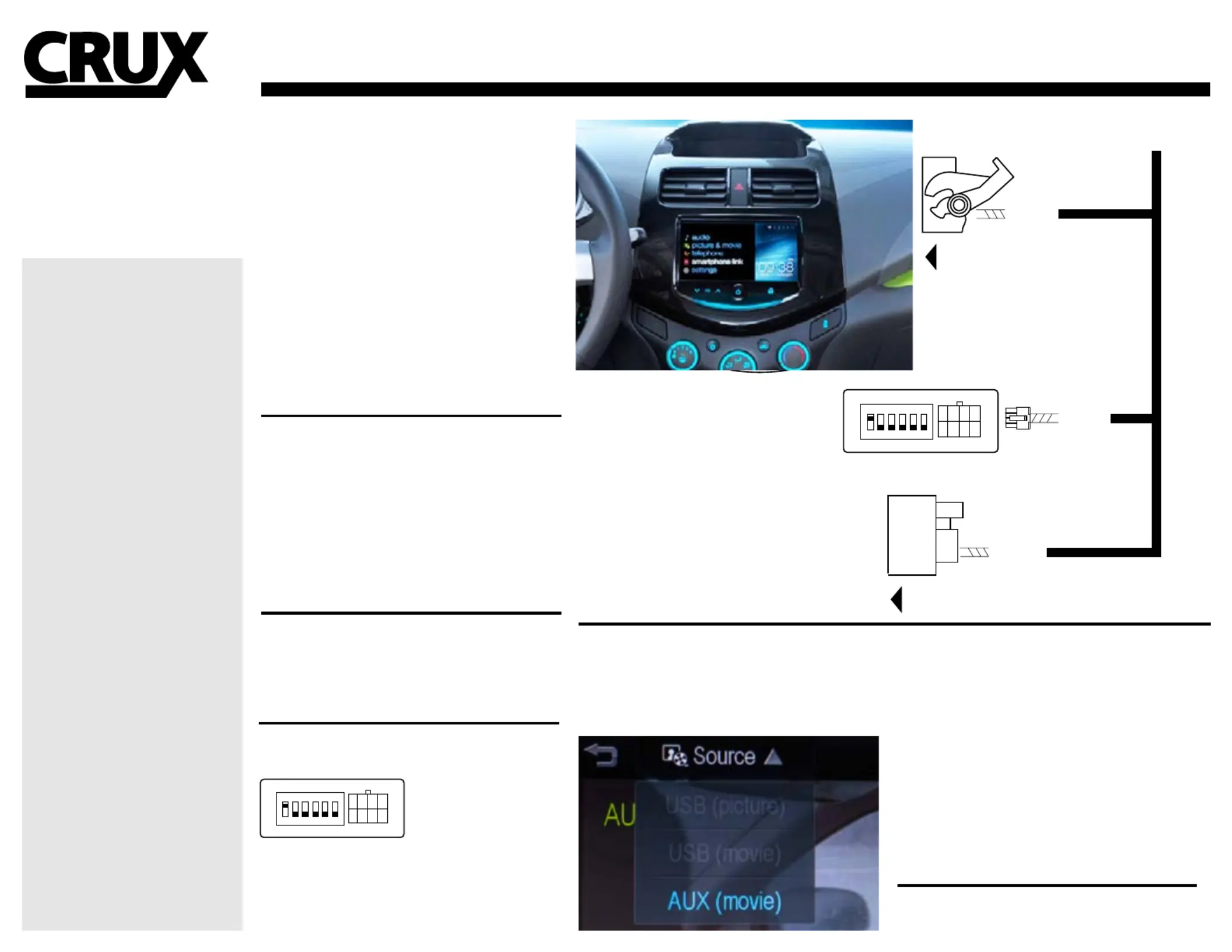

SELECTING THE A/V INPUT
8” NEW STYLE NAVIGATION RADIO
(1-PIECE RADIO)
A/V INPUT INTEGRATION FOR SELECT CHEVROLET VEHICLES 2012-2014
CHEVROLET:
2012 - 2014 Sonic
2012 - 2014 Spark
AVIGM-04S
+ VCIP5
Rev. 030614
ADDITIONAL ITEMS FOR AVIGM-04S
Using our 3.5mm A/V adaptor you are able to connect any composite output device to your
factory screen.
Our new VCIP5 cable allows you to connect your iPhone 5 to the composite input, when
using the Apple Lightning to HDMI adaptor ( )Sold separately
When using our VCIP5 you will be able to mirror (one way) the display of your iPhone to your
video screen. And all applications that allow you to rotate will ll the screen on the radio
display.
Applle Lightning to HDMI Adaptor
Sold separately.
Apple Part number: MD826ZM/A
VCIP5 allows you to mirror the image
from your iPhone to the factory display.
Items like:
Google Maps
Home Videos
Netix
Pandora
+ more
iPhone & iPad are a registered trademark of Apple Inc
Connects to
iPhone 5/5C/5S/
iPad
Included
You can also utilize the
Apple Charge port on the
HDMI Adaptor to charge
your device.

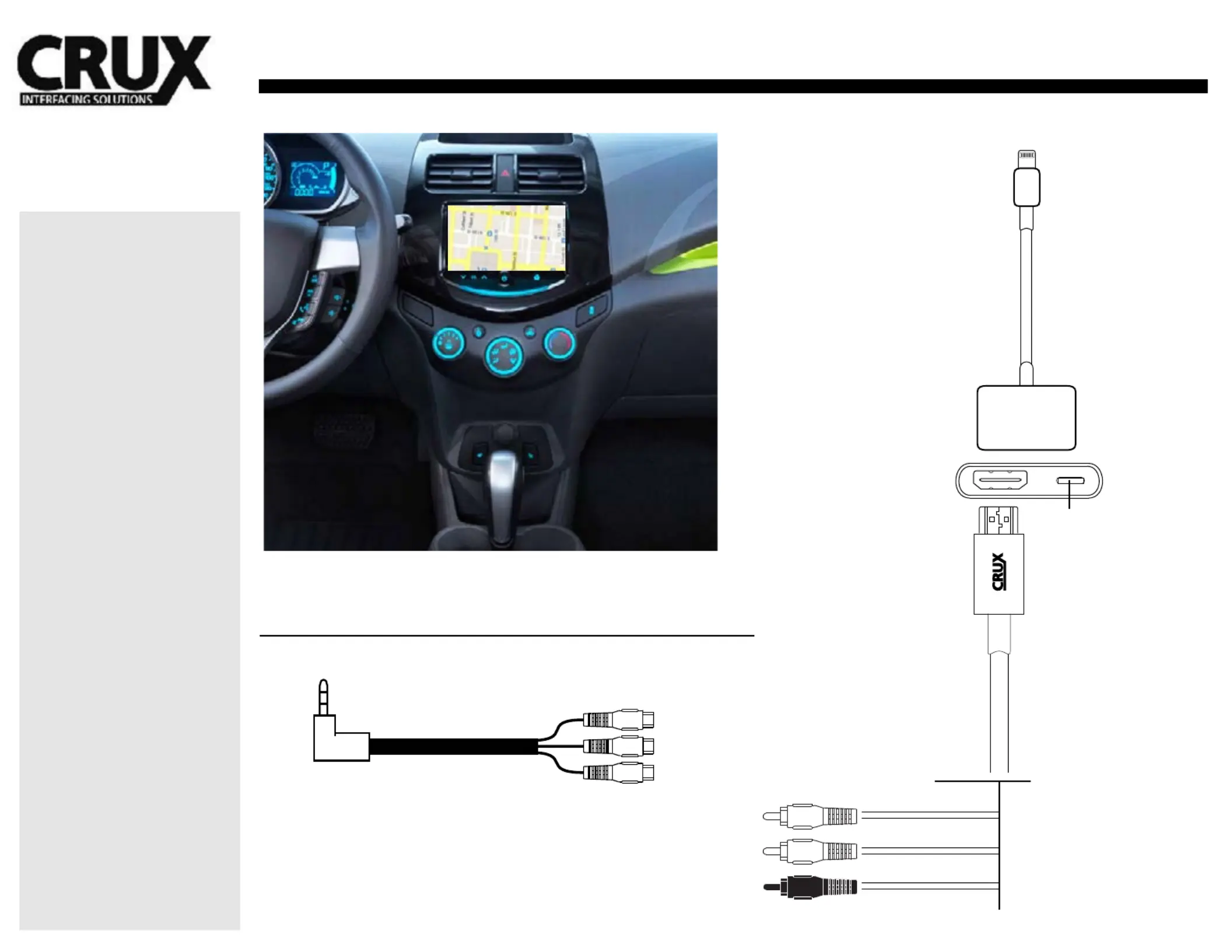

RCA OUPUTS
HDMI CONNECTION
VCIP5
3.5mm A/V ADAPTOR (Included)
