Side 1/7

R I REP LA TAD O CEM EN

S R ET T IONWC EN

+ +

INTERFACING SOLUTIONS

DKFD-60L

Radio Replacement Interface with Steering Wheel Control Retention

with Dash Kit for FORD, LINCOLN & MERCURY

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.091522

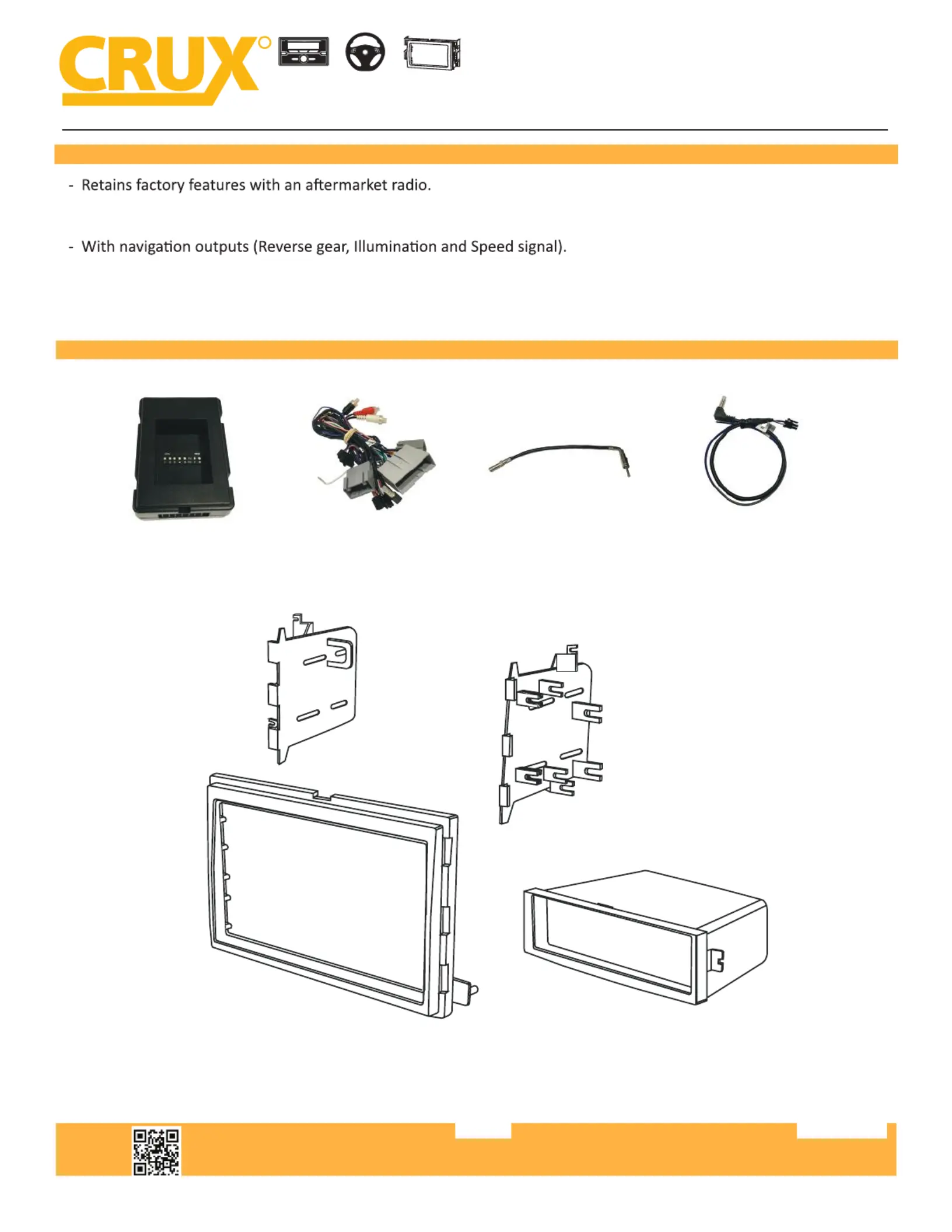

1 of 7

- Retains factory-installed Subwoofer.

- Retains Steering Wheel Controls via built-in, pre-programmed interface.

- Provides Accessory Power (2A MAX).

- Includes dask kit (double DIN or single DIN with pocket).

PRODUCT FEATURES:

PARTS INCLUDED:

SWRFD-60L MODULE SWRFD-60L HARNESS Antenna Adapter SWC CABLE

R I REP LA TAD O CEM EN S R ET T IONWC EN

+ +

INTERFACING SOLUTIONS

DKFD-60L

Radio Replacement Interface with Steering Wheel Control Retention

with Dash Kit for FORD, LINCOLN & MERCURY

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.091522

2 of 7

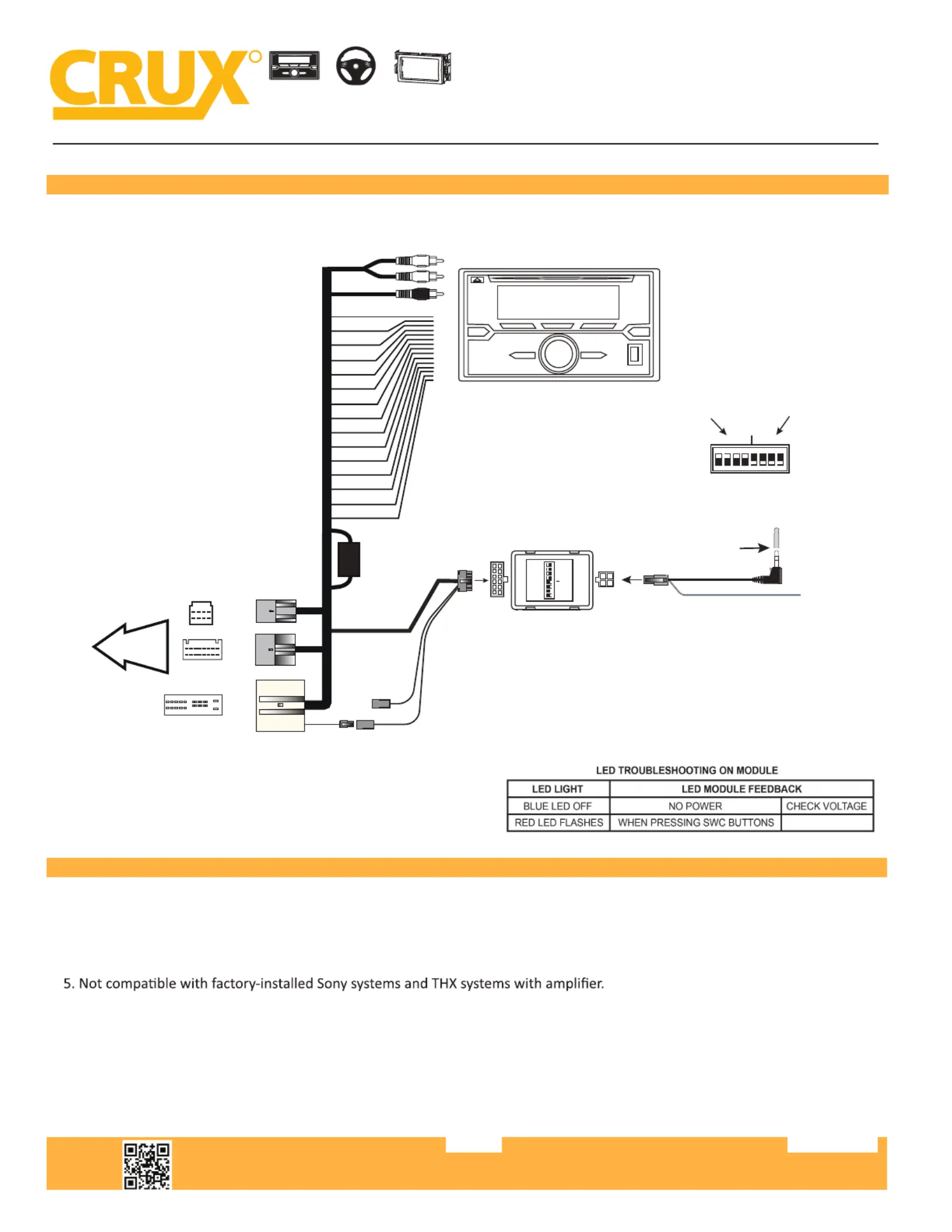

INSTALLATION DIAGRAM:

AFTERMARKET

RADIO

+12V Constant Yellow

+12V ACC Red

12V Ground Black

Illumination Orange

Vehicle Speed Sense Red/White (or Brown)

Subwoofer Amp Turn-on Blue/White

Antenna Turn-on Blue

Right Front (+) Gray

Right Front (-) Gray/Black

Left Front (+) White

Left Front (-) White/Black

Right Rear (+) Violet

Right Rear (-) Violet/Black

Left Rear (+) Green

Left Rear (-) Green/Black

Subwoofer

Factory Aux Input

24-Pin

Plug*

16-Pin

Plug*

8-Pin

Plug*

TO FACTORY

HARNESS

12-Pin

Connector

SWC TYPE

(Connect PINK to PINK wire)

Subwoofer

Converter

Module

*Inspect that the male pins are

properly lined up before plugging

into the factory harness.

SWRFD-60L

MODULE

ON RADIO VEHICLE

1 2 3 4 5 6 7 8

AFTERMARKET

RADIO SELECTOR

(See Chart)

FORD

SWC SETTING

(OFF OFF OFF OFF)

ON RADIO VEHICLE

1 2 3 4 5 6 7 8

Cap or insulate if

not being used

Kenwood/JVC (BLUE / YELLOW) Insulate with tape

if not being used

3.5MM SWC CABLE

Plug in the 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

Blue/Yellow

(Not Used)

1. Only supports analog Steering Wheel Control type.

2. Use part number SWRFD-60 for CAN Bus Steering Wheel Control.

3. Output signal stated above may not cover all Year/Model.

4. Does not retain SYNC.

NOTES:
