Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.091522
1 of 4
- Retains factory features in select GM Class II Data Bus vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- Supports Bose, non-Bose and Y-91 audio systems.
- Retains OnStar and chime functions.
- EIA color coded wiring for easy installation.
- Includes Double Din Dash kit
PRODUCT FEATURES:

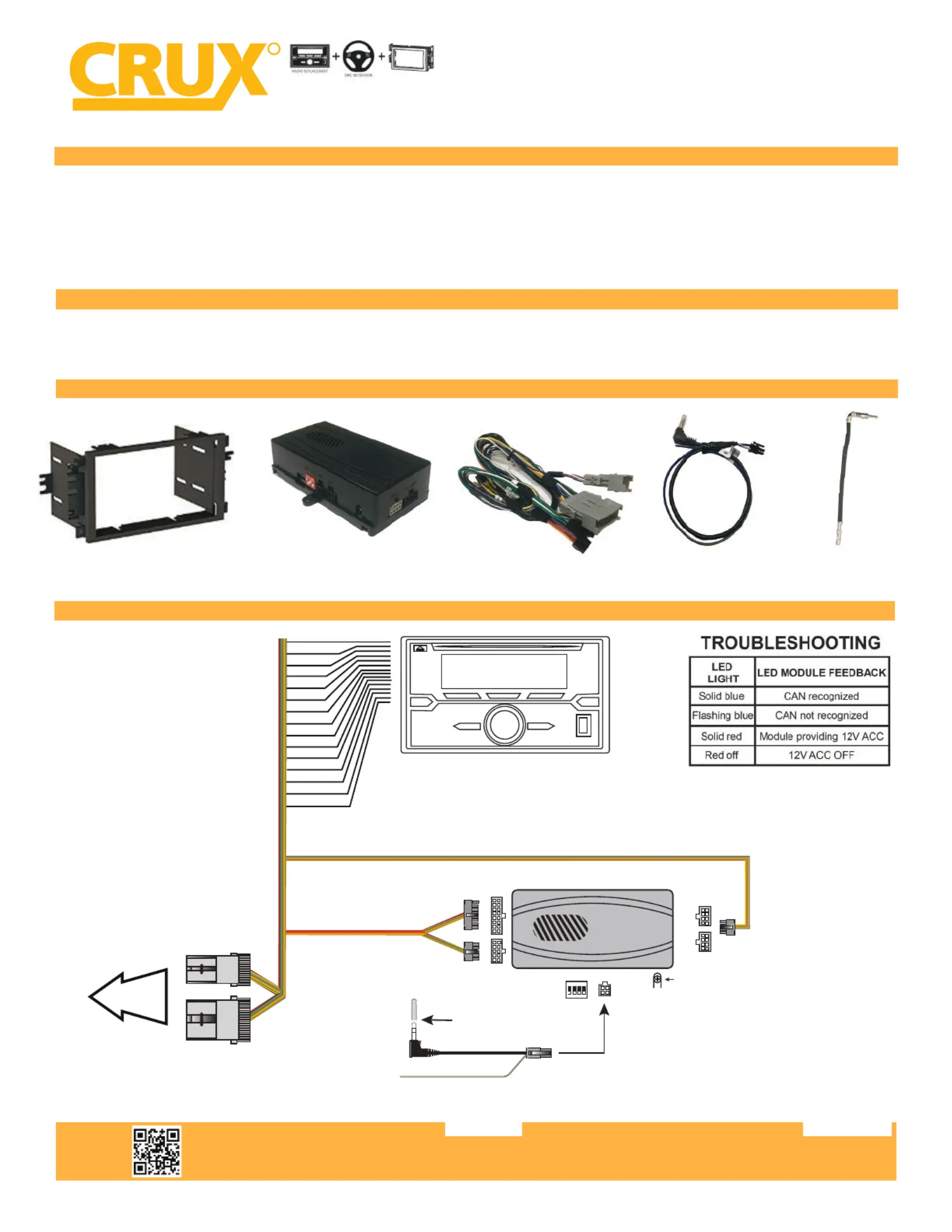

INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
Reverse Gear Purple/White
Parking Brake Yellow/Black
Illumina on (+) Orange
Amplifier Turn-on Blue/ White
+12V Constant Yellow
+12V ACC Red
Ground Black
Right Front (+) G yra
Right Front (-) Gray/Black
Le Front (+) White
Le Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Le Rear (+) Green
Le Rear (-) Green/Black
TO FACTORY
HARNESS
24-Pin
Connector
8-Pin
Connector
BOSE NON
BOSE
10-Pin
Connector SWC DIP SWC
1 2 3 4
ON
Chime Volume
Adjustment
4-Pin
Connector
Cap or insulate if
not being used
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
JVC/Kenwood (Blue / Yellow)
To aftermaket
radio SWC wire or
3.5mm port
DKGM-15 Module
DOUBLE DIN DASH KIT DKGM-15 Harness SWC Cable Antenna Adapter
NOTES:
1. The Front and Rear fading are not retained on Y-91 Bose System.
2. The OnStar volume output is defaulted to low gain.
3. Does not retain rear seat volume controls.
PARTS INCLUDED:
R
INTERFACING SOLUTIONS
DKGM-15
Radio Replacement with OnStar, SWC Retention, & Double DIN
Dash Kit for GM Class II Vehicles 2003 - 2013
R
INTERFACING SOLUTIONS
DKGM-15
Radio Replacement with OnStar, SWC Retention, & Double DIN
Dash kit for GM Class II Vehicles 2003 - 2013
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.091522
2 of 4

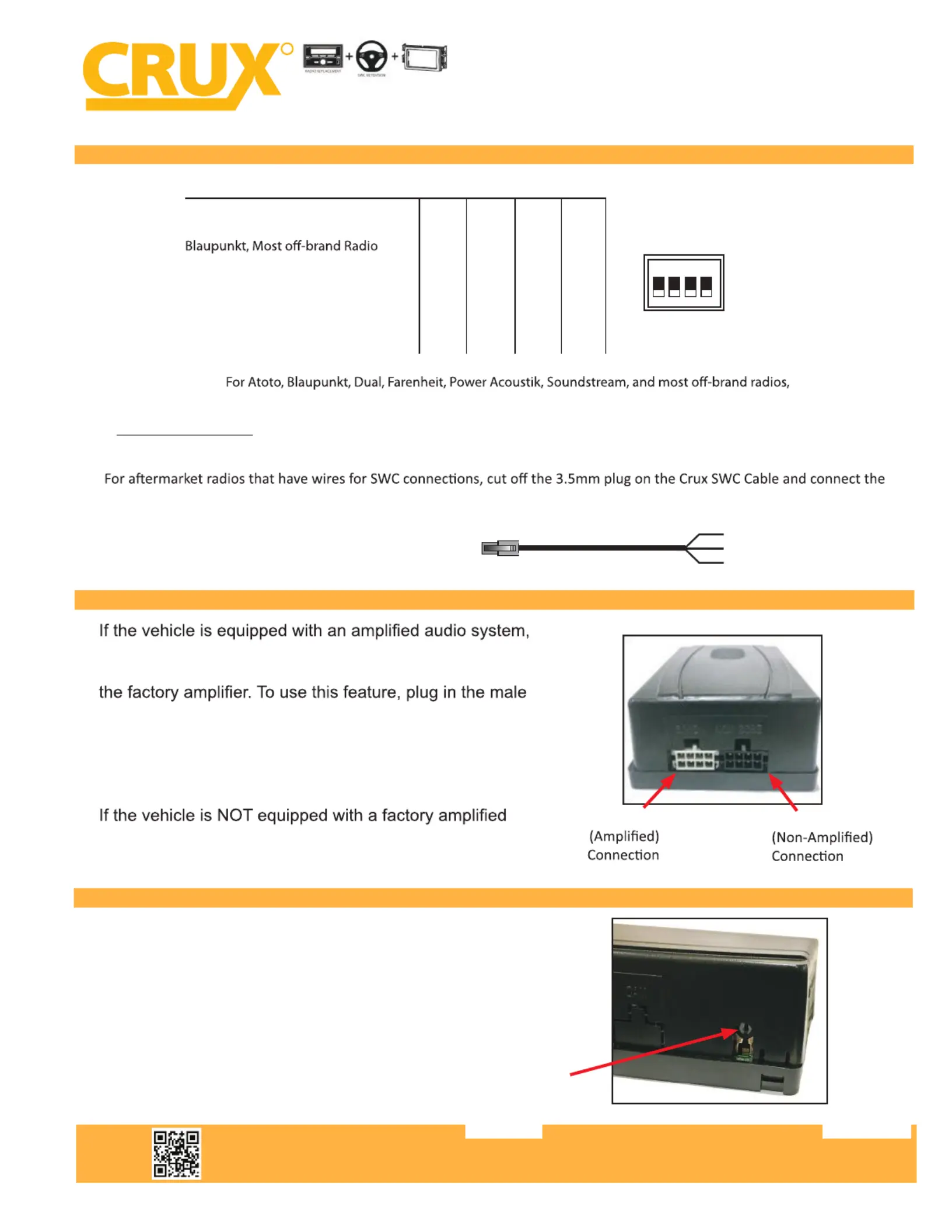

DIP SWITCH SETTINGS:
RADIO BRAND: DIP#: 1 2 3 4
Atoto, Dual, Fahrenheit, Jensen,
Pioneer, Power Acoustik, Soundstream
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be pro ammed.gr
SWC MODULE
DIP SWITCH
1 2 3 4
ON
OFF OFF ON ON
OFF OFF ON ON
OFF OFF ON ON
OFF OFF OFF OFF
OFF ON ON OFF
OFF ON ON ON
OFF ON OFF ON
OFF ON OFF OFF
OFF OFF ON OFF
3.5MM SWC CABLE
Plug in the 3.5MM to 4-Pin SWC cable to the SWC module or use the Blue/Yellow wire for JVC and Kenwood.
SELECTING THE AUDIO SYSTEM:
the DKGM-15 has a built-in audio level adaptor that
outputs the proper audio level from the aftermarket radio to
8-pin connector on the DKGM-15 harness to the GRAY
female 8-pin connector on the DKGM-15 module. The
module is also labeled “Bose” and “Non Bose” to avoid
confusion. (see picture below)
system, plug in the male 8-pin connector to the BLACK
female 8-pin on the DKGM-15 module.
Non-BOSE
BOSE
CHIME VOLUME ADJUSTMENT:
The DKGM-15 has a potentiometer to adjust the
chime volume. It is set at half way by default. To adjust
the volume, simply use a suitable screw driver and turn
the potentiometer clockwise to increase the volume and
counter-clockwise to decrease the volume.
Chime
Volume
Adjustment
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
SWC wires as follows:
Note that there are some radios that only have
SWC1 and SWC2, in this case “shield” does not
need to be connected.
