Side 1/6

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.0708221 of 6

R O P LA TADI RE CEMEN

SW E T IONC R ENT

INTERFACING SOLUTIONS

- Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio.

- Pre-programmed to retain factory Steering Wheel Controls.

- Retains OnStar, factory rear view camera and chime functions.

- Retains factory backup sensors / park assist system.

- Supports Bose, non-Bose and Y-91 audio systems.

- EIA color coded wiring for easy installation.

- Includes Double DIN Radio Replacement Dash Kit.

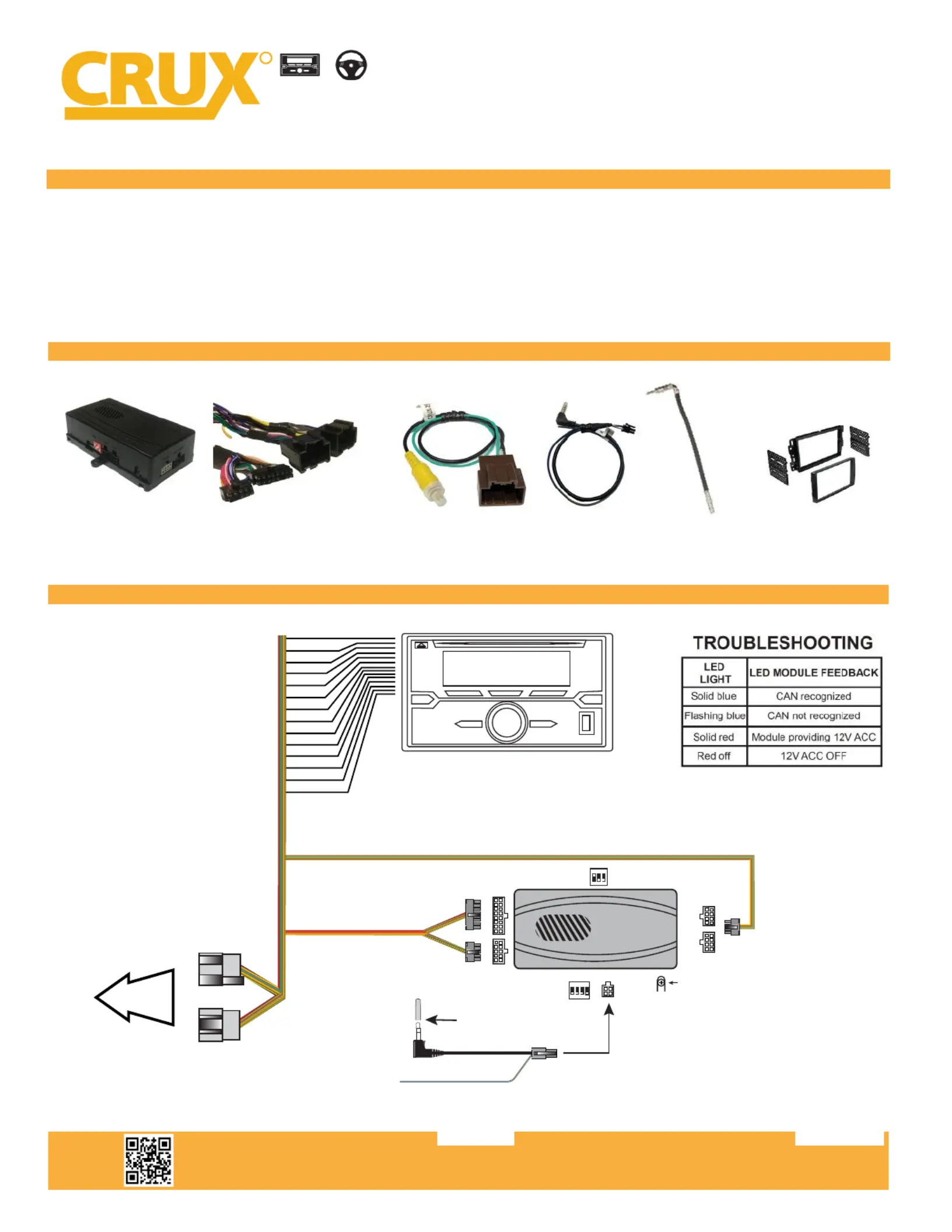

PRODUCT FEATURES:

PARTS INCLUDED:

INSTALLATION DIAGRAM:

AFTERMARKET

RADIO

Reverse Gear Red/White

Parking Brake Yellow/Black

Illumina on (+) Orange

+12V Constant Yellow

+12V ACC Red

Ground Black

Right Front (+) G yra

Right Front (-) Gray/Black

Le Front (+) White

Le Front (-) White/Black

Right Rear (+) Violet

Right Rear (-) Violet/Black

Le Rear (+) Green

Le Rear (-) Green/Black

TO FACTORY

HARNESS

24-Pin

Connector

8-Pin

Connector

BOSE NON

BOSE

10-Pin

Connector SWC DIP SWC

1 2 3 4

Chime Volume

Adjustment

1 2 3

ON VR Activation

for OnStar (set DIP#1 to ON)

4-Pin

Connector

Cap or insulate if

not being used

3.5MM SWC CABLE

Plug in the 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

JVC/Kenwood (Blue / Yellow)

To aftermarket

radio SWC wire or

3.5mm port

DKGM-16

Radio Replacement with OnStar, SWC Retention, & Dash Kit

for GM LAN 29 Bit Vehicles 2006 - 2014

SOOGM-16 Module SOOGM-16 Harness Backup Camera Harness SWC Cable Antenna Adapter Dash Kit

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.0708222 of 6

R O P LA TAD I RE CE MEN

SW E T IONC R E NT

INTERFACING SOLUTIONS

DKGM-16

Radio Replacement with OnStar, SWC Retention, & Dash Kit

for GM LAN 29 Bit Vehicles 2006 - 2014

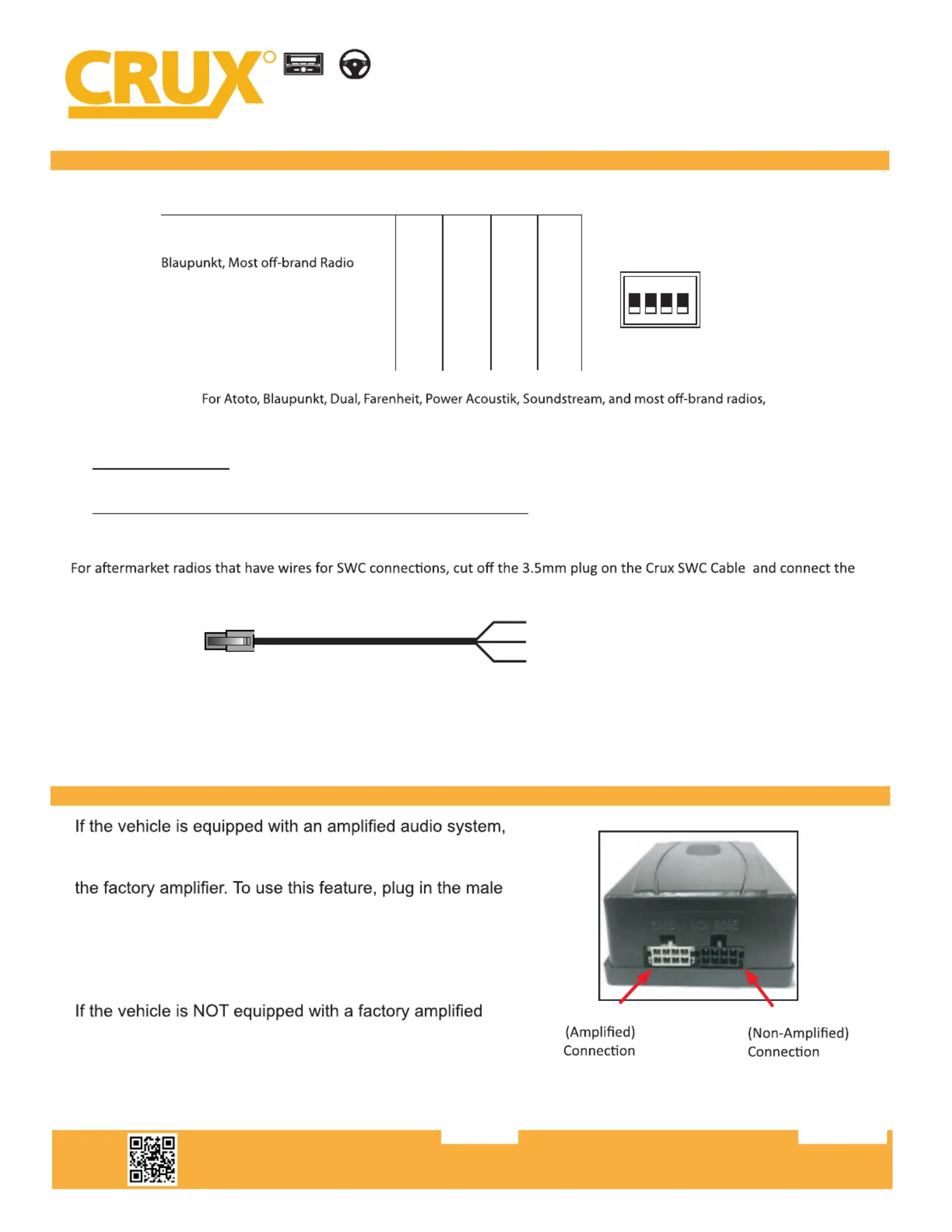

DIP SWITCH SETTINGS:

RADIO BRAND: DIP#: 1 2 3 4

Atoto, Dual, Fahrenheit, Jensen,

Pioneer, Power Acoustik, Soundstream

Alpine

Clarion

Kenwood

JVC

Boss, Old Sony

New Sony

NOTE:

check the aftermarket radio’s manual to see if the SWC buttons need to be pro ammed.gr

SWC MODULE

DIP SWITCH

1 2 3 4

OFF OFF ON ON

OFF OFF OFF OFF

OFF ON ON OFF

OFF ON ON ON

OFF ON OFF ON

OFF ON OFF OFF

OFF OFF ON OFF

NOTE: Insulate the Blue/Yellow wire or 3.5mm plug if not being used.

3.5MM SWC CABLE

Plug in the 3.5MM to 4-Pin SWC cable to the SWC module.

SELECTING THE AUDIO SYSTEM:

the SOOGM-16 has a built-in audio level adaptor that

outputs the proper audio level from the aftermarket radio to

8-pin connector on the SOOGM-16 harness to the GRAY

female 8-pin connector on the SOOGM-16 module. The

module is also labeled “Bose” and “Non Bose” to avoid

confusion. (see picture below)

system, plug in the male 8-pin connector to the BLACK

female 8-pin on the SOOGM-16 module.

Non-BOSE

BOSE

RED to SWC Key 1

WHITE to SWC Key 2

SHIELD to SWC Ground

SWC wires as follows:

Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
