Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.1009241 of 4
RAD REPLA TIO CE MEN
SWC ENTRE T ION
+
R
INTERFACING SOLUTIONS
- Retains factory features in select GM LAN 11 Bit vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- Supports Non-Bose and Bose amplified systems.
- Provides navigational outputs: Reverse Output, Parking brake Output, Illumination, & Vehicle Speed Sense
- Retains factory OnStar®
- Retains chime functions.
- EIA color coded wiring for easy installation.
PRODUCT FEATURES:
PARTS INCLUDED:

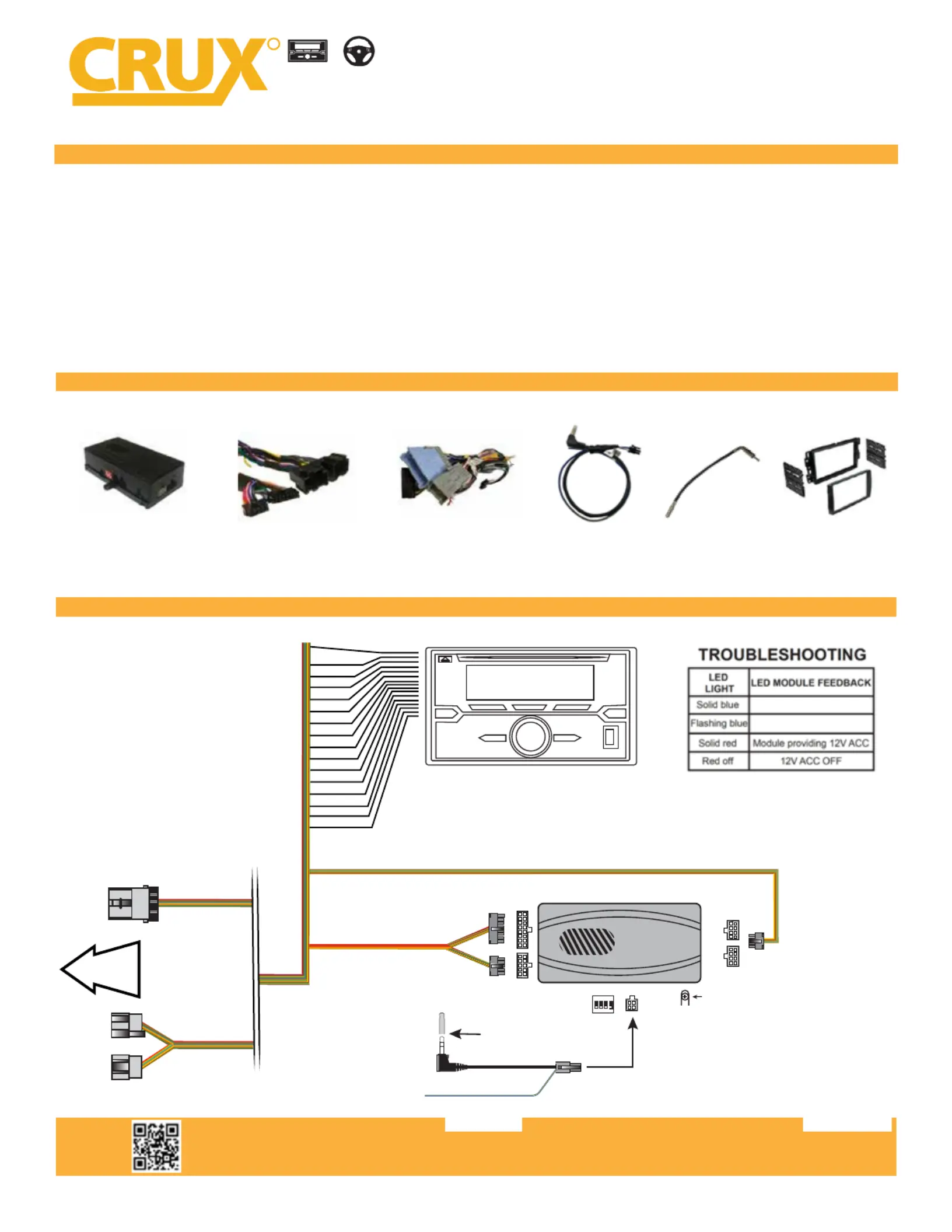

INSTALLATION DIAGRAM:
DKGM-16B MODULE DKGM-16B 14 & 16 PIN HARNESS DKGM-16B 24 PIN HARNESS SWC CABLES
16 & 14-Pin Connector Harness
DKGM-16B
Onstar Radio Replacement interface with SWC Retention
and Dash Kit for GM LAN 11-Bit Vehicles 2006 - 2012
AFTERMARKET
RADIO
Reverse Gear Purple/White
Parking Brake Yellow/Black
Illumination (+) Orange
+12V Constant Yellow
+12V ACC Red
Ground Black
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
Vehicle Speed Output Red/Black
Amplifier Turn-on Blue/White
24-Pin
Connector
8-Pin
Connector
BOSE NON
BOSE
10-Pin
Connector SWC DIP SWC
1 2 3 4
ON
Chime Volume
Adjustment
4-Pin
Connector
Cap or insulate if
not being used
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
JVC/Kenwood (Blue / Yellow)
To aftermarket
radio SWC wire or
3.5mm port
LAN Bus not recognized
LAN Bus recognized
24-Pin Connector Harness
Select
Appropriate
Harness
ANTENNA ADAPTER DASH KIT
TO FACTORY
HARNESS
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.100924
DKGM-16B
2 of 4
RAD REPLA TIO CE MEN
SWC ENTRE T ION
+
R
INTERFACING SOLUTIONS

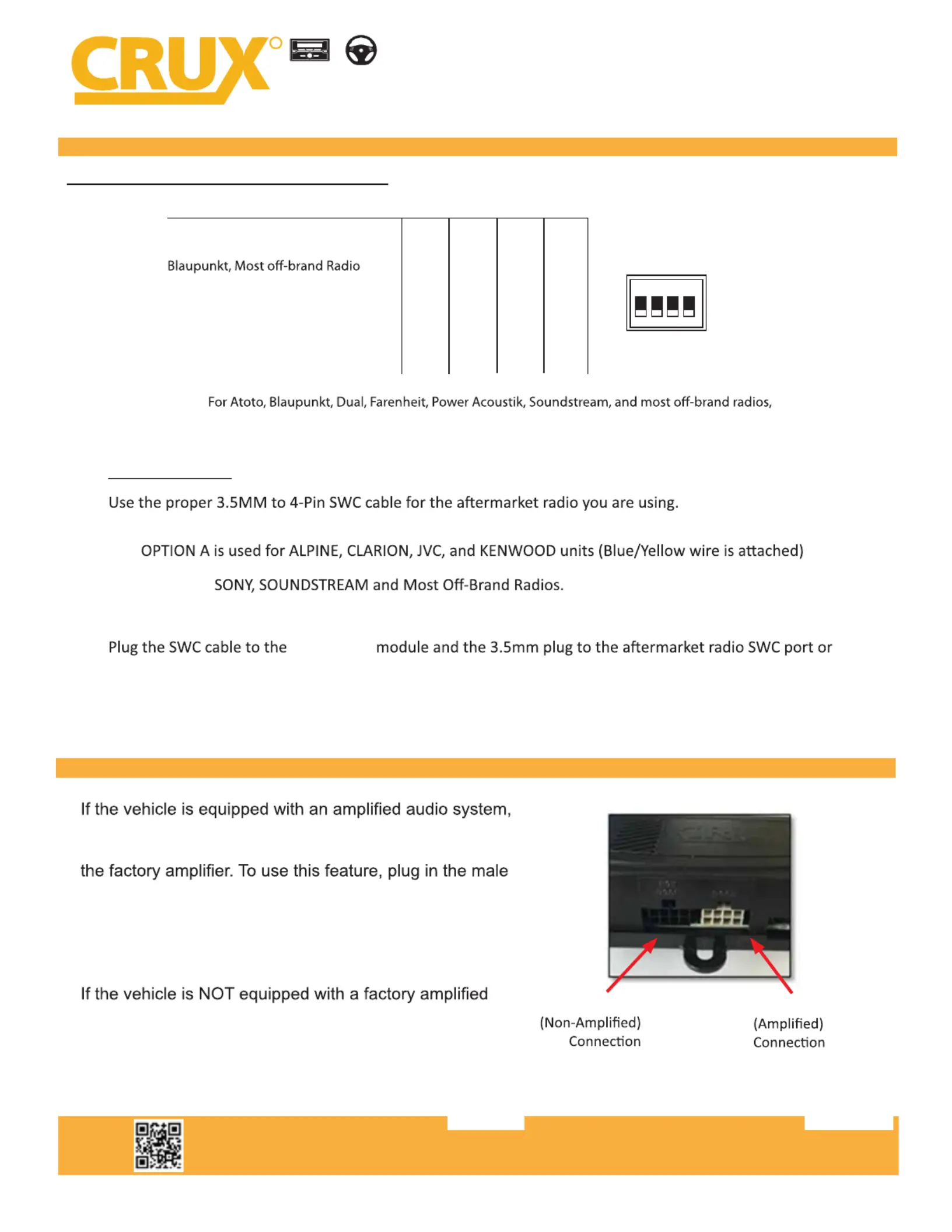

DIP SWITCH SETTINGS:
4-PIN SWC CABLE
OPTION B is used for BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK, PIONEER,
NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.
use the Blue/Yellow wire for JVC and Kenwood radios.
SELECTING THE AUDIO SYSTEM:
the DKGM-16B has a built-in audio level adaptor that
outputs the proper audio level from the aftermarket radio to
8-pin connector on the DKGM-16B harness to the GRAY
female 8-pin connector on the DKGM-16B module. The
module is also labeled “Bose” and “Non Bose” to avoid
confusion. (see picture below)
system, plug in the male 8-pin connector to the BLACK
female 8-pin on the DKGM-16B module.
BOSE
NON BOSE
Onstar Radio Replacement interface with SWC Retention
and Dash Kit for GM LAN 11-Bit Vehicles 2006 - 2012
RADIO BRAND: DIP#: 1 2 3 4
Atoto, Dual, Fahrenheit, Jensen,
Pioneer, Power Acoustik, Soundstream
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
SWC MODULE
DIP SWITCH
1 2 3 4
ON
OFF OFF ON ON
OFF OFF ON ON
OFF OFF ON ON
OFF OFF OFF OFF
OFF ON ON OFF
OFF ON ON ON
OFF ON OFF ON
OFF ON OFF OFF
OFF OFF ON OFF
SOOGM-16B
AFTERMARKET RADIO DIP SWITCH SETTINGS:
