MRVBM-77Q
Backup Camera and Video Interface for
2017 and up BMW & Mini Vehicles with Evo2 iDrive5 Systems
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.1104201 of 7
- Adds front and rear aermarket camera inputs.
- Retains funconality of the OEM backup camera if present.
- Front camera automacally shows on the screen aer changing the gear from reverse to drive.
- Provides power and ground for the cameras.
- Adds 1 A/V Input.
- Adds 2 video and 1 audio outputs.
PRODUCT FEATURES:

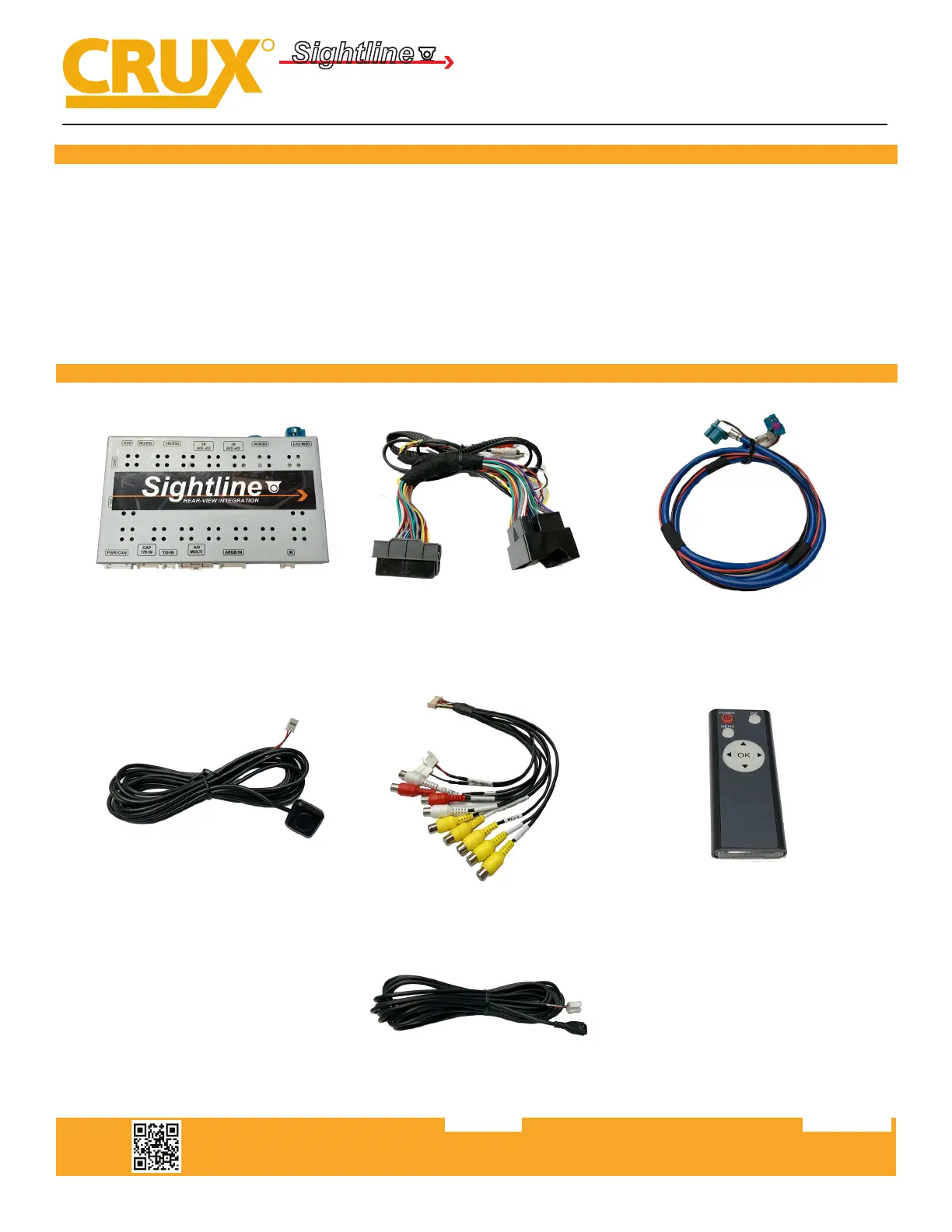

PARTS INCLUDED:
MRVBM-77Q Module MRVBM-77Q Power Harness LVDS Cable
Push Buon Switch I/O Cable Remote Control
IR Cable
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.1104202 of 7
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
MRVBM-77Q
Backup Camera and Video Interface for
2017 and up BMW & Mini Vehicles with Evo2 iDrive5 Systems

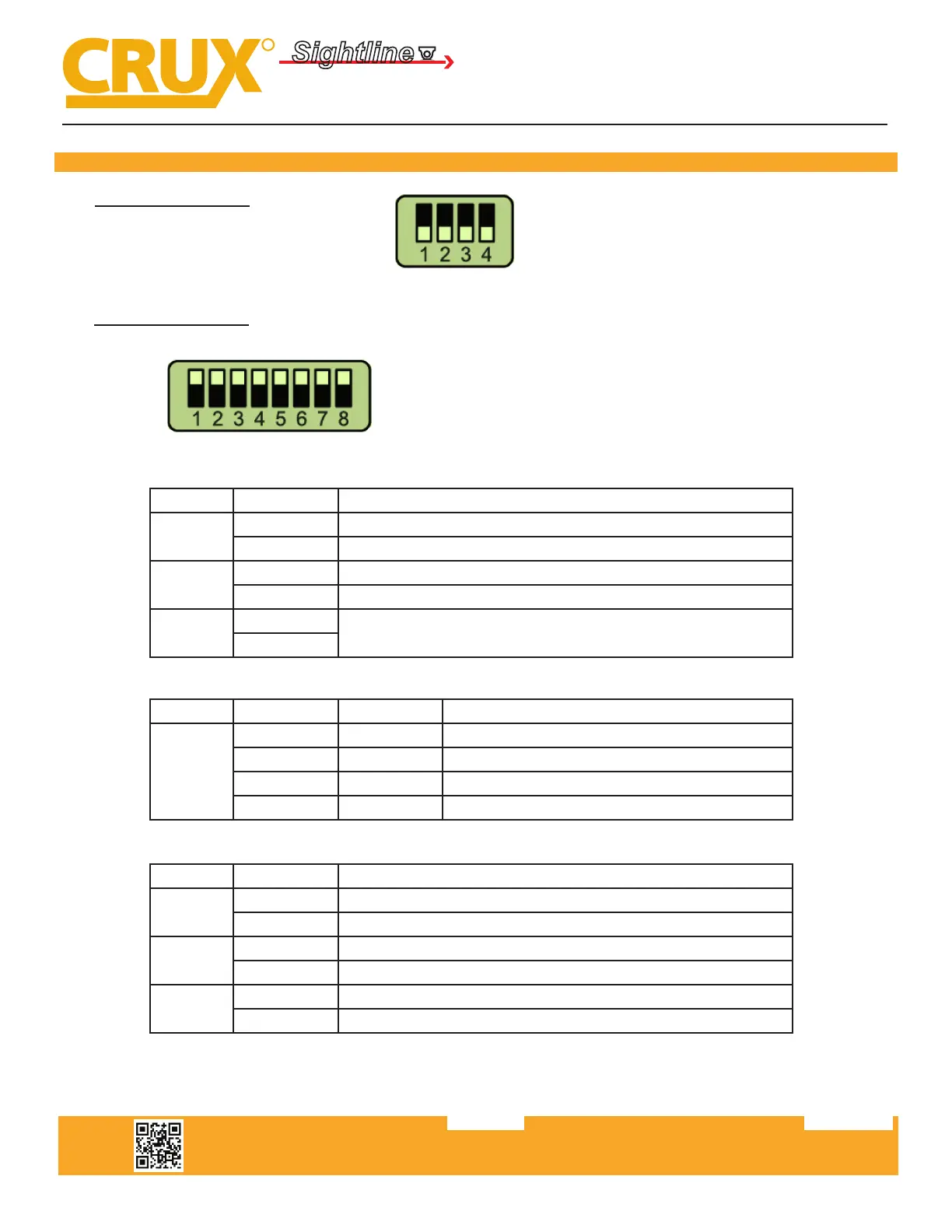

DIP SWITCH SETTINGS:
4 POSITION SWITCH
DIP STATUS FUNCTION
1
UP AV1 ON
DOWN AV1 OFF
2
UP Front Camera ON
DOWN Front Camera OFF
3
UP
Set to OFF
DOWN
Set all DIP switches DOWN
8 POSITION SWITCH
DIP DIP #4 DIP #5 FUNCTION
STATUS
UP UP 1440 x 540 (5, 7, X5 Series) (10.25” screen)
UP DOWN 1280 x 480 (8.8” screen)
DOWN DOWN 800 x 480 (6.5” screen)
DOWN UP 1280 x 480 (Mini with Touch)
DIP switches 1 to 3:
DIP switches 4 and 5:
DIP STATUS FUNCTION
6
UP 5, 7 Series
DOWN 1, 2, 3, 4, 6, X Series, Mini
7
UP Use OEM Backup Camera
DOWN Use Aermarket Backup Camera
8
UP CAN in/out mode
DOWN CAN bypass mode
DIP switches 6 to 8:
Please make sure to power cycle the interface (unplug power harness then plug back in) aer changing
the DIP switch sengs.
