Side 1/5

RFM-CVN1

Multi View Integration Interface with A/V Input for

Dodge Caravan with MyGig Radio

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.083019

1 of 5

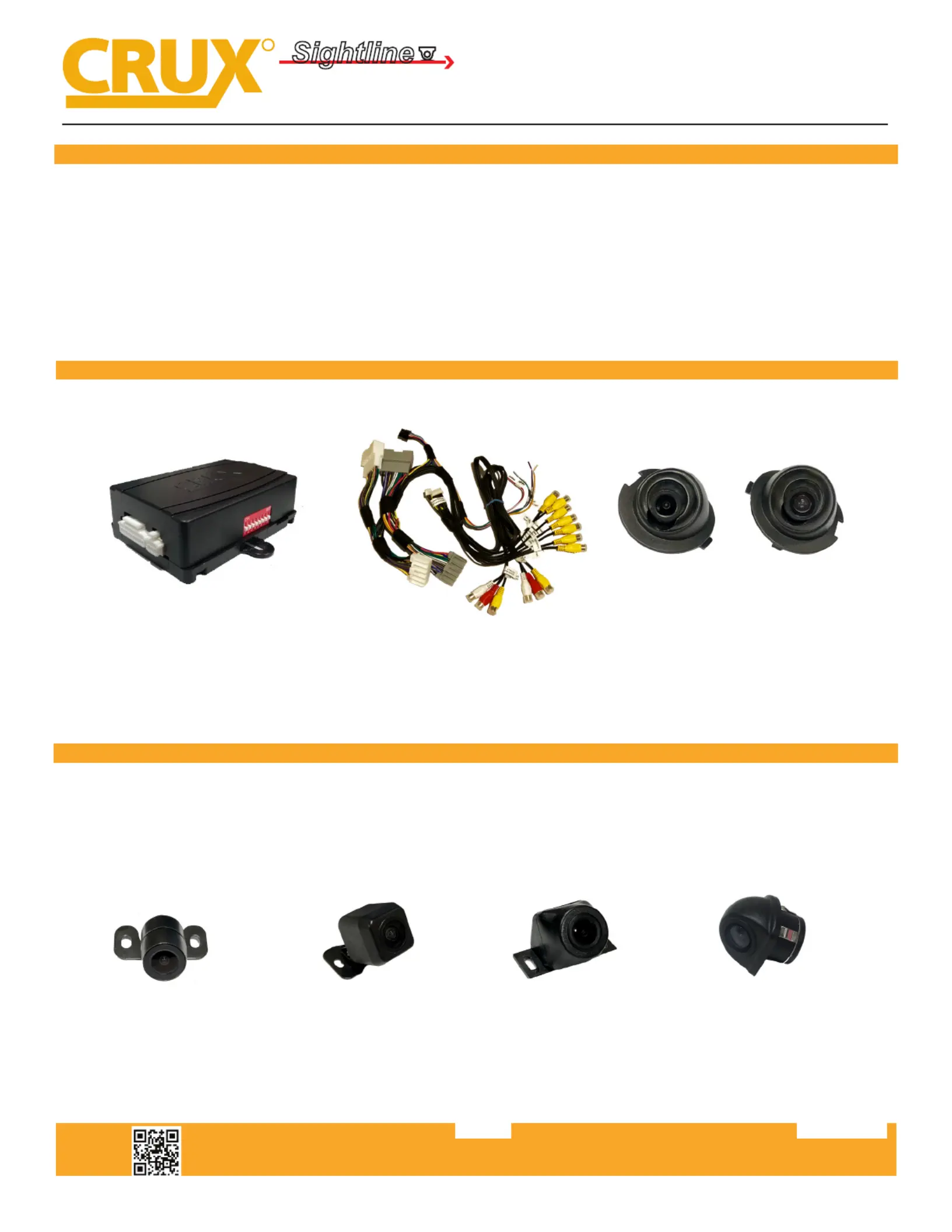

- Adds a reverse camera input, 6 video plus 1 audio/video inputs.

- Uses the steering wheel controls buons to toggle between the sources.

- Includes side mirror mounted camera pods with adjustable angle cameras.

- Turn signals automacally triggers the corresponding side camera.

- Turn signal camera trigger can be turned on or o by using the SWC buon.

- Forced view funcon on cameras (except side cameras).

- Ability to toggle from back-up camera to cargo camera and trailer camera while in reverse gear.

PRODUCT FEATURES:

PARTS INCLUDED:

RFM-CVN1 Module RFM-CVN1 Harness CVS-CVN Side Mirror Mounted

Cameras

OPTIONAL ADD-ON CAMERAS:

Oponal add on cameras are available to complete the mul-view capability of the RFM-CVN1. Cameras available

and sold separately include: (More cameras can be found at www.cruxinterfacing.com)

CFF-01 Bullet Type Front

Camera

CFF-02 Square Body Front

Camera

CFF-03 Grille Mount Front

Camera

CUL-16 Universal Lip Mount

Camera

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.083019

2 of 5

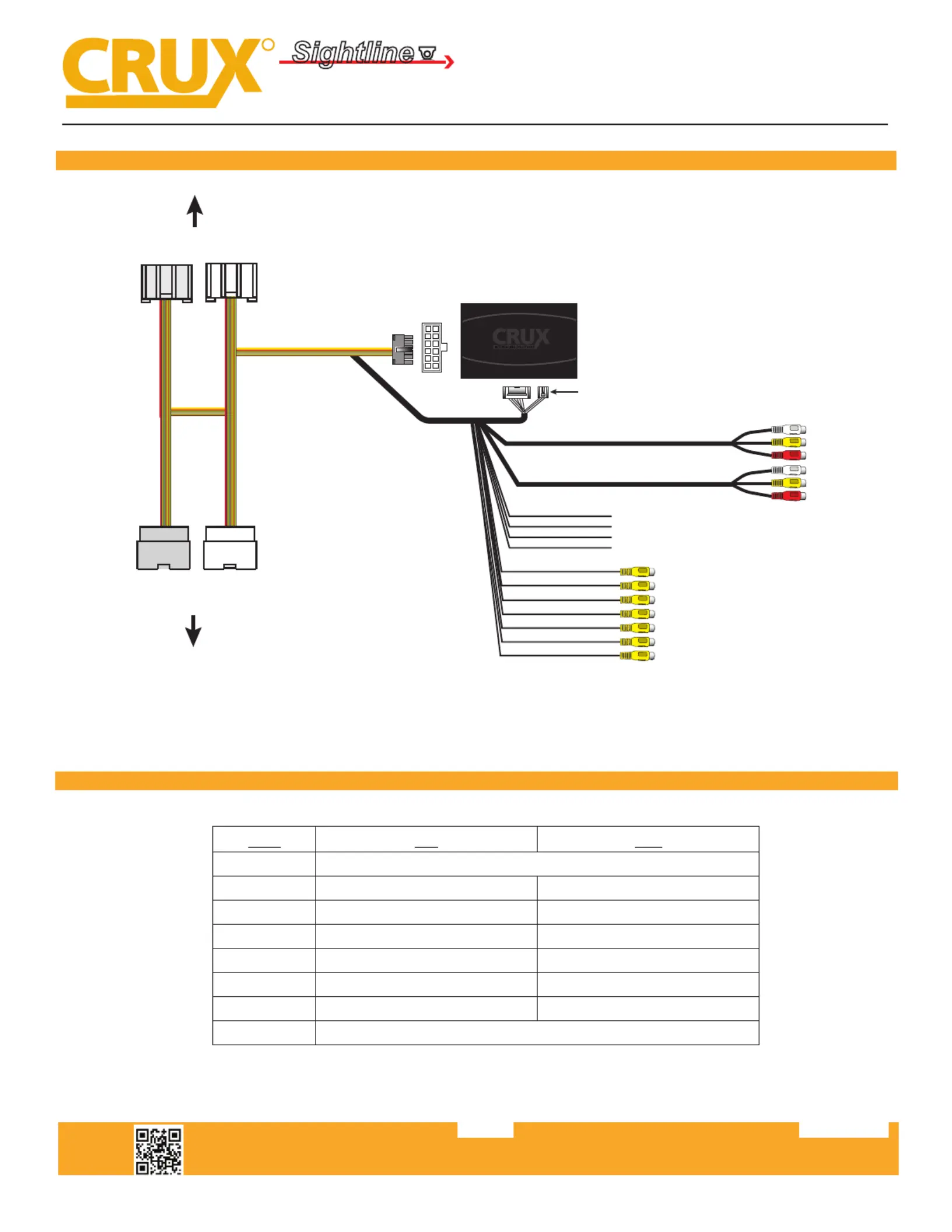

INSTALLATION DIAGRAM:

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Front Camera Input

Right Camera Input

Left Camera Input

Cargo Camera Input

Aftermarket Backup Camera Input

Trailer Camera Input

Auxiliary Camera Input

Audio/Video

Input

Front and Rear Camera Power Output 12V (purple/white)

Left and Right Camera Power Output 12V (green/white)

Cargo and Trailer Camera Power Output 12V (orange/white)

Video AUX Power Output 12V (red/white)

Connect this 6-pin plug if OEM

backup camera is being used

Audio/Video

Output

TO RADIO

WHITE

22-PIN

(MALE)

GRAY

22-PIN

(MALE)

WHITE

22-PIN

(FEMALE)

GRAY

22-PIN

(FEMALE)

TO FACTORY

HARNESS

DIP SWITCH SETTINGS:

DIP# ON OFF

1No Funcon – Leave OFF

2 Front Camera ON Front Camera OFF

3 Le Camera ON Le Camera OFF

4Right Camera ON Right Camera OFF

5Cargo Camera ON Cargo Camera OFF

6Trailer Camera ON Trailer Camera OFF

7AUX A/V ON AUX A/V OFF

8Set to ON

RFM-CVN1

Multi View Integration Interface with A/V Input for

Dodge Caravan with MyGig Radio
