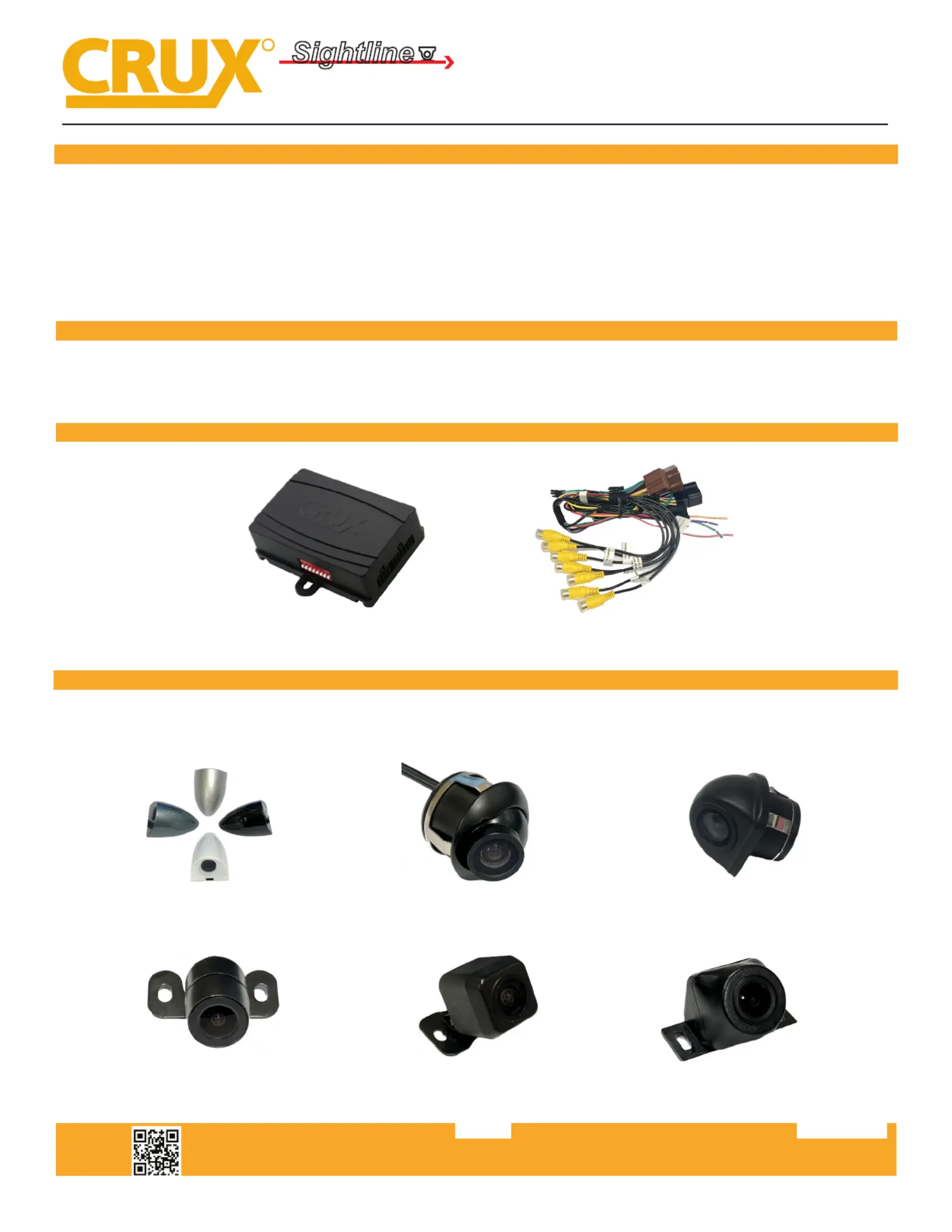

CSV-01 Fender Mount Side Camera CUB-15 Adjustable Angle Side Camera CUL-16 Push-In Rear View Camera

RFM-GM29

Multi View Integration Interface for

GM LAN 29-Bit Vehicles

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.022019

1 of 5

- Adds a reverse camera input plus 6 more video inputs.

- Uses a factory steering wheel control buon to force view the video sources. (except OEM backup camera and side

cameras. See NOTE2 on page 5)

- Turn signals automacally trigger the corresponding side camera.

- Turn signal camera trigger can be turned on or o by using the SRCE buon on the SWC.

- Ability to toggle from back-up camera to cargo camera and trailer camera while in reverse gear.

PRODUCT FEATURES:

PARTS INCLUDED:

RFM-GM29 Module RFM-GM29 Harness

OPTIONAL ADD-ON CAMERAS:

Oponal add on cameras are available to complete the mul-view capability of the RFM-GM29. Cameras available

and . Plase visit sold separately www.cruxinterfacing.com for a complete list of cameras available for your vehicle.

CFF-01 Bullet Type Front Camera CFF-02 Square Body Front Camera CFF-03 Grille Mount Front Camera

Silver

Black

White

Gray

NOTE:

If your vehicle is not equipped with a factory backup camera, you will need to have the radio coded at the

dealership for a backup camera.

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.022019

2 of 5

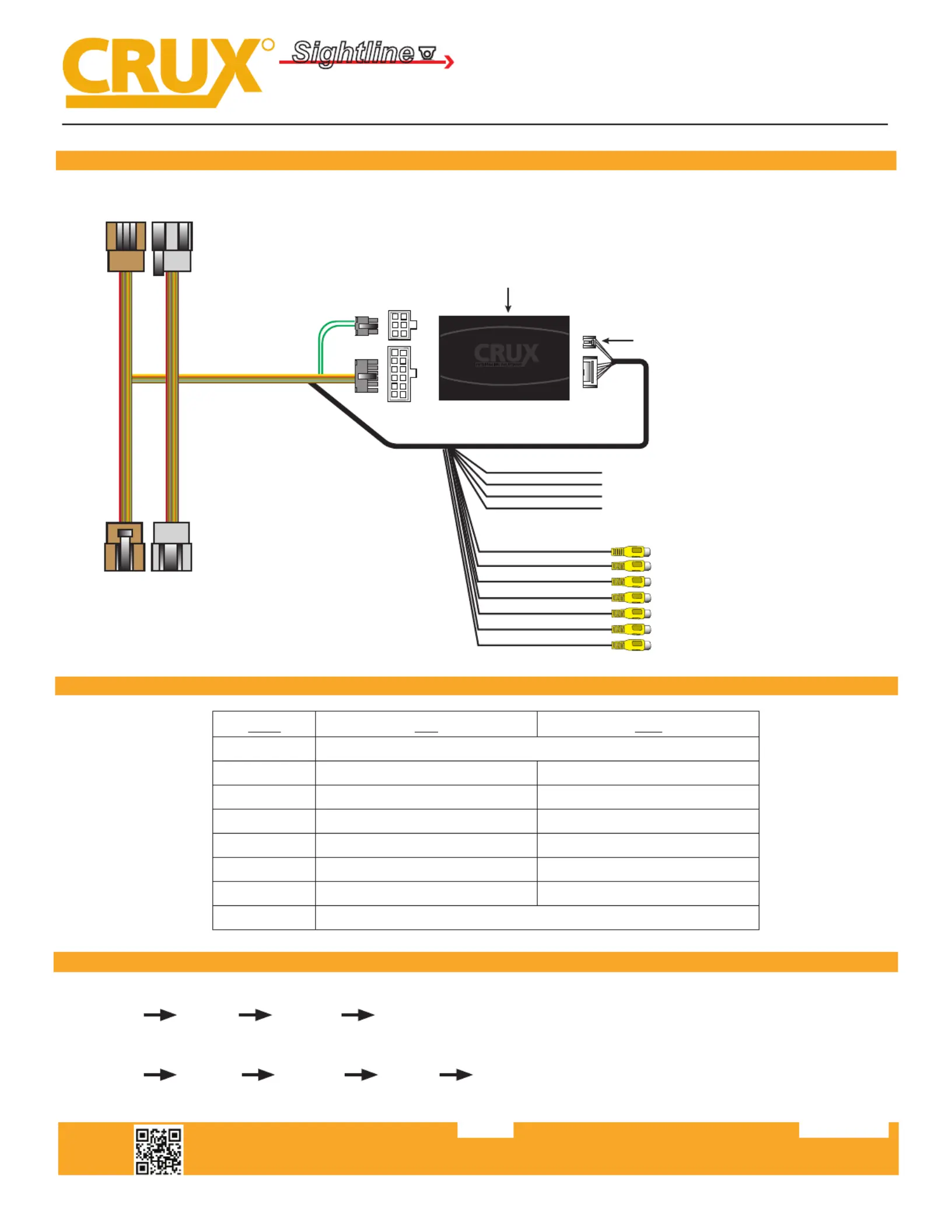

INSTALLATION DIAGRAM:

INTERFACING SOLUTIONS

Sightline

Multi View Integration

DIP SWITCH SETTINGS:

DIP# ON OFF

1No Funcon – Leave OFF

2 Front Camera ON Front Camera OFF

3Le Camera ON Le Camera OFF

4 Right Camera ON Right Camera OFF

5 Cargo Camera ON Cargo Camera OFF

6 Trailer Camera ON Trailer Camera OFF

7 No. 7 Camera ON No. 7 Camera OFF

8 Set to ON

RFM-GM29

Multi View Integration Interface for

GM LAN 29-Bit Vehicles

Front Camera Input

Right Camera Input

Left Camera Input

Cargo Camera Input

Aftermarket Backup Camera Input

Trailer Camera Input

No. 7 Camera Input

Front and Rear Camera Power Output 12V (purple/white)

Left and Right Camera Power Output 12V (green/white)

Cargo and Trailer Camera Power Output 12V (orange/white)

Any Camera Power Output 12V (red/white)

To Vehicle Harness

Connect this 6-pin plug if OEM

backup camera is being used

DIP Switches

FORCED VIEW CAMERA SEQUENCE:

Using OEM backup Camera

FRONT CARGO TRAILER CAMERA No.7

Using Aermarket backup Camera

FRONT BACKUP CARGO TRAILER CAMERA No.7
