CDR-31C Cargo Camera CDR-02 Tailgate
Handle Camera
Jeep Wrangle Spare Tire
Mount Camera
CUB-15 Adjustable
Angle Side Camera
RFM-MG1
Multi View Integration Interface with A/V Input for
CHRYSLER, DODGE, JEEP & RAM Vehicles with MyGig Radios
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.012819
1 of 5
- Adds a reverse camera input, 6 video plus 1 audio/video inputs.
- Uses the steering wheel controls buons to toggle between the sources.
- Turn signals automacally triggers the corresponding side camera.
- Turn signal camera trigger can be turned on or o by using the SWC buon.
PRODUCT FEATURES:
PARTS INCLUDED:

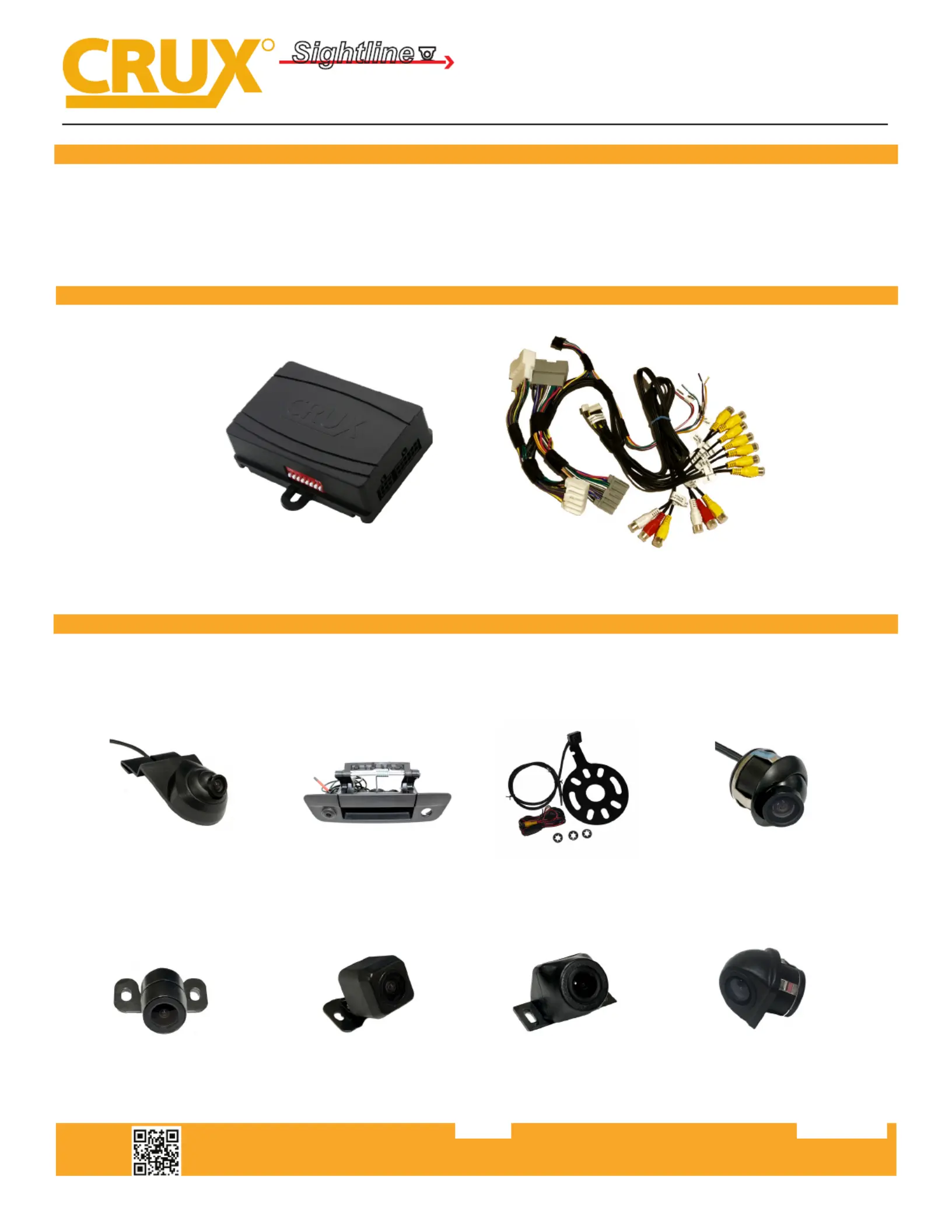

RFM-MG1 Module RFM-MG1 Harness
OPTIONAL ADD-ON CAMERAS:
Oponal add on cameras are available to complete the mul-view capability of the RFM-MG1. Cameras available
and sold separately include: (More cameras can be found at www.cruxinterfacing.com)
CFF-01 Bullet Type Front
Camera
CFF-02 Square Body Front
Camera
CFF-03 Grille Mount Front
Camera
CUL-16 Universal Lip Mount
Camera
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.012819
2 of 5
INSTALLATION DIAGRAM:
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Front Camera Input
Right Camera Input
Left Camera Input
Cargo Camera Input
Aftermarket Backup Camera Input
Trailer Camera Input
Audio/Video
Input
Front and Rear Camera Power Output 12V (purple/white)
Left and Right Camera Power Output 12V (green/white)
Cargo and Trailer Camera Power Output 12V (orange/white)
Video AUX Power Output 12V (red/white)
To Vehicle Harness
To Radio
Connect this 6-pin plug if OEM
backup camera is being used
DIP SWITCH SETTINGS:
DIP# ON OFF
1No Funcon – Leave OFF
2 Front Camera ON Front Camera OFF
3Le Camera ON Le Camera OFF
4 Right Camera ON Right Camera OFF
5 Cargo Camera ON Cargo Camera OFF
6 Trailer Camera ON Trailer Camera OFF
7 AUX A/V ON AUX A/V OFF
8 Set to ON
RFM-MG1
Multi View Integration Interface with A/V Input for
CHRYSLER, DODGE, JEEP & RAM Vehicles with MyGig Radios
