CTY-01T Tailgate Handle Camera

RFM-TYT

Multi View Integration Interface with A/V Input

and Side Mirror Mounted Cameras for Toyota Tacoma

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • 6860 Canby Ave., Suite 116, Reseda, CA 91335

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

070518

1 of 5

- Adds a reverse camera input, plus 5 video inputs, and an addional audio/video input.

- Uses the steering wheel control buons to toggle between the sources.

- Turn signals automacally trigger the corresponding side camera.

- Turn signal camera trigger can be turned on or o by using the SWC buon.

PRODUCT FEATURES:

PARTS INCLUDED:

RFM-TYT Module RFM-TYT Harness CSV-TYT Tacoma Side Mirror Camera

OPTIONAL ADD-ON CAMERAS:

Oponal add on cameras are available to complete the mul-view capability of the RFM-TYT. Cameras available

and sold separately include: (More cameras can be found at www.cruxinterfacing.com)

CFF-01 Bullet Type Front Camera

(Recommended)

CFF-02 Square Body Front Camera CFF-03 Grille Mount Front Camera

Crux Interfacing Solutions • 6860 Canby Ave., Suite 116, Reseda, CA 91335

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

070518

2 of 5

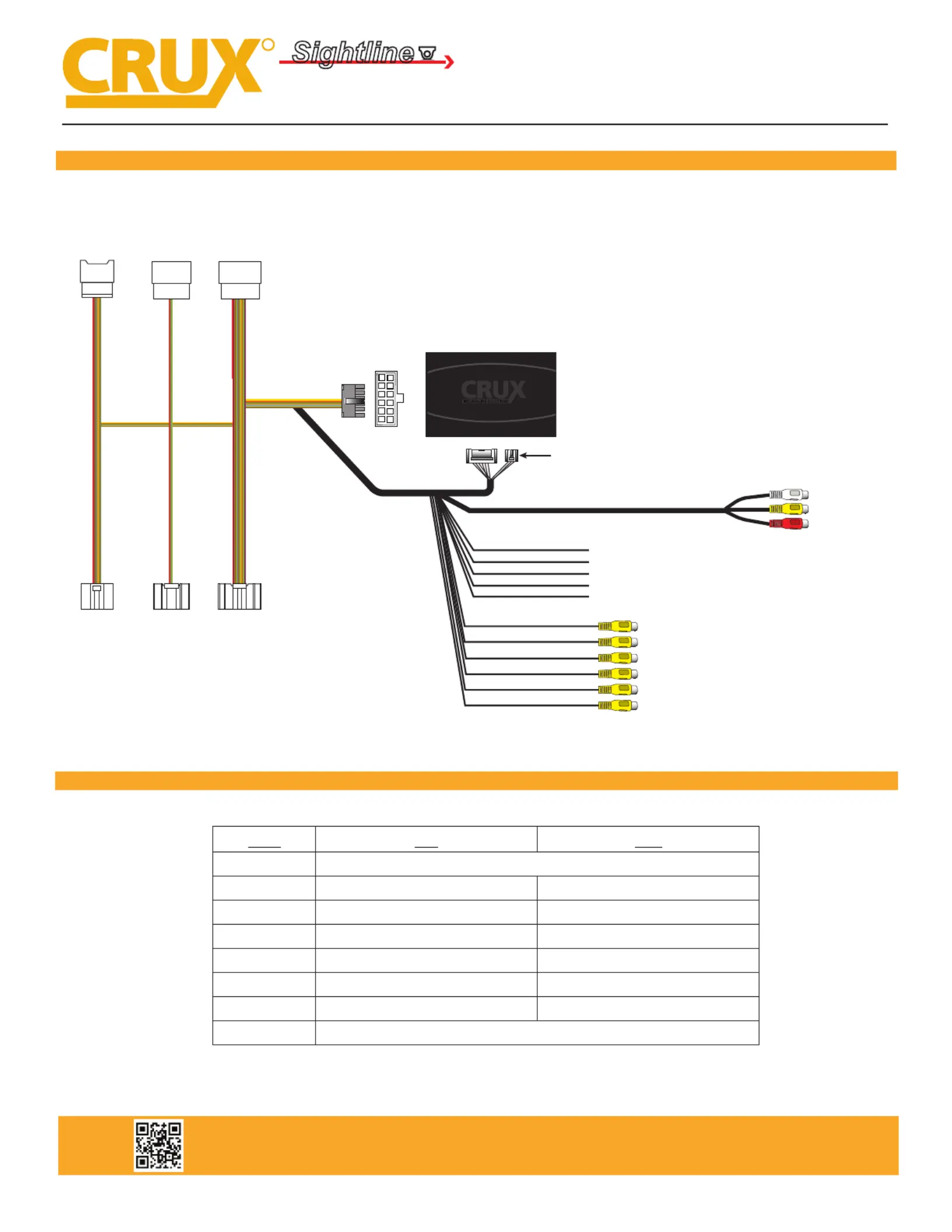

INSTALLATION DIAGRAM:

INTERFACING SOLUTIONS

Sightline

Multi View Integration

DIP SWITCH SETTINGS:

DIP# ON OFF

1No Funcon – Leave OFF

2 Front Camera ON Front Camera OFF

3Le Camera ON Le Camera OFF

4 Right Camera ON Right Camera OFF

5 Cargo Camera ON Cargo Camera OFF

6 Trailer Camera ON Trailer Camera OFF

7AUX A/V ON AUX A/V OFF

8Set to OFF

RFM-TYT

Multi View Integration Interface with A/V Input

and Side Mirror Mounted Cameras for Toyota Tacoma

Front Camera Input

Right Camera Input

Left Camera Input

Cargo Camera Input

Aftermarket Backup Camera Input

Trailer Camera Input

Audio/Video

Input

Front and Rear Camera Power Output +12V (purple/white)

Left and Right Camera Power Output +12V (green/white)

Cargo and Trailer Camera Power Output +12V (orange/white)

Right Turn Signal Input (grey/red)

Left Turn Signal Iput (pink/black)

To Vehicle Harness

Connect this 6-pin plug if OEM

backup camera is being used

28 PIN10 PIN 24 PIN

To Radio
