CDR-31C Cargo Camera CDR-02 Tailgate Handle Camera CUB-15 Adjustable Angle Side Camera
RFM-UC1
Multi View Integration Interface with A/V Input for
DODGE, JEEP & RAM Vehicles with Uconnect 8.4” Systems
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.013019
1 of 4
- Adds a reverse camera input, plus 5 video inputs and an addional audio/video input.
- Uses the steering wheel control buons to toggle between video sources. (except OEM backup camera. See page 3)
- Turn signals automacally trigger the corresponding side camera.
- Turn signal camera trigger can be turned on or o by using the BACK buon on the radio.
PRODUCT FEATURES:

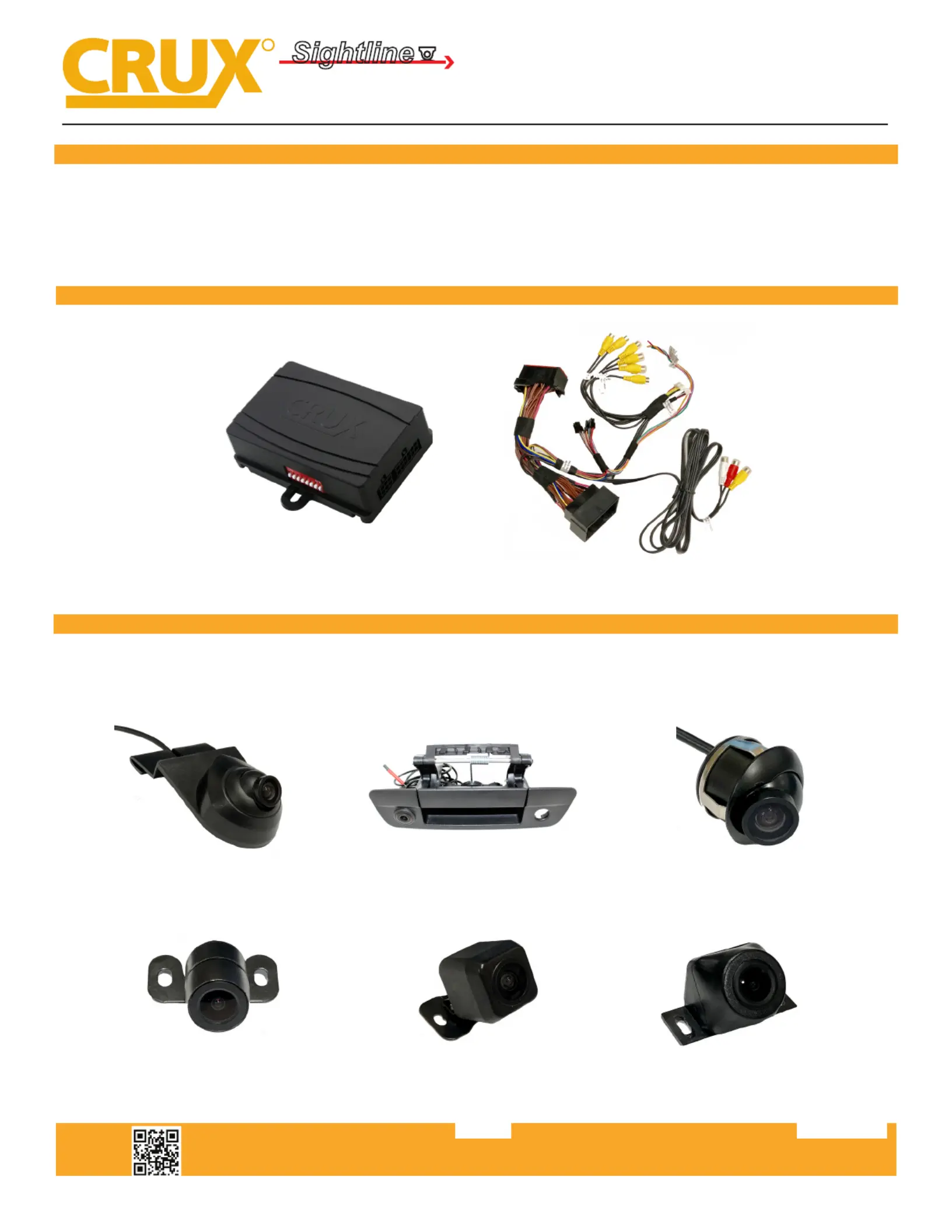

PARTS INCLUDED:
RFM-UC1Module RFM-UC1 Harness
OPTIONAL ADD-ON CAMERAS:
Oponal add on cameras are available to complete the mul-view capability of the RFM-UC1. Cameras available
and include:sold separately
CFF-01 Bullet Type Front Camera CFF-02 Square Body Front Camera CFF-03 Grille Mount Front Camera
Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.013019
2 of 4

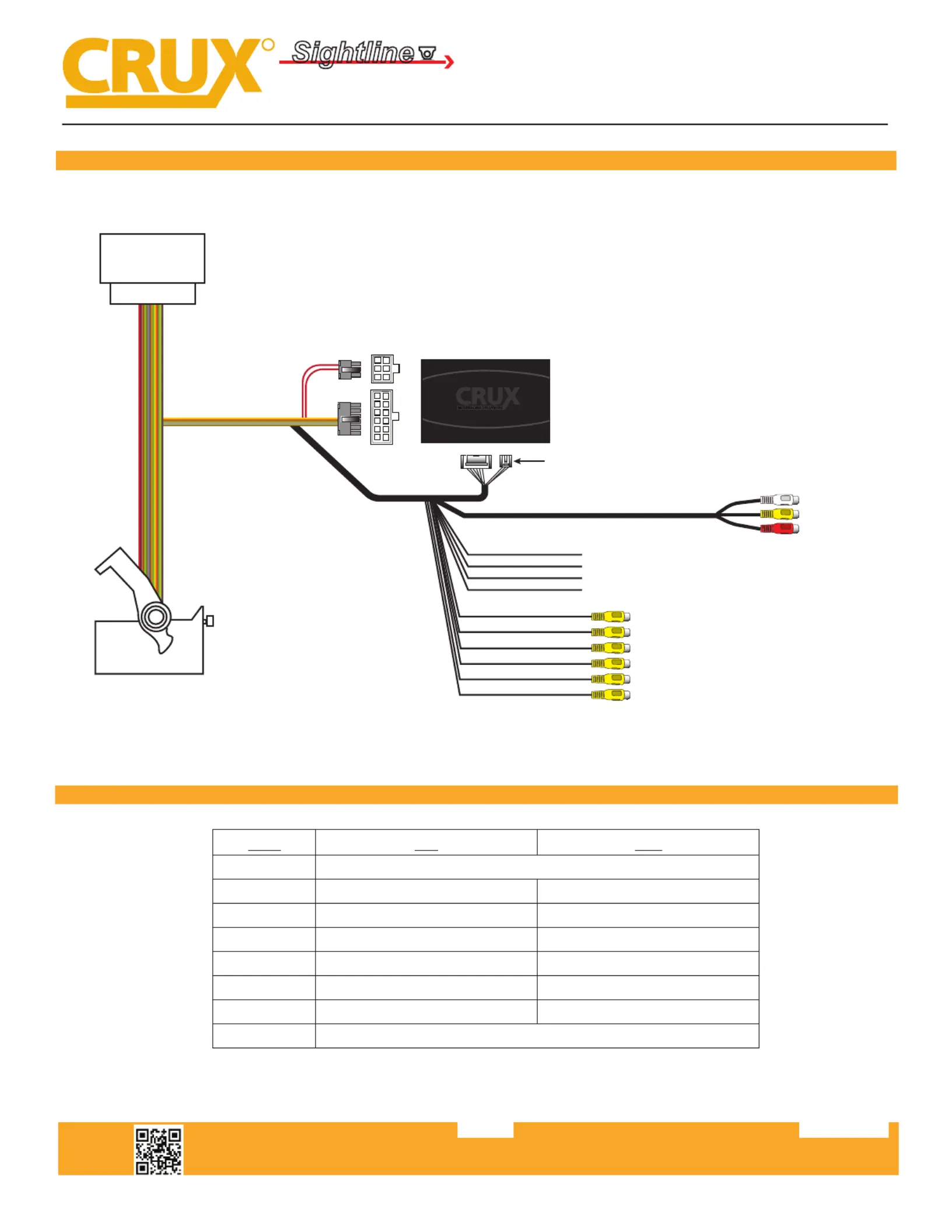

INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Front Camera Input
Right Camera Input
Left Camera Input
Cargo Camera Input
Aftermarket Backup Camera Input
Trailer Camera Input
Audio/Video
Input
Front and Rear Camera Power Output 12V (purple/white)
Left and Right Camera Power Output 12V (green/white)
Cargo and Trailer Camera Power Output 12V (orange/white)
Video AUX Power Output 12V (red/white)
To Vehicle Harness
To Radio
Connect this 6-pin plug if OEM
backup camera is being used
DIP SWITCH SETTINGS:
DIP# ON OFF
1No Funcon – Leave OFF
2 Front Camera ON Front Camera OFF
3Le Camera ON Le Camera OFF
4 Right Camera ON Right Camera OFF
5 Cargo Camera ON Cargo Camera OFF
6 Trailer Camera ON Trailer Camera OFF
7AUX A/V ON AUX A/V OFF
8 Set to ON
RFM-UC1
Multi View Integration Interface with A/V Input for
DODGE, JEEP & RAM Vehicles with Uconnect 8.4” Systems
