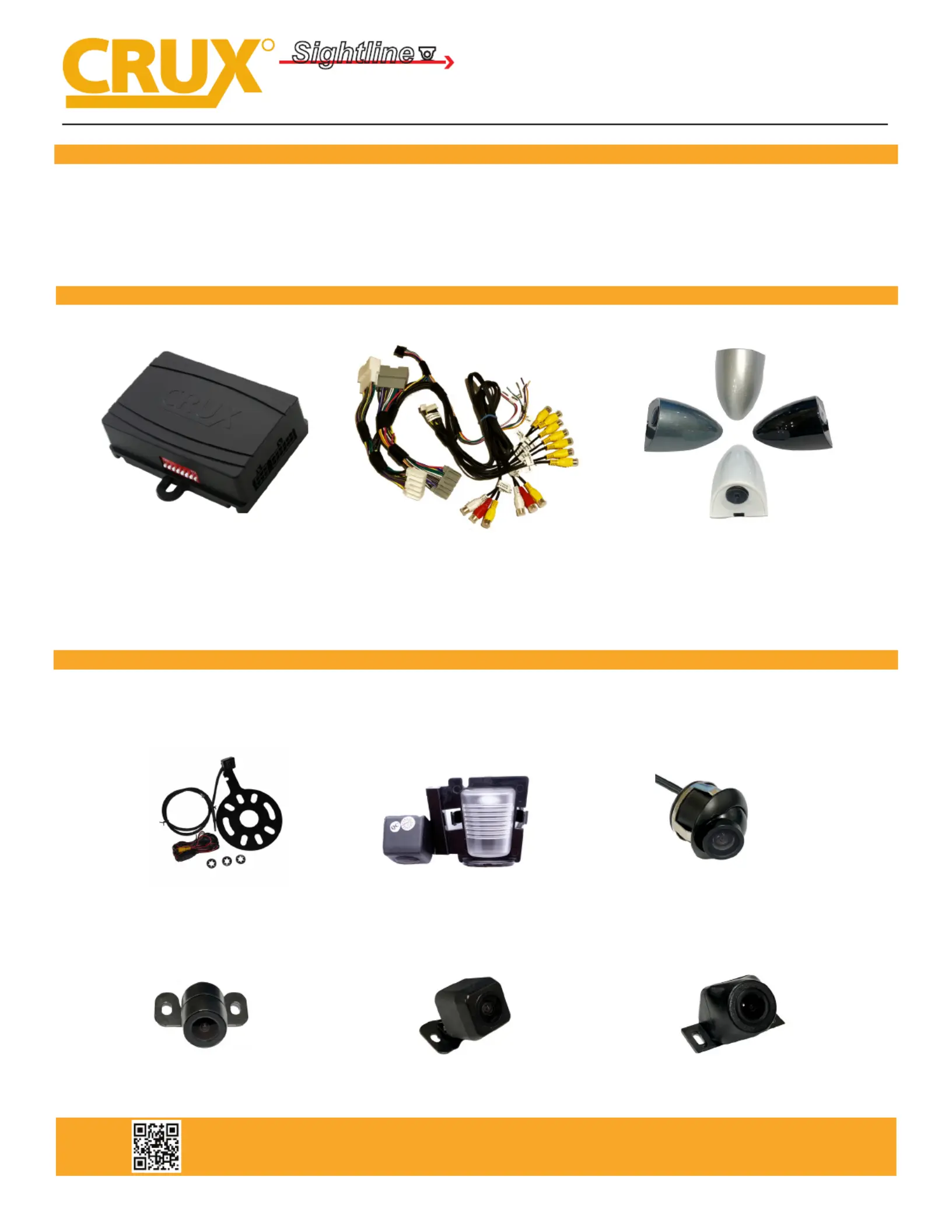

Side 1/5

Jeep Wrangle Spare Tire

Mount Camera

CCH-01W License Plate

Mount Camera

CUB-15 Adjustable Angle Side

Camera

RFM-WR1

Multi View Integration Interface with A/V Input for

JEEP WRANGLER with MyGig Radio

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • 6860 Canby Ave., Suite 116, Reseda, CA 91335

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

061918

1 of 5

- Adds a reverse camera input, 6 video plus 1 audio/video inputs.

- Uses the steering wheel controls buons to toggle between the sources.

- Turn signals automacally triggers the corresponding side camera.

- Turn signal camera trigger can be turned on or o by using the SWC buon.

PRODUCT FEATURES:

PARTS INCLUDED:

RFM-WR1 Module RFM-WR1 Harness CSV-01 Fender Mount Camera

(Available in Black, Charcoal Gray, Silver & White)

OPTIONAL ADD-ON CAMERAS:

Oponal add on cameras are available to complete the mul-view capability of the RFM-WR1 Jeep Wrangler Mul

Cam Integraon Interface. Cameras available and sold separately include:

CFF-01 Bullet Type Front Camera CFF-02 Square Body Front Camera CFF-03 Grille Mount Front Camera

Crux Interfacing Solutions • 6860 Canby Ave., Suite 116, Reseda, CA 91335

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

061918

2 of 5

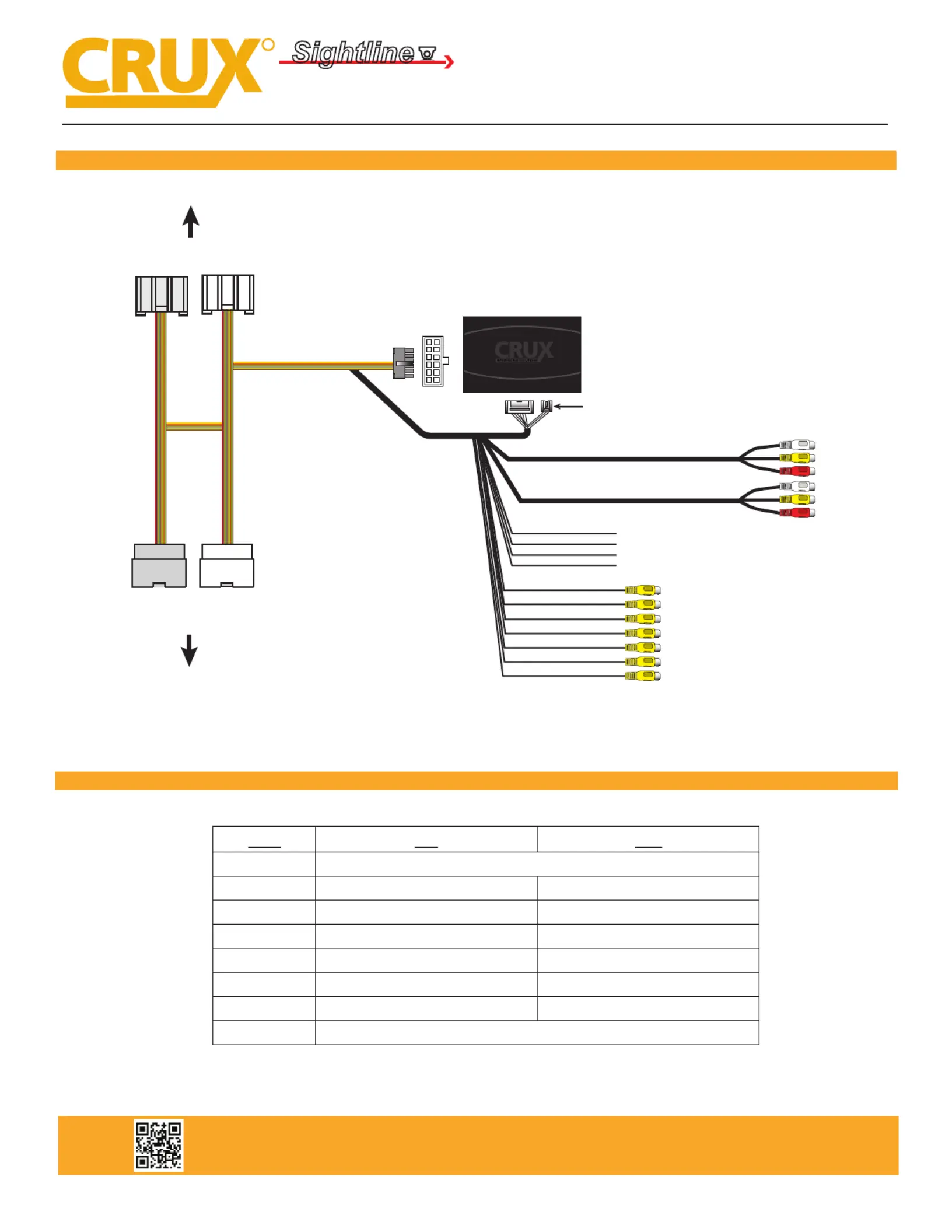

INSTALLATION DIAGRAM:

INTERFACING SOLUTIONS

Sightline

Multi View Integration

DIP SWITCH SETTINGS:

DIP# ON OFF

1No Funcon – Leave OFF

2 Front Camera ON Front Camera OFF

3Le Camera ON Le Camera OFF

4 Right Camera ON Right Camera OFF

5 Cargo Camera ON Cargo Camera OFF

6 Trailer Camera ON Trailer Camera OFF

7 AUX A/V ON AUX A/V OFF

8 Set to ON

RFM-WR1

Multi View Integration Interface with A/V Input for

JEEP WRANGLER with MyGig Radio

Front Camera Input

Right Camera Input

Left Camera Input

Cargo Camera Input

Aftermarket Backup Camera Input

Trailer Camera Input

Auxiliary Camera Input

Audio/Video

Input

Front and Rear Camera Power Output 12V (purple/white)

Left and Right Camera Power Output 12V (green/white)

Cargo and Trailer Camera Power Output 12V (orange/white)

Video AUX Power Output 12V (red/white)

Connect this 6-pin plug if OEM

backup camera is being used

Audio/Video

Output

TO RADIO

WHITE

22-PIN

(MALE)

GRAY

22-PIN

(MALE)

WHITE

22-PIN

(FEMALE)

GRAY

22-PIN

(FEMALE)

TO FACTORY

HARNESS
