RNS-VW
Rear View Integration Interface for Select
Volkswagen Vehicles with MFD3 RNS315 & RNS510 Navigation System
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
- Automacally switches to Rear-view when car is in Reverse mode.
- OBD coder for single acvaon included.
- Plug & Play Installaon.
PRODUCT FEATURES:
PARTS INCLUDED:
RNS-VW Module RNS-VW Harness
Power Down Circuit OBD II Coder
FACTORY
RADIO
12-PIN
(male plug)
26-PIN
(female plug)
NAV
MUTE
SETUP
BAND
MEDIA
PHONE
i
POWER DOWN
CIRCUIT
RED / R E TR R PUTEV RSE IGGE IN
YELLOW / 12V CONSTANT
BLACK / G DROUN
INTERFACE
RED / 12V POWER
BLACK / GROUND
FR OM REVE E IGHTRS L
USE TO POWER THE CAMERA
CAMERA INPUT

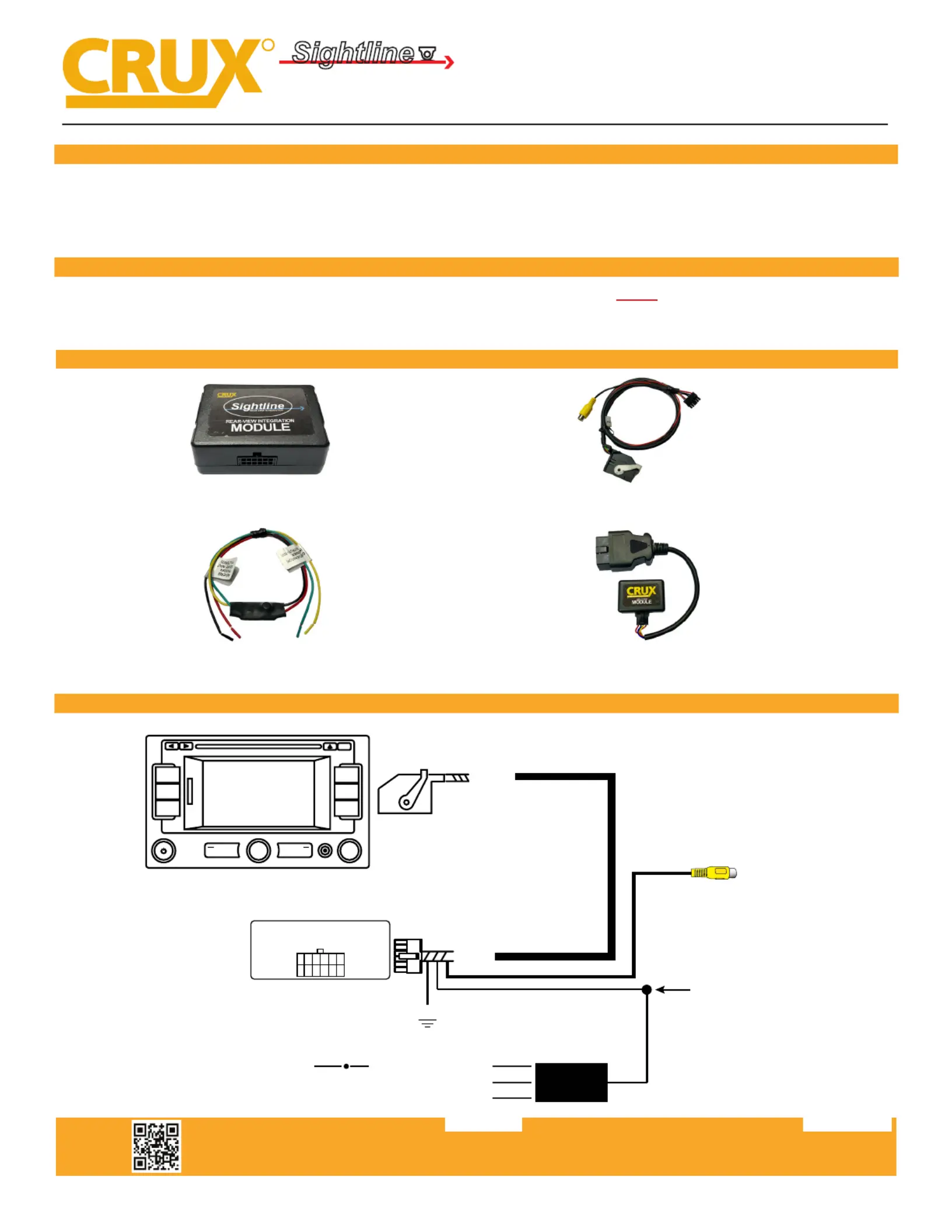

INSTALLATION DIAGRAM:
SPECIAL NOTE:
In the event this unit is to be returned for any reason, the customer must “decode” the radio before
doing so to receive a replacement or refund. See instructions on page 2 on how to decode the radio.
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0902202 of 3
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
RNS-VW
Rear View Integration Interface for Select
Volkswagen Vehicles with MFD3/RNS315/RNS510 Navigation System

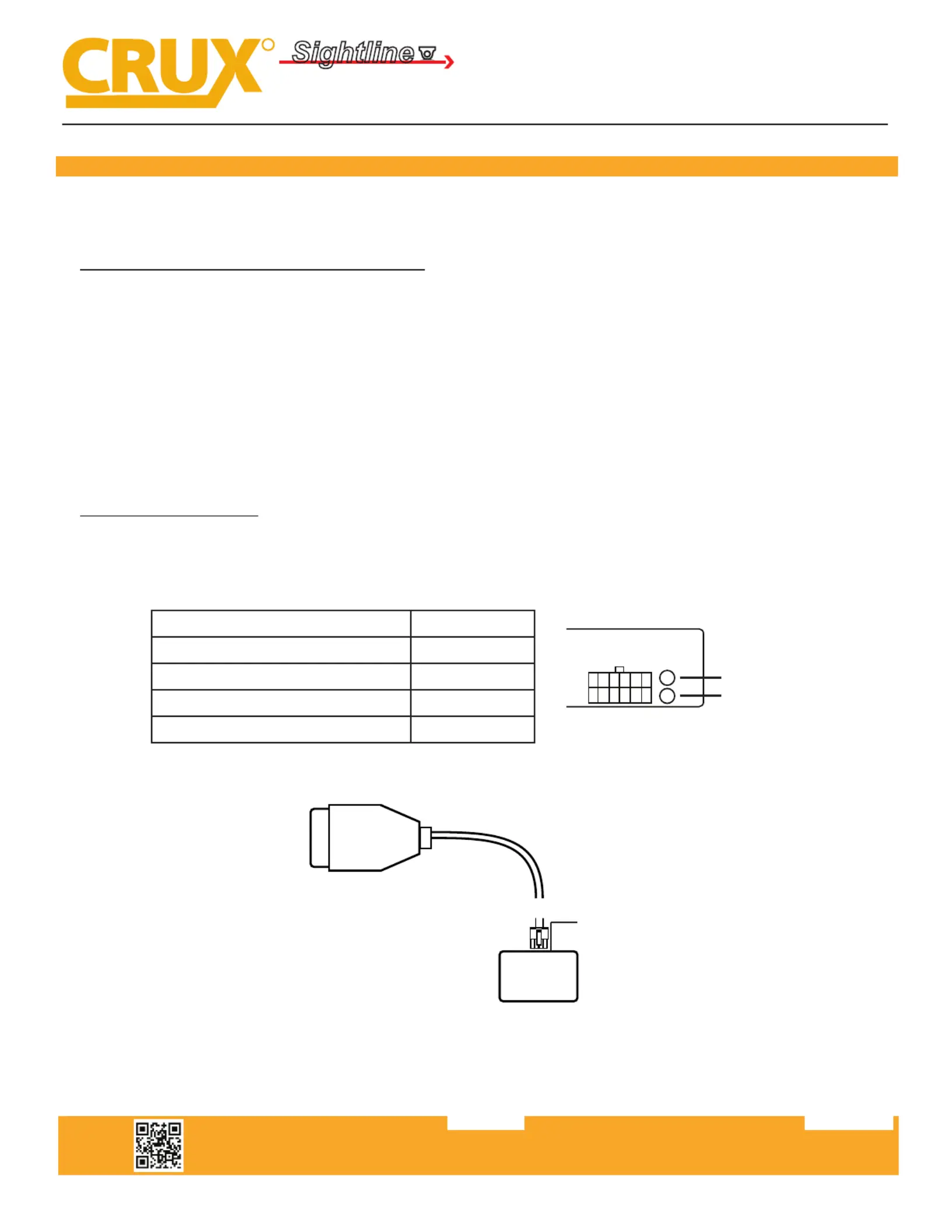

INSTALLATION INSTRUCTIONS:
CODING THE RADIO FOR A BACKUP CAMERA
1. Locate the vehicle’s OBD II port usually located under the steering column.
2. Enter the vehicle and CLOSE ALL DOORS.
3. Turn the key to the ON posion.
4. Plug in the OBD coder from the RNS-VW kit to the ODB II port.
5. Wait for the OBD coder to nish coding the radio and give a solid GREEN LED. (See chart below)
6. The radio may ash a few me during this process. It can take around 5 seconds to complete the
coding process. If an error occurs, retry the coding procedure.
7. Aer the coding is complete, disconnet the OBD coder and store in a safe place. This OBD coder is
VIN specic and will only work on this vehicle.
In order for the vehicle to recognize the camera and engage it when in reverse gear, the vehicle must be
coded. Use the ODB II coder included in the RNS-VW kit.
Reading the LED color paern:
Flashing LED Coding Vehicle
Solid Green LED Acvated
Solid Red LED Deacvated
Solid Red & Green LED Error
INTERFACE
GREEN LED
RED LED
8-PIN
(male plug)
LED
(indicator)
OBD CODER
DECODING THE RADIO
To decode the radio, repeat the steps above.
