Side 1/5

RVCCH-75F

Front & Rear Camera Integration Interface for

CHRYSLER, DODGE, FIAT & MASERATI Vehicles with Uconnect 8.4 or 4.3” Systems

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.121420

1 of5

- Adds front and rear camera inputs.

- Front camera automacally shows on the screen aer changing the gear from reverse to drive.

- Programmable for front camera delay turn OFF me using the OSD menu.

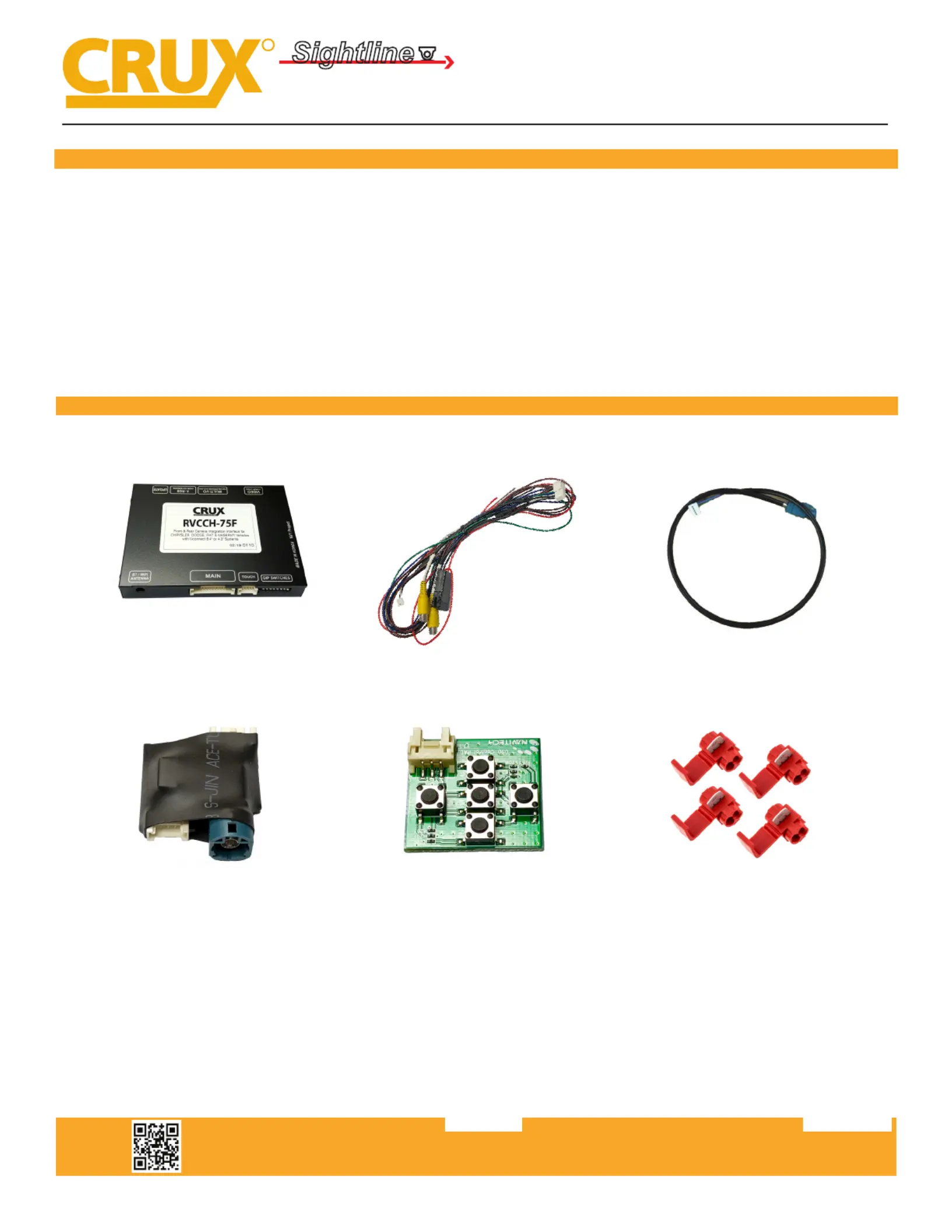

PRODUCT FEATURES:

PARTS INCLUDED:

RVCCH-75F Module LVDS CableRVCCH-75F Harness

LVDS Video Extension Board OSD Control Pad 4 Wire Taps

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.121420

2 of 5

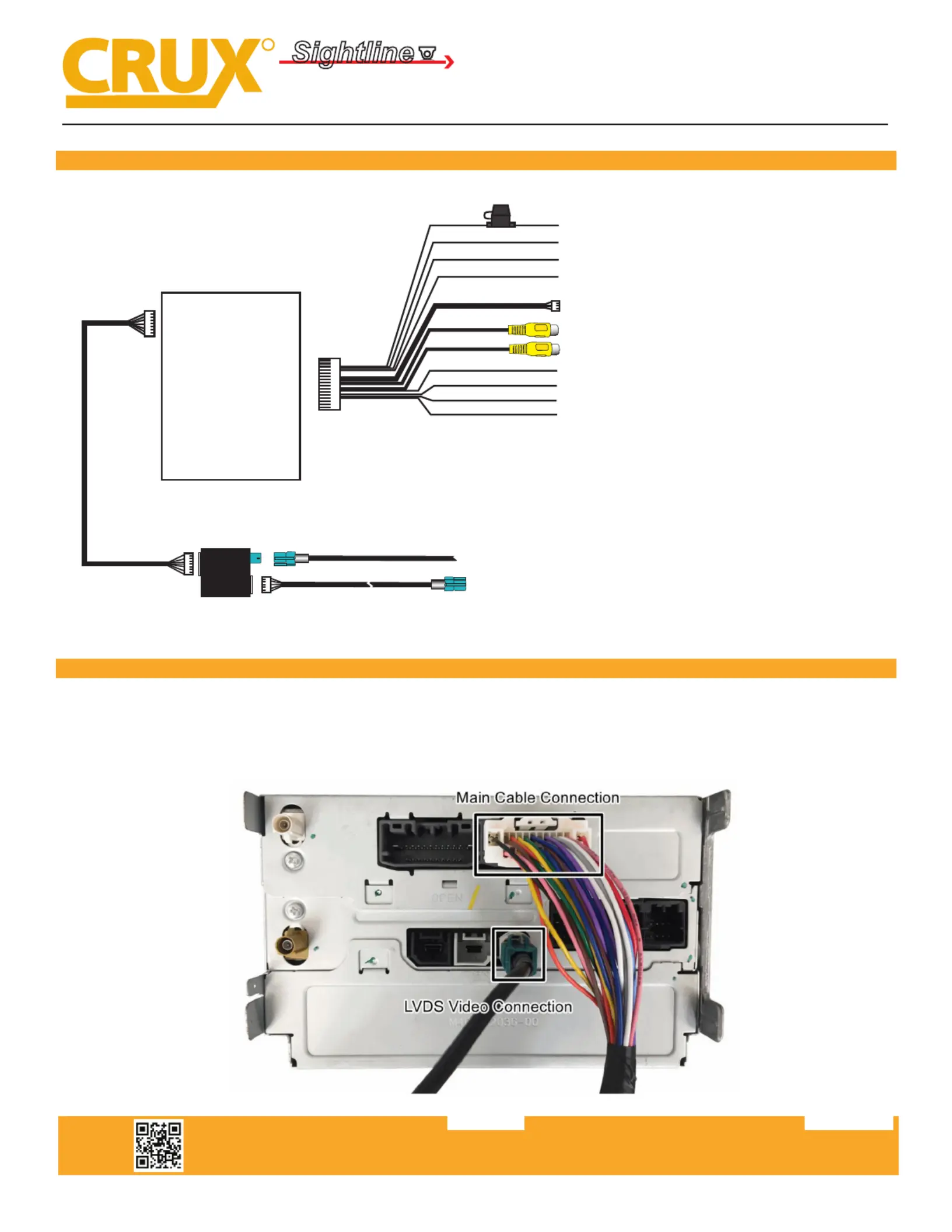

WIRING DIAGRAM:

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Front Camera Input

Rear Camera Input

To OSD Control Pad

Front/Rear Camera +12V Power

Ground

Green = Rear Camera Manual Trigger*

Blue = Front Camera Manual Trigger*

RVCCH-75F

MODULE

MAIN

*Use these wires if not using CAN Trigger.

Green wire = Connect to Reverse Light +12V

Blue wire = Connect to +12V using a toggle switch

VIDEO

LVDS Video

Extension Board

To Radio

From OEM Screen

Factory 22 pin connector

Red = +12V to pin 12 (Red)

Black = Ground to pin 1 (Black)

Brown/White = CAN + to pin 6 (Gray/Dark Blue)

Brown = CAN - to pin 17 (Gray/Yellow)

RVCCH-75F

LVDS & MAIN HARNESS CONNECTION:

Front & Rear Camera Integration Interface for

CHRYSLER, DODGE, FIAT & MASERATI Vehicles with Uconnect 8.4 or 4.3” Systems

Refer to the diagram above for wire connecons for power and CAN communicaon for the RVCCH-75F. Tap the

wires to the white factory 22 pin connector. Factory color wires are listed on the diagram above. Use the wire taps

include in the kit.
