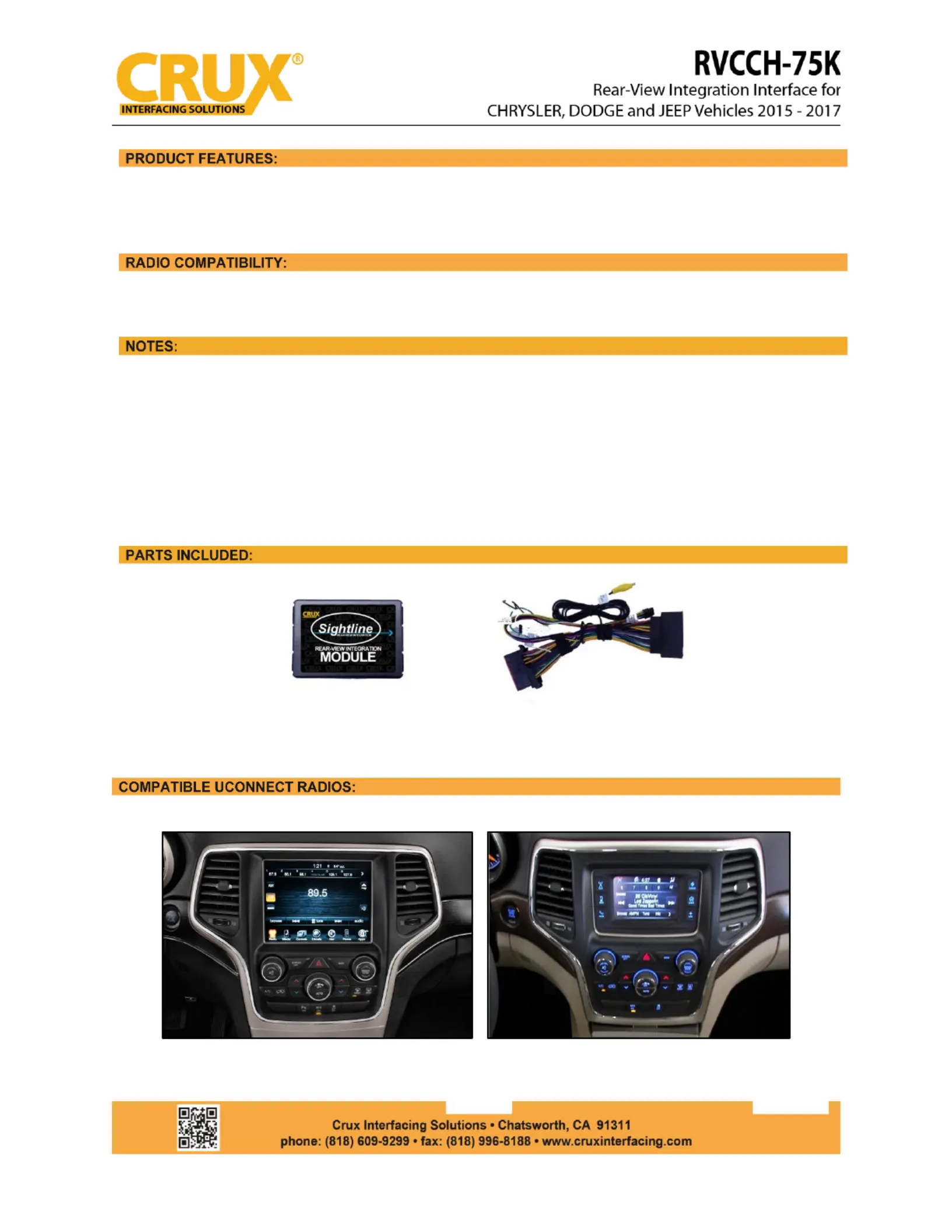

- Plug and Play Connections for ease of use.

- With Force Reverse Camera Feature.

- Uconnect 8.4” and 5” Screen

1. This Interface stores the VIN number upon installation and gets coded to function with the same

vehicle in particular. Once installed, it cannot be reused in any other vehicle.

2. Does not offer Video in Motion.

3. Not compatible on vehicles with heated seats or heated steering wheel.

4. If you see a blue screen after coming from reverse gear, go to SETTINGS/MORE > CLOCK

SETTINGS > SAFETY ASSISTANCE > BACKUP CAMERA > make sure the DELAY CAMERA box is not

checked.

RVC -75K MODULE CH

RVC -75K HARNESS (2665) CH

8.4” Screen (with 3 knobs below the screen)

5” Screen (with 3 knobs below the screen)

rev.050421

1 / 3

BLUE LED:

SOLID = BUS RECOGNIZED

OFF = SLEEP MODE

BLINKING = SEARCHING FOR BUS

The Blue LED will turn o when the car enters sleep mode

RED LED:

FAST BLINKING = CODING IN PROGRESS

ON = CODING COMPLETE

OFF = CODING REMOVED/ NO CODE

SLOW BLINKING = CODING ERROR

INSTALLING THE MODULE AND T-HARNESS

1. Carefully remove the radio to gain access to the radio harness.

2. Unplug the radio connector and plug it into the female connector of the RVCCH-75K T-harness.

3. Plug the 8-pin Molex connector to the RVCCH-75K module.

4. Install the camera (not included) following the “Installing the Camera and Cable” instructions below.

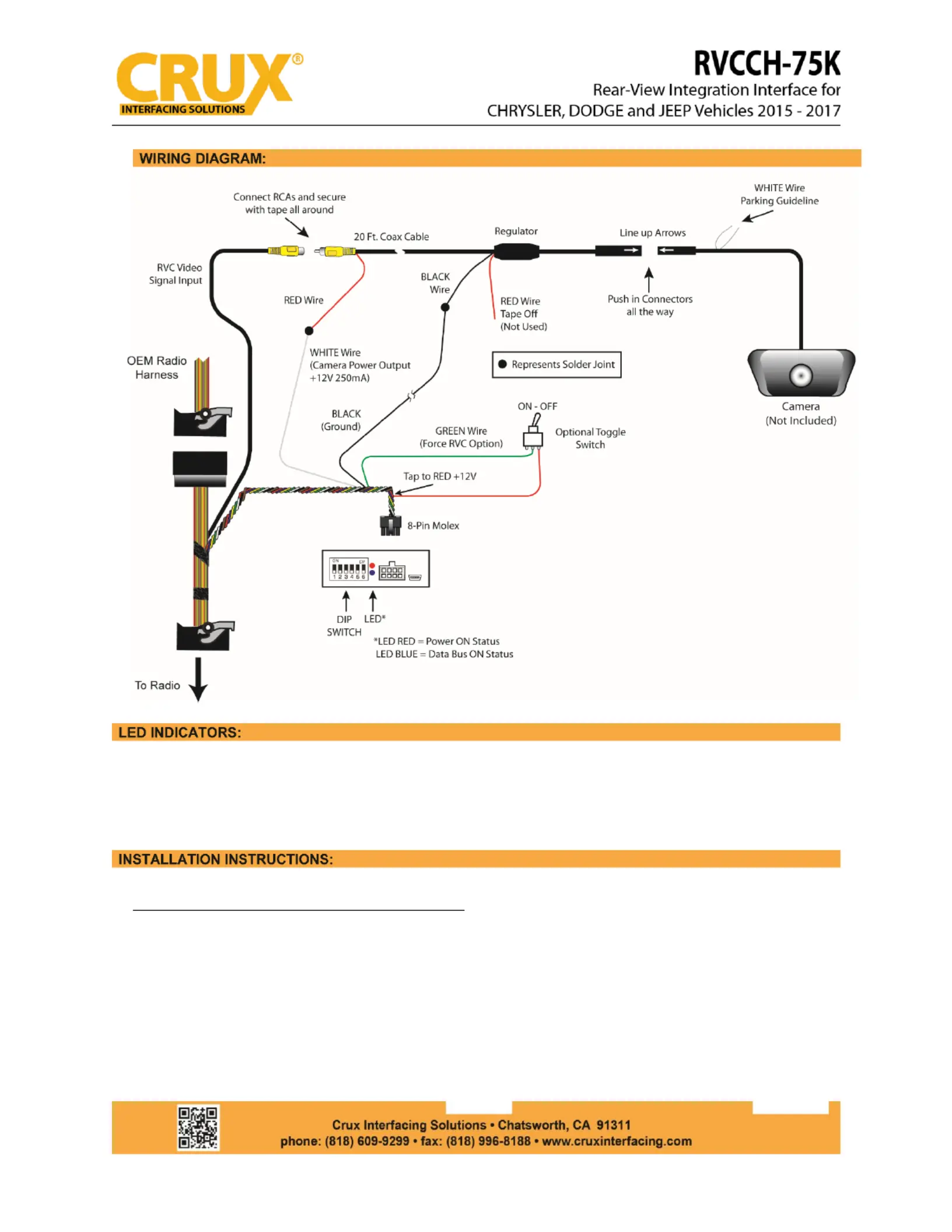

5. If Force RVC feature is to be used, connect a toggle switch (not included) between the RED +12V lead

from the 8-Pin connector and the GREEN wire from the T-harness. See diagram above.

6. After installation of the camera, plug the male connector of the RVCCH-75K T-harness to the radio and

test for functionality.

7. Re-install the radio.

rev.050421

2 / 3
