RVCCH-75R

Rear View with VIM Integration Interface and

Tailgate Handle Camera for RAM Trucks

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.0922201 of 3

• Acvates Mygig radio for enabling video features

• Tailgate handle camera included

• Interface includes Audio / Video Input to connect an extra A/V source

• Automacally switches to Rear-view when car is in Reverse mode

• Supports vehicles with manual transmission but does not supply +12V Reverse Trigger. Camera power

must be tapped from the +12V reverse light wire instead

• Plug & Play Installaon

PRODUCT FEATURES:

PARTS INCLUDED:

RVCCH-75R Module RVCCH-75R Harness Tailgate Handle Camera

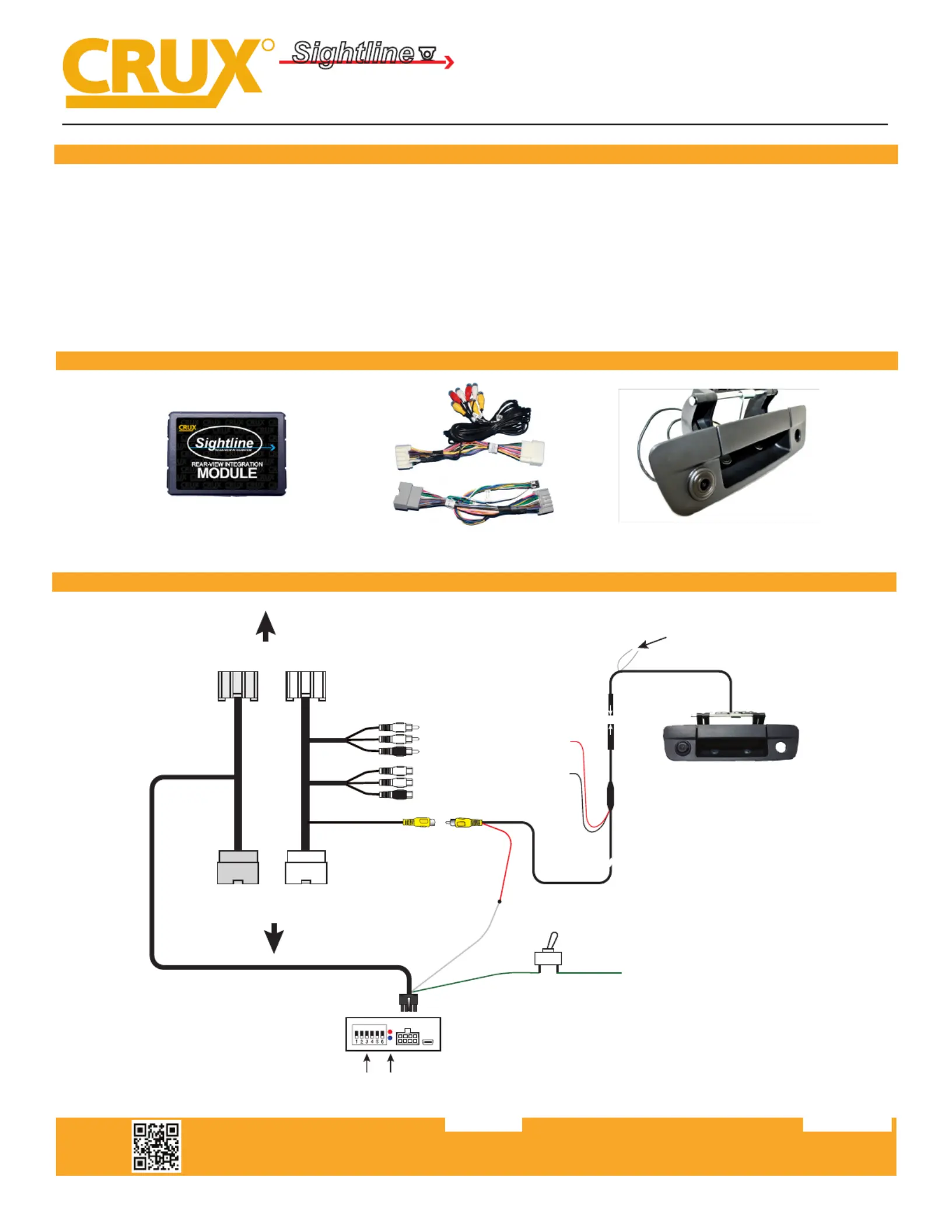

INSTALLATION DIAGRAM:

WHITE Wire

Parking Guideline

DIP

SWITCH

LED

LED RED = Power ON Status

LED BLUE = Data Bus ON Status

Regulator

20 Ft. Coax Cable

8-Pin Molex

TO RADIO

WHITE

22-PIN

(MALE)

GRAY

22-PIN

(MALE)

WHITE

22-PIN

(FEMALE)

GRAY

22-PIN

(FEMALE)

TO FACTORY

HARNESS

Tap Green wire to +12V ACC for non

permanent VIM. Set DIP 1 to OFF.

(toggle switch not included)

WHITE Wire*

(Camera Power Output

+12V 250mA)

RED Wire

Tape O

(Not Used)

*Note that the white wire does not supply Reverse Trigger on Manual

Transmission and should be insulated .Camera power must be connected

to factory reverse light wire instead.

To Source Ground

(ground wire)

(not chassis ground)

A/V OUT

A/V INPUT

To +12V ACC

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.092220

2 of 3

INTERFACING SOLUTIONS

Sightline

Multi View Integration

DIP SWITCH SETTINGS:

INSTALLATION INSTRUCTIONS:

INSTALLING THE RVCCH-75R INTERFACE

1. Remove the factory radio to gain access to the factory connectors.

2. Plug in the t-harness with WHITE and GRAY connectors. (See wiring diagram on page 1)

3. Set the proper DIP Switch sengs on the RVCCH-75R module. (See chart above)

4. Use the WHITE 12V Reverse Output wire to power the camera (see wiring diagram on page 1). DO NOT connect the red

power wire, near the camera, to the reverse light and insulate this red wire to avoid from shorng. If the vehicle has

a manual transmission, the camera power must be tapped to the +12V reverse light wire instead. In this case the WHITE

12V Reverse Output wire is not used and should be insulated to avoid from shorng.

5. Plug in the AV source and test for funconality.

6. Proceed to installing the tailgate handle camera.

INSTALLING THE CDR-02 CAMERA

1. Remove the OE tailgate handle.

2. Remove the OE lock cylinder and install in the CDR-02 camera housing.

3. Install the new tailgate handle and run the cables to the radio.

4. Remove the factory radio to gain access to the factory connectors.

5. Route the wires towards the radio and make the power and video connecons. For powering up the camera, use the 12V

OUTPUT (White Wire). (See Wiring Diagram on page 1)

6. Connect the camera ground wire to chassis ground. If video noise is present, we recommend grounding the camera

directly to the BLACK wire on the RVCCH-75D T-harness.

7. The CDR-02 has a built-in parking guide lines opon and is defaulted to ON from the factory. To turn OFF the parking guide

lines, cut the thin WHITE wire located on the camera cable 4 feet from the camera. Unplug the barrel connectors on the

cable for 5 seconds. Align the arrows on the barrel connectors and rmly plug them together.

8. Plug in the Yellow male RCA from the camera cable to the Yellow female RCA of the t-harness with white connectors.

9. Put the gear in reverse to test the camera before re-installing the radio.

DIP SWITCH FUNCTIONS:

DIP 1 = Video in Moon Acvaon ON (permanent VIM) / OFF (use Green wire)

DIP 2 = Rear View Camera ON / OFF

DIP 3 = Set to OFF

DIP 4 = Set to OFF

DIP 5 = CAN Terminaon Radio Side*

DIP 6 = CAN Terminaon Car Side*

RVCCH-75R

Rear View with VIM Integration Interface and

Tailgate Handle Camera for RAM Trucks

*DIP 5 & 6

If the radio is having turn-on issues, please try the following:

Aempt 1: Set 5 & 6 to ON

Aempt 2: Set 5 to ON and 6 to OFF

Aempt 3: Set 5 to OFF and 6 to ON

1 2 3 4 5 6

LED INFORMATION:

The RVCCH-75R module has 2 LEDs on the side of the Molex connector that conrms its funconality as follows:

RED LED: ON = Conrms Power

BLUE LED: PULSING = No BUS, Pending Data

OFF = Complete Power Down

SOLID = BUS Recognized
