Side 1/3
- Interface includes Audio / Video Input to connect an extra A/V source.
- License plate light mount reverse camera included.
- Acvates MYGIG Screen for enabling Video features.
- Supports vehicles with manual transmission but does not supply +12V Reverse Trigger. Camera
power must be tapped from the +12V reverse light wire instead.
- ug and Play Connecons for ease of use. Pl
- MyGig Navigaon Radio

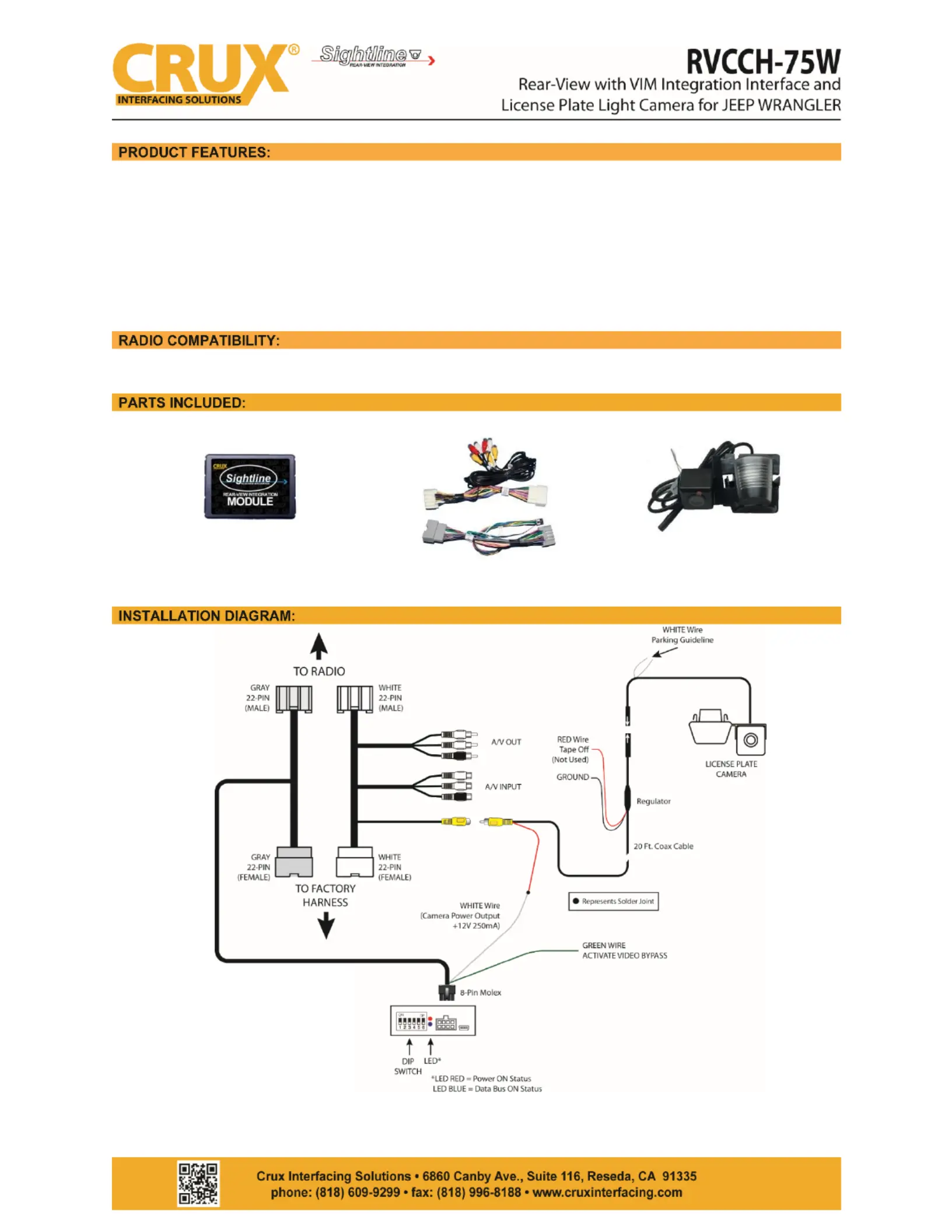

CH-75W HARNESS
LICENSE PLATE LIGHT CAMERA
Please note that the WHITE 12V
Reverse Output wire does not
supply power on vehicles with
manual transmission and should
be insulated to avoid from
shorng. Connect the camera
power to the OE reverse light
+12V wire instead.
Rev.0926 17
1 / 3

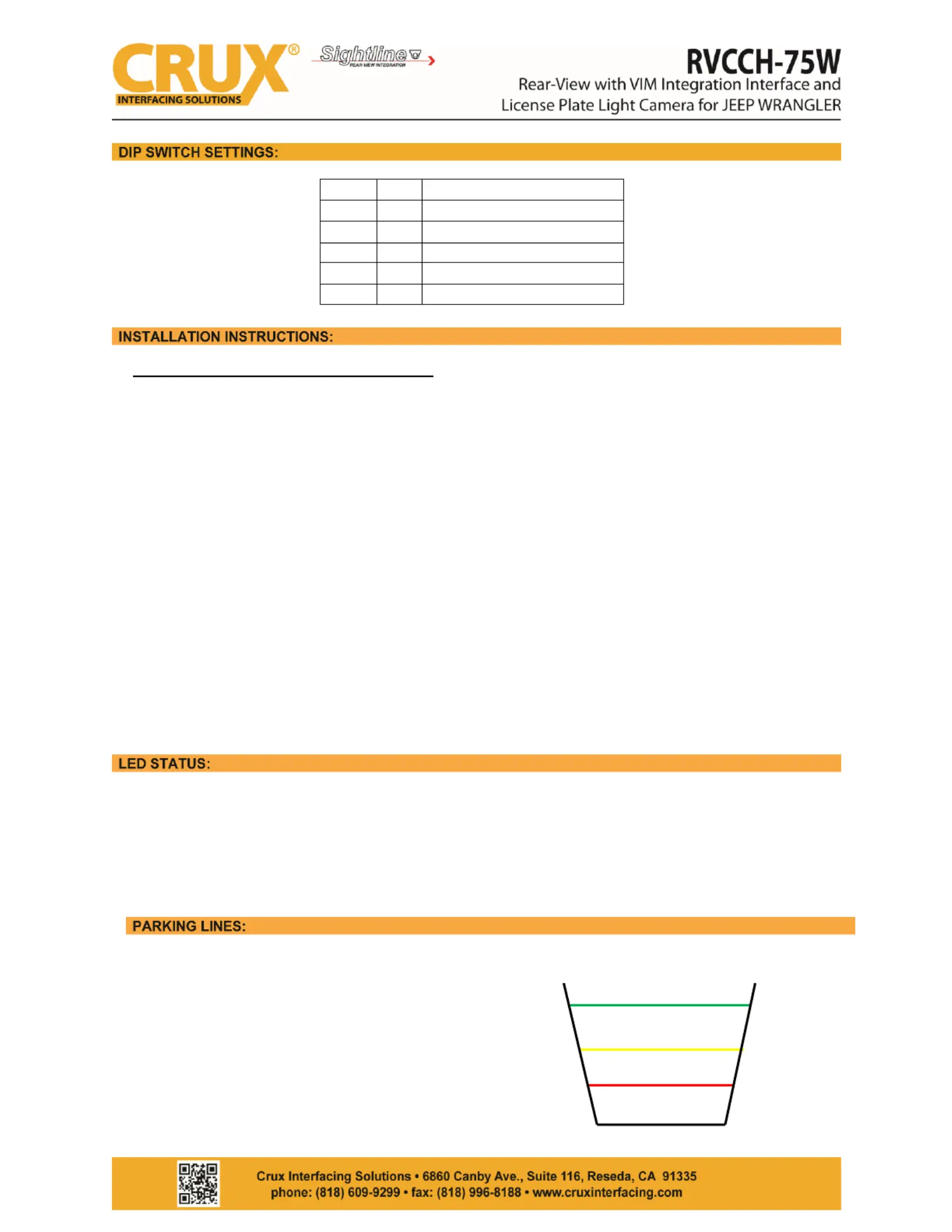

INSTALLING THE CAMERA AND INTERFACE
1. Remove the stock license plate light at the back of the vehicle.
2. Install the camera assembly to where the stock license plate light was.
3. Connect the built-in license plate light of the camera to the stock license plate power connecon.
4. Connect the video cable of the camera to the extension cord provided.
5. Cut the thin white wire on the camera cable to enable the parking guide lines. Disconnect to disable.
6. Route the cable towards the radio.
7. Remove the factory radio to gain access to the factory connectors.
8. Plug in the T-harness with WHITE and GRAY connectors. (See Wiring Diagram above)
9. Connect the 8-pin Molex connector from the T-harness with GRAY connectors to the CAN Interface.
10. Use the WHITE 12V Reverse Output wire to power the camera (see Wiring Diagram above). DO NOT
connect the red power wire, near the camera, iInsulate this red wire to avoid to the reverse light and
from shorng. the vehicle has a manual transmission, the camera power must be tapped to the If
+12V reverse light wire instead. In this case the WHITE 12V Reverse Output wire is not used and
should be insulated to avoid from shorng.
11. Plug in the YELLOW MALE RCA from the camera cable to the YELLOW FEMALE RCA of the T-Harness
with WHITE connectors.
12. Set the proper DIP Switch seings on the CH-75W module. (See Chart above)
13. Test the camera before re-installing the radio.
The CH- module has 2 LEDs on the side of the Molex connector that conrms its funconality as follows: 75W
RED LED = Conrms Power
BLUE LED: PULSING = No BUS, Pending Data
OFF = Complete Power Down
SOLID = BUS Recognized
The parking lines are there to assist you while reversing. To activate the parking lines simply cut/disconnect the
WHITE loop wire located near the 4 pin camera connector.
What the Lines mean:
Green Line: CLEAR
Yellow Line: GETTING CLOSE
Red Line: WARNING - VERY CLOSE
GREEN
YELLOW
RED
DIP 1
OFF
VIM Disable
DIP 2
ON
Rear-View Camera Enable
DIP 3
OFF
NOT Used
DIP 4
OFF
NOT Used
DIP 5
OFF
CAN Terminaon Radio Side
DIP 6
ON
CAN Terminaon Car Side
Rev.0926 17
2 / 3
