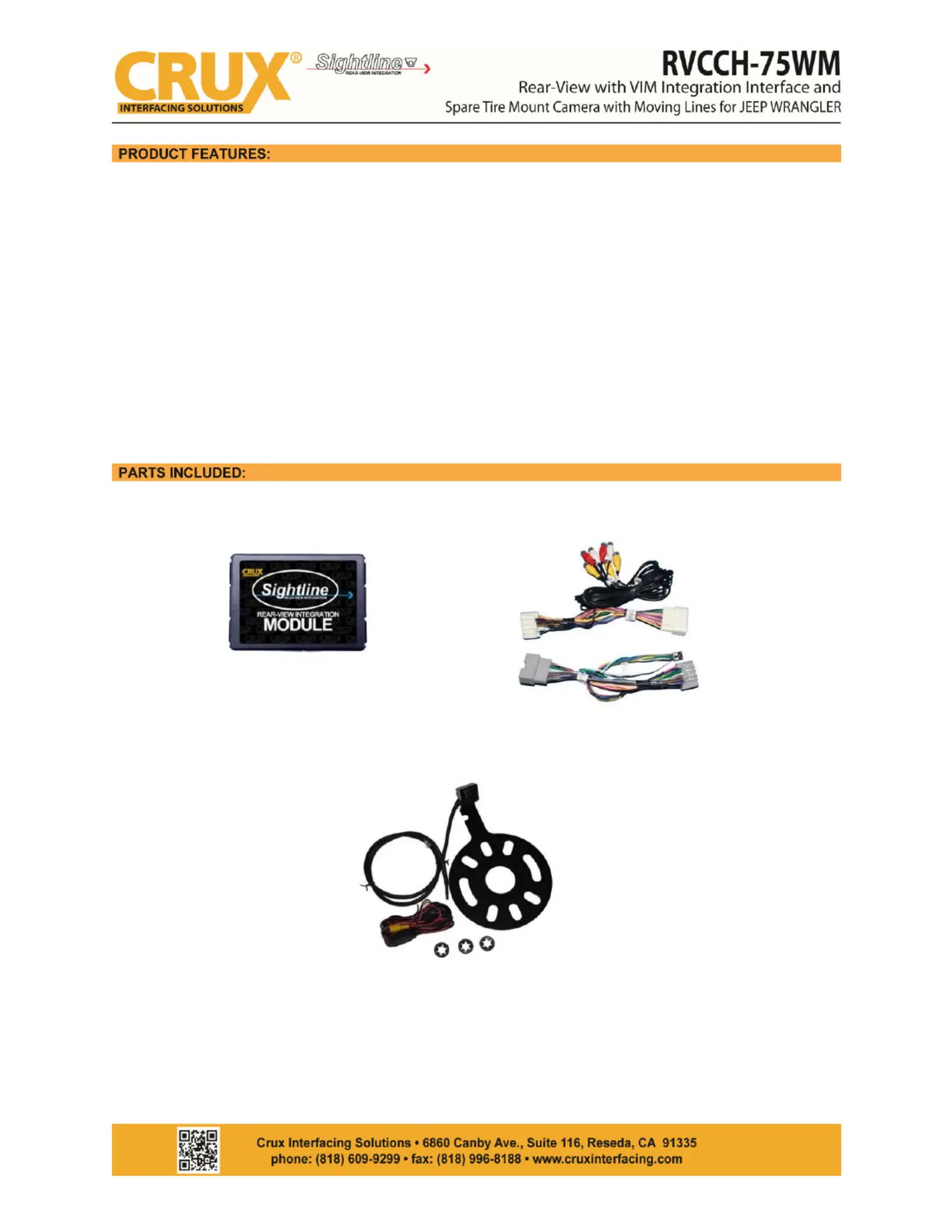

Side 1/3
- Interface includes Audio / Video Input to connect an extra A/V source.
- OEM style Spare Tire mount reverse camera included.
- Camera has moving parking guide lines to show path direcon while backing up.
- Acvates MYGIG Screen for enabling Video features.
- Supports vehicles with manual transmission. See note below.
- Plug and Play connecons for ease of use.
NOTE: Does not supply +12V Reverse Trigger on vehicles with manual transmission.
Camera power must be tapped from the +12V reverse light wire instead.
-75WM MODULE CH
-75WM HARNESS CH
CCH-01M SPARE TIRE MOUNT CAMERA with MOVING LINES
Rev.0926 17
1 / 3

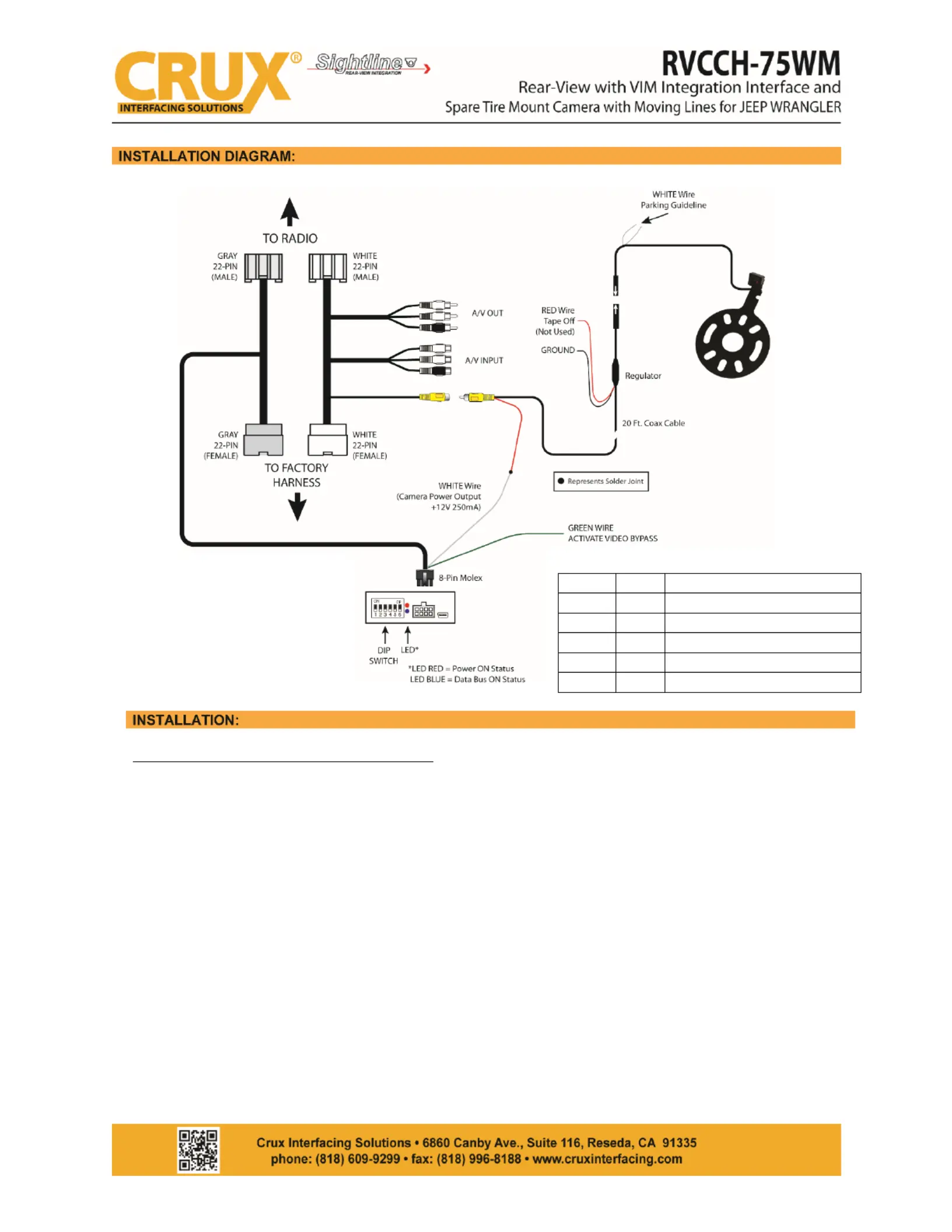

INSTALLING THE CAMERA AND INTERFACE
1. Remove the outside mounted spare re.
2. Mount the metal bracket onto the spare re bolts and secure with the star washers. camera’s
3. Route the cable towards the radio and make the power and video connecons.
4. Remove the factory radio to gain access to the factory connectors.
5. Plug in the T-harness with WHITE and GRAY connectors. (See Wiring Diagram above)
6. Connect the 8-pin Molex connector from the T-harness with GRAY connectors to the CAN Interface.
7. Use the WHITE 12V Reverse Output wire to power the camera (see Wiring Diagram above). DO NOT
connect the red power wire, near the camera, insulate this red wire to avoid to the reverse light and
from shorng. the vehicle has a manual transmission, the camera power must be tapped to the If
+12V reverse light wire instead. In this case the WHITE 12V Reverse Output wire is not used and
should be insulated to avoid from shorng.
8. Plug in the YELLOW MALE RCA from the camera cable to the YELLOW FEMALE RCA of the T-Harness
with WHITE connectors.
9. Connect GREEN wire to +12V for a non permanent Video in Moon feature.
10. Set the proper DIP Switch sengs on the CAN Interface. (See Chart above)
11. Cut the thin white wire on the camera cable to enable the parking guide lines.
12. Test the camera before re-installing the radio.
Rev.0926 17
2 / 3
Please note that the WHITE 12V
Reverse Output wire does not
supply power on vehicles with
manual transmission and should
be insulated to avoid from
shorng. Connect the camera
power to the OE reverse light
+12V wire instead.
DIP SWITCH SETTING
DIP 1
OFF
VIM Disable
DIP 2
ON
Rear-View Camera Enable
DIP 3
OFF
N/A
DIP 4
OFF
Opon for GREEN Wire
DIP 5
OFF
CAN Terminaon Radio Side
DIP 6
ON
CAN Terminaon Car Side
