RVCGM-80B
Front & Rear Camera Integration Interface for
Select CHEVROLET and GMC Vehicles with 7” MyLink iOB Radios
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.031220
1 of 5
- Adds front and rear aermarket camera inputs.
- Retains funconality of the OEM backup camera if present.
- Front camera automacally shows on the screen aer changing the gear from reverse to drive.
- Programmable front camera delay OFF me using the OSD menu.
PRODUCT FEATURES:

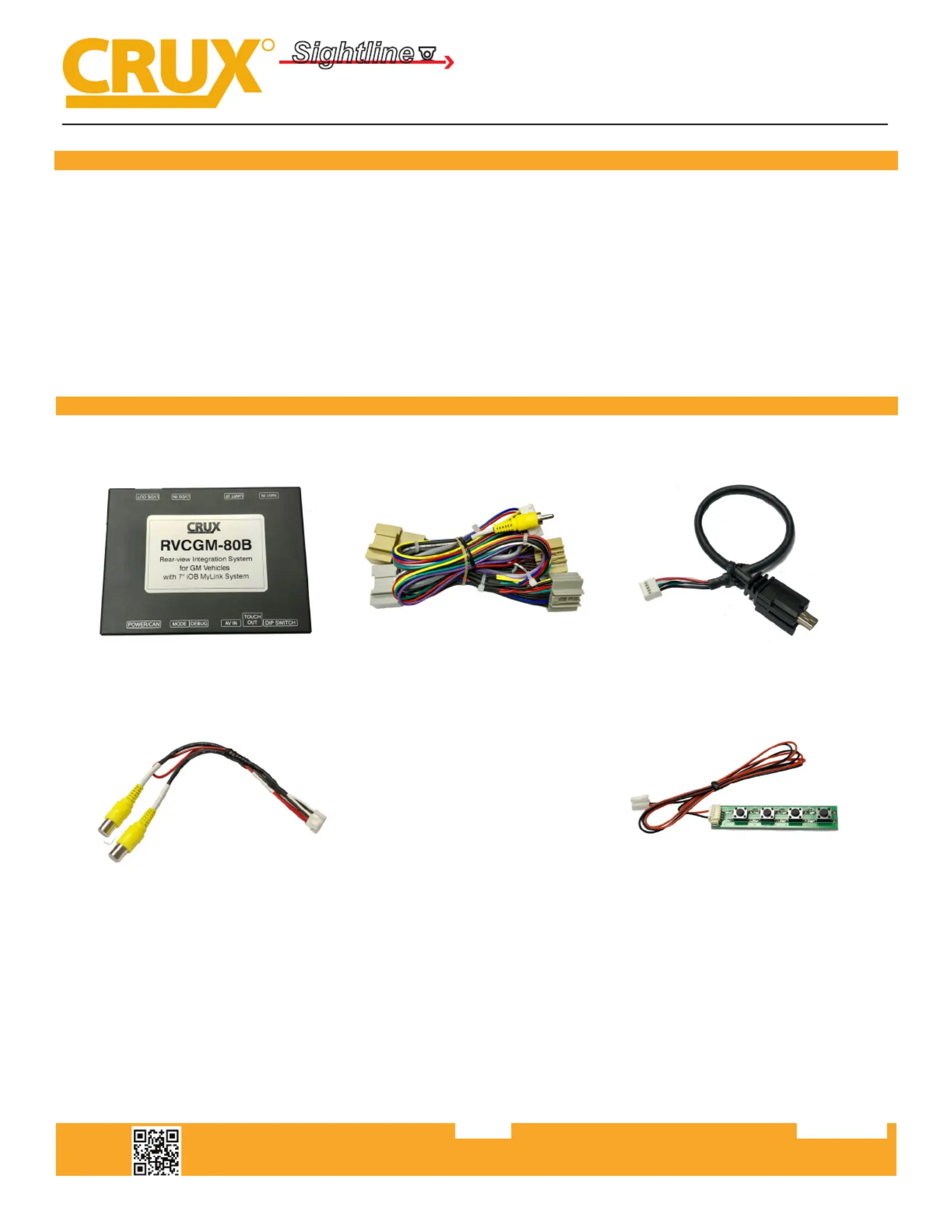

PARTS INCLUDED:
RVCGM-80B Module RVCGM-80B Power Harness LVDS Cable
AV Cable Keypad

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.031220
2 of 5

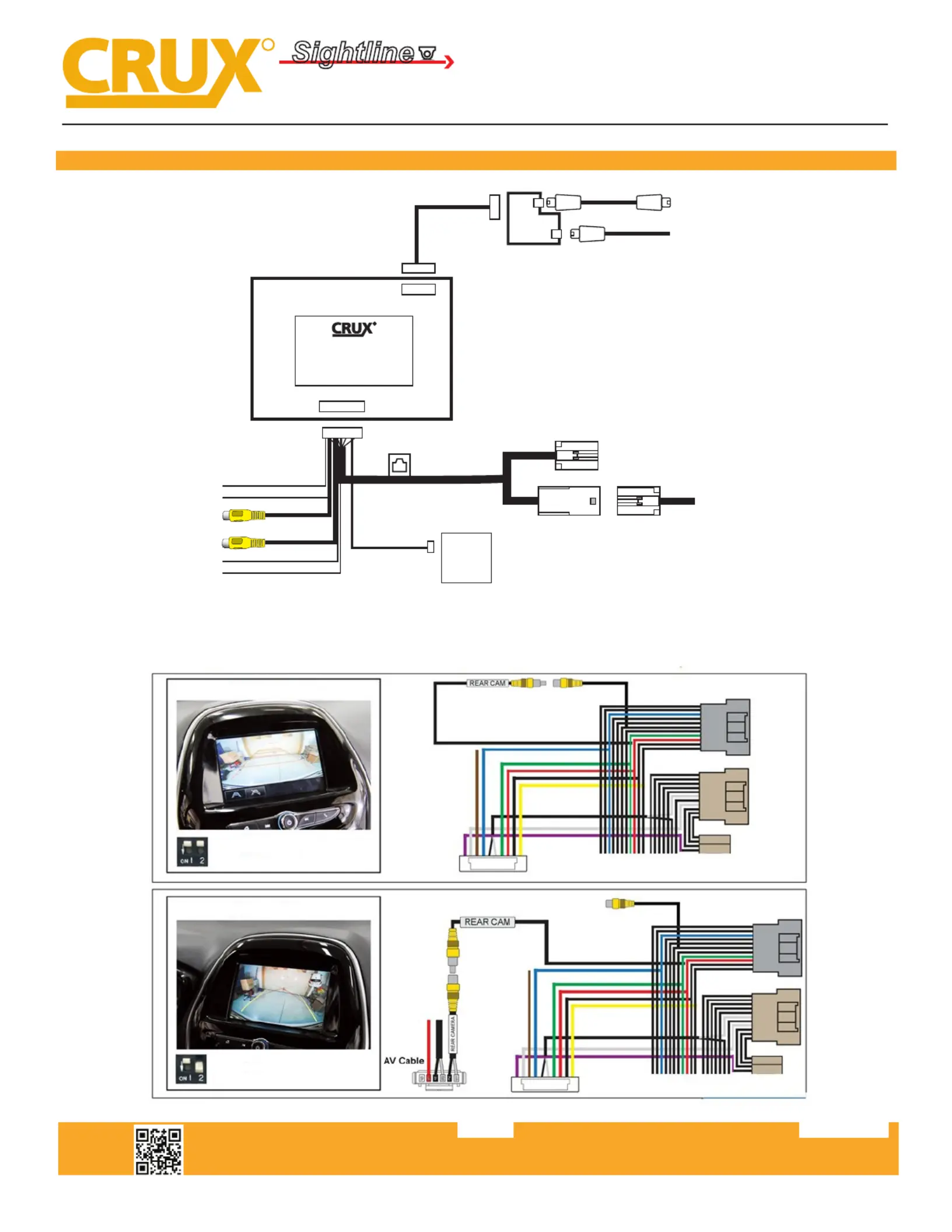

WIRING DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
MAIN
RVCGM-80B
Front & Rear Camera Integration Interface
for CHEVROLET and GMC Vehicles
with 7” MyLink iOB Radios
INTERFACING SOLUTIONS
V IDEO
REAR CAMERA
FRONT CAMERA
Front Camera
12V Power & Ground
Rear Camera
12V Power & Ground
OSD
CONTROL
PAD
OSD Control Pad is used to
adjust the settings. Must be
unplugged and stored after.
LVDS
Adapter
Cable
To the LVDS Connector
behind the radio
From the LVDS Connector
behind the radio
To the 10-pin connector
behind the radio
From the 10-pin connector
behind the radio
Fuse
RVCGM-80B
Front & Rear Camera Integration Interface for
Select CHEVROLET and GMC Vehicles with 7” MyLink iOB Radios
REAR CAMERA CONNECTION
Turn DIP#2 to OFF
Turn DIP#2 to ON
USING OEM CAMERA
USING AFTERMARKET CAMERA
