Side 1/8

RVCGM-80F

Front & Rear Camera Integration Interface for

Select 2016-2018 GM Vehicles with CUE, Intellilink, & MyLink Systems

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.011420

1 of 8

- Adds front and rear aermarket camera inputs.

- Retains funconality of the OEM backup camera if present.

- Front camera automacally shows on the screen aer changing the gear from reverse to drive.

- Forced view funcon for front camera or aermarket backup camera.

PRODUCT FEATURES:

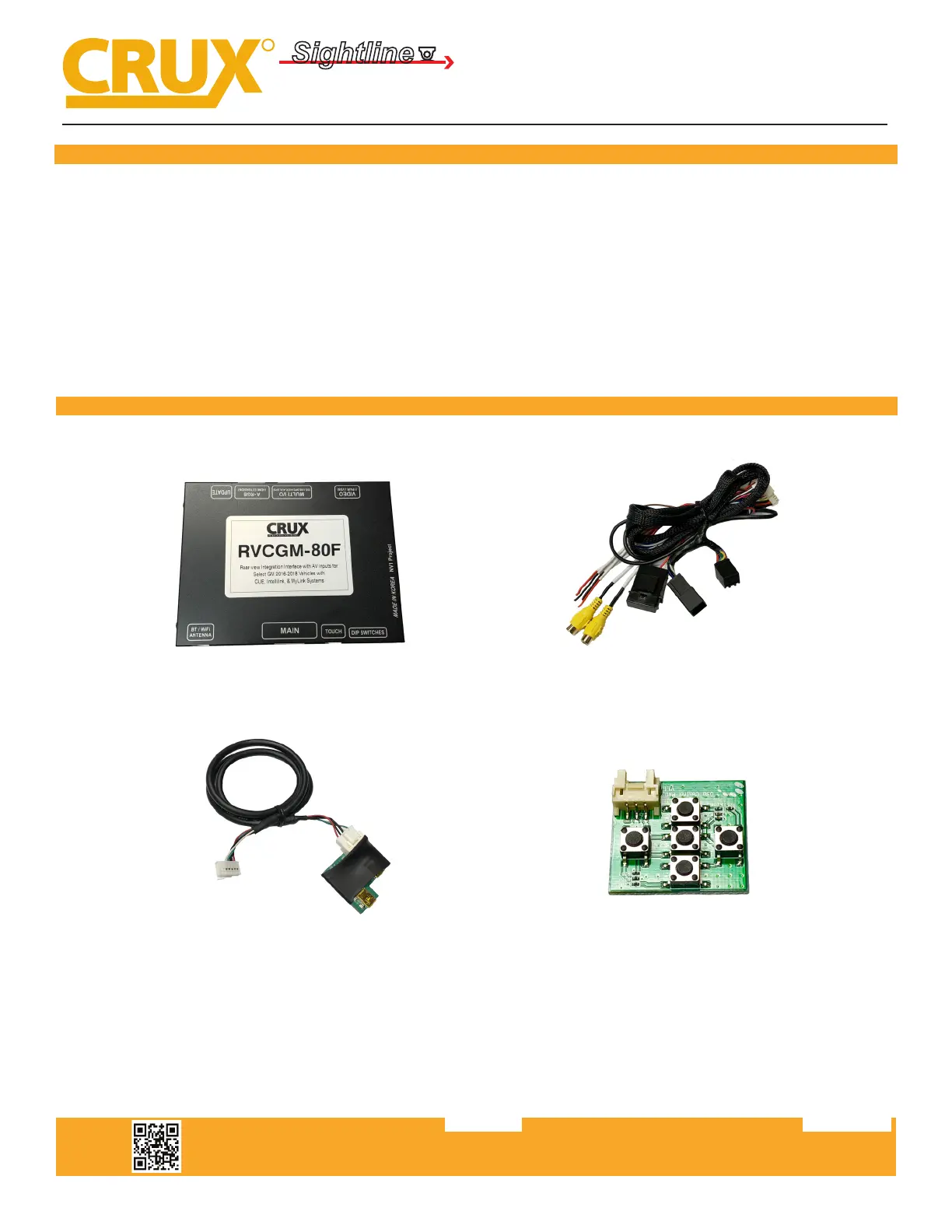

PARTS INCLUDED:

RVCGM-80F Module RVCGM-80F Power Harness

LVDS Adapter Cable OSD Control Pad

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.0114202 of 8

WIRING DIAGRAM:

INTERFACING SOLUTIONS

Sightline

Multi View Integration

MAIN

RVCGM-80F

Front & Rear Camera Integration Interface

for GM Vehicles with CUE, MyLink & Intellilink

INTERFACING SOLUTIONS

V IDEO

REAR CAMERA

FRONT CAMERA

Front Camera

12V Power & Ground

Rear Camera

12V Power & Ground

OSD

CONTROL

PAD

OSD Control Pad is used to

adjust the settings. Must be

unplugged and stored after.

LVDS

Adapter

Cable

To the LVDS Connector

behind the radio

From the LVDS Connector

behind the radio

To the 10-pin connector

behind the radio

From the 10-pin connector

behind the radio

Fuse

***See Special Note on page 5 regarding LVDS connections on RE models***

Front Camera

Manual Trigger for CUE

Yellow

RVCGM-80F

Front & Rear Camera Integration Interface for

Select 2016-2018 GM Vehicles with CUE, Intellilink, & MyLink Systems

DIP SWITCH SETTINGS:

DIP SETTING VEHICLE

1 to 8 ALL OFF Malibu and Volt

1 ON Corvee C7

2 ON Escalade, CTS-V

3 OFF None (leave OFF)

4 ON Cruze (with 8” screen)

5 ON Cadillac XT5

6 ON Impala, Suburban, Tahoe, Yukon, Sierra, Acadia, Silverado, Yukon (with RSE)

7 ON Suburban (with RSE), Tahoe (with RSE)

1 & 5 ON Colorado

2 & 5 ON Escalade, CTS, CTS-V (with no OEM front camera)

Note: ON is down and OFF is up

RSE = Rear Seat Entertainment
