RVCGM-80M

Front & Rear Camera Integration Interface for

Select CHEVROLET and BUICK Vehicles with 7” MyLink Systems

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.1221221 of 4

- Adds front and rear camera inputs.

- Front camera automacally shows on the screen aer changing the gear from reverse to drive.

- Programmable front camera delay OFF me using the OSD menu.

PRODUCT FEATURES:

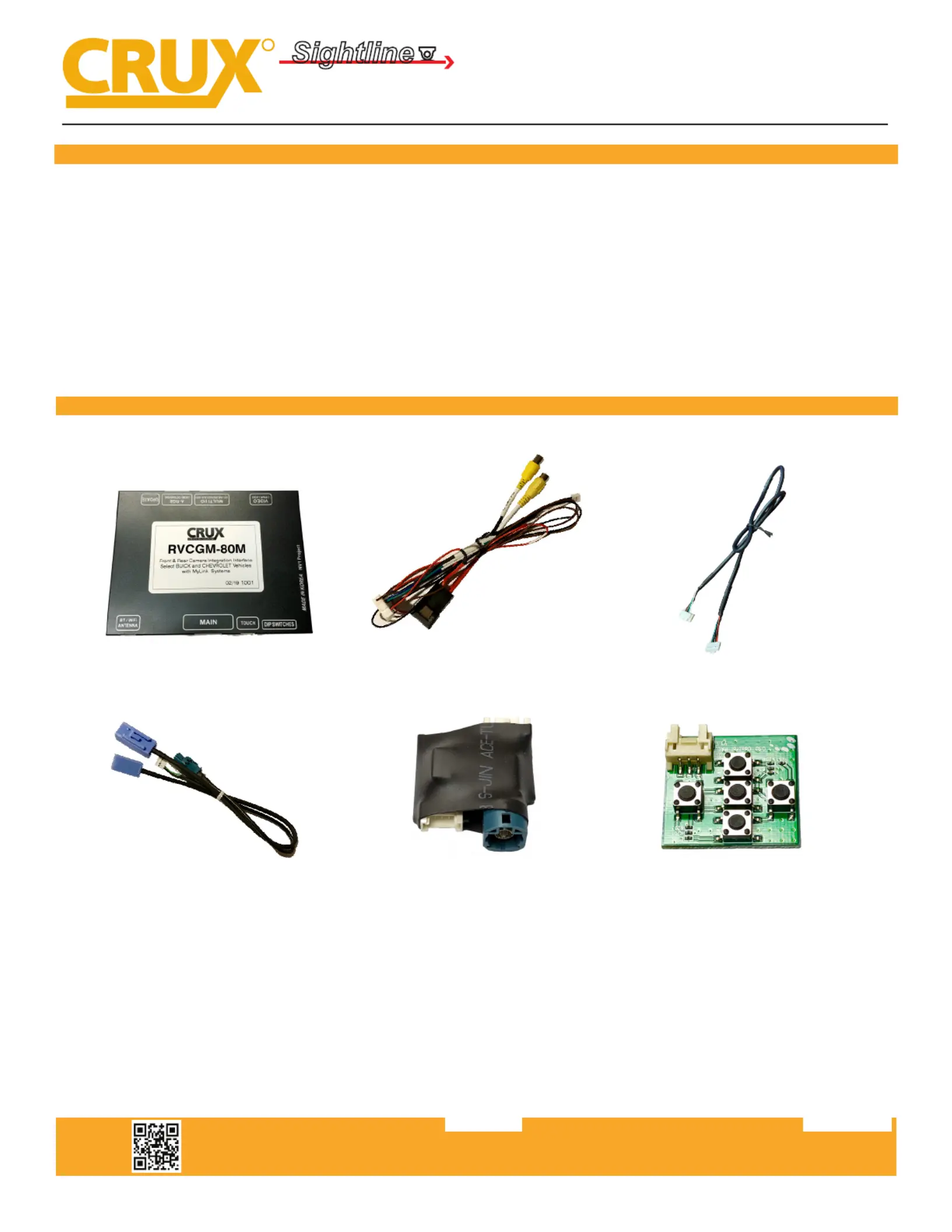

PARTS INCLUDED:

RVCGM-80M Module RVCGM-80M T-Harness LVDS Cable

GVIF Video Cables LVDS Video Extension Board OSD Control Pad

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.1221222 of 4

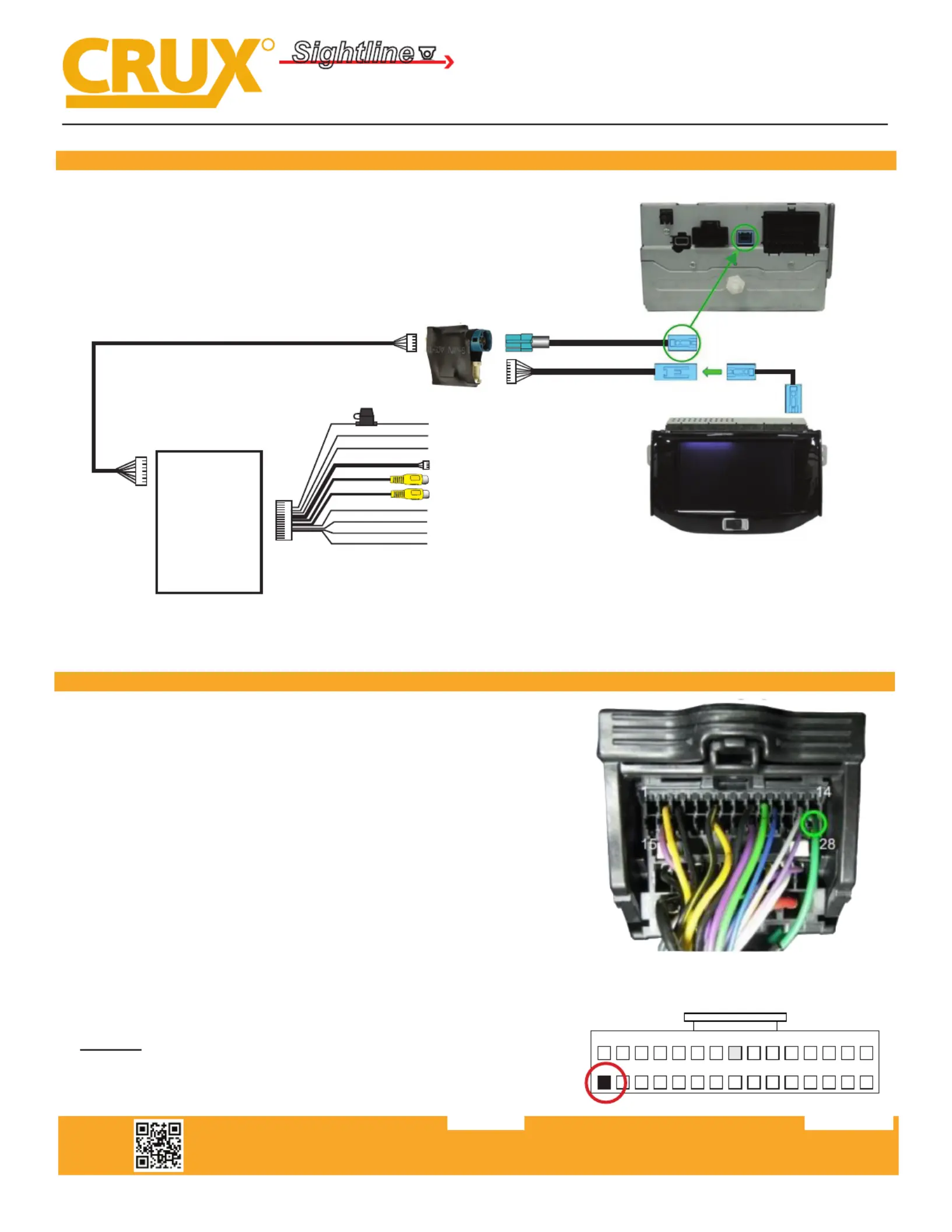

WIRING DIAGRAM:

INTERFACING SOLUTIONS

Sightline

Multi View Integration

OEM Monitor

OEM GVIF

Cable

OEM Headunit

GVIF Video Cables

Front Camera Input

Rear Camera Input

To OSD Control Pad

Front/Rear Camera +12V Power

Ground

Green = Rear Camera Manual Trigger*

Blue = Front Camera Manual Trigger*

RVCGM-80M

MODULE

MAIN

*Use these wires if not using CAN Trigger.

Green wire = Connect to Reverse Light +12V

Blue wire = Connect to +12V using a toggle switch

^See Note below regarding wire color

VIDEO

LVDS Video

Extension Board

Red = +12V ACC

Black = Ground

White = CAN High^

Video Extension Cable

RVCGM-80M

CAN WIRE CONNECTION:

Front & Rear Camera Integration Interface for

Select CHEVROLET and BUICK Vehicles with 7” MyLink Systems

The RVCGM-80M detects the CAN communicaons in the vehicle.

Tap the WHITE wire^ (Pin# 2) on the RVCGM-80M power harness to

the GREEN wire (PIN# 28) on the 44 pin OEM connector behind the

headunit. Reverse gear engagement is automacally detected and will

power on the rear camera. The front camera will power on when the

gear is put to Drive. The delay OFF of the front camera can be set in

the OSD menu. Time delay OFF can be set from 1 to 60 seconds.

If for some reason the CAN connecon cannot detect the reverse gear

communicaon, connect the GREEN wire on the RVCGM-80M power

harness (Rear Camera Manual Trigger) to the reverse light wire +12V.

Do not connect the WHITE wire to the GM CAN line.

The Front camera also be also be manually triggered by connecng

the BLUE wire (Front Camera Manual Trigger) to +12V.

GREEN wire Single CAN wire PIN# 28

^NOTE: Older generaon RVCGM-80M may have a dierent

colored wire on PIN #2. See diagram on the right for the wire

locaon on the 30 pin power harness connector. (Wire view)

1 3 5 7 9 11 13 15 17 19 21 23 25 27 29

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30
