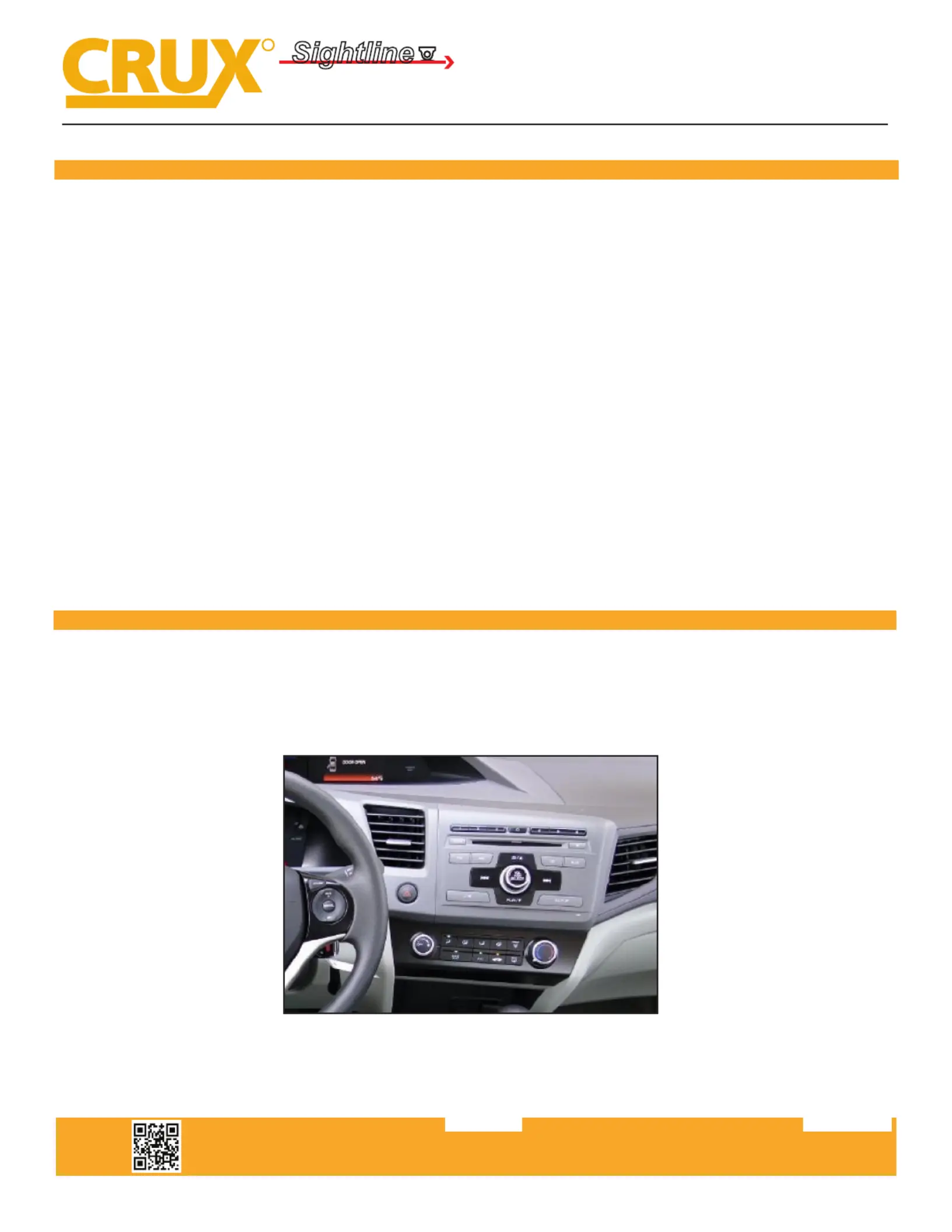

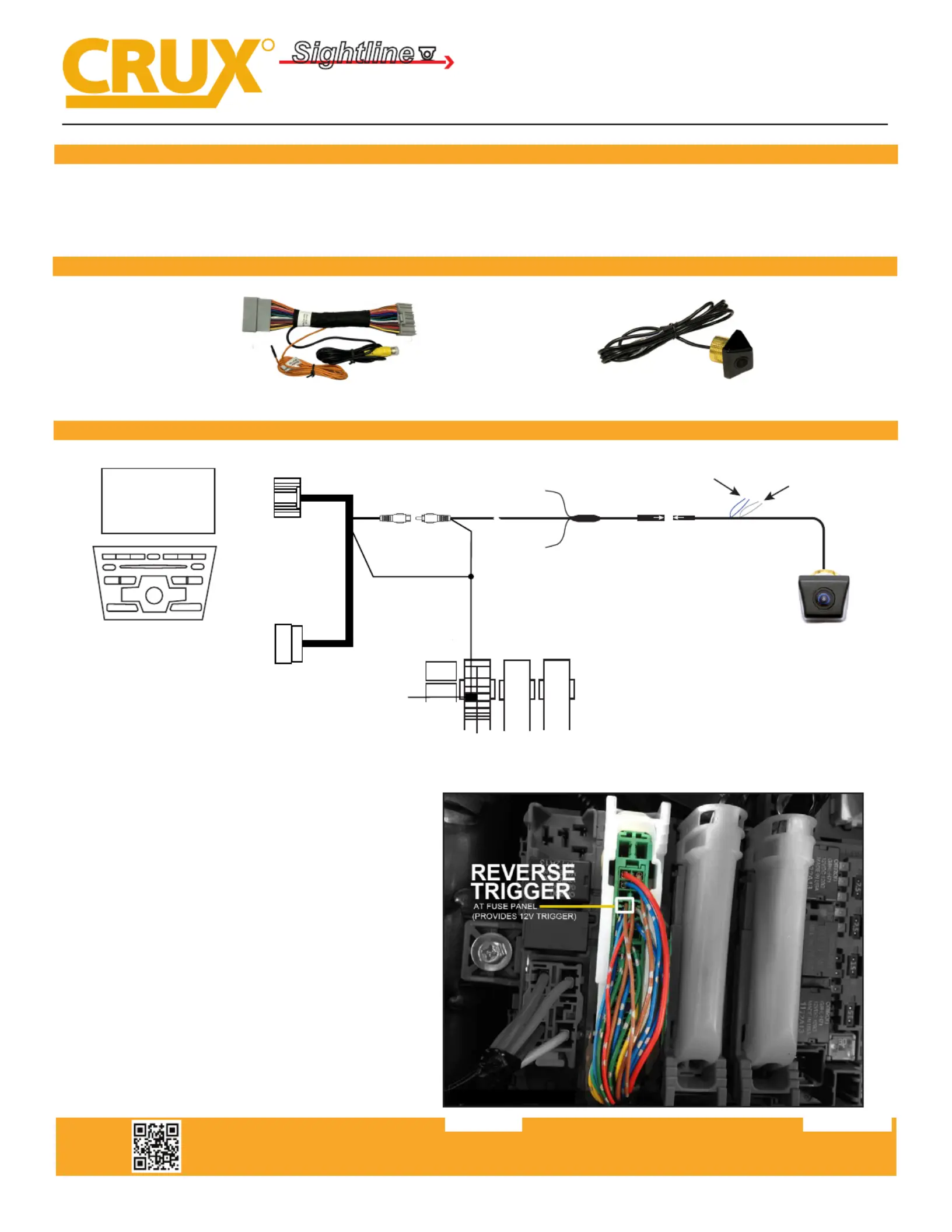

RVCHN-76C

Rear View Integration with Lip Mount Camera for

Select Honda Civic Vehicles without Navigation 2012-2013

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.102120

1 of 2

- Automacally switches to rear-view when vehicle is in reverse gear.

- Aermarket lip mount rear view camera included.

- Plug & Play Installaon.

PRODUCT FEATURES:

INSTALLATION DIAGRAM:

Video

Connection

WHITE**

Parking Line

Cut = OFF / Connect = ON

BLUE

(not used

keep connected)

**NOTE: Changes to the parking line option

will take eect after a power cycle.

Camera Power

Regulator

*Camera Ground

(to chassis)

Red wire

Not Used (Insulate)

Make sure the arrows

line up and push in

the connectors well.

Factory

Screen

Radio

To factory

screen

To factory

harness

Green Connector at fuse Panel

(Driver’s left kick panel)

Pin 4

Brown/Silver dots wire

(Reverse Camera Trigger)

Orange Wire

(reverse trigger)

Use a length of 18 gauge wire (not included)

and tap the RED camera power wire from the

Yellow RCA and ORANGE reverse trigger wire to

pin# 4 (BROWN/SILVER dots) wire on the Green

connector in the fuse panel. This is the factory

reverse trigger wire.

PARTS INCLUDED:

RVCHN-76C Harness CUL-03 Lip Mount Camera

RVCHN-76C

Rear View Integration with Lip Mount Camera for

Select Honda Civic Vehicles without Navigation 2012-2013

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.102120

2 of 2

VEHICLE APPLICATIONS:

HONDA

2012 - 2013 Civic

1. Remove the rear trunk panel cover.

2. Drill a 5/8” hole using the hole saw included on the lip under the Honda emblem. Drill the hole at the

as close as you can to the center of the vehicle.

3. Fish the camera cable through 5/8” hole. Do not secure the camera yet unl aer tesng the viewing

angle.

4. Plug the 4 pin barrel connector of the camera cable to the extension cable provided.

5. Route the cable towards the radio locaon.

6. Remove the radio to gain access to the factory screen.

7. Plug the Yellow male RCA of the extension cable to the Yellow female RCA of the RVCHN-76C harness.

8. Unplug the 32 pin connector from behind the screen and plug it to the RVCHN-76C t-harness. Plug the

other end of the t-harness to the screen.

9. Tap the red wire coming out of the Yellow RCA and the Orange reverse trigger wire from the

RVCHN-76C t-harness to the BROWN/SILVER dots reverse wire found at the fuse panel.

10. Test the camera for funconality before installing.

INSTALLING THE CAMERA:

NOTE:

Compable on vehicles WITHOUT Navigaon opon.
