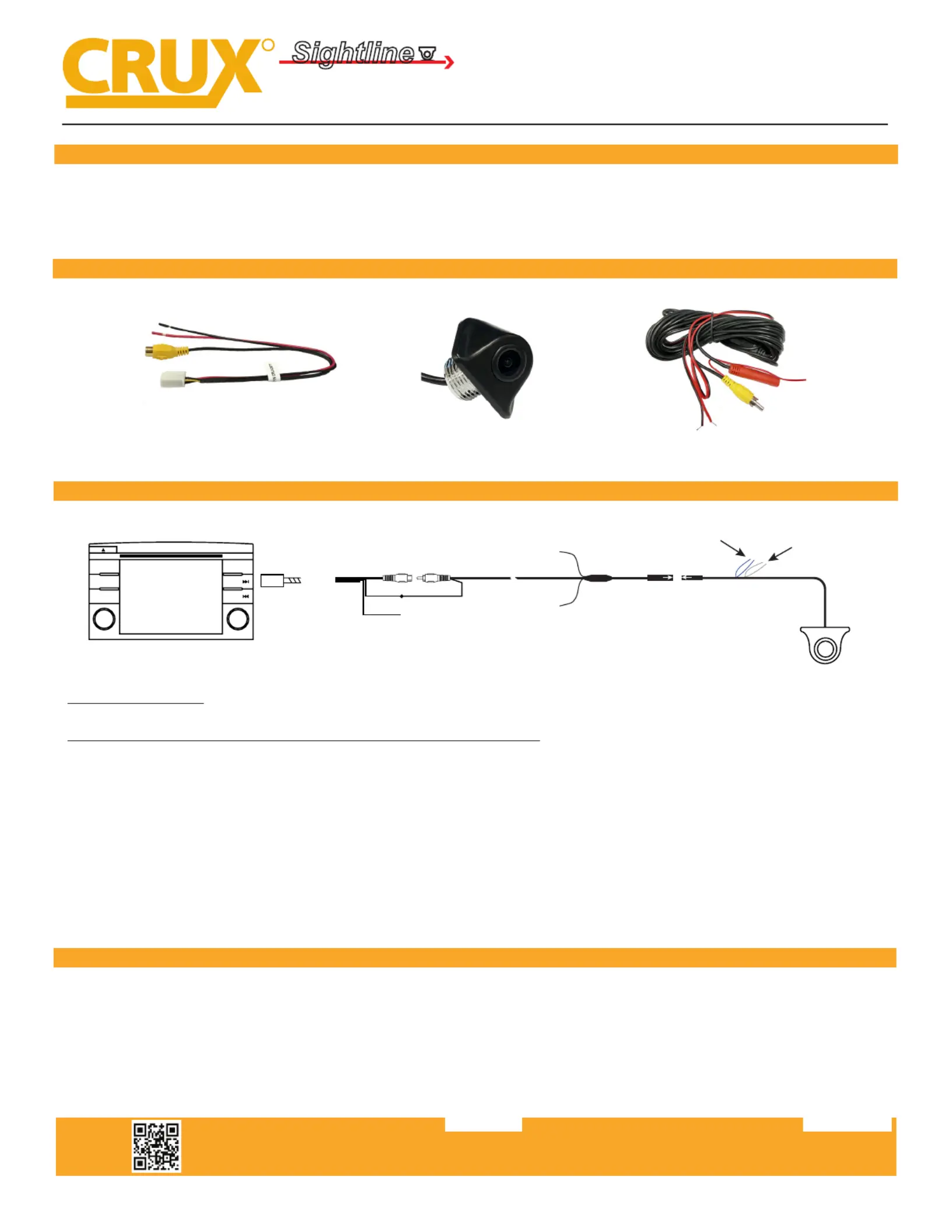

RVCMZ-72

Rear View Integration with Lip Mount Camera

for Select Mazda Vehicles

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.1103201 of 1

- Automacally switches to rear-view when vehicle is in reverse gear.

- Includes universal lip mounted camera.

- Plug and play installaon.

PRODUCT FEATURES:

INSTALLATION DIAGRAM:

Installing the Camera

NOTE: Test the camera for funconality prior to nalizing the installaon.

1. Remove the rear panel between the Mazda emblem and license plate using a panel removal tool.

2. Drill a 5/8” size hole in the locaon.

3. Fish the camera cable through the drilled hole into the trunk area.

4. Remove the factory radio to gain access to the connectors.

5. Route the camera cable towards the radio and mke the power and video connecons. Tap the red wire from the camera

cable (coming out of the yellow RCA) to the red wire of the RVCMZ-72 harness. The red wire (near the camera) is NOT used.

Insulate it to prevent it from shorng. Tap the ground wire (black) near the camera to a solid chassis ground. If for some

reason video noise is present, the RVCMZ-72 provides a ground wire which can then be used to ground the camera instead of

using chassis ground. See diagram for reference.

VEHICLE APPLICATIONS:

2013 - 2015 CX-5

2007 - 2012 CX-7

2007 - 2015 CX-9

2011 - 2015 Mazda6

PHONE

SETUP

SEEK

Factory

Radio

AUDIO

NAV

VOL TUNE/FILE

4-Pin

(Female Plug)

Video

Connection

WHITE**

Parking Line

Cut = OFF / Connect = ON

BLUE

(not used

keep connected)

**NOTE: Changes to the parking line option

will take eect after a power cycle.

Camera Power

Regulator

*Camera Ground

(to chassis)

Red wire

Not Used (Insulate)

Make sure the arrows

line up and push in

the connectors well.

*Ground “A”

*NOTE on Grounding the Camera:

If video noise is present when using chassis ground,

run a wire from Ground “A” to the camera ground instead.

PARTS INCLUDED:

RVCMZ-72 Harness CUL-04 Camera 20 . Extension Cable

Mazda (with factory screen)
