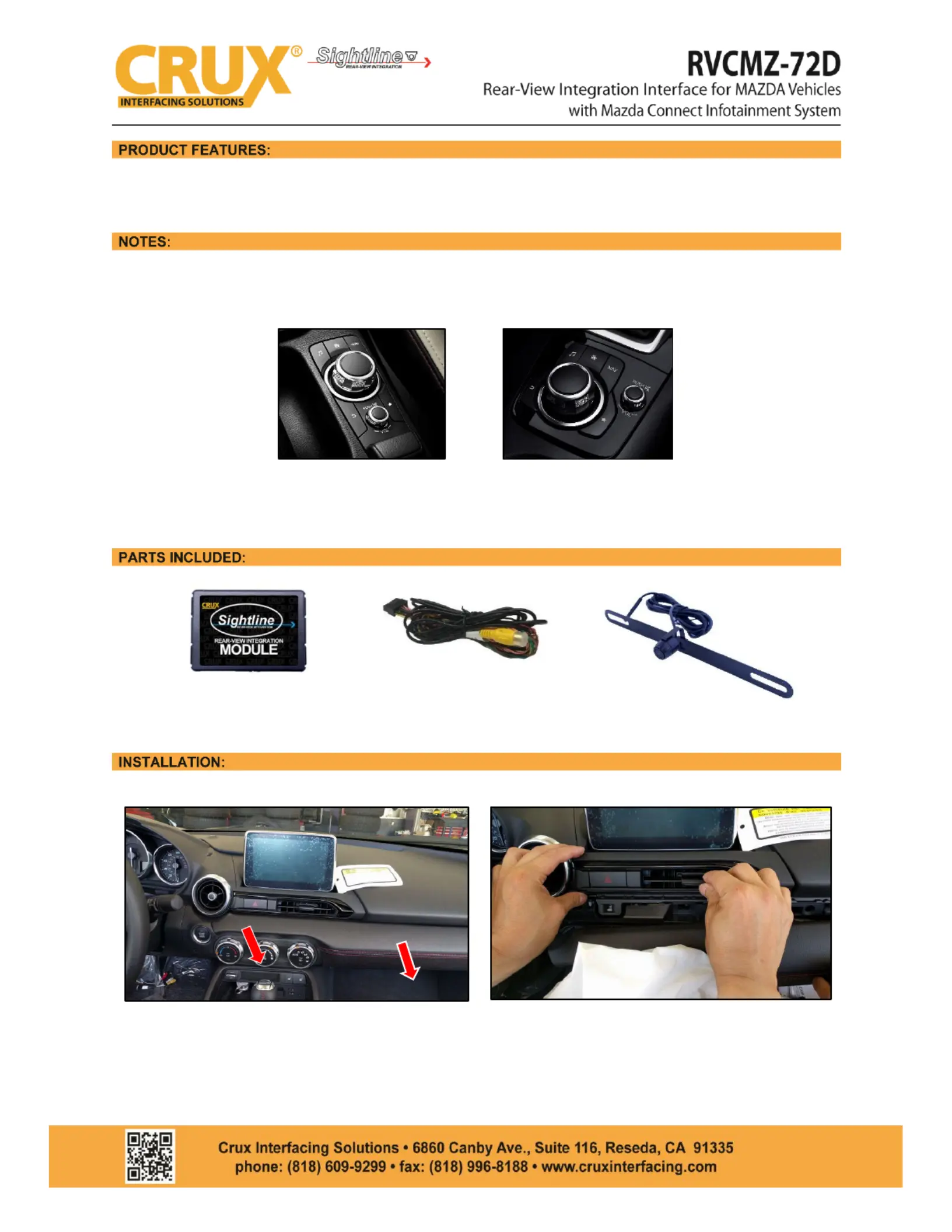

- Adds a reverse camera input on select Mazda vehicles.

- Includes universal license plate camera.a

1. Vehicle must be equipped with a touch screen Mazda Connect Infotainment system and a 7”

knob control behind the shifter.

2. The provided RCA cable with female pins must be inserted into the connector behind the OEM

screen.

RVCMZ- D MODULE 72

RVCMZ-72D HARNESS

LICENSE PLATE CAMERA

2017 Mazda MX-5 (Miata dash removal: Some pictures are of a Mazda 3 but similar in removal.)

1. Partially remove dash trim below the AC vent by

gently pulling towards you with a panel

remover. Avoid removing it completely as it will

be difficult to put back in.

2. With the dash trim out of the way, remove

the AC vent by gently pulling it out. Use a

panel removal tool if necessary.

1/4

rev.110419

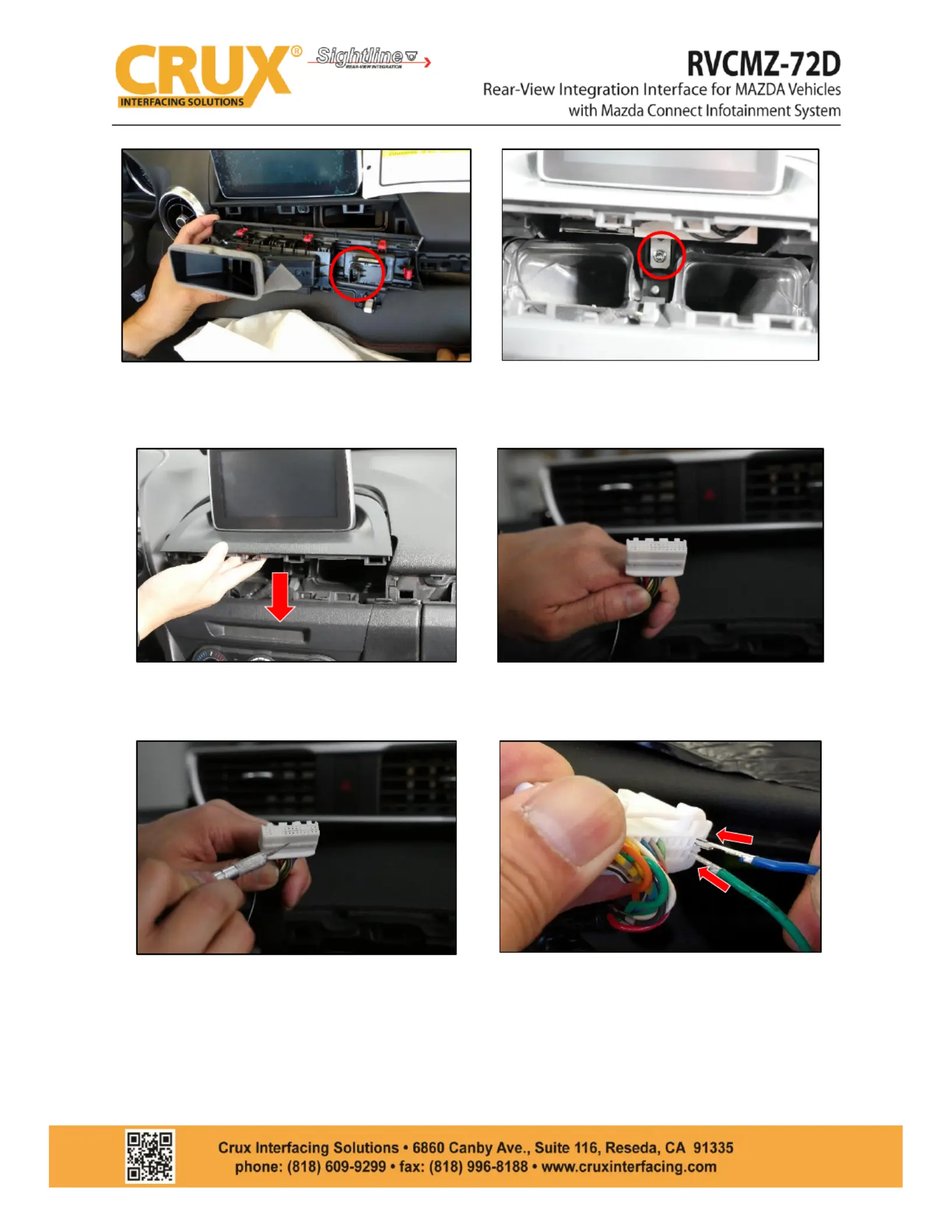

3. Unplug the hazard light connector from behind

the AC vent.

4. With the AC vent removed, unscrew the

10mm bolt holding the radio screen.

5. Once the 10mm bolt is removed, the radio

screen assembly is secured with clips. Gently

pull the assembly until it pops out.

6. Unplug the 28 pin connector from behind

the radio screen.

7. Release the terminal lock by pulling it up with a

pry tool or any pointed tool. The terminal lock

does not fully remove!

8. Connect the video ouput wires by inserting

the BLUE wire (Video signal ground) into PIN

1 and the GREEN wire (Video signal +) into

PIN 15. Make sure that the pins are inserted

far enough into the connector to lock in

place. Press down the terminal lock to lock

pins in place.
