RVCNS-74F
Rear View Camera Integration with Tailgate Handle
Camera for Nissan Frontier with 4.3” Screen
1 of 3

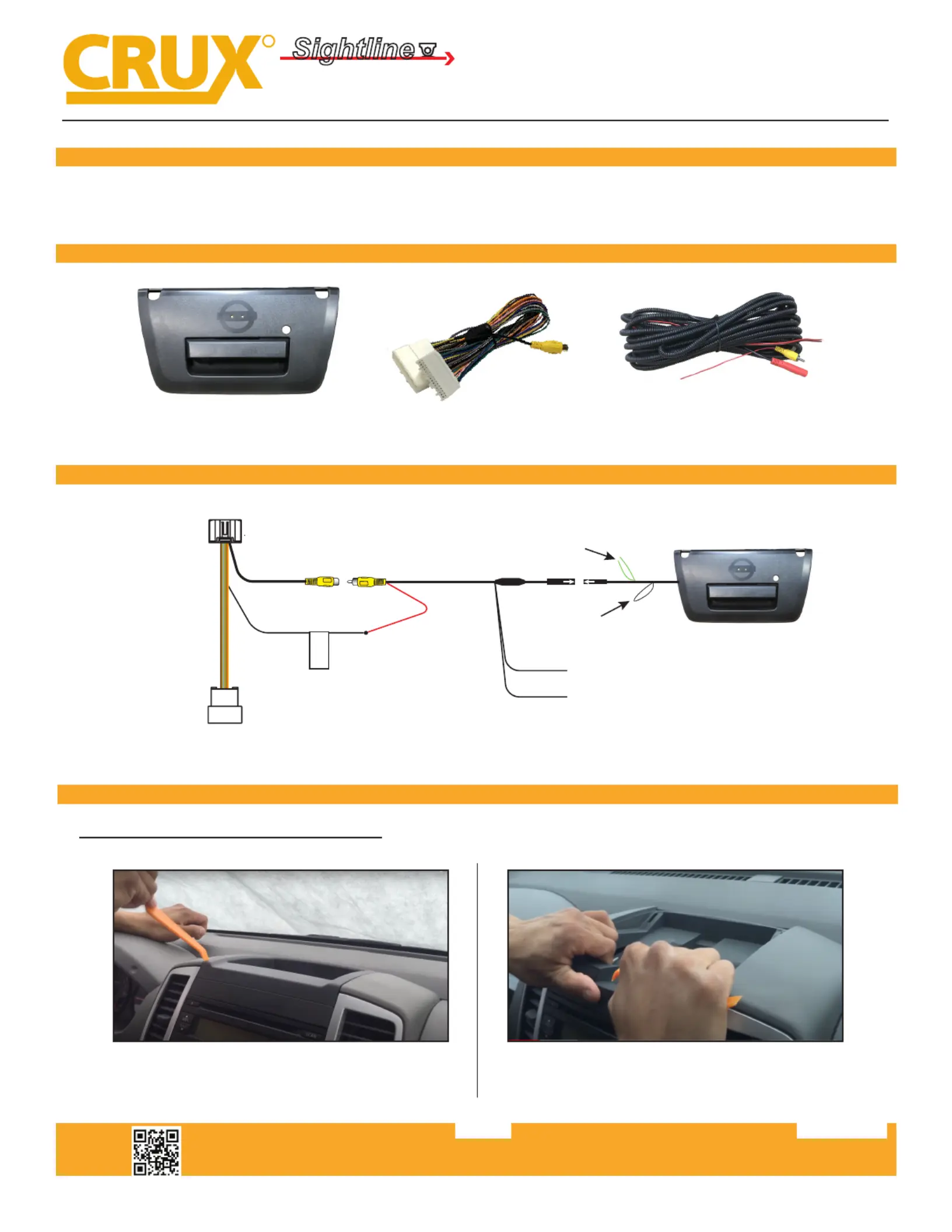

PRODUCT FEATURES:
PARTS INCLUDED:
- Allows the integraon of an aermarket backup camera to the factory radio.
- Plug and play wiring for easy installaon.
Froner Tailgate Handle Camera RVCNS-74F T-Harness 26’ Extension Cable
INSTALLATION DIAGRAM:
32 Pin
(Female)
32 Pin
(Male)
To Radio
To Vehicle
Harness
GREEN Wire
Parking Guide Lines
(cut to remove parking lines)
+12V Red
(tap to +12V Backup Light wire)
Ground - Black
(tap to Backup Light ground wire)
WHITE Wire
(not used, leave connected)
Reverse
Gear
1. Remove the dash panel above the radio using a pry
tool.
2. Carefully pull out the radio trim bezel.
INSTALLATION INSTRUCTIONS:
RVCNS-74F Installaon at the Radio:
3. Use the pry tool to pull put the corners of the radio
trim bezel.
4. Unplug the factory radio connector and plug it into
the RVCNS-74F t-harness.
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.081120
RVCNS-74F
Rear View Camera Integration with Tailgate Handle
Camera for Nissan Frontier with 4.3” Screen
2 of 3

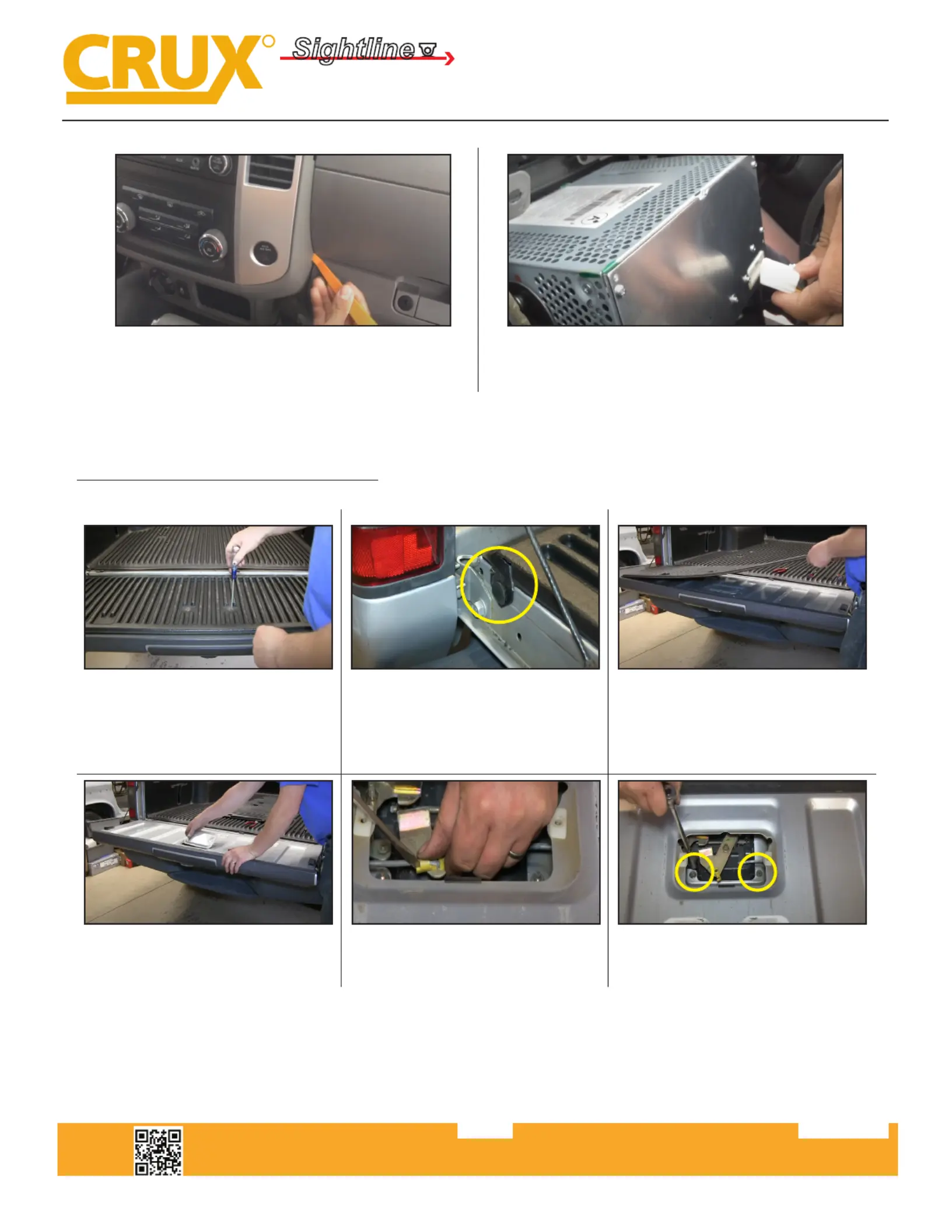

1. Remove the screws holding
the tailgate liner.
2. Use a pry tool and pull out 2
plasc rivets on both sides of the
tailgate.
3. Remove the tailgate liner.
4. Remove the cover plate under
the tailgate liner.
5. Use a screwdriver to remove
the rod retaining clips.
6. Remove the two 10mm nuts
securing the tailgate handle.
Tailgate Handle Camera Installaon:
