RVCNF-74U

Rear View Camera Integration with License Plate

Camera for Select Nissan Vehicles with 4.3” Screen

1 of 3

PRODUCT FEATURES:

PARTS INCLUDED:

- Allows the integraon of an aermarket backup camera to the factory radio.

- Plug and play wiring for easy installaon.

Universal License Plate Camera RVCNS-74U T-Harness 26’ Extension Cable

INSTALLATION DIAGRAM:

32 Pin

(Female)

32 Pin

(Male)

To Radio

To Vehicle

Harness

WHITE Wire

Parking Guide Lines

(cut to remove parking lines)

+12V Red

(tap to +12V Backup Light wire)

Ground - Black

(tap to Backup Light ground wire)

Reverse

Gear

1. Remove the dash panel above the radio using a pry

tool.

2. Carefully pull out the radio trim bezel.

INSTALLATION INSTRUCTIONS:

RVCNS-74U Installaon at the Radio:

3. Use the pry tool to pull put the corners of the radio

trim bezel.

4. Unplug the factory radio connector and plug it into

the RVCNS-74U t-harness.

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.081120

RVCNS-74U

Rear View Camera Integration with License Plate

Camera for Select Nissan Vehicles with 4.3” Screen

2 of 3

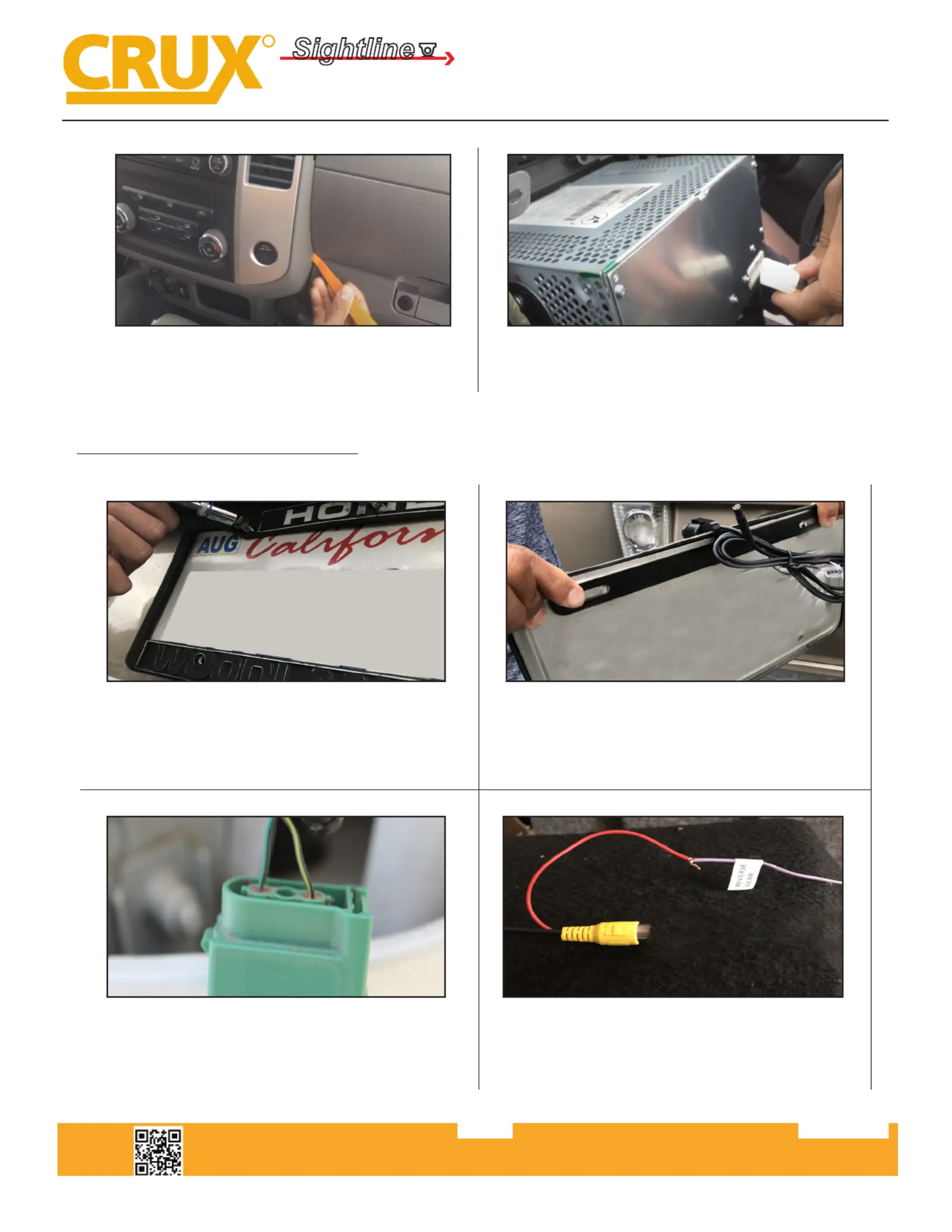

1. Remove the rear license plate. 2. Mount the license plate camera with the bar

behind the license plate. Run the extension

cable towards the radio.

3. Tap the Red wire on the extension cable to +12V on

the reverse light. Tap the black wire to ground. See

diagram on page 1.

4. Tap the Red wire on the Yellow RCA connector to

the wire on the T-harness labeled “Reverse Gear”.

See diagram on page 1.

License Plate Camera Installaon:
