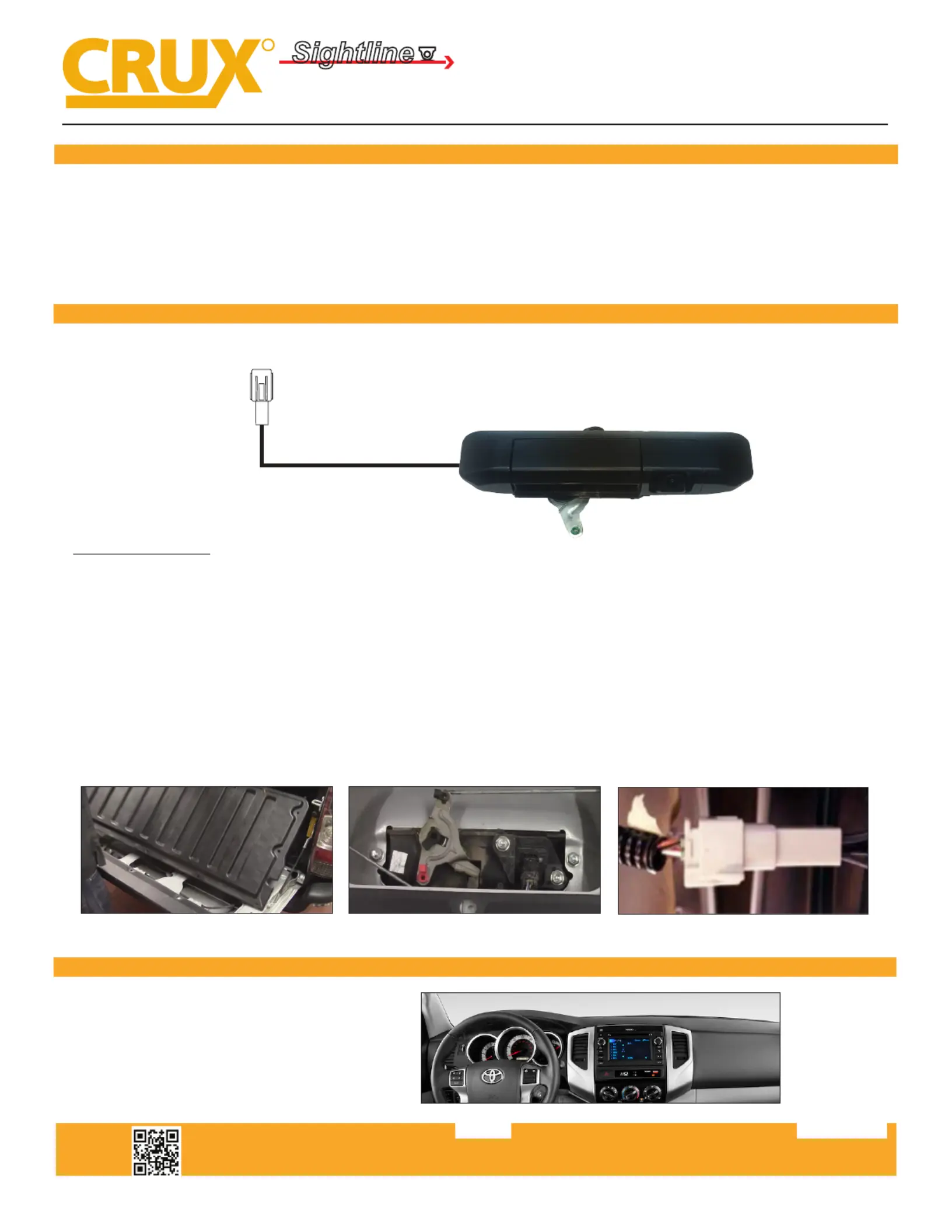

RVCTY-71H

Rear View Integration with Tailgate Handle Camera

for Toyota Tacoma Truck 2014-2015

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.053019

1 of 1

- Automacally switches to rear-view when vehicle is in reverse gear.

- Replaces the factory tailgate handle and adds a backup camera.

- 170 degree wide view angle for excellent visibility.

- Super CMOS technology provides a sharper picture day or night.

- Maintains the OEM look.

- Plug and play installaon.

PRODUCT FEATURES:

4-Pin

(Male plug to factory pre-wire)

INSTALLATION DIAGRAM:

Installing the Camera

1. Start by lowering the tailgate of the truck. Remove the screws that secure the tailgate cover. (g. 1)

2. Aer removing the tailgate cover you will have access to the backside of the factory tailgate handle. Using a 10mm socket,

remove the (2) nuts holding the tailgate handle in place. Undo the tailgate latch rods. Li up on the latch to release the (2)

tailgate handle studs and remove the tailgate handle. (g. 2)

3. Install the new tailgate handle into the tailgate in reverse order. Do not put back the tailgate cover unl aer tesng the

camera.

4. Connect the 4-Pin plug of the Camera Harness to the factory connector underneath the truck, near the spare re. (g. 3)

5. Disconnect the negave baery terminal for a few seconds and reconnect to reset the factory system and recognize the new

camera.

6. Test the camera for funconality by pung the vehicle in reverse gear.

7. Re-install the tailgate cover.

g. 3

VEHICLE APPLICATIONS:

2014 - 2015 Toyota Tacoma

g. 1 g. 2
