SOCGM-18L

Radio Replacement Interface for

GM LAN v2 (LIN) Bus Vehicles

1 of 2

RAD IO RE PLACEME NT

SWC R ETEN TIO N

INTERFACING SOLUTIONS

- Retains factory features in select GM LAN V2 (LIN) Bus vehicles while functioning with an aftermarket radio.

- Supports non-amplied Systems only.

- Retains chime functions.

- Retains RAP (Retained Accessory Power).

PRODUCT FEATURES:

PARTS INCLUDED:

SOCGM-18L Module SOCGM-18L Harness Antenna Adapter

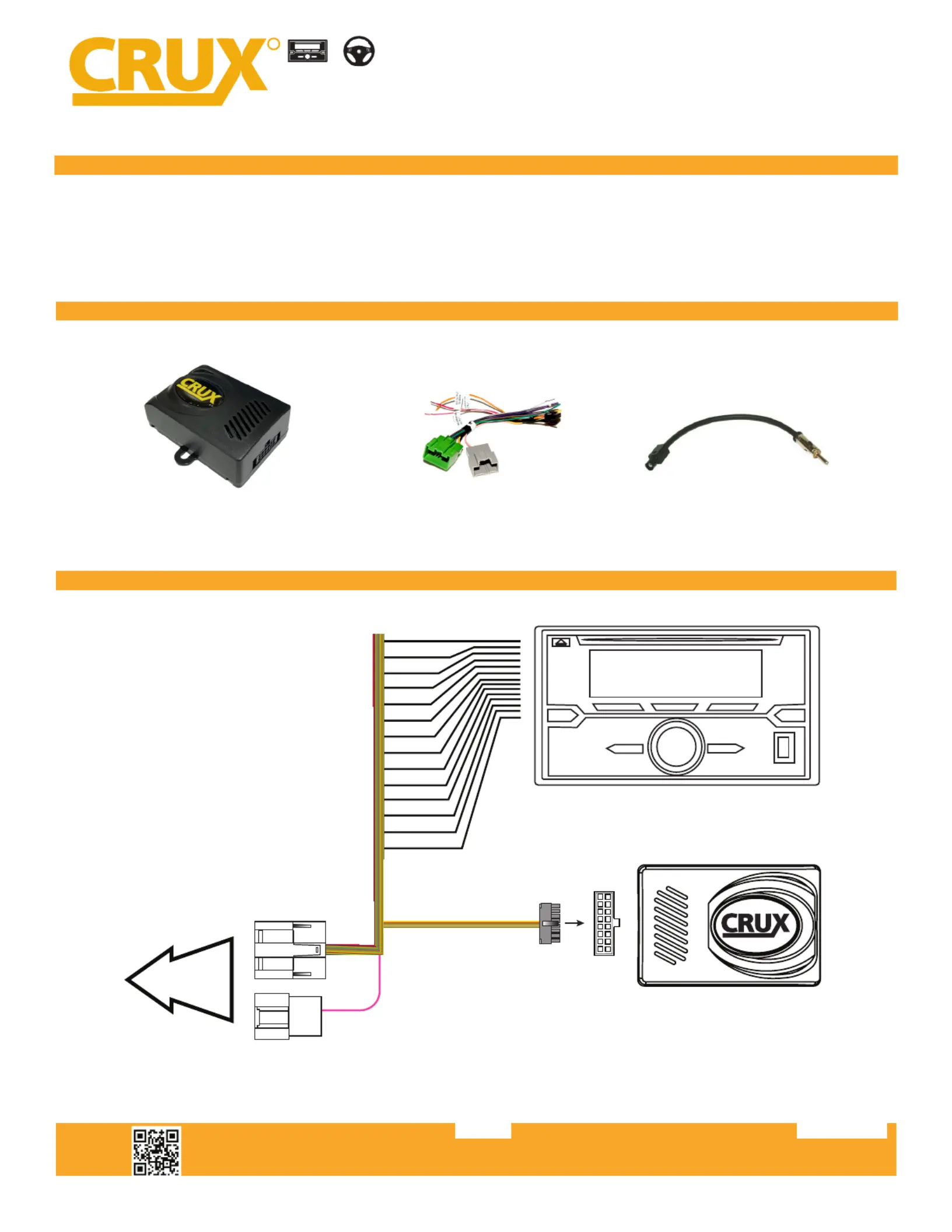

INSTALLATION DIAGRAM:

AFTERMARKET

RADIO

Reverse Red/White

























TO FACTORY

HARNESS

16-Pin Black

Connector

16-Pin Green

Connector

20-Pin Gray

Connector

INTERFACING SO LUT IONS

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.071720

SOCGM-18L

Radio Replacement Interface for

GM LAN v2 (LIN) Bus Vehicles

2 of 2

RAD IO RE PLACEME NT

SWC R ETEN TIO N

INTERFACING SOLUTIONS

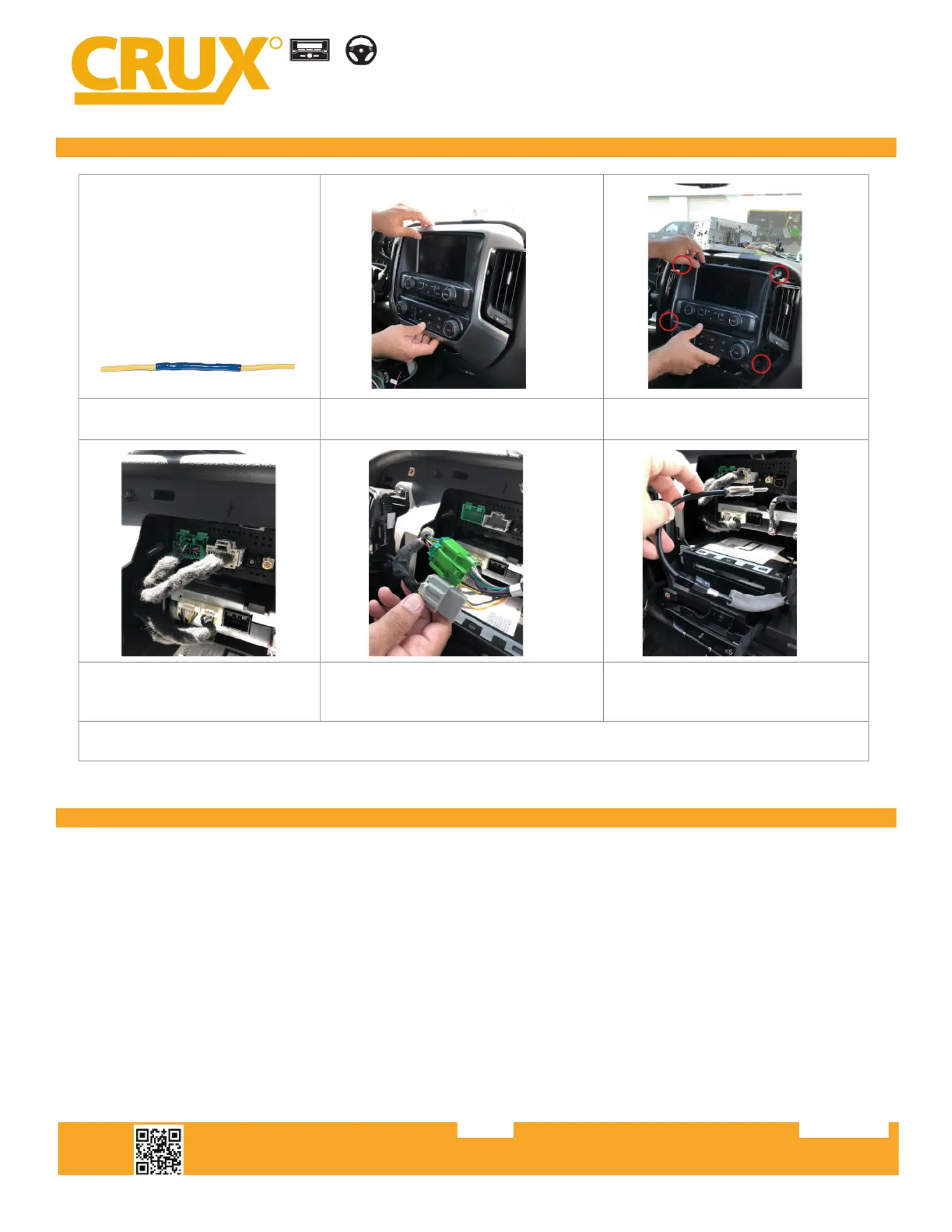

INSTALLATION INSTRUCTIONS:

1. Connect the aermarket radio’s

power/speaker harness to the SOCGM-

18L T-Harness using the Installaon

Diagram on page 1. Use good quality

crimp caps or bu splice for a

secure connecon. Solder and heat

shrinking the connecons is highly

recommended.

2. Carefully remove the radio trim with a plasc

pry tool and pull outward.

3. Remove the radio bezel by removing the

4 screws on the corners.

4. Unplug the GREEN and GRAY

connectors from the headunit.

5. Plug the GREEN and GRAY connectors to the

SOCGM-18L T-Harness.

6. Use the supplied antenna adapter to plug

between the OE antenna connector and

aermarket radio antenna port.

7. Use a dash kit (not included) for a clean install. Test the radio for funconality. Test the chime and Retained Accessory Power (RAP)

funcons. Reverse the process to install the new aermarket radio.

VEHICLE APPLICATIONS:

BUICK

2017

2016

2014 - 2015

CADILLAC

2015 - 2016

2014 - 2015

2015

2015 - 2016

2017

Envision

LaCrosse

Regal

ATS

CTS

Escalade

SRX

ET5

CHEVROLET

2018

2015 - 2016

2017 - 2018

2016

2014 - 2016

2017 - 2019

2016 – 2018

2014 – 2016

2017 - 2018

2015 – 2019

Camaro (w/ 8” iO5/iO6)

Colorado

Colorado (w/ 8” iO5/iO6)

Cruze

Impala (w/ 8” iO5/iO6)

Malibu (w/ 8” iO5/iO6)

Silverado

Silverado (w/ 8” iO5/iO6)

Suburban

Tahoe

GMC

2017

2015 – 2016

2014 – 2016

2017 - 2018

2015 - 2016

2017 - 2019

2015 - 2019

Acadia (w/ 8” iO5/iO6)

Canyon

Sierra

Sierra w/ 8” iO5/iO6)

Sierra HD

Sierra HD w/ 8” iO5/iO6)

Yukon / XL
