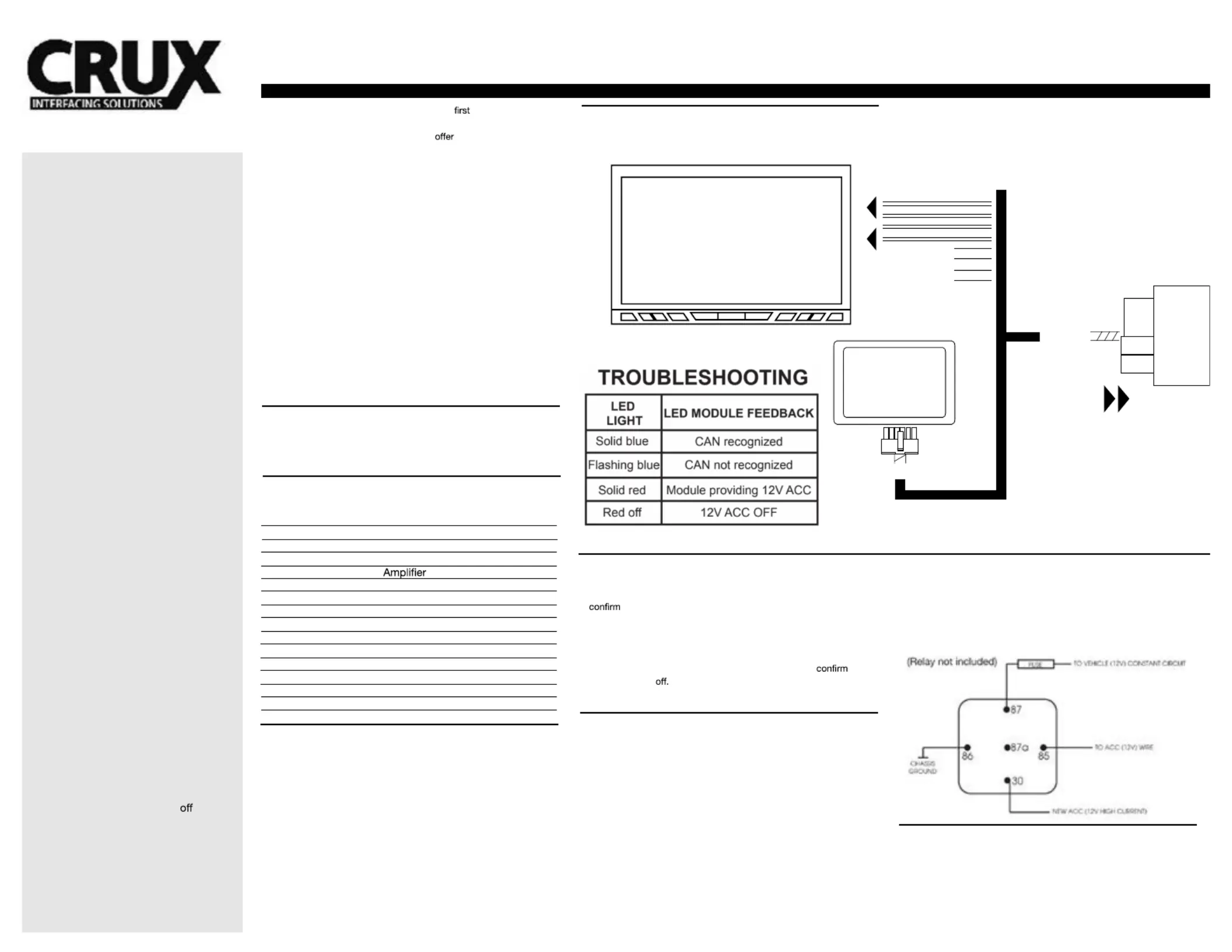

Side 1/1

front left speakers

front right speakers

rear left speakers

rear right speakers

constant

accessory

ground

amp on

MATCH LOOSE WIRES TO AFTERMARKET RADIO

TO FACTORY

HARNESS

AFTERMARKET

RADIO

40-PIN

(female plug)

12-PIN

Black = Ground

Red = Accessory (2A Max)

Yellow = Constant

Orange = Illumination (100mA Max)

Blue/White =

Turn-On

White = Left Front (+)

White/Black = Left Front (-)

Gray = Right Front (+)

Gray/Black = Right Front (-)

Green = Left Rear (+)

Green/Black = Left Rear (-)

Purple = Right Rear (+)

Purple/Black = Right Rear (-)

Purple/White = VSS

Red/White = Reverse (100mA Max)

We recommend reading this installation guide before starting any

work. Following these instructions from “Start” to” Finish” will ensure

a smooth and hassle free installation. We

telephone support M-F

9:00 AM – 5:00 PM PDT at 1 (855) 822-1348. We are here to help.

PARTS INCLUDED:

(1) Interface Module

(2) VW Harness

(1) Instruction Sheet

PRECAUTIONS:

- Remove the negative side of the battery to avoid any short circuits

during the installation.

- Do not install the interface near any major components or near the

HVAC system. This may cause damage or overheating to the vehicle.

PRELIMINARY:

Please read the entire manual before installing this interface.

Before installing this interface please review the options before

removing the factory radio. Some options may need to be adjusted

prior to removing the factory radio.

RADIO REPLACEMENT FOR SELECT VOLKSWAGEN VEHICLES 2002-UP

VOLKSWAGEN

2012 - 2014 Beetle

2009 - 2014 CC

2006 - 2012 Eos

2002 - 2014 Golf

2006 - 2014 GTI

2002 - 2014 Jetta

2002 - 2014 Passat

2006 - 2011 Rabbit

2009 - 2014 Tiguan

2004 - 2010 Touareg

IMPORTANT NOTES:

1. Driver information display will show the

last information that was shown prior to

removing the factory radio.

2. This interface does not retain the factory

Bluetooth or Sirius SAT radio.

3. The radio is designed to shut

when

the key is removed.

2010 and Up vehicles with a premium

sound

system do not retain the RAP feature

SOCVW-21

WIRING COLOR CODES

The module has been rated for up to max of output. 2A

For applications demanding a continuous output of 3A or more,

we recommend using a standard BOSCH (SPDT) relay.

See your local car audio specialist.

Below is a diagram on how to install the BOSCH relay.

OVERVIEW OF INSTALLATION

CONNECT THE WIRES,

COLOR FOR COLOR.

INSTALLATION TIPS

1. Test the radio for power, turn the key to the “ON” position and

that the new radio is getting power. If no power, please

revise your wiring connections with multi-meter, available at your

local car audio dealer.

2. Test the installation by turning the vehicle to the “ON” position,

then back to the “OFF” position. Remove the key and

that

the radio shuts

IMPORTANT:

DO NOT DISCONNECT THE AIRBAG CONNECTOR

BEHIND THE DASH PANEL WHILE KEY IS IN

THE IGNITION.

USING A RELAY

Rev. 050514
