SOOFD-27

Radio Replacement Interface for

FORD, LINCOLN and MERCURY Vehicles

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.081222

1 of 2

- Retains factory features in select FORD, LINCOLN, and MERCURY vehicles while funconing with an

aermarket radio.

- Retains factory Aux-Input and Subwoofer (if equipped).

- Retains RAP (Retained Accessory Power) feature.

- EIA color coded wiring for easy installaon.

PRODUCT FEATURES:

PARTS INCLUDED:

SOOFD-27 Module SOOFD-27 Harness

NOTES:

INSTALLATION DIAGRAM:

- Does NOT retain Steering Wheel Controls.

- Does NOT retain Sync or factory Bluetooth.

- Not compable with factory installed SONY systems and THX systems with amplier.

AFTERMARKET

RADIO

+12V Constant Yellow

+12V ACC Red

Ground Black

 





Power Antenna Blue





 



 



 



 





Subwoofer Input Black RCA

TO FACTORY

HARNESS

16-Pin Black

Connector







RADIO REPLACEMENT

INTERFACING SOLUTIONS

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.081222

2 of 2

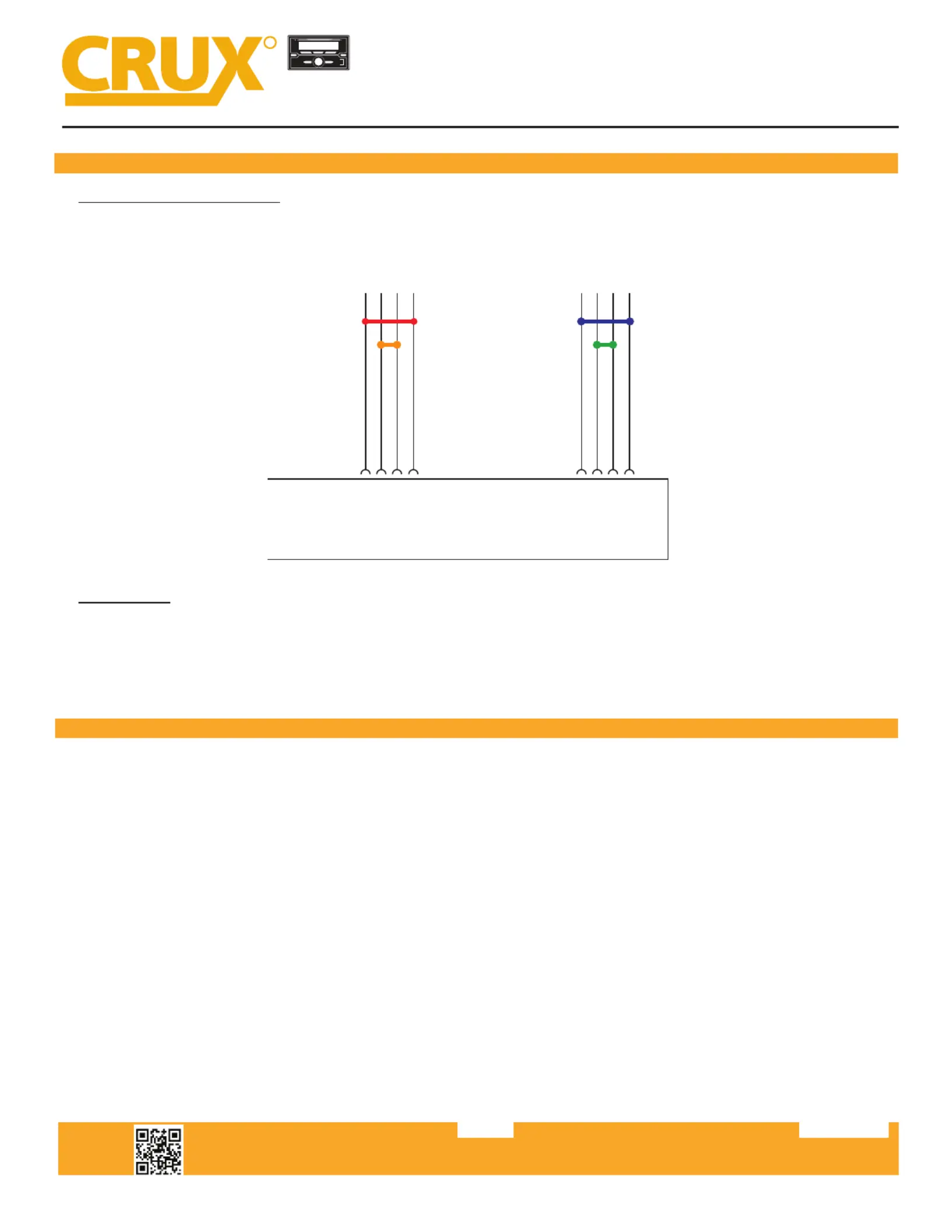

INSTALLATION TIPS:

REAR SPEAKER AUDIO CUTS:

BROWN/WHITE

BROWN/BLUE

REAR R+

RR SPKR+

REAR-

RR SPKR-

BROWN/GREEN

BROWN/YELLOW

32-PIN AUXILIARY AUDIO MODULE

REAR L+

LR SPKR+

LR SPKR-

REAR L-

VEHICLE APPLICATIONS:

FORD

2007-2010 Edge

2008-2012 Escape

2007-2012 Expedion

2006-2010 Explorer

2007-2010 Explorer Sport Trac

2009-2012 F-150

2008-2012 F-250

2008-2012 F-350

2005-2007 Five Hundred

2008-2011 Focus

2004-2007 Freestar

2006-2007 Freestyle

2006-2012 Fusion

2005-2012 Mustang

2008-2012 Taurus

LINCOLN

2009-2011 MKS

2007-2010 MKX

2007-2010 MKZ

2007-2012 Navigator

2006-2006 Zephyr

MERCURY

2007-2010 Mariner

2006-2010 Milan

2006-2010 Mountaineer

2008-2009 Sable

SOOFD-27

Radio Replacement Interface for

FORD, LINCOLN and MERCURY Vehicles

RADIO REPLACEMENT

INTERFACING SOLUTIONS

For vehicles with Rear Seat Entertainment, you may encounter the audio cung out through the rear speakers.

To correct this issue, you will need to jump wires from the 32-pin input harness of the RSE connector to the

output wires going to the speakers. Follow the diagram below.

RAP Feature:

Test the vehicle’s RAP (Retained Accessory Power) system, close all the doors and turn the key to the “OFF”

posion, access to the radio should stay on. Open the driver’s door to cancel the RAP system, and turn o the

ACC Power.
