Side 1/3

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.113020

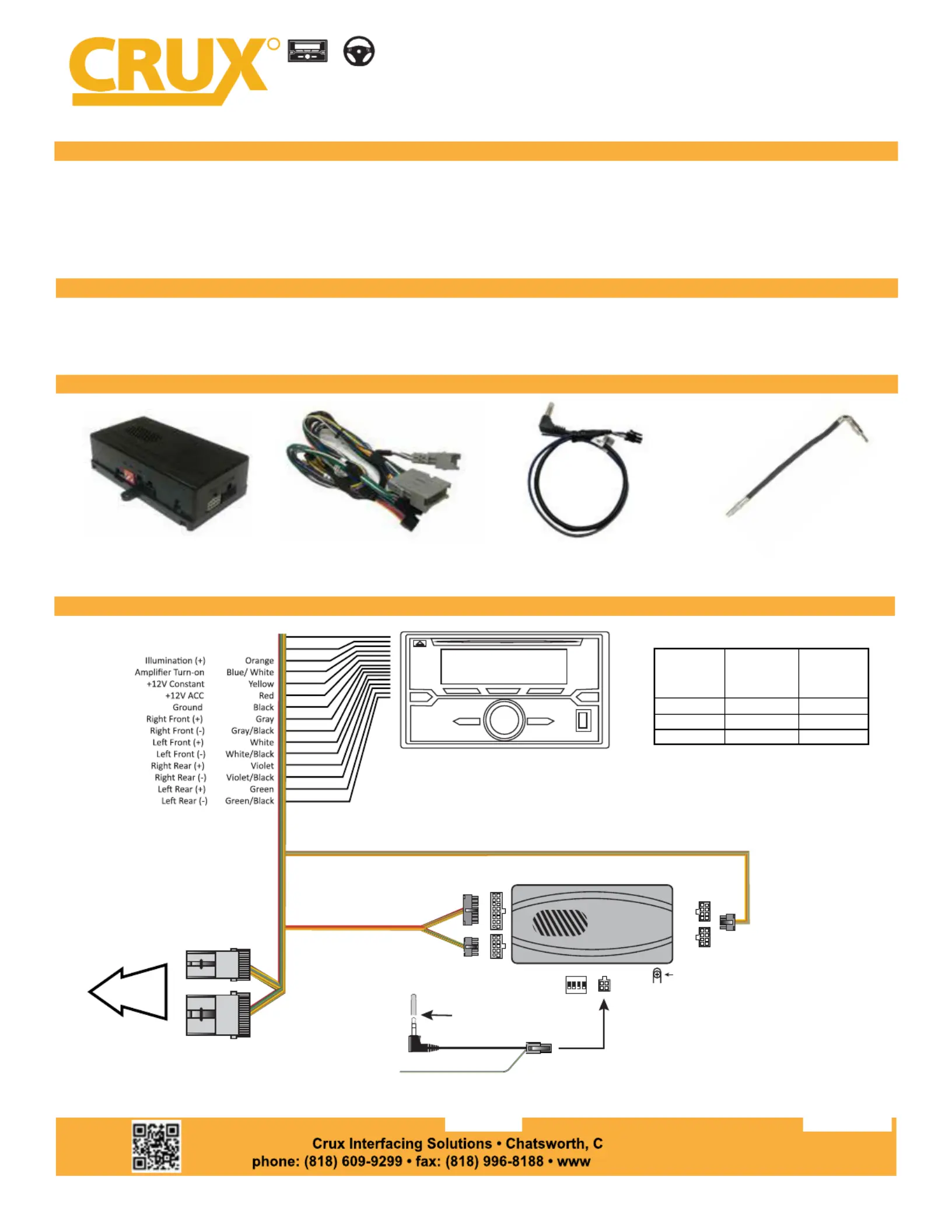

1 of 3

RAD IO REP LA CEMENT

SWC RET ENTIO N

INTERFACING SOLUTIONS

- Retains factory features in select GM Class II Data Bus vehicles while functioning with an aftermarket radio.

- Pre-programmed to retain factory Steering Wheel Controls.

- Supports Bose, non-Bose and Y-91 audio systems.

- Retains OnStar and chime functions.

- EIA color coded wiring for easy installation.

PRODUCT FEATURES:

INSTALLATION DIAGRAM:

AFTERMARKET

RADIO

Reverse Gear Purple/White

Parking Brake Yellow/Black



























TO FACTORY

HARNESS

24-Pin

Connector

8-Pin

Connector

BOSE NON

BOSE

10-Pin

Connector SWC DIP SWC

1 2 3 4

Chime Volume

Adjustment

4-Pin

Connector

Cap or insulate if

not being used

3.5MM SWC CABLE

Plug in the 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

JVC/Kenwood (Blue / Yellow)

To aftermaket

radio SWC wire or

3.5mm port

SOOGM-15

Radio Replacement with OnStar & SWC Retention

for GM Class II Vehicles

SOOGM-15 Module SOOGM-15 Harness SWC Cable Antenna Adapter

NOTES:

1. The Front and Rear fading are not retained on Y-91 Bose System.

2. The OnStar volume output is defaulted to low gain.

3. Does not retain rear seat volume controls.

PARTS INCLUDED:

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.113020

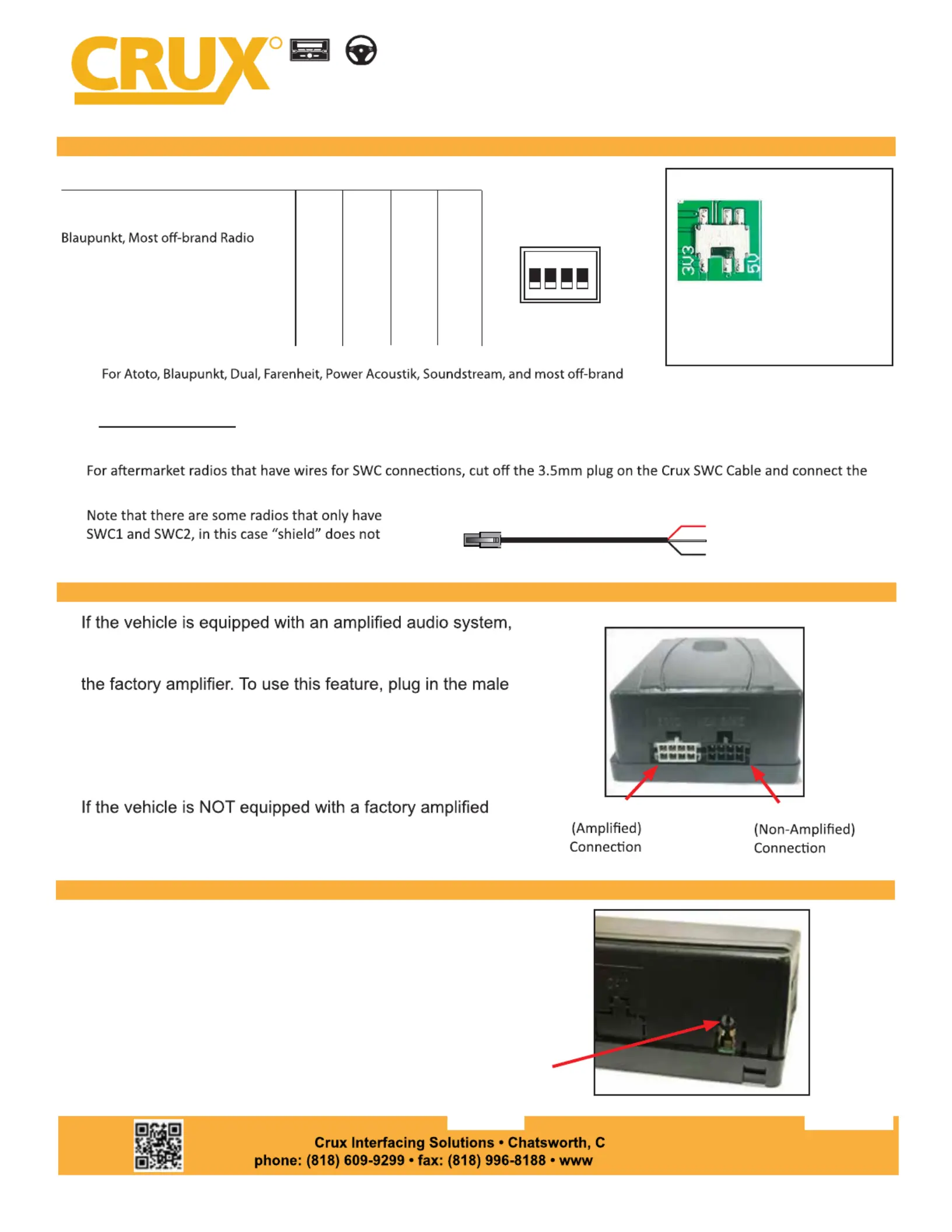

2 of 3

RAD IO REP LA CEMENT

SWC RET ENTIO N

INTERFACING SOLUTIONS

SOOGM-15

Radio Replacement with OnStar & SWC Retention

for GM Class II Vehicles

DIP SWITCH SETTINGS:

RADIO BRAND: DIP#: 1 2 3 4

Atoto, Dual, Fahrenheit, Jensen,

Pioneer, Power Acoustik, Soundstream

Blaupunkt, Most o-brand Radio

Alpine

Clarion

Kenwood

JVC

Boss, Old Sony

New Sony

NOTE: For Atoto, Blaupunkt, Dual, Farenheit, Power Acoustik, Soundstream, and most o-brand radios,

check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.

SWC MODULE

DIP SWITCH

1 2 3 4

OFF OFF ON ON

OFF OFF OFF OFF

OFF ON ON OFF

OFF ON ON ON

OFF ON OFF ON

OFF ON OFF OFF

OFF OFF ON OFF

3.5MM SWC CABLE

Plug in the 3.5MM to 4-Pin SWC cable to the SWC module or use the Blue/Yellow wire for JVC and Kenwood.

SELECTING THE AUDIO SYSTEM:

If the vehicle is equipped with an amplied audio system,

the SOOGM-15 has a built-in audio level adaptor that

outputs the proper audio level from the aftermarket radio to

the factory amplier. To use this feature, plug in the male

8-pin connector on the SOOGM-15 harness to the GRAY

female 8-pin connector on the SOOGM-15 module. The

module is also labeled “Bose” and “Non Bose” to avoid

confusion. (see picture below)

If the vehicle is NOT equipped with a factory amplied

system, plug in the male 8-pin connector to the BLACK

female 8-pin on the SOOGM-15 module.

Non-BOSE

(Non-Amplied)

Connecon

BOSE

(Amplied)

Connecon

CHIME VOLUME ADJUSTMENT:

The SOOGM-15 has a potentiometer to adjust the

chime volume. It is set at half way by default. To adjust

the volume, simply use a suitable screw driver and turn

the potentiometer clockwise to increase the volume and

counter-clockwise to decrease the volume.

Chime

Volume

Adjustment

RED to SWC Key 1

WHITE to SWC Key 2

SHIELD to SWC Ground

For aermarket radios that have wires for SWC connecons, cut o the 3.5mm plug on the Crux SWC Cable and connect the

SWC wires as follows:

Note that there are some radios that only have

SWC1 and SWC2, in this case “shield” does not

need to be connected.
