Side 1/8

A 91311

.cruxinterfacing.com

rev.0701241 of 8

RADIO REP LACEMENT

SWC RE TENTION

INTERFACING SOLUTIONS

- Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio.

- Pre-programmed to retain factory Steering Wheel Controls.

- Retains OnStar, factory rear view camera and chime functions.

- Retains factory backup sensors / park assist system.

- Supports Bose, non-Bose and Y-91 audio systems.

- EIA color coded wiring for easy installation.

PRODUCT FEATURES:

PARTS INCLUDED:

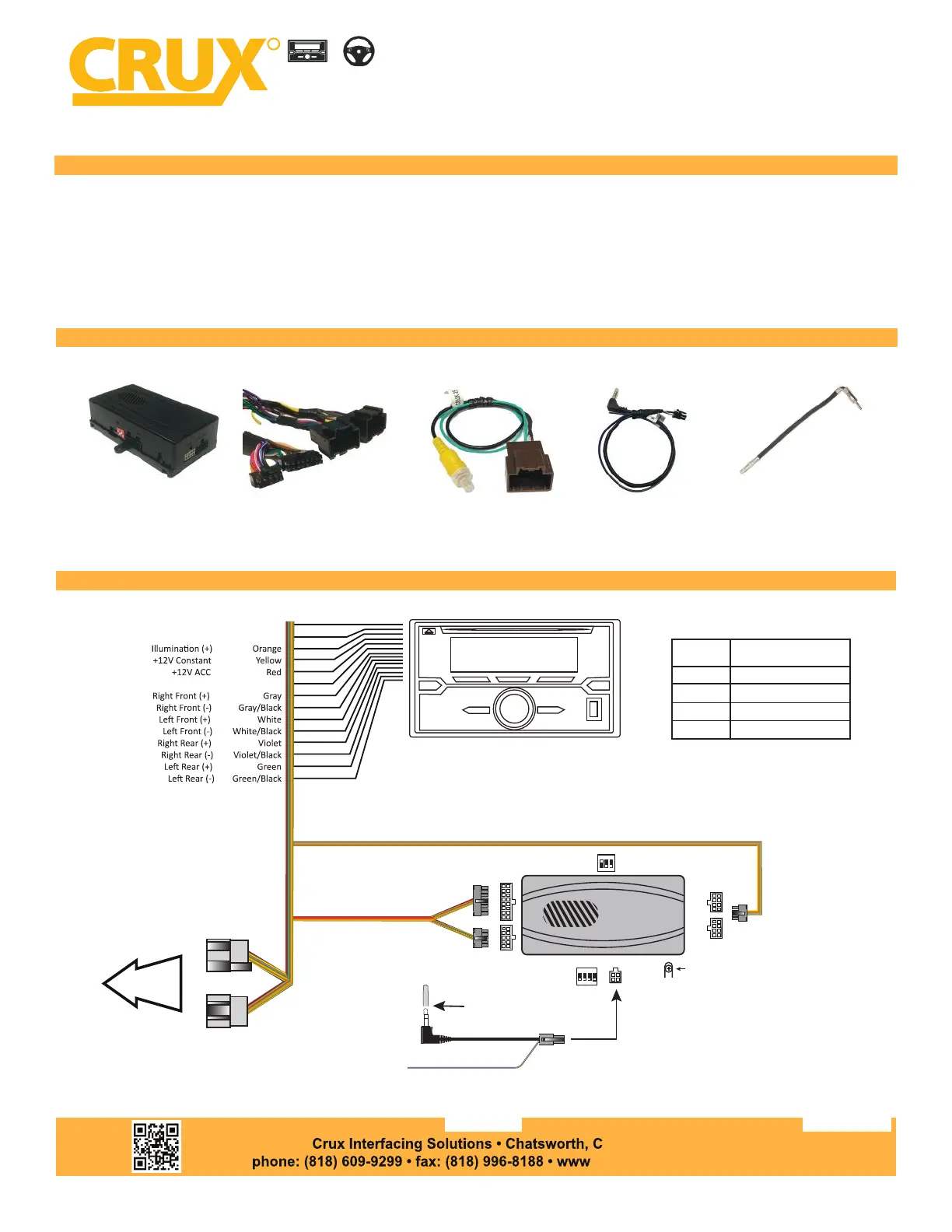

INSTALLATION DIAGRAM:

AFTERMARKET

RADIO

Reverse Gear Red/White

Parking Brake Yellow/Black

Ground Black

TO FACTORY

HARNESS

24-Pin

Connector

8-Pin

Connector

BOSE NON

BOSE

10-Pin

Connector

SWC DIP SWC

1 2 3 4

Chime Volume

Adjustment

1 2 3

VR Activation

for OnStar (set DIP#1 to ON)

4-Pin

Connector

Cap or insulate if

not being used

3.5MM SWC CABLE

Plug in the 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

JVC/Kenwood (Blue / Yellow)

To aftermarket

radio SWC wire or

3.5mm port

SOOGM-16

Radio Replacement with OnStar & SWC Retention

for GM LAN 29 Bit Vehicles 2006 - 2014

SOOGM-16 Module SOOGM-16 Harness Backup Camera Harness SWC Cable Antenna Adapter

TROUBLESHOOTING

LED

LIGHT

LED MODULE FEEDBACK

Solid blue

Flashing blue

Solid red Module providing 12V ACC

CAN not recognized

CAN recognized

12V ACC OFFRed off

A 91311

.cruxinterfacing.com

rev.0701242 of 8

RADIO REP LACEMENT

SWC RE TENTION

INTERFACING SOLUTIONS

SOOGM-16

Radio Replacement with OnStar & SWC Retention

for GM LAN 29 Bit Vehicles 2006 - 2014

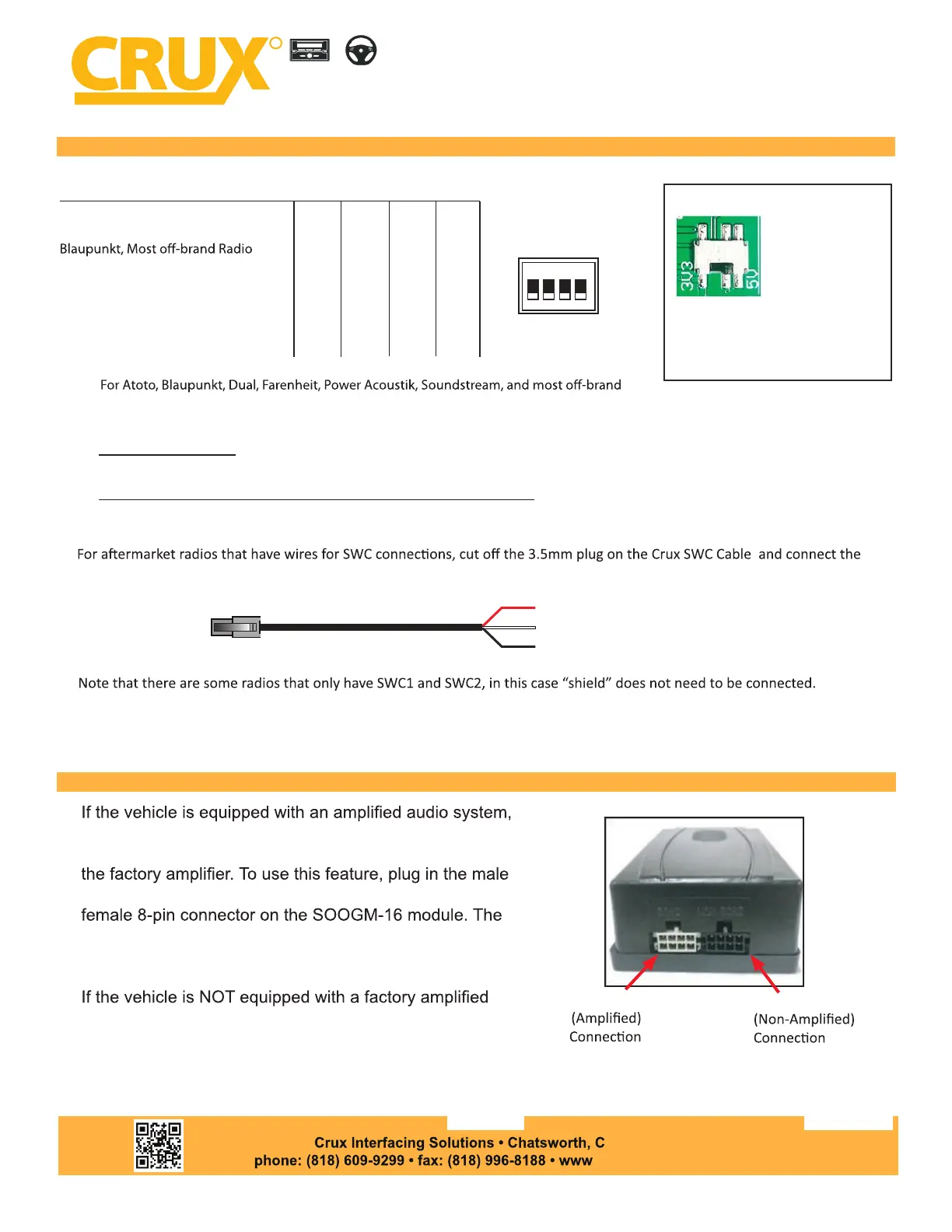

DIP SWITCH SETTINGS:

RADIO BRAND: DIP#: 1 2 3 4

Atoto, Dual, Fahrenheit, Jensen,

Pioneer, Power Acoustik, Soundstream

Alpine

Clarion

Kenwood

JVC

Boss, Old Sony

New Sony

NOTE:

radios, check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.

SWC MODULE

DIP SWITCH

1 2 3 4

OFF OFF ON ON

OFF OFF OFF OFF

OFF ON ON OFF

OFF ON ON ON

OFF ON OFF ON

OFF ON OFF OFF

OFF OFF ON OFF

NOTE: Insulate the Blue/Yellow wire or 3.5mm plug if not being used.

3.5MM SWC CABLE

Plug in the 3.5MM to 4-Pin SWC cable to the SWC module.

SELECTING THE AUDIO SYSTEM:

the SOOGM-16 has a built-in audio level adaptor that

outputs the proper audio level from the aftermarket radio to

8-pin connector on the SOOGM-16 harness to the GRAY

module is also labeled “Bose” and “Non Bose” to avoid

confusion. (see picture below)

system, plug in the male 8-pin connector to the BLACK

female 8-pin on the SOOGM-16 module.

Non-BOSE

BOSE

RED to SWC Key 1

WHITE to SWC Key 2

SHIELD to SWC Ground

SWC wires as follows:

SWC Troubleshoot option

Located internally

Need to take plastic

Casing o module

• If Steering Wheel Controls don’t

work or work properly please switch

internal dip switch from 3v3 to 5v

as shown in picture above.
